POWER UP HAMMER DOWN |

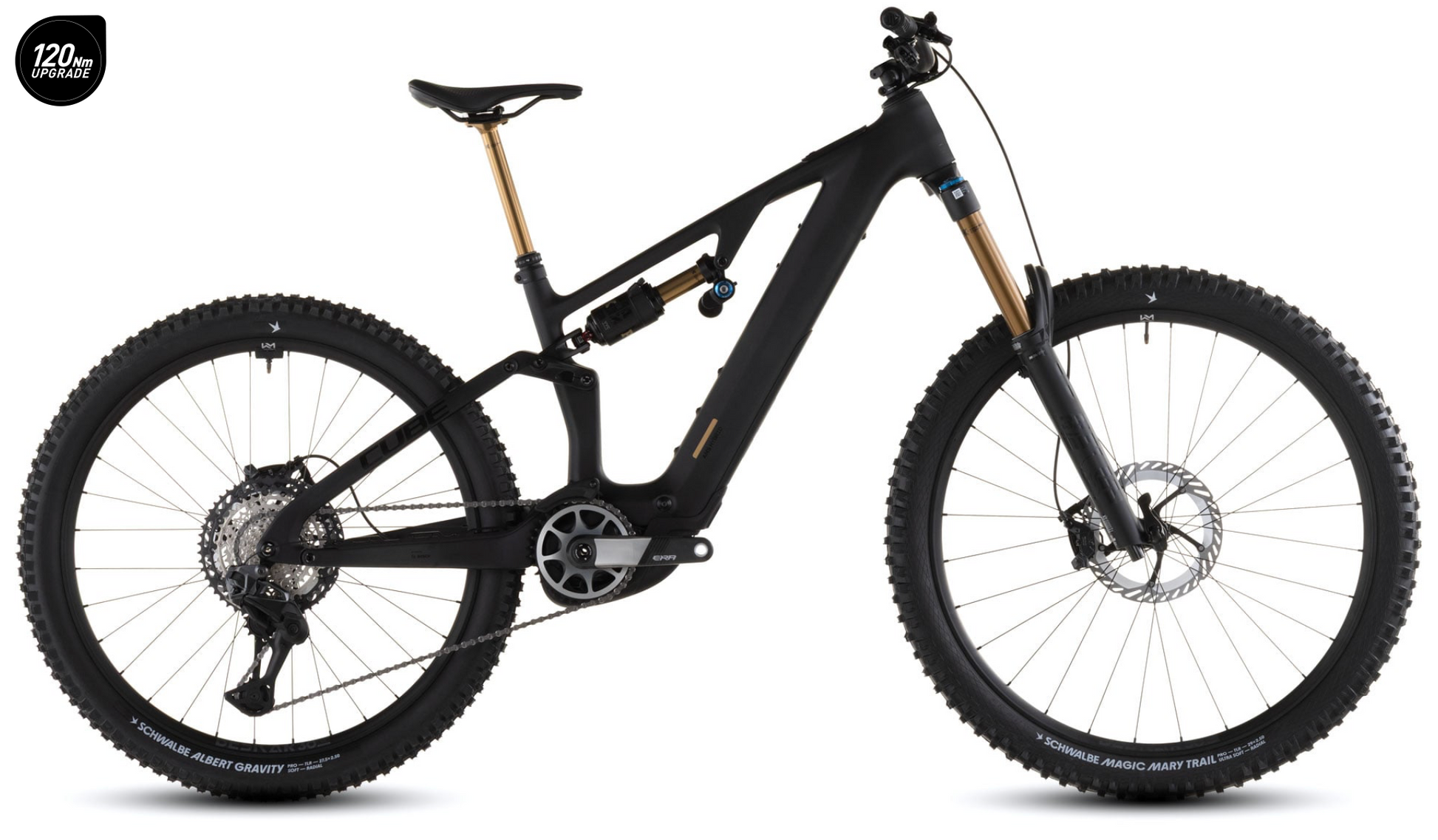

We set out to make a lighter, more capable all-mountain e-mtb – and the AMS Hybrid 177 C:62 frame is the heart of it. Built from our C:62® carbon and featuring Bosch's BDU38YY motor mount for compatibility with both SX and CX motors, it features a built-in 600Wh PowerTube battery. We've tweaked the geometry and kinematics to suit a bike built to take on rowdy, technical trails at high speed. Mullet wheels and 170mm travel front and rear deliver epic handling, and an angle-adjustable headset means you can tweak the geometry to suit your own preference. Internal Cable Routing complements the frame's clean aesthetic and, of course, there's a UDH gear hanger and Direct Mount chain guard. Bring it on! |
| Frame Material | Wheels | Battery |
| C:62® |
29" / 27.5" |
600 Wh |
Frame
| Frame |
C:62® Monocoque Advanced Twin Mold Technology, Effiecient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Fixed Integrated Battery, Advanced Internal Cable Routing |
| Size | S, M, L, XL |
Suspension
| Suspension Fork |

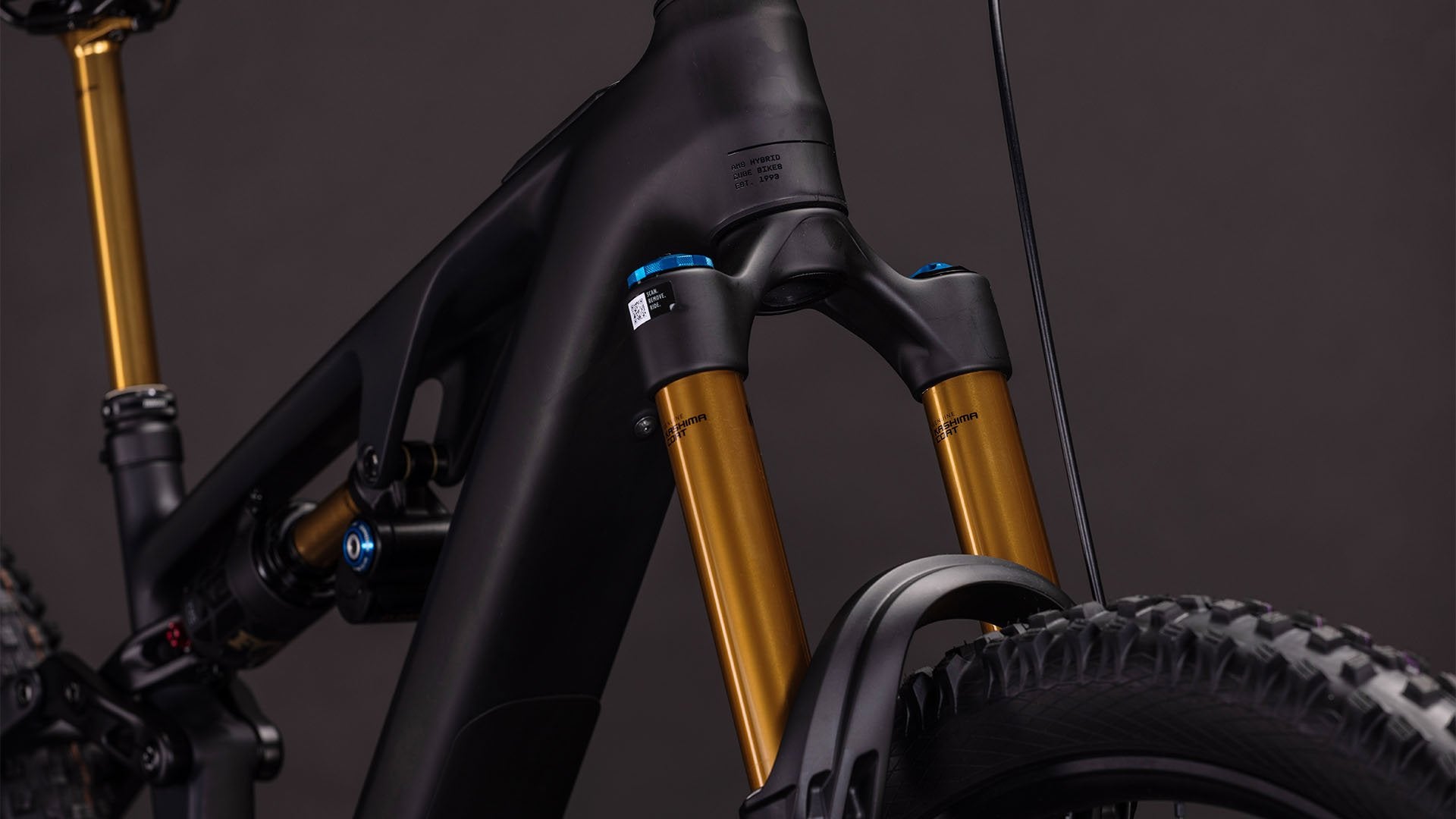

Fox 38 Float Factory GRIPX2, Tapered, 15x110mm, E-Bike Optimized, 170mm |
| Shock |

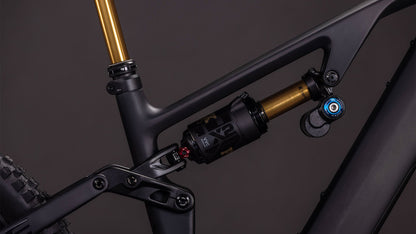

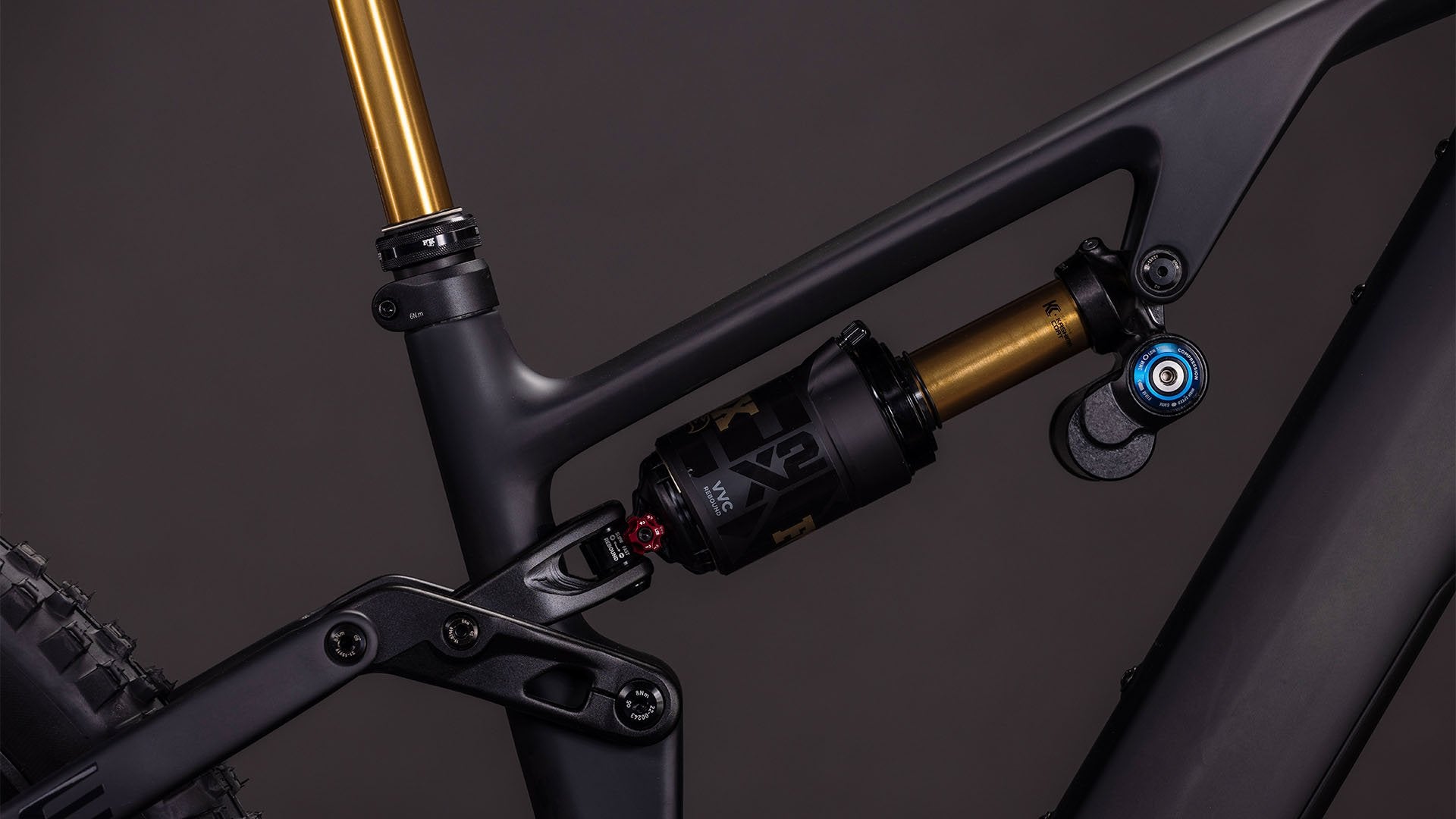

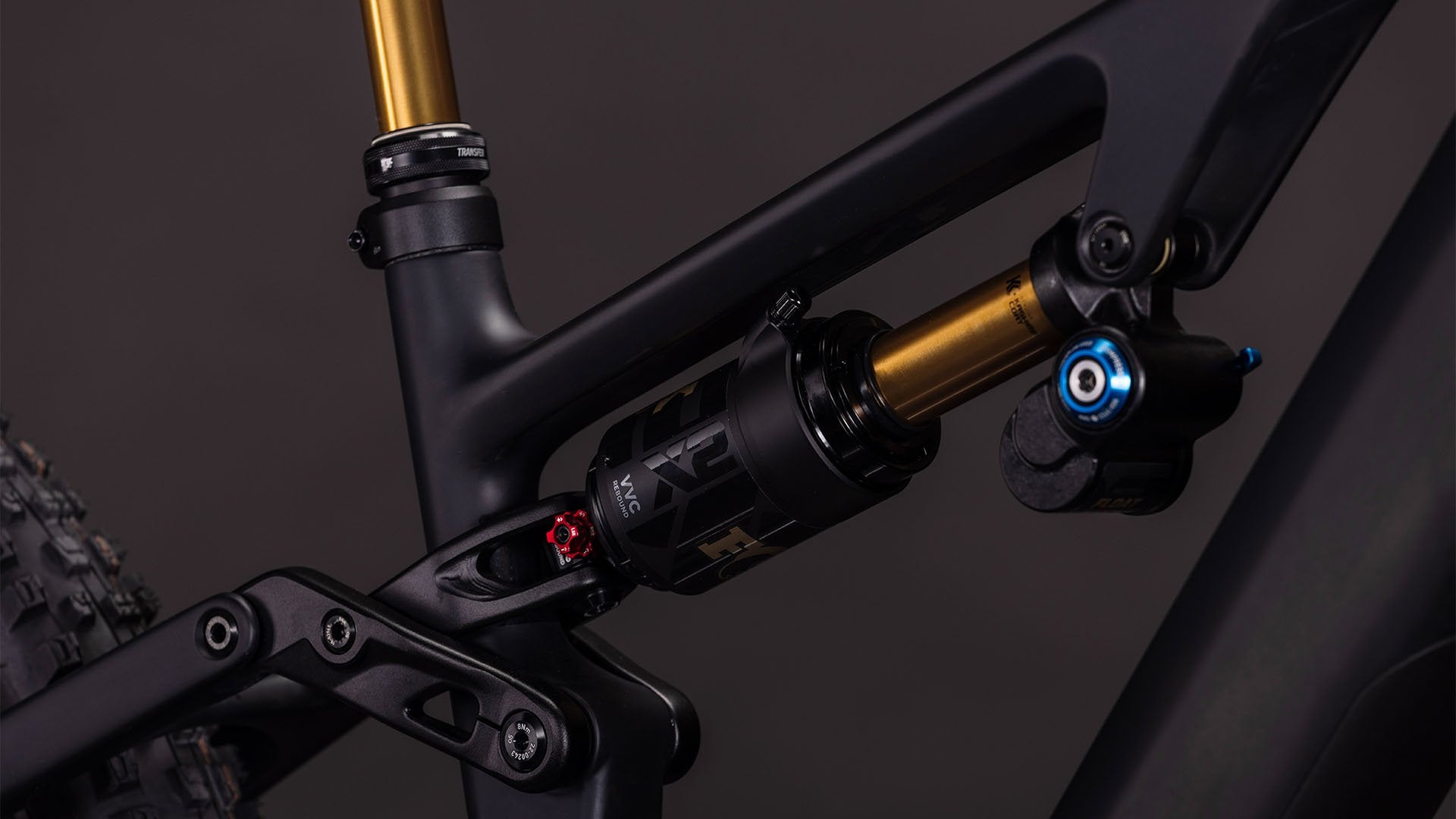

Fox Float X2 Factory, 230x65mm, Adjustable HSC/LSC/HSR/LSR w/ 2-Pos. Lever |
| Shock Hardware |
Front: 30x8mm, Rear: w/o DU-Bushing 15 mm |
E-Bike System
| Drive Unit | Battery | Remote | Display | Charger |
 |
 |
 |
 |
 |
| Bosch Drive Unit Performance Line CX-R 120Nm (BDU38) | Bosch PowerTube 600 | Bosch Mini Remote |

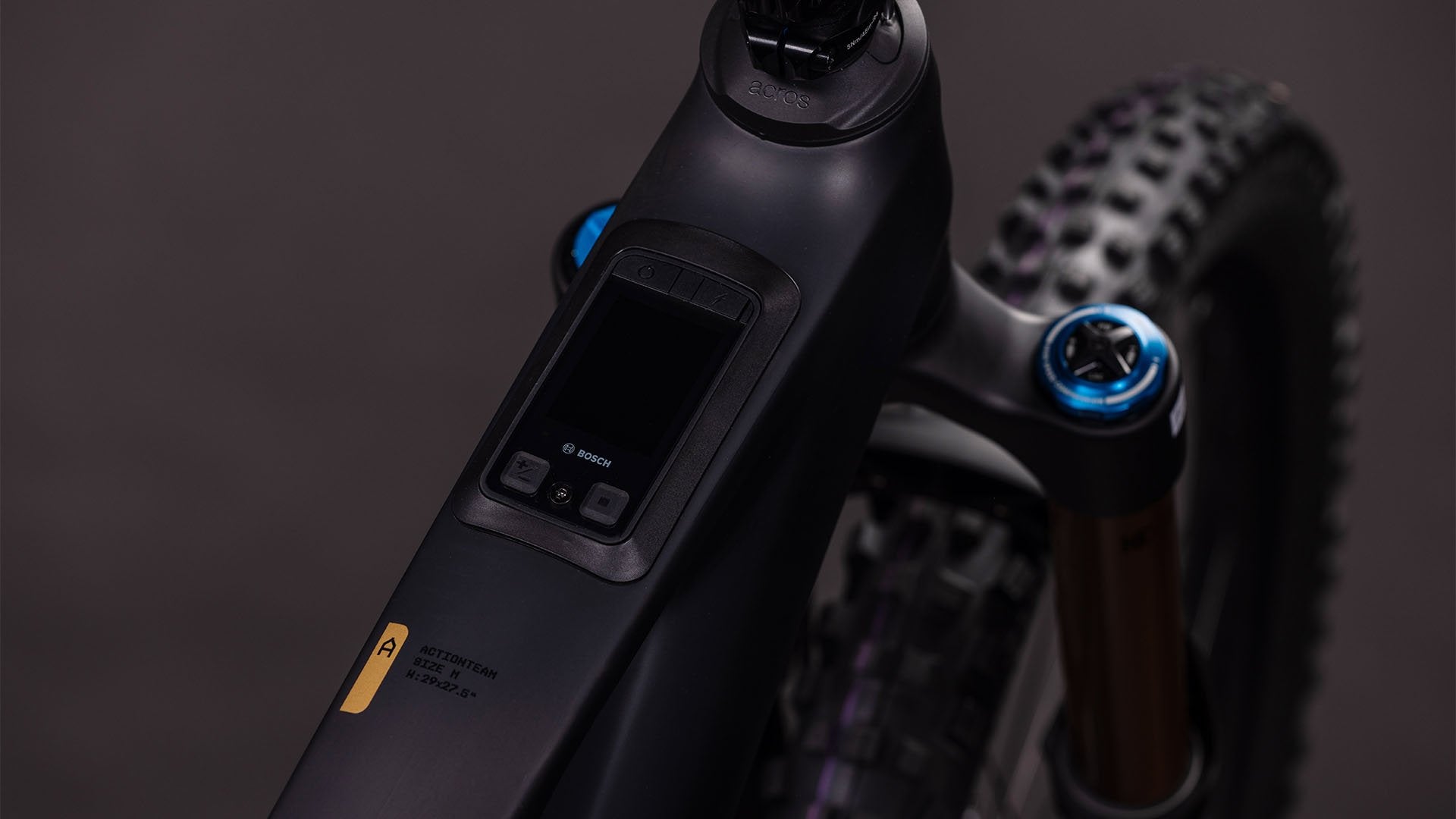

Bosch Kiox 400C |
Bosch 4A |
Drivetrain & Brakes
| Brake System |
Shimano XT BR-M8220, Hydr. Disc Brake (203/203) |
| Rear Derailleur |
Shimano XT Di2 RD-M8260-SGS, 12-Speed, Electronic Shifting System |
| Shifters |
Shimano XT Di2 SW-M8250-IR, Direct Attach |
| Crankset |

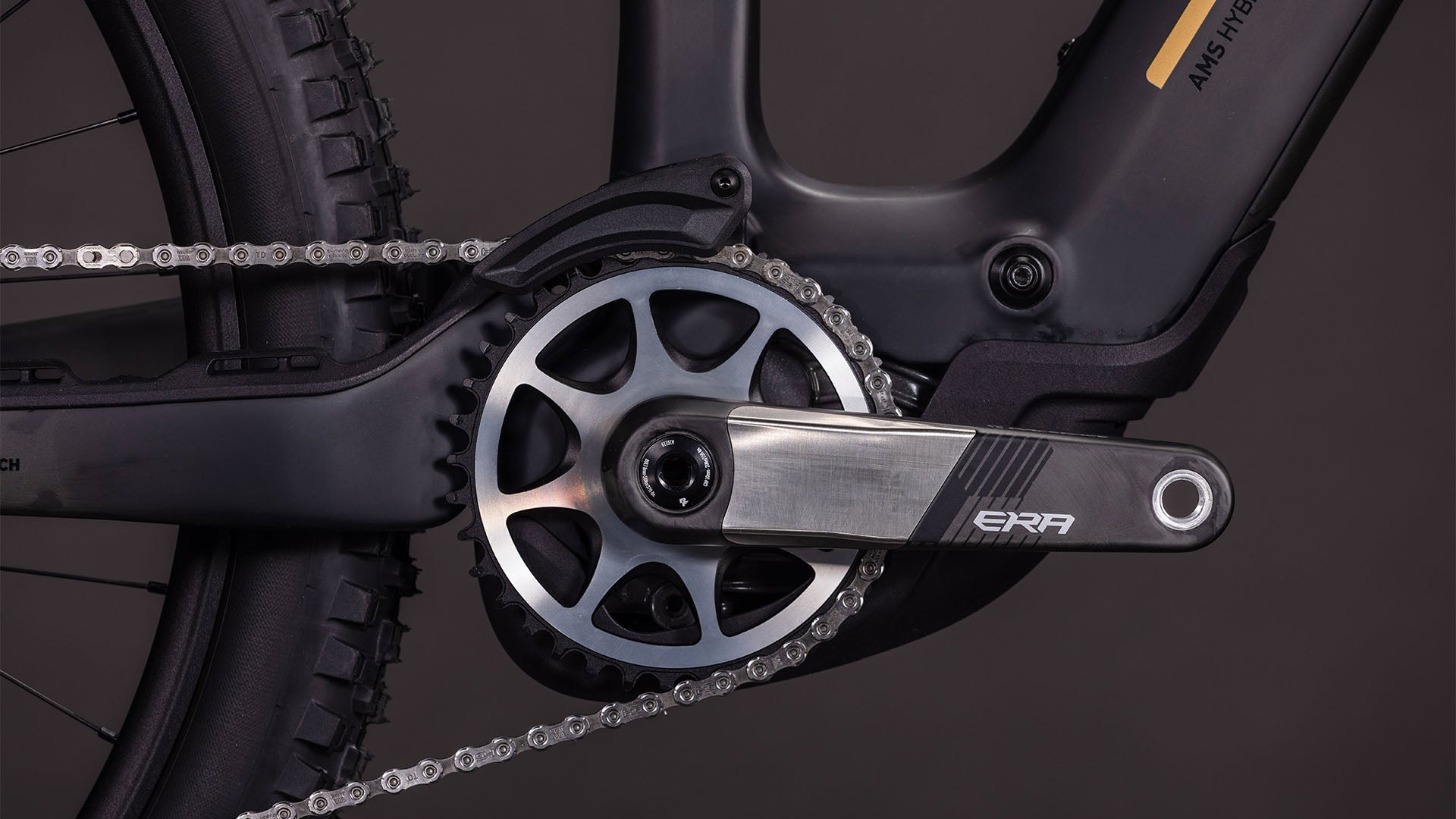

Race Face ERA E-MTB, 36T |
| Cassette |
Shimano XT CS-M8200, 10-51T |
| Chain |
Shimano XT CN-M8100 |
| Chain Guide |
Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate |
Cockpit
| Headset |
ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment |
| Stem |
Race Face Turbine R 35 |
| Handlebar |
Race Face ERA 35 |
| Grips |
ACID Disrupt, Soft Compound |
Wheels
|
Wheelset |
Newmen Beskar 30 base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready |
| Front Tyre |
Schwalbe Magic Mary Trail Pro, Addix Ultrasoft, Kevlar, 2.5 |
| Rear Tyre | Schwalbe Albert Gravity Pro, Addix Soft, Kevlar, 2.5 |
Finishing Kit
| Saddle |
ACID Venec EMTB Trail 140 |
| Seat Post |
Fox Transfer Factory 31.6mm, Kashima Coated |
| Pedals | ACID PP MTB |
Product Information
| Colour |
carbon´n´gold |
| Weight | 21,4 kg |
| ArtNo |
105300 |
