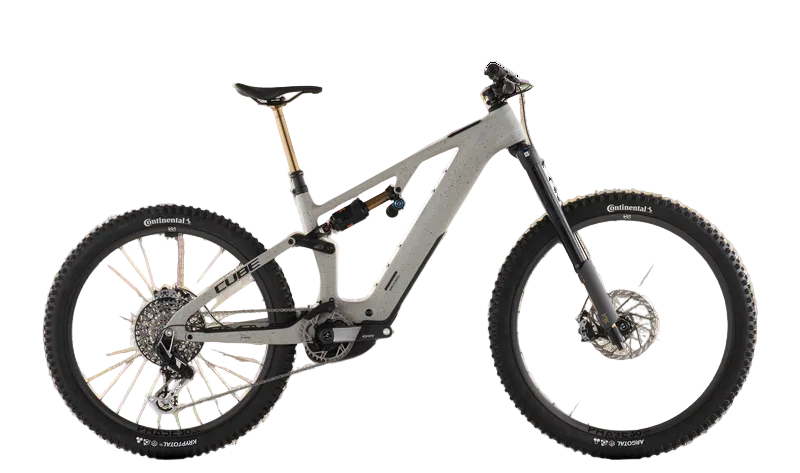

POWER UP HAMMER DOWN |
We set out to make a lighter, more capable all-mountain e-mtb – and the AMS Hybrid 177 C:62 frame is the heart of it. Built from our C:62® carbon and featuring Bosch's BDU38YY motor mount for compatibility with both SX and CX motors, it features a built-in 600Wh PowerTube battery. We've tweaked the geometry and kinematics to suit a bike built to take on rowdy, technical trails at high speed. Mullet wheels and 170mm travel front and rear deliver epic handling, and an angle-adjustable headset means you can tweak the geometry to suit your own preference. Internal Cable Routing complements the frame's clean aesthetic and, of course, there's a UDH gear hanger and Direct Mount chain guard. Bring it on! |
| Frame Material | Wheels | Battery |
| C:62® |
29" / 27.5" |
600 Wh |
Frame
| Frame |
C:62® Monocoque Advanced Twin Mold Technology, Effiecient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Fixed Integrated Battery, Advanced Internal Cable Routing |
| Size | M, L, XL |
Suspension
| Suspension Fork |
Fox Podium Factory GRIPX2, Tapered, 20x110mm, 170mm |
E-Bike System
| Drive Unit | Battery | Remote | Display | Charger |
 |
 |
 |
 |
 |
|
Bosch Performance Line CX-R drive unit, up to 120 Nm torque (BDU38) |
Bosch PowerTube 600 | Bosch Mini Remote |
Bosch Kiox 400C |
Bosch 4A |
Drivetrain & Brakes
| Rear Derailleur |
SRAM XX Eagle AXS™ Transmission, 12-speed electronic shifting system |
| Shifters |
SRAM AXS™ Pod Ultimate Controller |
| Crankset |
Race Face ERA E-MTB, 36T |
| Cassette |
SRAM XS-1297, 10–52T |
| Chain |
SRAM XX Eagle Transmission chain |
Cockpit
| Headset |
ACROS AZF-675, ICR (Integrated Cable Routing), top zero-stack 1 1/2" (ZS 56 mm), bottom zero-stack 1 1/2" (ZS 56 mm), with fibre inserts for head angle adjustment |
| Stem |
Race Face Turbine R 35 |
| Handlebar |
Race Face ERA 35 |
| Grips |
ACID Disrupt, soft compound |
Wheels
|
Wheelset |
NEWMEN Phase 30 Base/Strong wheelset, 28/32 spokes, 20 x 110 mm front hub / 12 x 148 mm rear hub, Tubeless Ready. |
Finishing Kit
| Saddle |
ACID Venec E-MTB Trail 140 |
| Seat Post |
Fox Transfer Factory 31.6 mm dropper post, Kashima-coated |
| Pedals | ACID PP MTB |
Product Information
| Colour |
reedbeigegrit´n´orange |
| Weight | 21,7 kg |
| ArtNo |
105400 |
