POWER UP HAMMER DOWN |
We set out to make a lighter, more capable all-mountain e-mtb – and the AMS Hybrid 177 C:62 frame is the heart of it. Built from our C:62® carbon and featuring Bosch's BDU38YY motor mount for compatibility with both SX and CX motors, it features a built-in 600Wh PowerTube battery. We've tweaked the geometry and kinematics to suit a bike built to take on rowdy, technical trails at high speed. Mullet wheels and 170mm travel front and rear deliver epic handling, and an angle-adjustable headset means you can tweak the geometry to suit your own preference. Internal Cable Routing complements the frame's clean aesthetic and, of course, there's a UDH gear hanger and Direct Mount chain guard. Bring it on! |
| Frame Material | Wheels | Battery |
| C:62® |
29" / 27.5" |
600 Wh |
Frame
| Frame |
C:62® Monocoque Advanced Twin Mold Technology, Effiecient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Fixed Integrated Battery, Advanced Internal Cable Routing |
| Size | S, M, L, XL |
Suspension

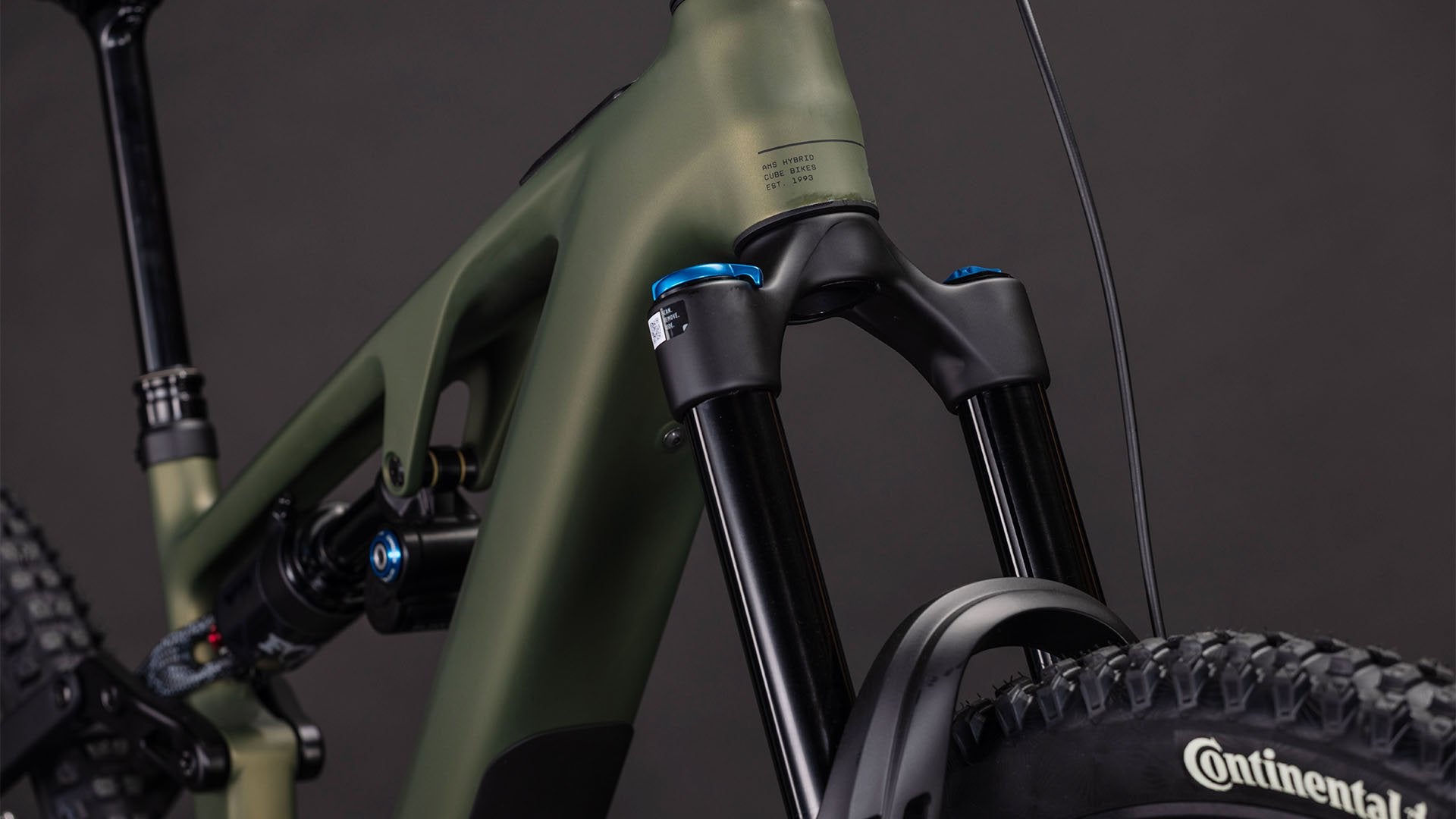

| Suspension Fork |
Fox 38 Float Performance GRIP, Tapered, 15x110mm, 170mm |

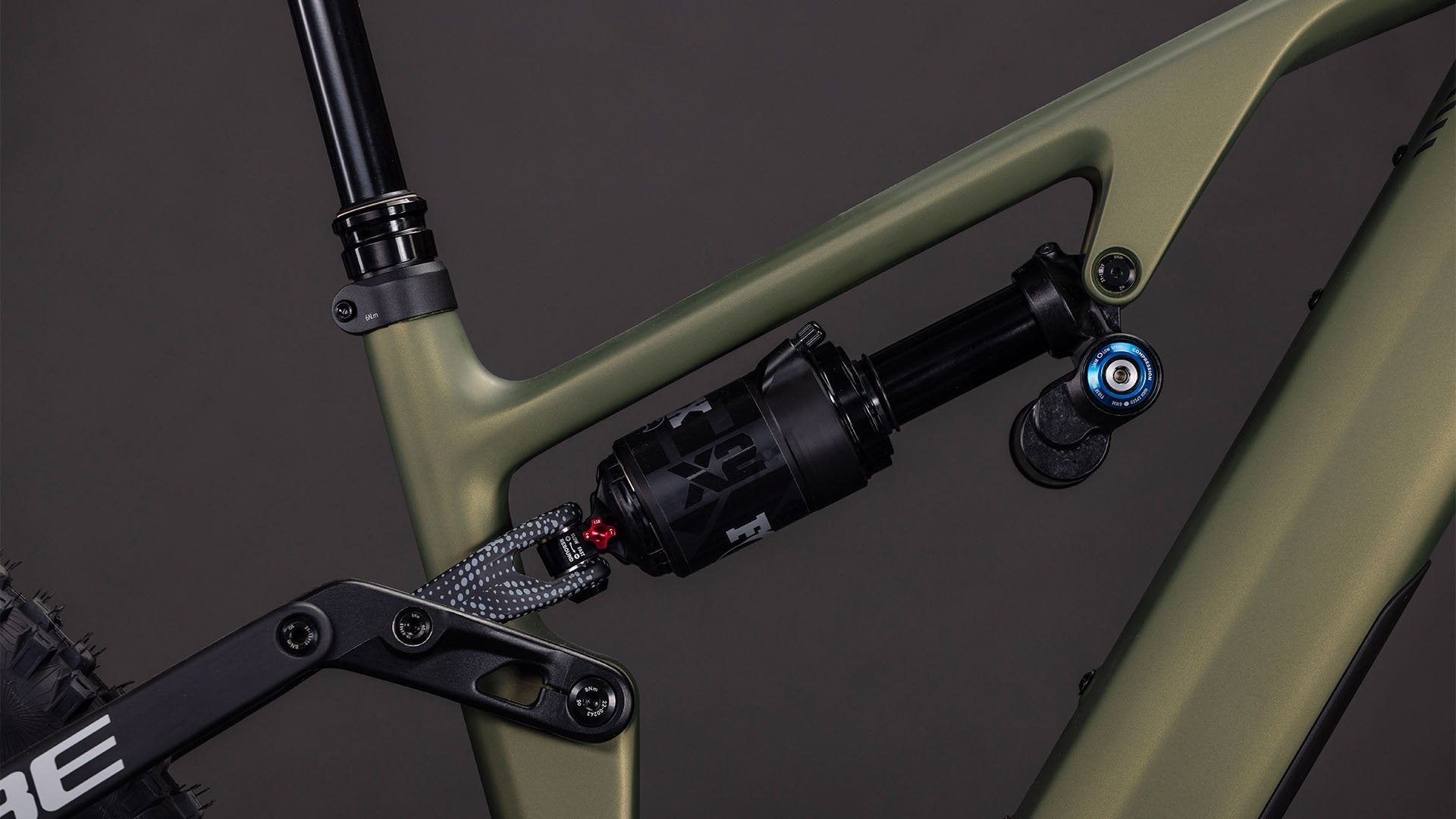

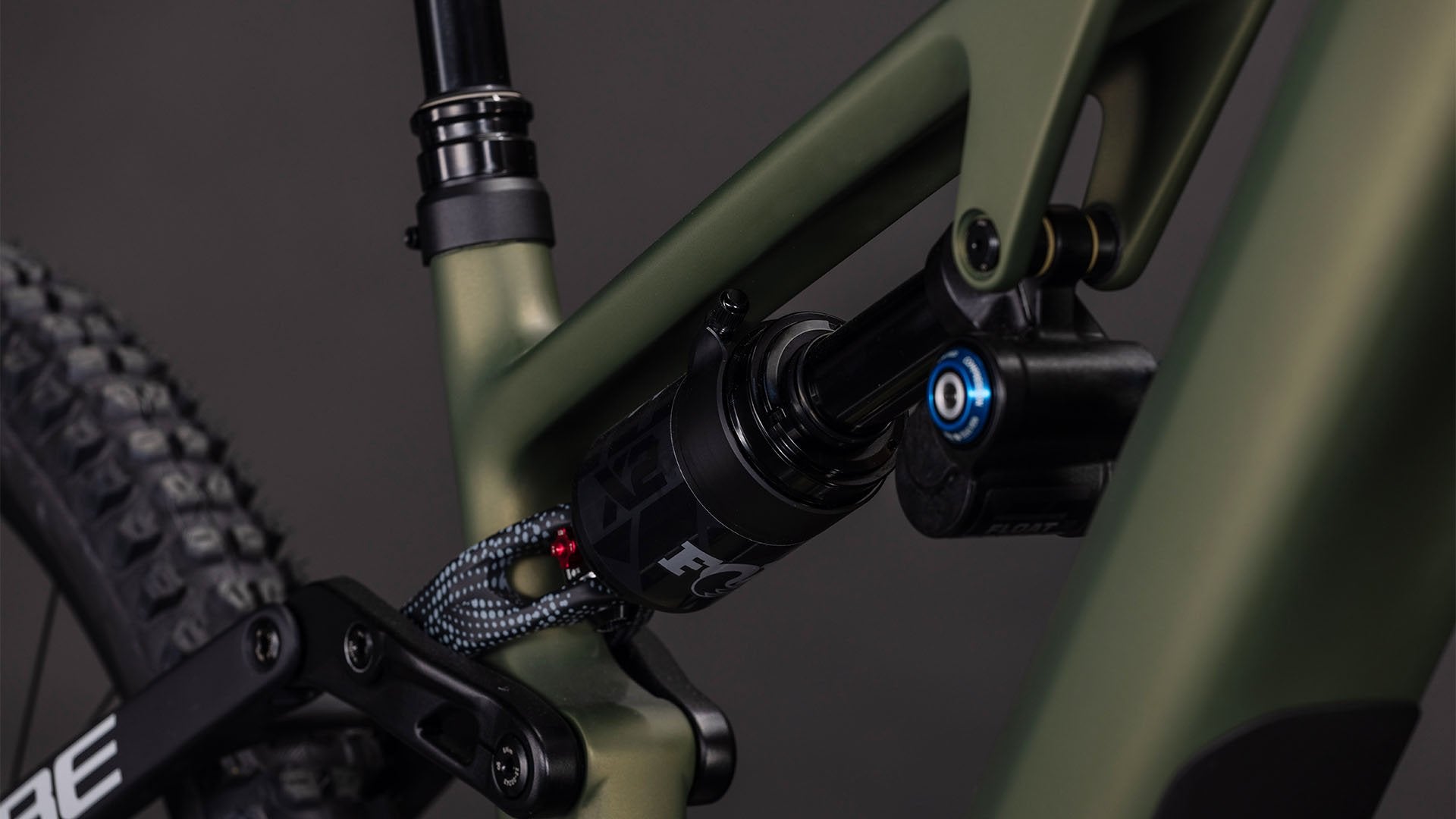

| Shock |
Fox Float X2 Performance, 230x65mm, Adjustable HSC/LSC/LSR w/ 2-Pos. Lever |
| Shock Hardware |
Front: 30x8mm, Rear: w/o DU-Bushing 15 mm |
E-Bike System
| Drive Unit | Battery | Remote | Display | Charger |
 |
 |
 |
 |
 |
| Bosch Drive Unit Performance Line CX max. 120Nm (BDU38) | Bosch PowerTube 600 | Bosch Mini Remote |

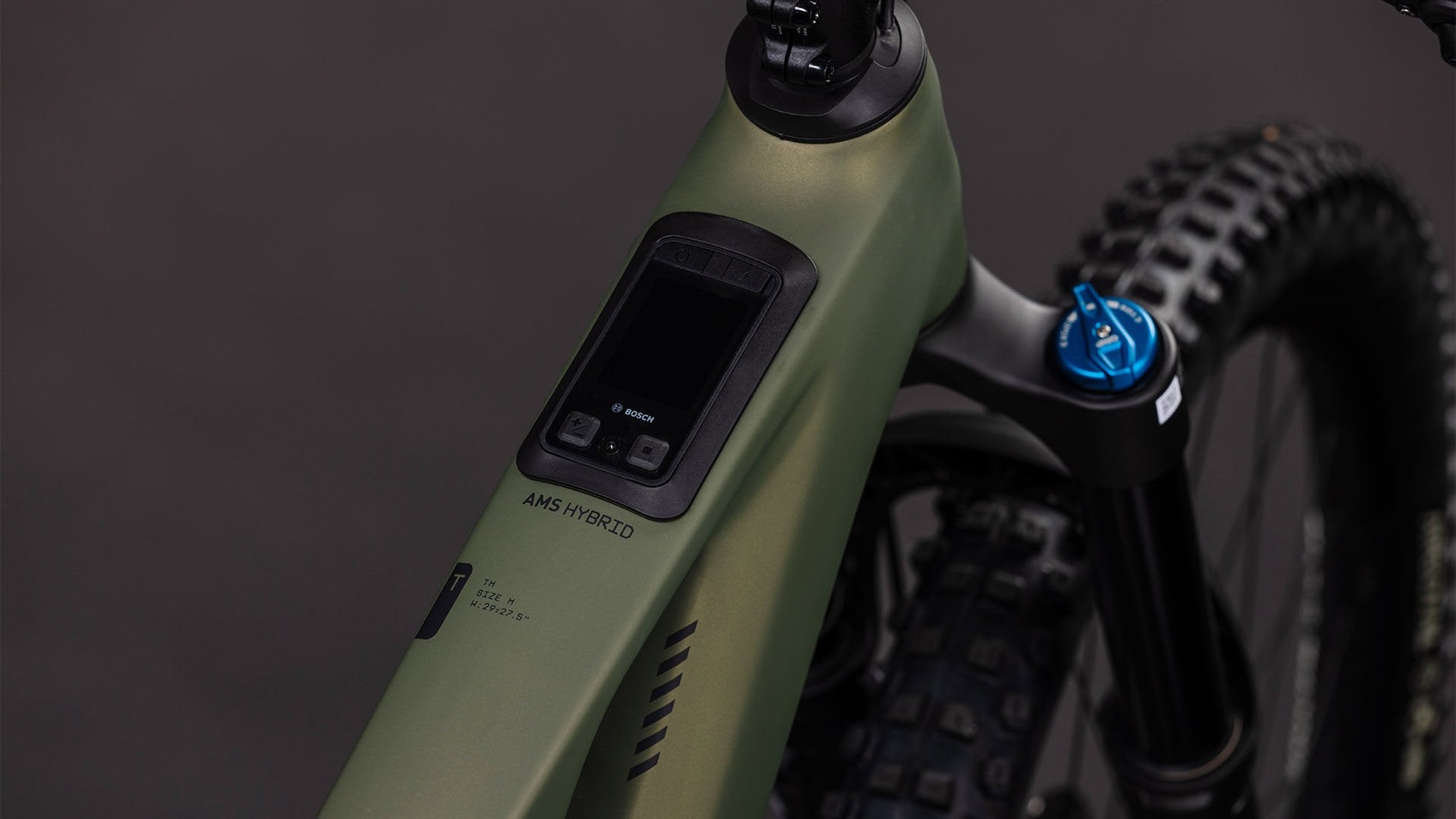

Bosch Kiox 400C |
Bosch 4A |
Drivetrain & Brakes
| Brake System |
SRAM Maven Ultimate, Hydr. Disc Brake (200/200) |
| Rear Derailleur |
SRAM Eagle 90 Transmission, 12-Speed |
| Shifters |
SRAM Eagle 90 Transmission |

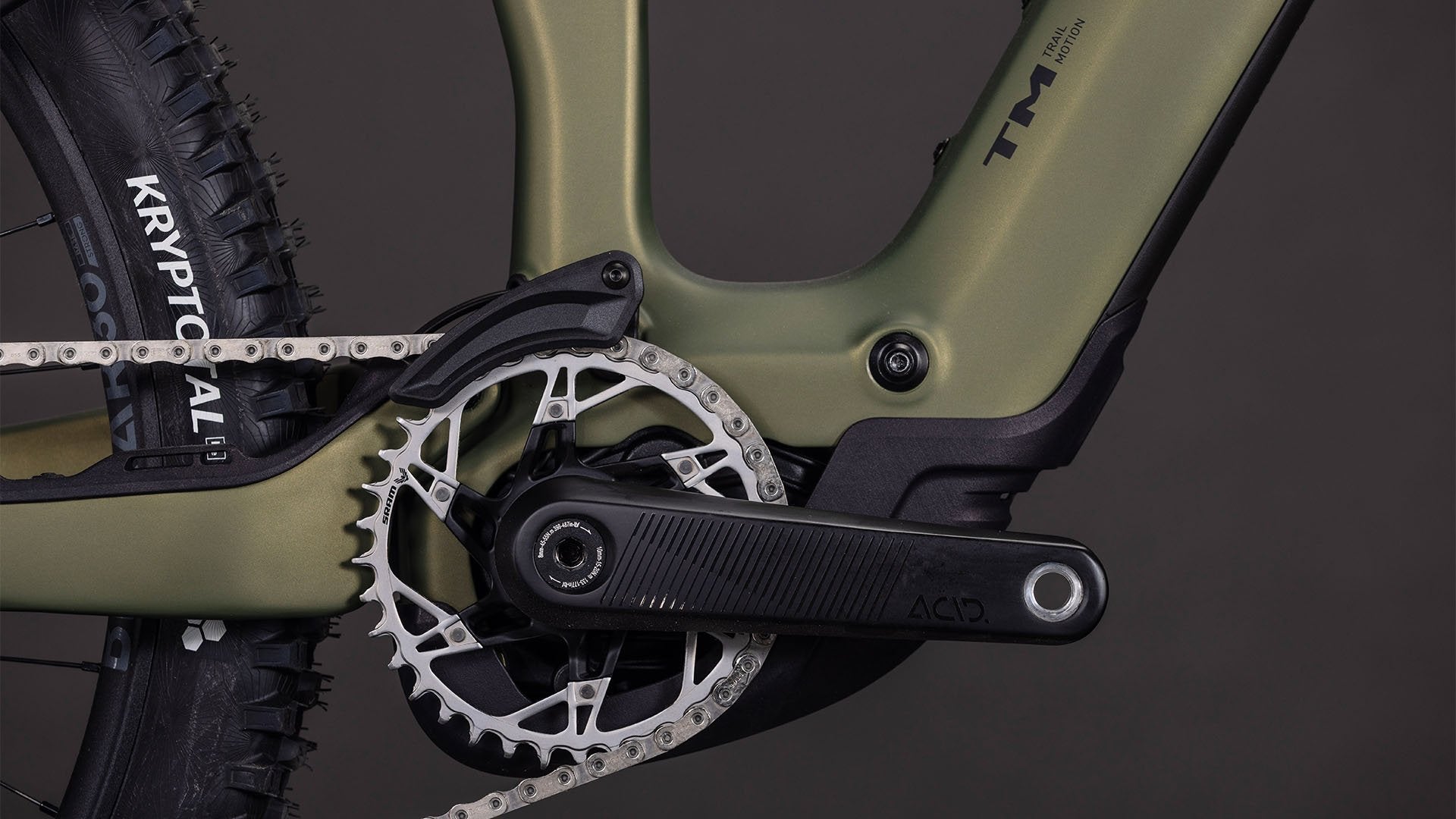

| Crankset |
ACID MTB Hybrid Carbon, 36T |
| Cassette |
SRAM XS-1275, 10-52T |
| Chain |
SRAM GX Eagle™ Transmission |
| Chain Guide |
Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate |
Cockpit
| Headset |
ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment |
| Stem |
Newmen Evolution SL 318.4, 31.8mm |
| Handlebar |
Newmen Beskar 318.40 w/ VariGrip System |
| Grips |
Newmen Slat VGS |
Wheels
|
Wheelset |
Newmen Beskar 30 base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready |
| Front Tyre |
Conti Argotal, Enduro Super Soft, Tubeless Ready, 2.4 |
| Rear Tyre | Conti Kryptotal Rear, Downhill Soft, Tubeless Ready, 2.4 |
Finishing Kit
| Saddle |
ACID Venec EMTB Trail 140 |
| Seat Post |
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm |
| Pedals | ACID PP MTB |
Product Information
| Colour |
reedgreen´n´matrix |
| Weight | 21,9 kg |
| ArtNo |
105200 |
