LET THE GOOD TIMES ROLL |

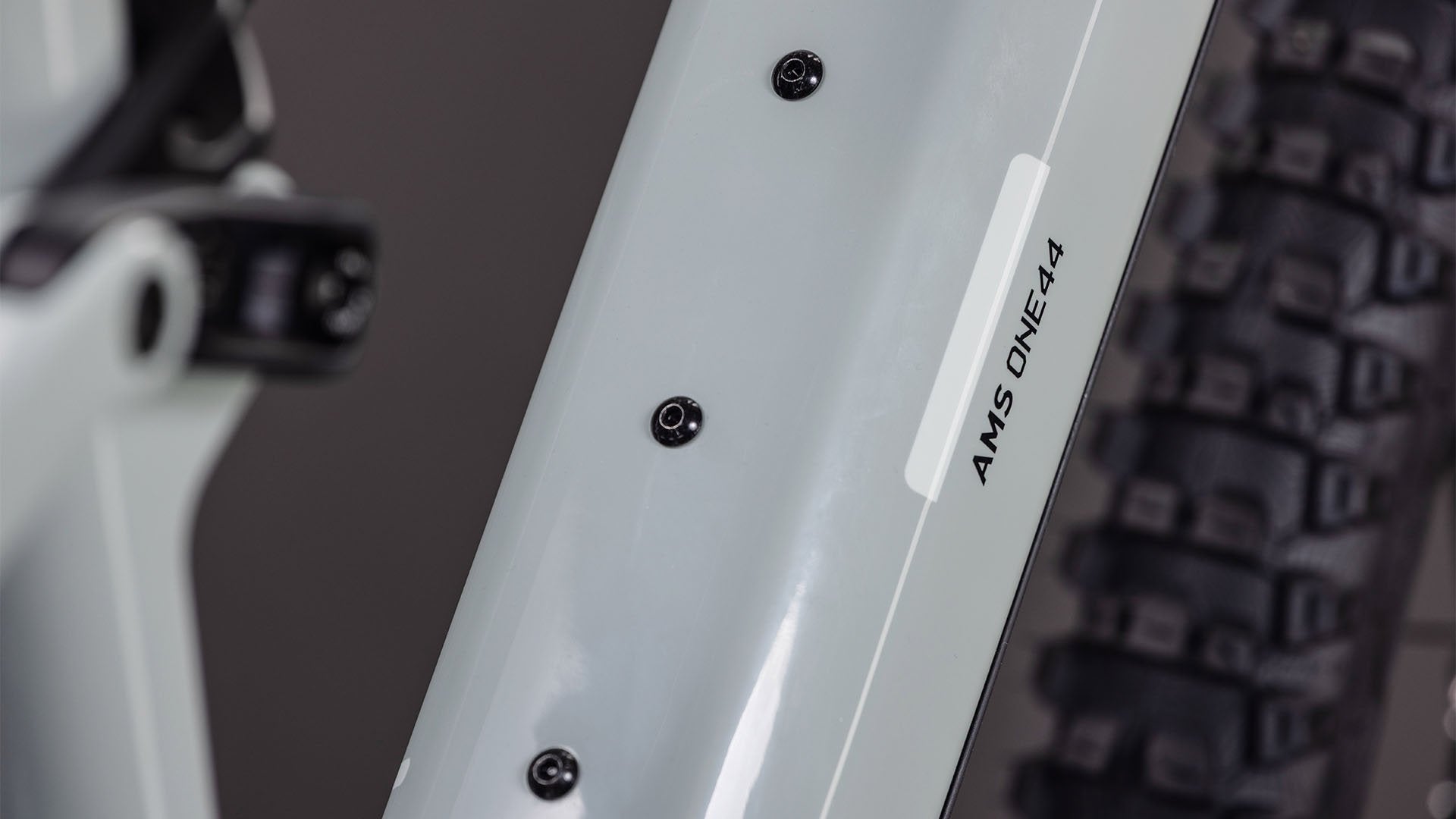

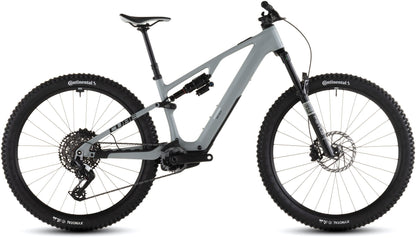

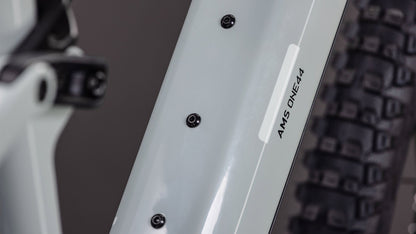

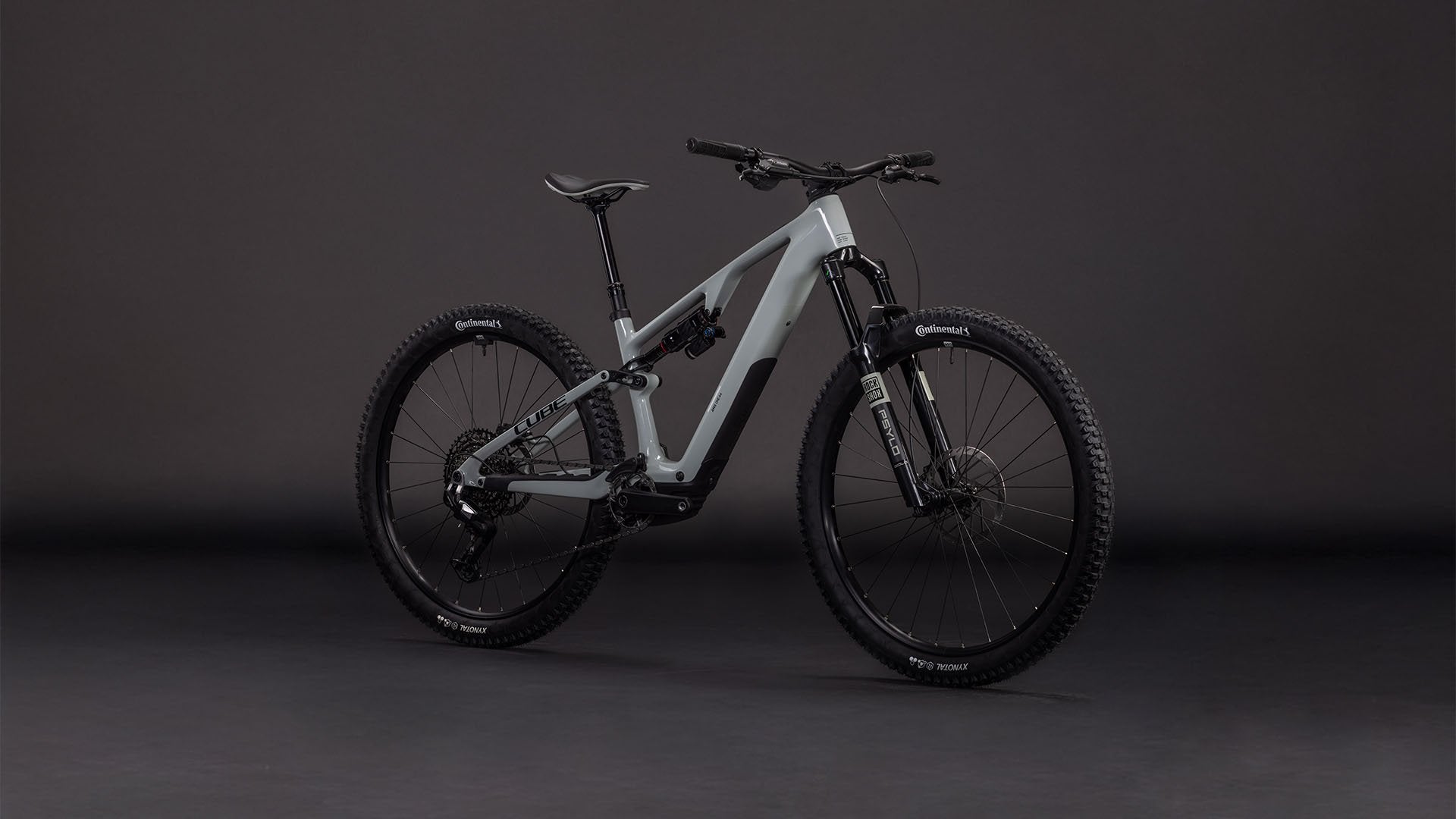

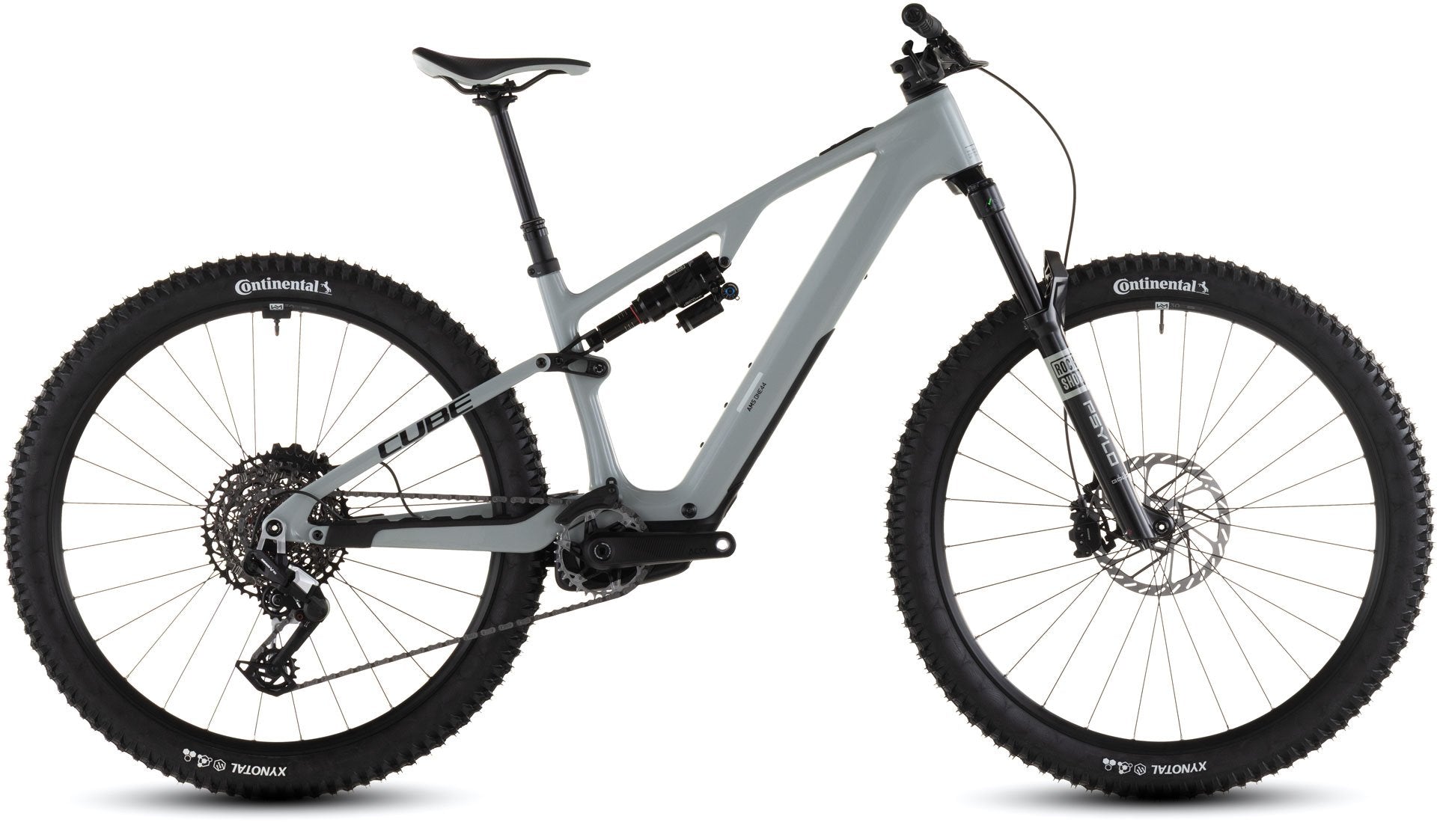

The AMS Hybrid ONE44 C:62 frame begins with our time-proven C:62® carbon, crafted into a structure that's light enough for a lively ride feel but plenty tough enough for the trails. The 400Wh battery is incorporated into the down tube, as close to the lightweight Bosch SX motor as possible to improve handling, and the frame is PowerMore-ready for a 250Wh range boost with the optional battery pack. Internal Cable Routing complements the frame's sleek silhouette and there's a lightweight Direct Mount chain guide. With a UDH gear hanger and angle adjustable headset so you can tweak the handling to suit your riding style, it's got everything you need for fast-paced trail riding. |
| Frame Material | Angle Adjustment | Battery |
| C:62® |
0.6° |
400 Wh |
Frame
| Frame |
C:62® Monocoque Advanced Twin Mold Technology, Efficient Trail Control, FSP 4-Link. Agile Trail Geometry, Boost 148, UDH™, Fully Integrated Battery, Advanced Internal Cable Routing |
| Size | S, M, L, XL |
Suspension
| Suspension Fork |

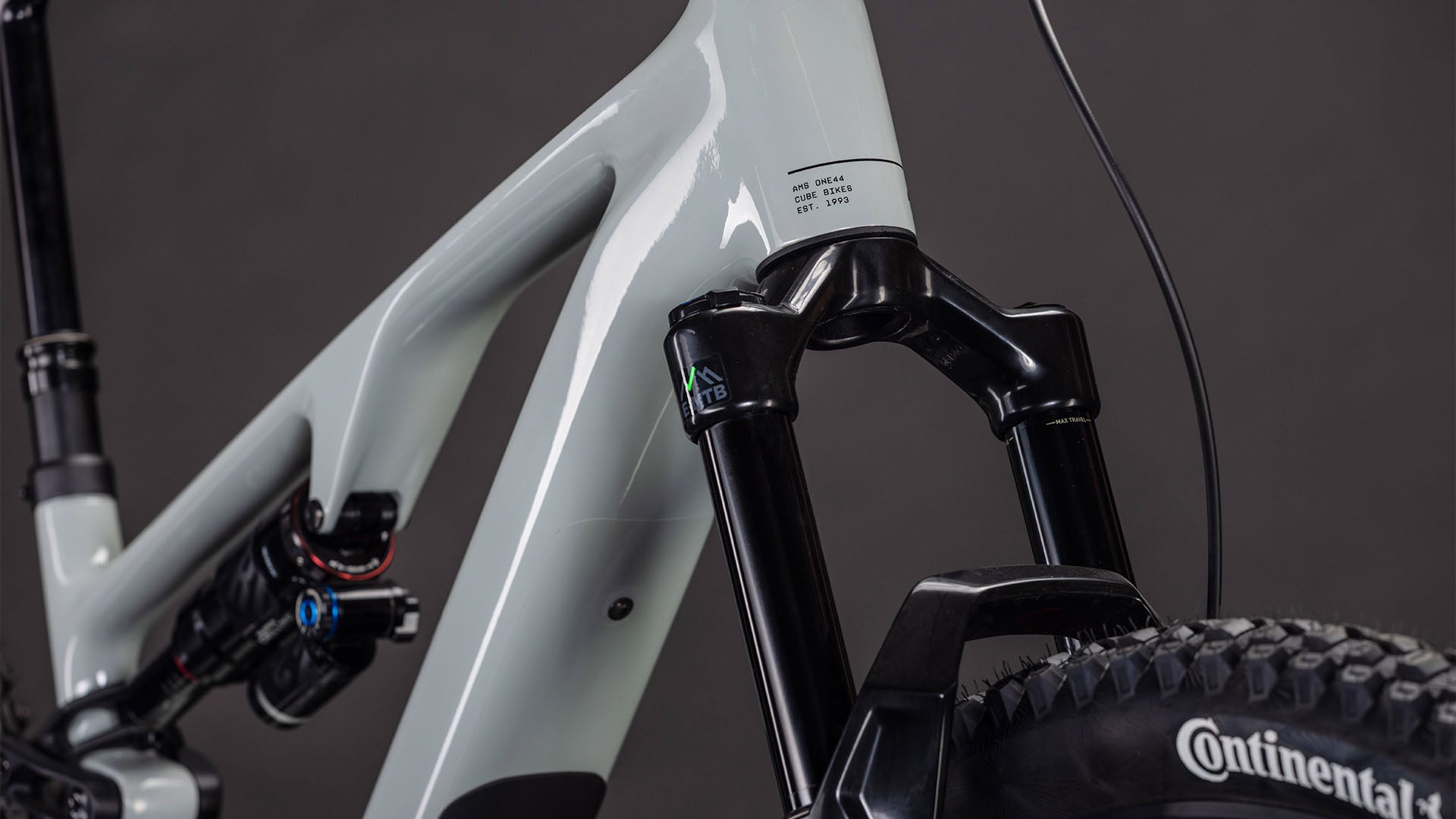

RockShox Psylo Gold RC Air, Tapered, 15x110mm, Lockout, 140mm |
| Shock |

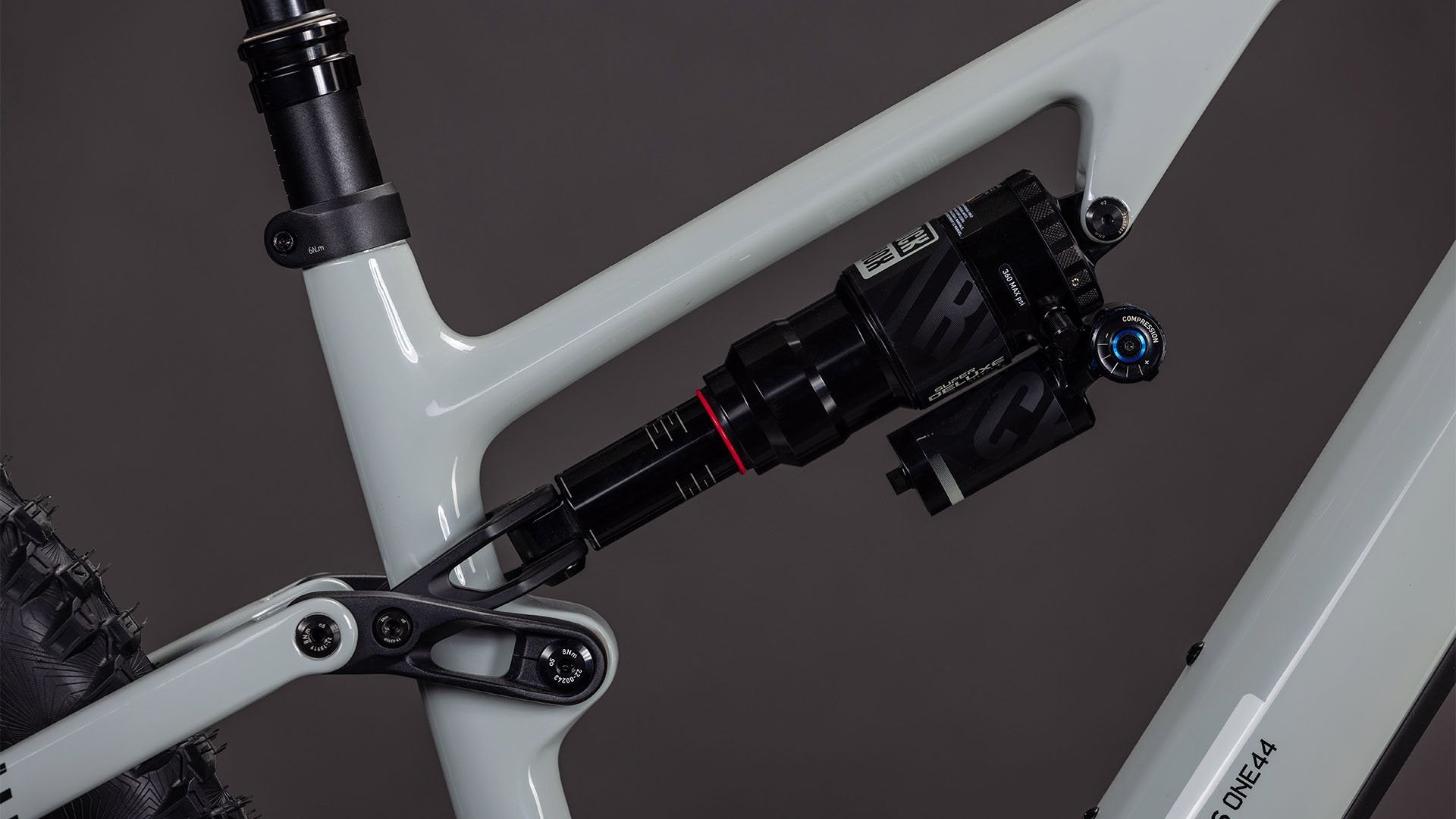

RockShox Super Deluxe Select+, 210x55mm, Rebound Adjust, 2-Position Lever |
| Shock Hardware |
Front: 30x8mm, Rear: DU-Bushing 12.7mm |
E-Bike System
| Drive Unit | Remote | Battery | Charger |
 |
 |
 |
 |

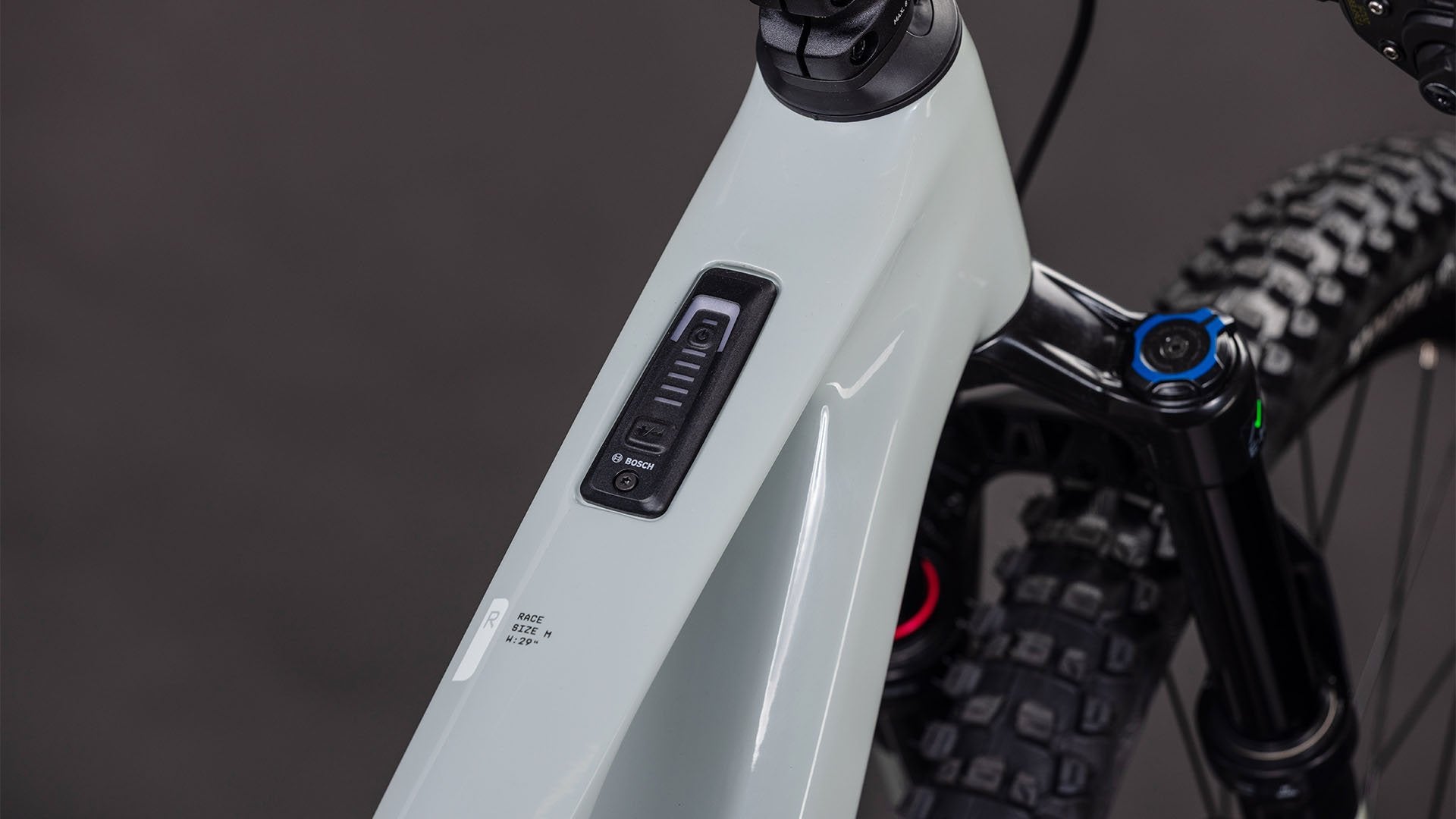

| Bosch Drive Unit Performance SX max. 60Nm (BDU31) | Bosch System Control, Incl. Mini Remote | Bosch CompactTube 400 | Bosch 2A |
Drivetrain & Brakes
| Brake System |
SRAM Maven Base, Hydr. Disc Brake (200/180) |
| Rear Derailleur |
SRAM Eagle 90 Transmission, 12-Speed |
| Shifters |
Sram Eagle 70 Transmission |
| Crankset |

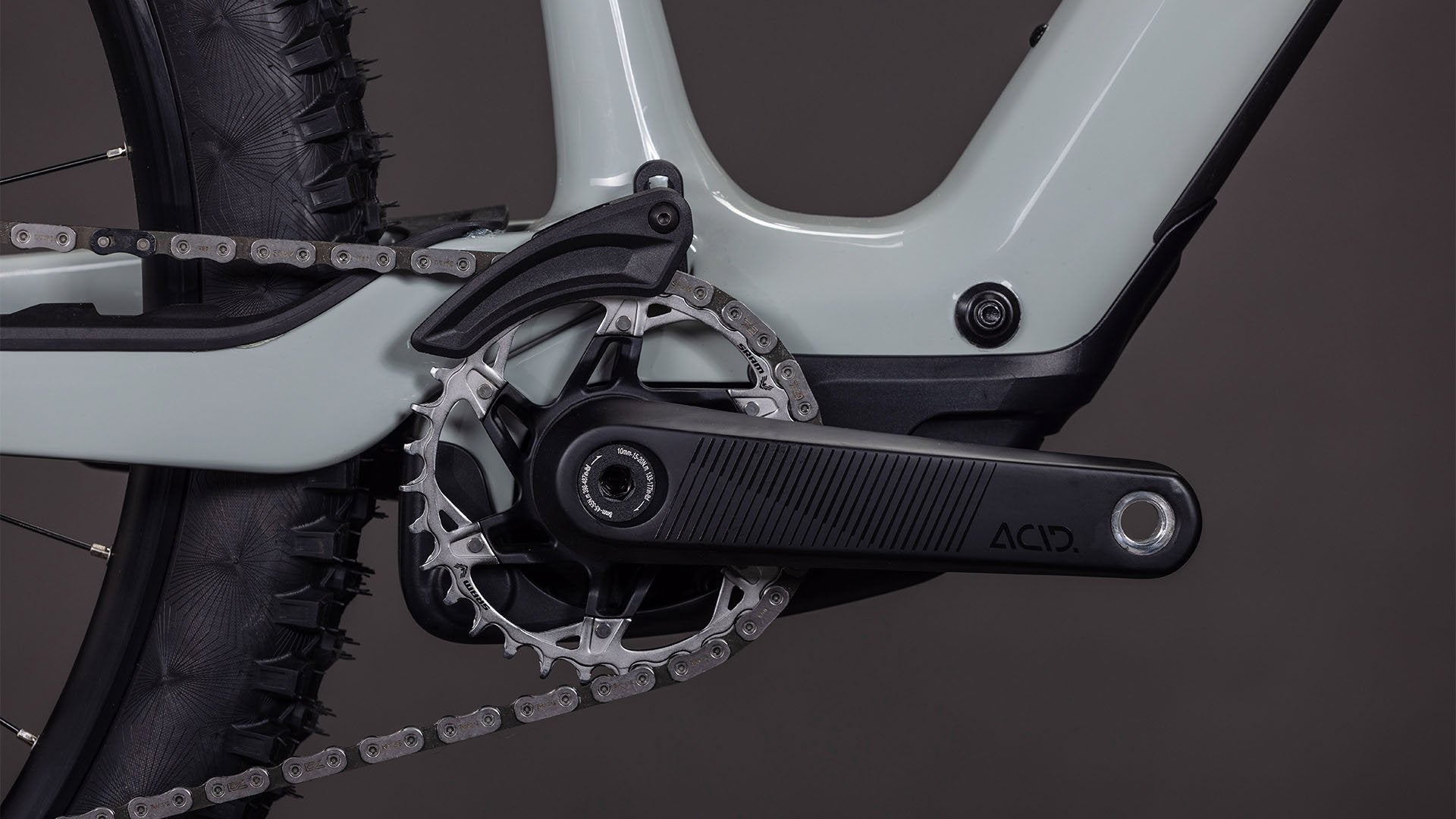

ACID MTB Hybrid Carbon, 32T |
| Cassette |
SRAM XS-1270, 10-52T |
| Chain |
SRAM Eagle 70 Transmission |
| Chain Guide |
Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate |
Cockpit
| Headset |
ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment |
| Stem |
CUBE Stereo Stem w/ Cable Routing |
| Handlebar |
Newmen Evolution SL 318.25, 780mm |
| Grips |
ACID Disrupt, Soft Compound |
Wheels
|
Wheelset |
Newmen Performance 30 base/base, 28/28 Spokes, 15x110mm / 12x148mm, Tubeless Ready |
| Tyres |
Conti Xynotal, Enduro Soft, Tubeless Ready, 2.4 |
Finishing Kit
| Saddle |
ACID Venec EMTB Trail 140 |
| Seat Post |
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm |
| Pedals | ACID PP MTB |
Product Information
| Colour |
reedbeige´n´black |
| Weight | 19,8 kg |
| ArtNo |
104050 |
