ENGINEERED FOR GOOD TIMES |

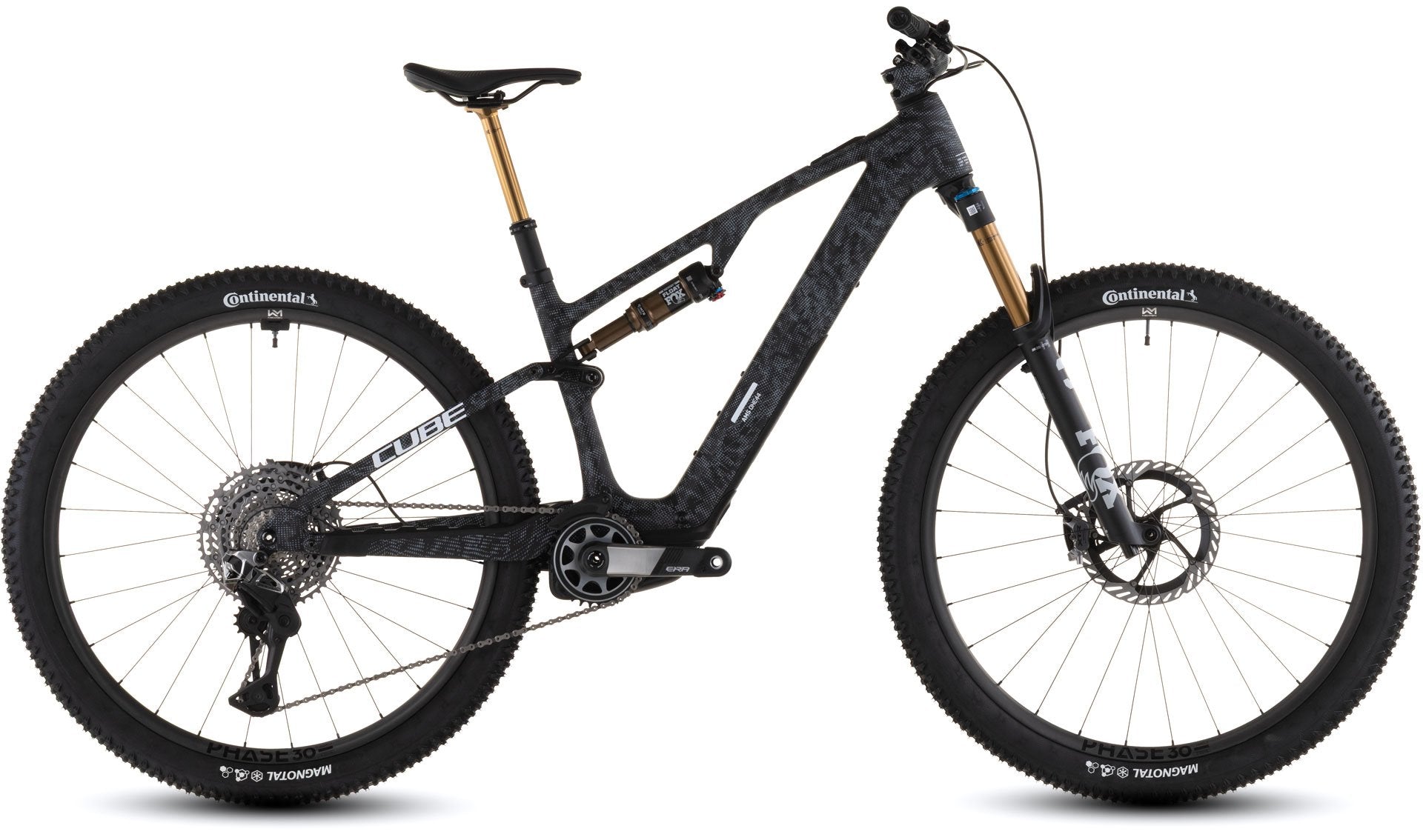

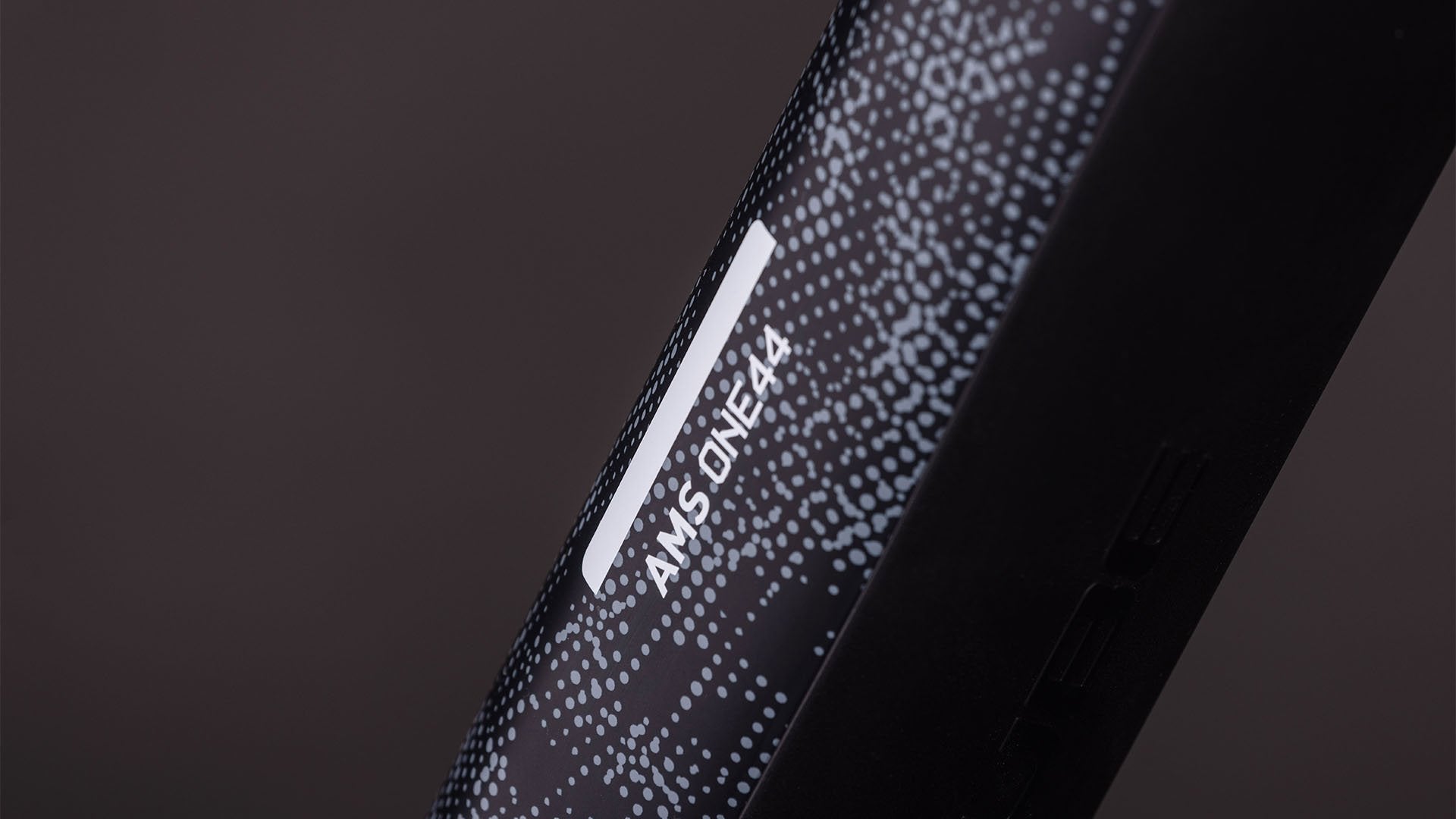

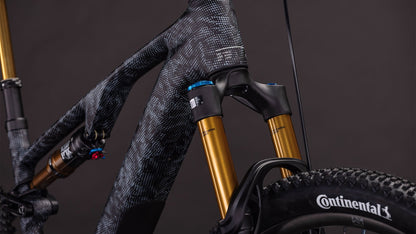

The AMS Hybrid ONE44 C:68X frame makes use of our most advanced C:68X® carbon material, for maximum possible strength and stiffness with the lowest possible weight. The 400Wh battery is incorporated into the down tube, as close to the lightweight Bosch SX motor as possible to improve handling, and the frame is PowerMore-ready for a 250Wh range boost with the optional battery pack. Internal Cable Routing complements the frame's sleek silhouette and there's a lightweight Direct Mount chain guide. With a UDH gear hanger and angle adjustable headset so you can tweak the handling to suit your riding style, it's got everything you need for fast-paced trail riding. |
| Frame Material | Frame Weight | Battery |
| C:68X® | 2100 g | 400 Wh |
Frame
| Frame |
C:68X® Monocoque Advanced Twin Mold Technology, Effiecient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Fixed Integrated Battery, Advanced Internal Cable Routing |
| Size | S, M, L, XL |
Suspension
| Suspension Fork |

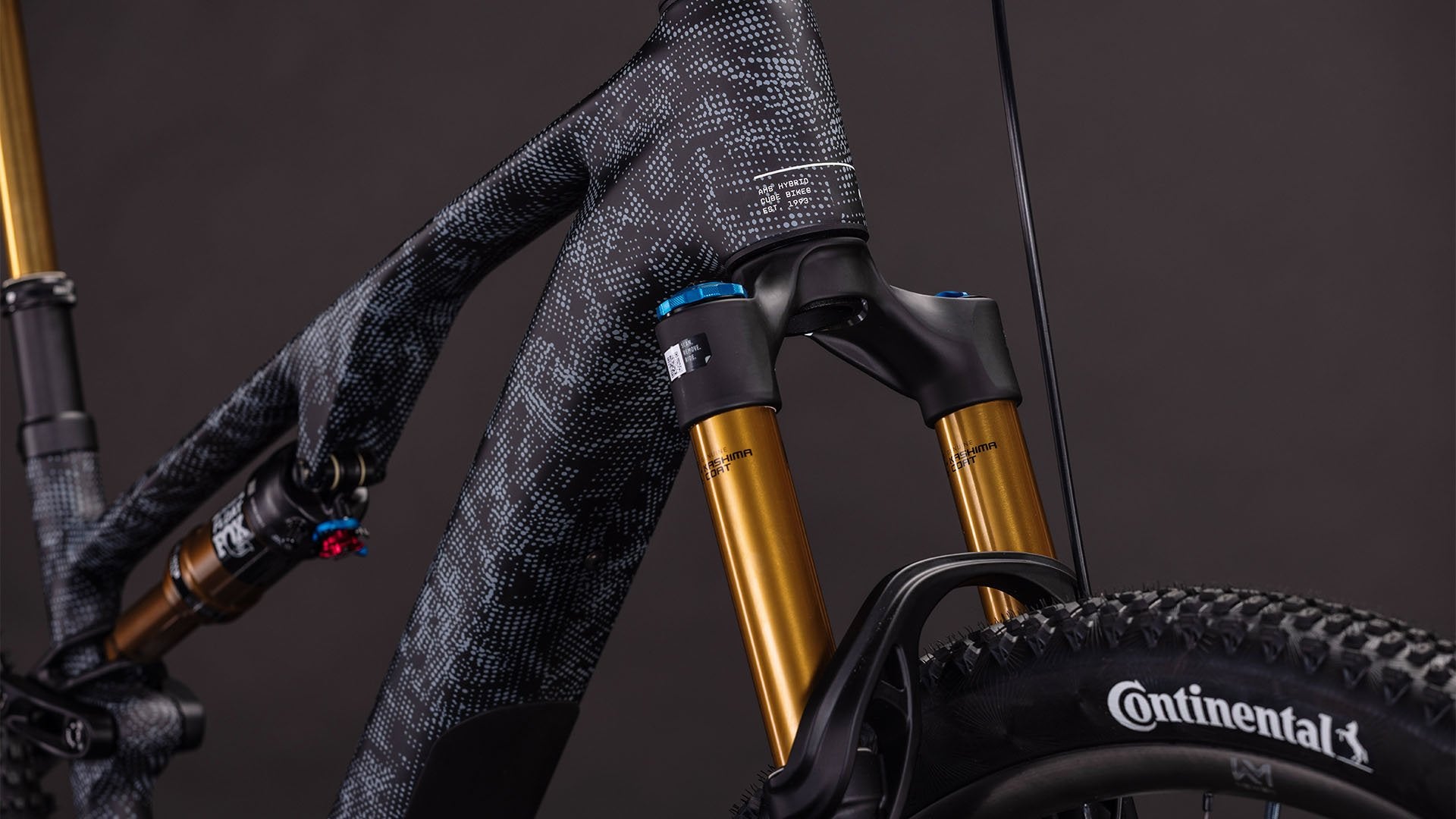

Fox 36 Float SL Factory GRIPX2, Tapered, 15x110mm, 140mm |
| Shock |

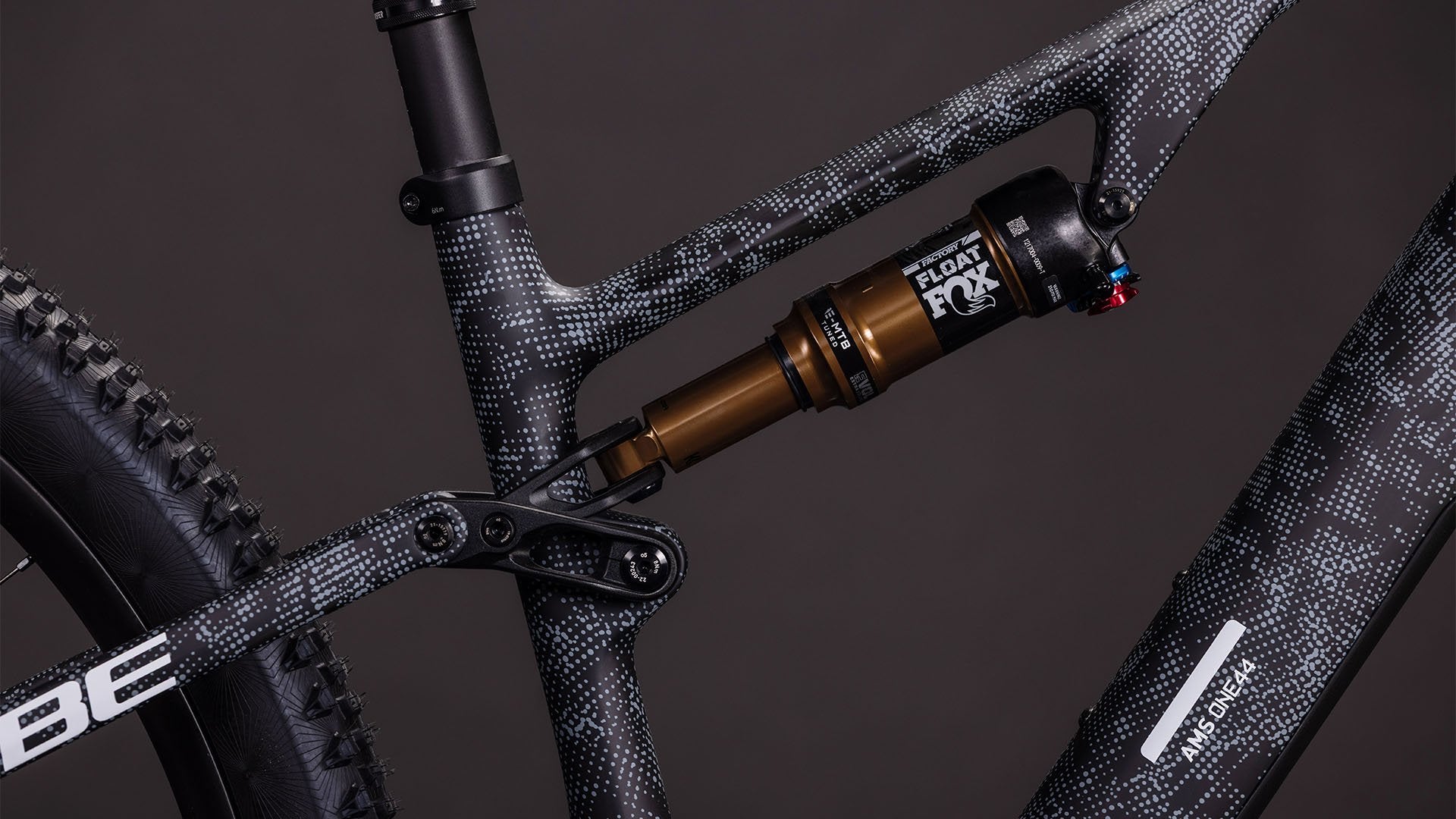

Fox Float Factory, 210x55mm, Adjustable LSC/LSR w/ 2-Pos. Lever |
| Shock Hardware |
Front: 30x8mm, Rear: DU-Bushing 12.7mm |
E-Bike System
| Drive Unit | Remote | Battery | Charger |
 |
 |
 |
 |

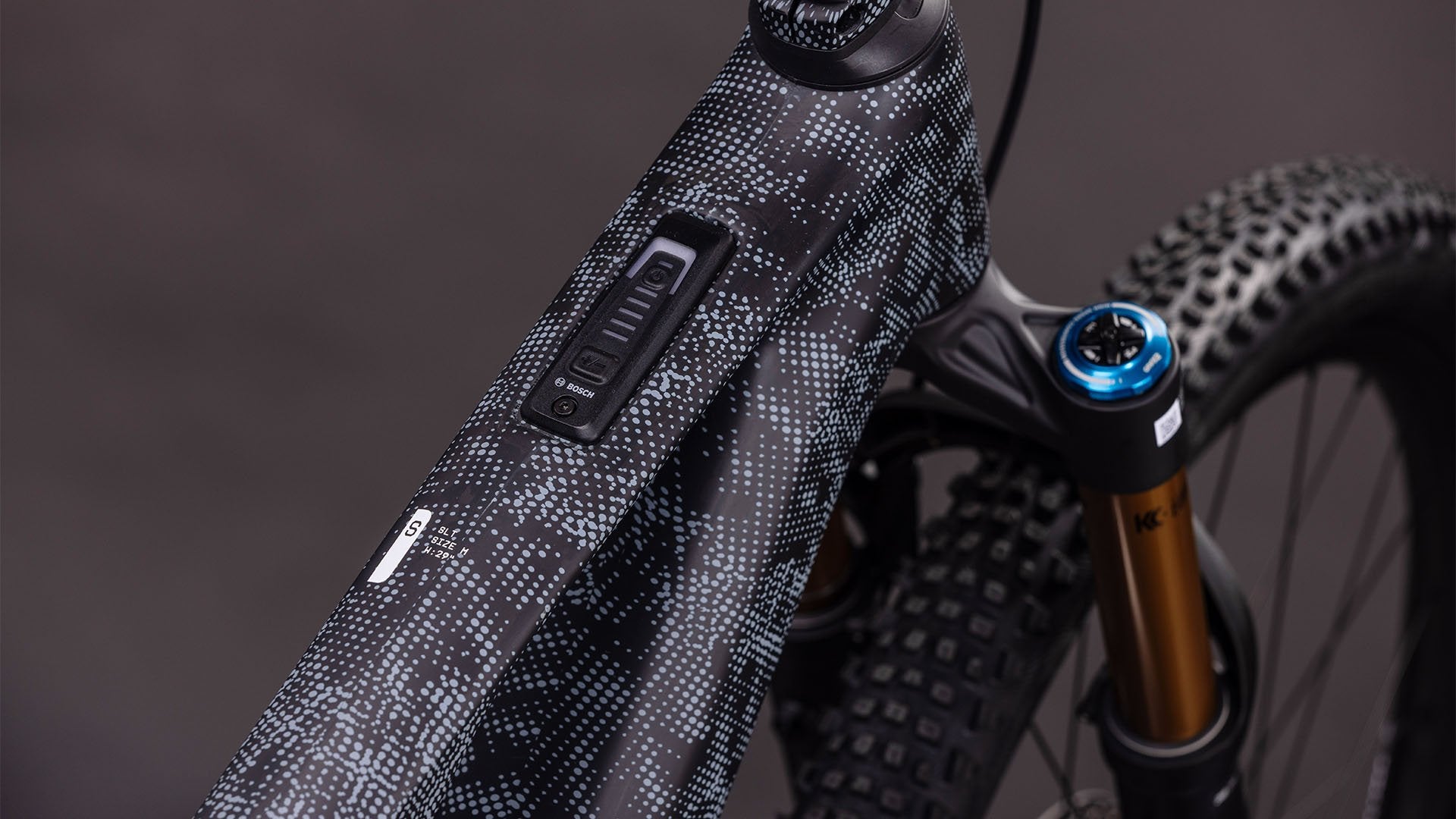

| Bosch Drive Unit Performance SX max. 60Nm (BDU31) | Bosch System Control, Incl. Mini Remote | Bosch CompactTube 400 | Bosch 4A |
Drivetrain & Brakes
| Brake System |
Shimano XTR BR-M9220, Hydr. Disc Brake (203/180) |
| Rear Derailleur |
Shimano XTR Di2 RD-M9260-SGS, 12-Speed, Electronic Shifting System |
| Shifters |
Shimano XTR Di2 SW-M9250-I, Direct Attach |
| Bottom Bracket |
e*thirteen e*spec Race Carbon Crank, 32T |
| Crankset |

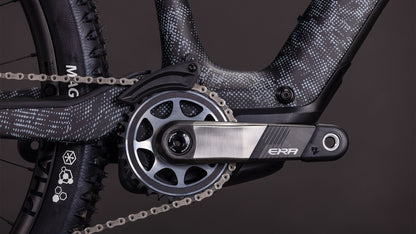

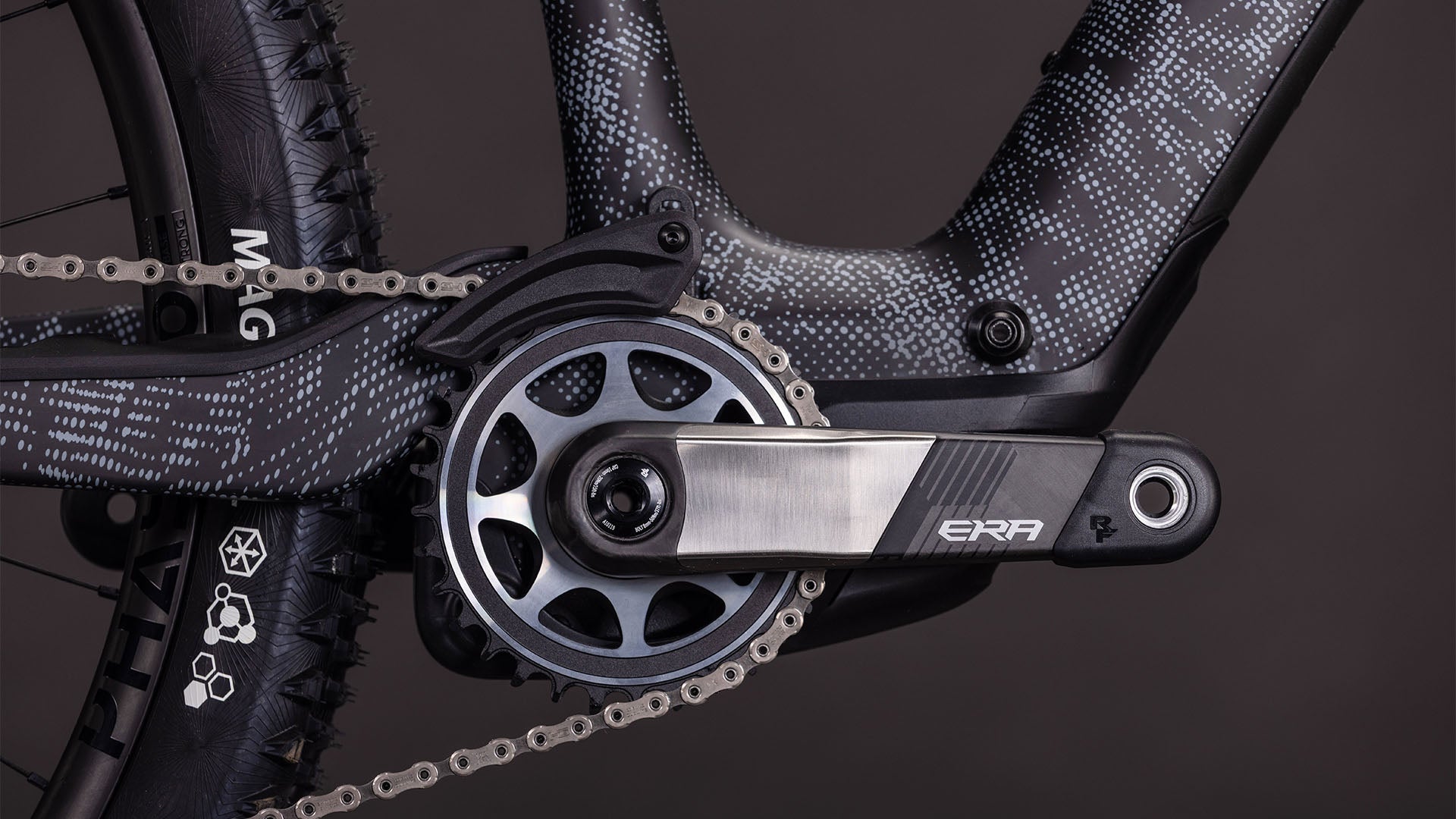

Race Face ERA E-MTB, 32T |
| Cassette |
Shimano XTR CS-M9200, 10-51T |
| Chain |
Shimano CN-M9100 |
Cockpit
| Headset |
ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment |
| Integrated Bar/ Stem |

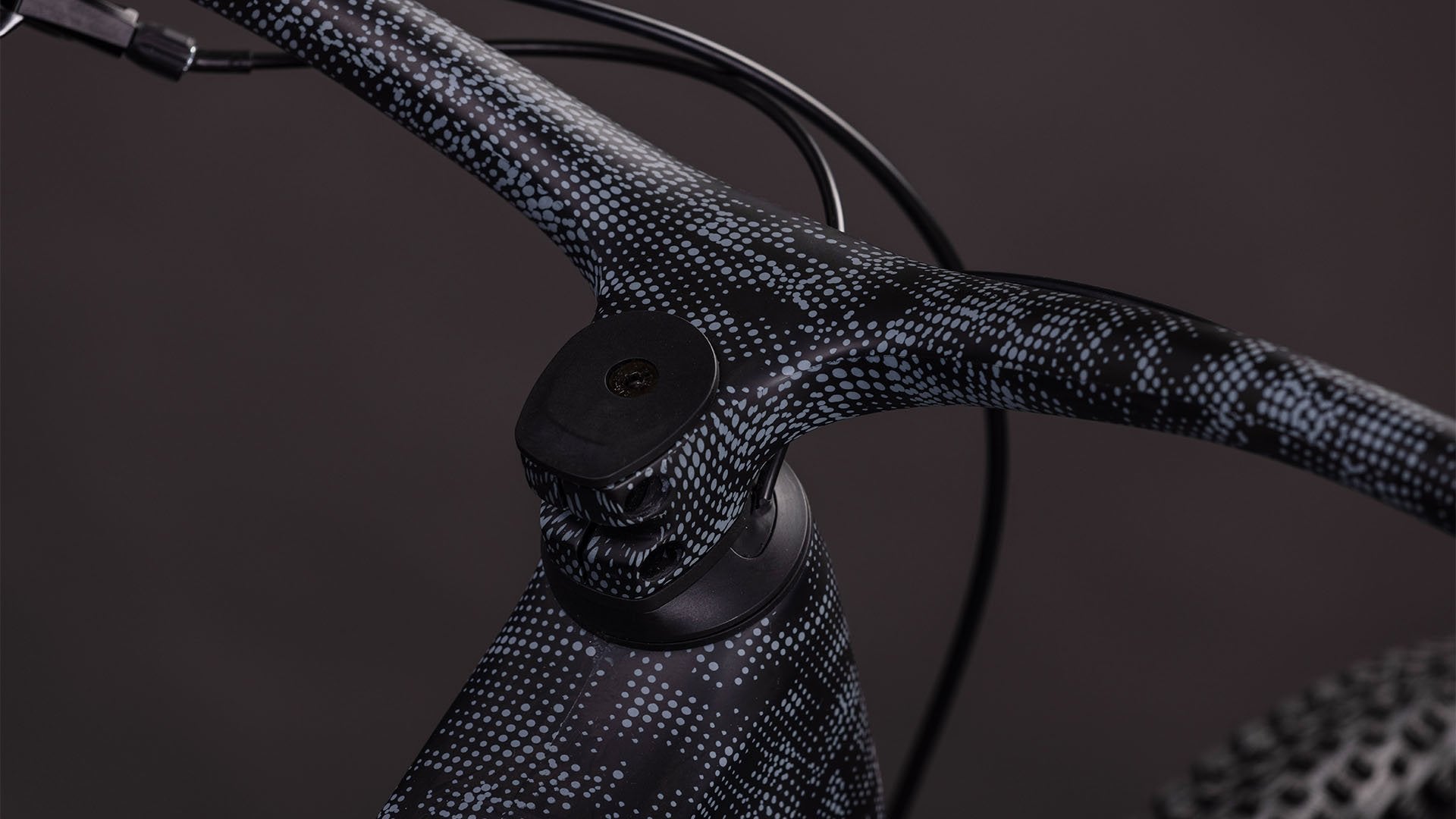

CUBE Stereo Carbon Cockpit System |
| Grips |
ACID Disrupt, Soft Compound |
Wheels
|
Wheelset |
Newmen Phase 30 base/base, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready |
| Tyres |
Conti Magnotal, Trail Soft, Tubeless Ready, 2.4 |
Finishing Kit
| Saddle |
ACID Venec EMTB Trail 140 |
| Seat Post |
Fox Transfer Factory, 31.6mm, Kashima Coated |
Product Information
| Colour |
matrixblack´n´white |
| Weight | 16,8 kg |
| ArtNo |
104300 |
