ENGINEERED FOR GOOD TIMES |

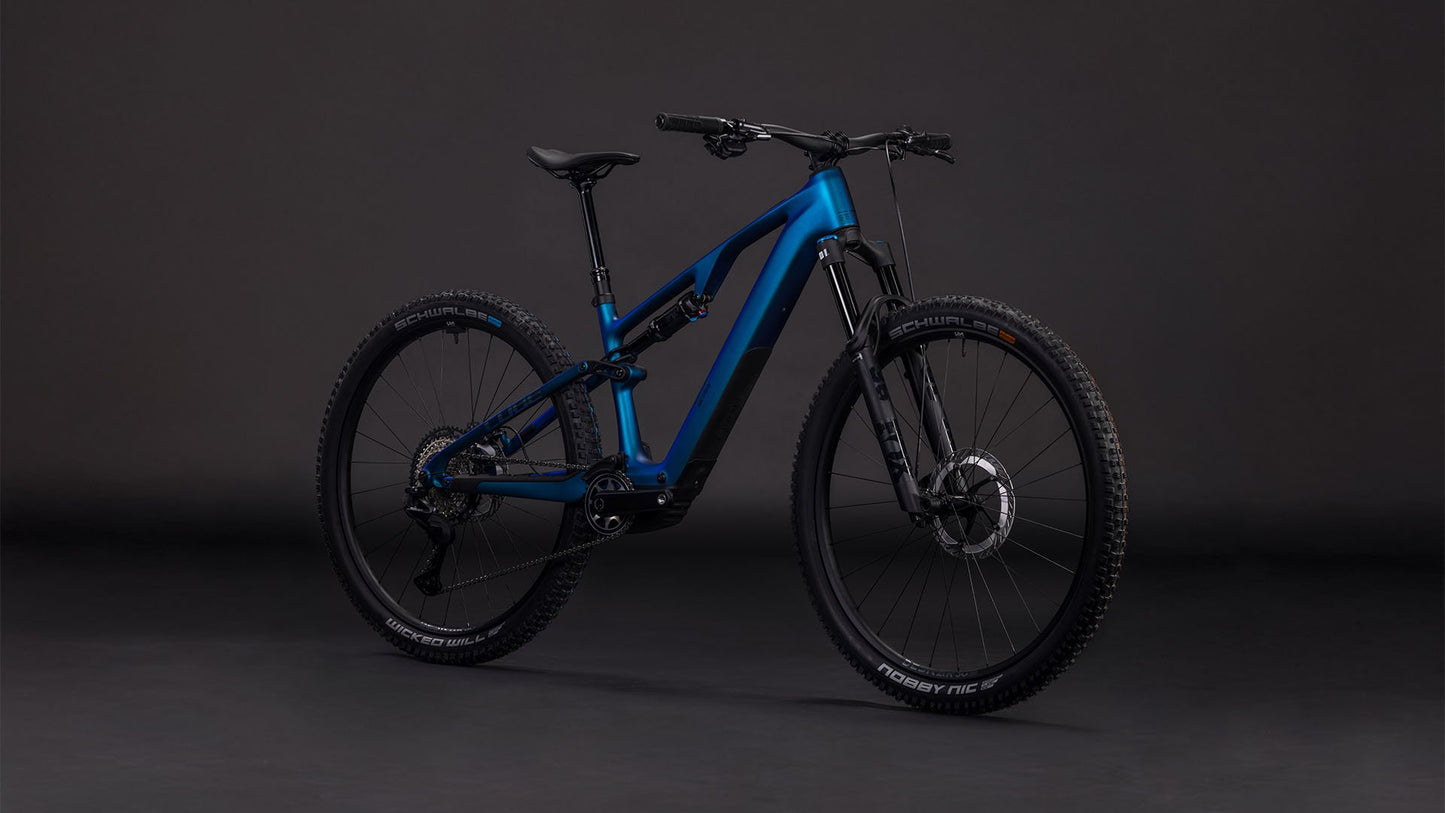

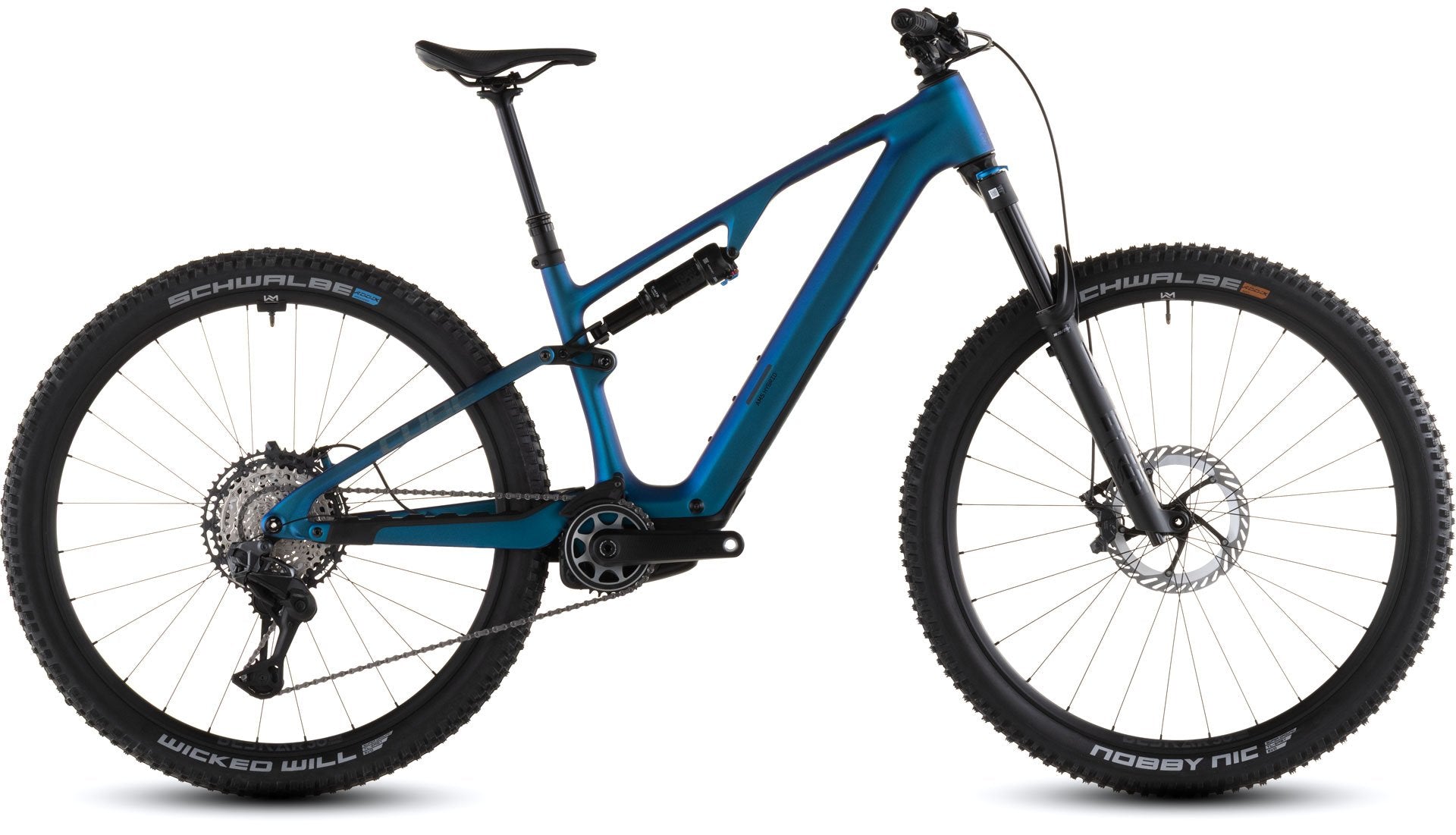

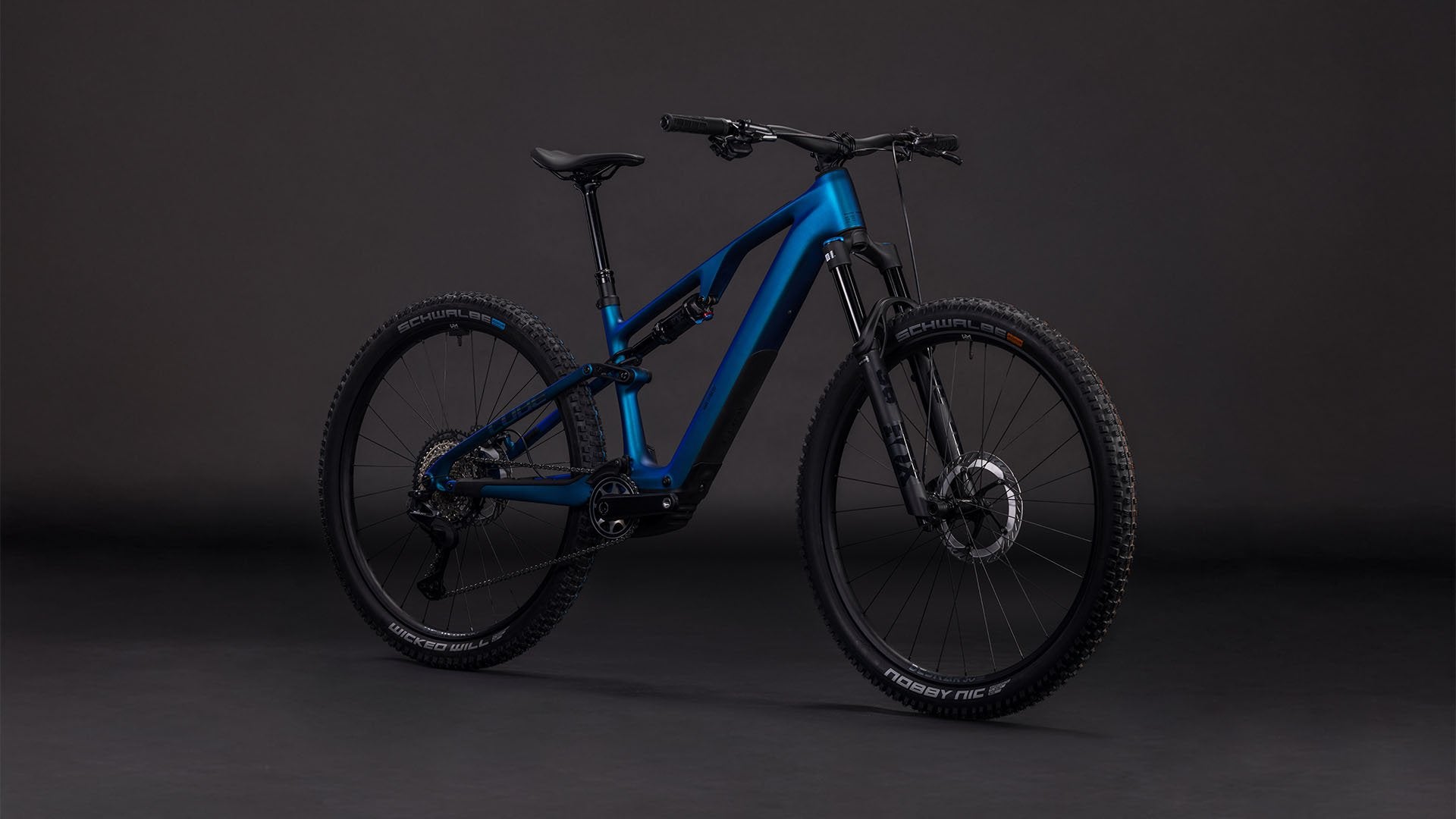

The AMS Hybrid ONE44 C:68X frame makes use of our most advanced C:68X® carbon material, for maximum possible strength and stiffness with the lowest possible weight. The 400Wh battery is incorporated into the down tube, as close to the lightweight Bosch SX motor as possible to improve handling, and the frame is PowerMore-ready for a 250Wh range boost with the optional battery pack. Internal Cable Routing complements the frame's sleek silhouette and there's a lightweight Direct Mount chain guide. With a UDH gear hanger and angle adjustable headset so you can tweak the handling to suit your riding style, it's got everything you need for fast-paced trail riding. |
| Frame Material | Frame Weight | Battery |
| C:68X® | 2100g | 400 Wh |
Frame
| Frame |
C:68X® Monocoque Advanced Twin Mold Technology, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Fixed Integrated Battery, Advanced Internal Cable Routing |
| Size | S, M, L, XL |
Suspension
| Suspension Fork |

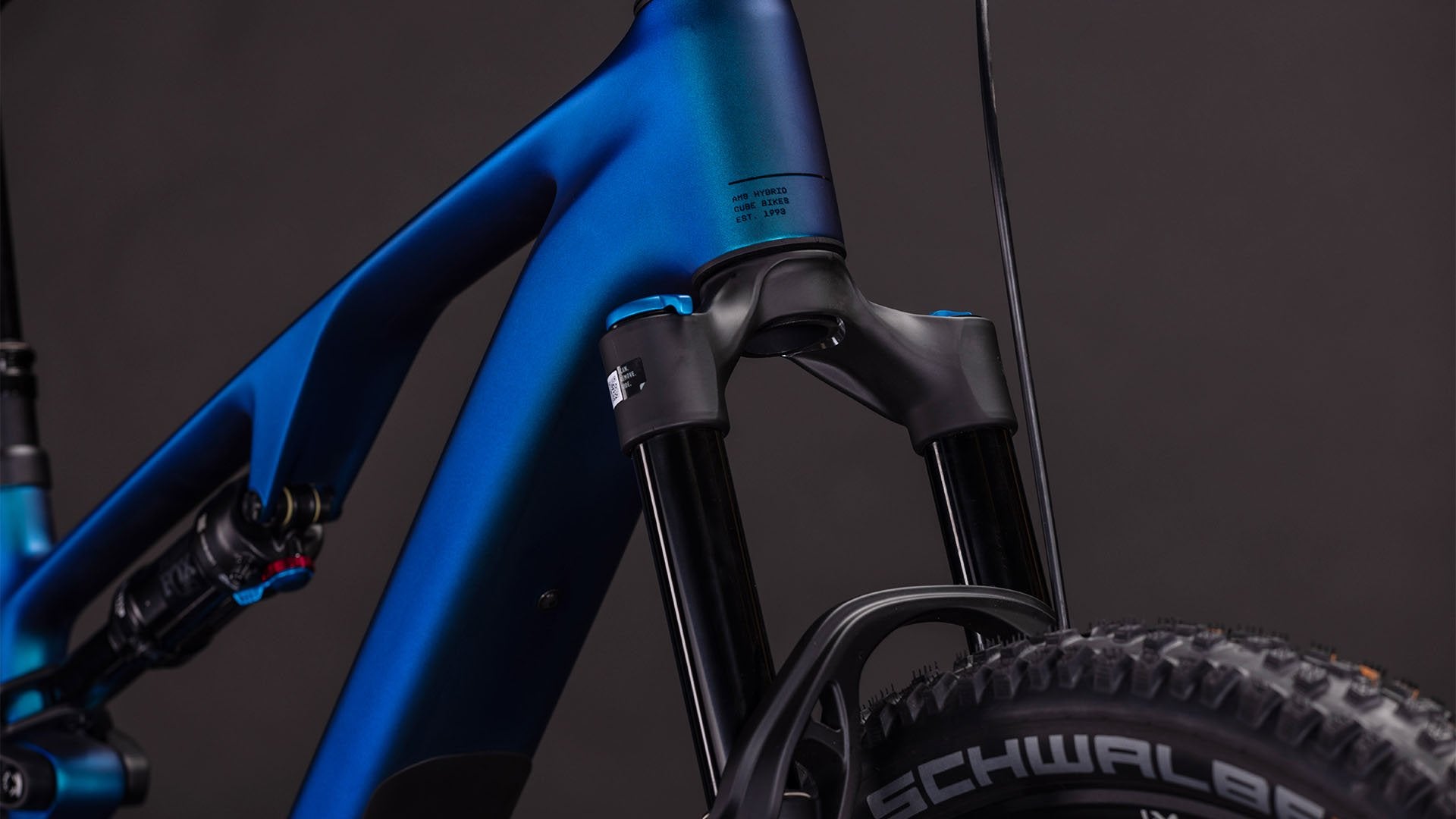

Fox 36 Float SL Performance GRIP, Tapered, 15x110mm, 140mm |
| Shock |

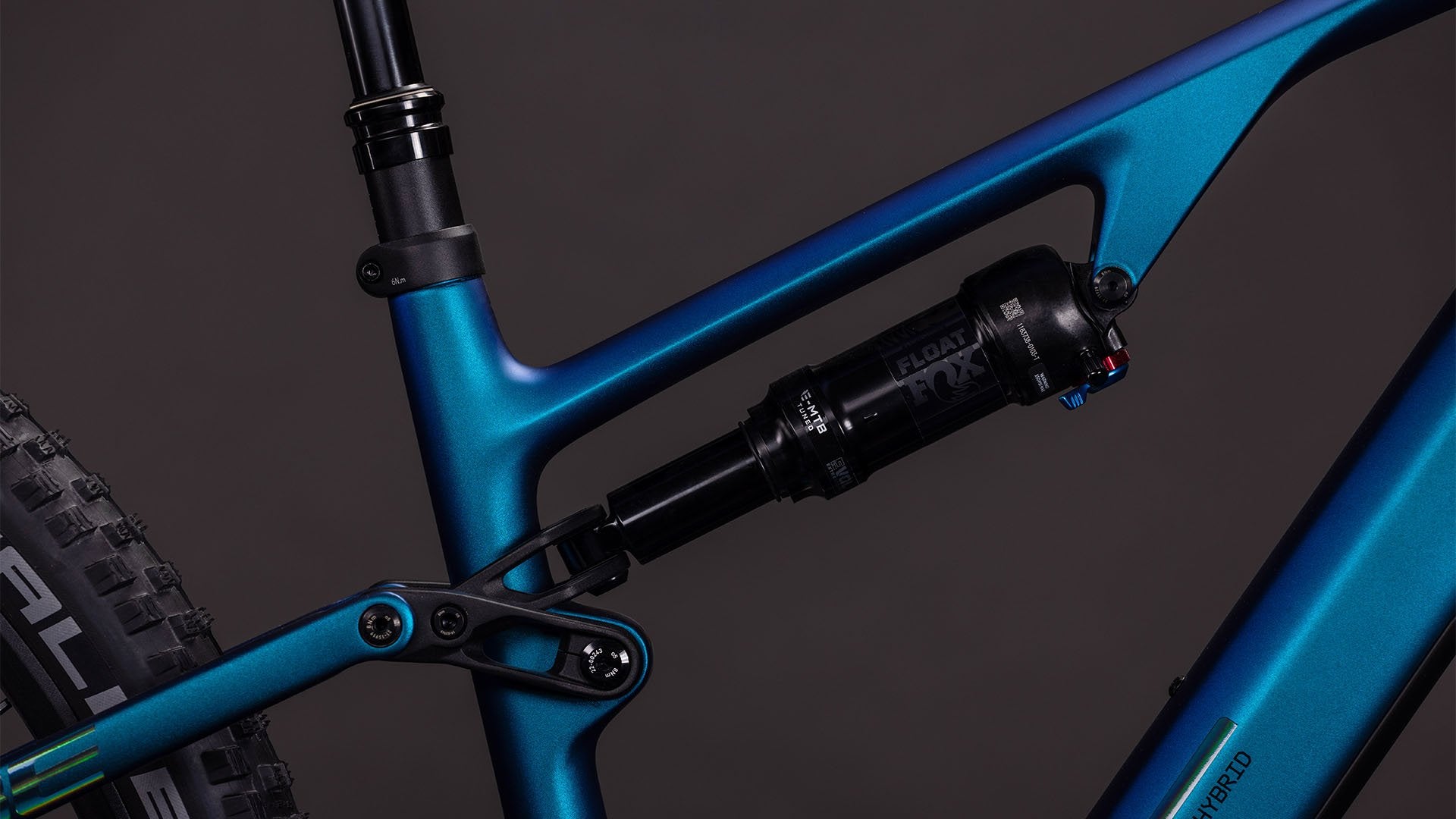

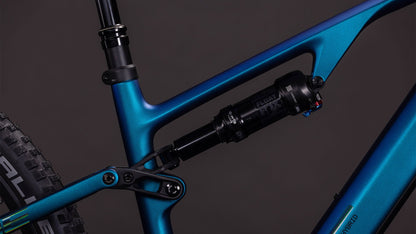

Fox Float Performance, 210x55mm, Adjustable LSR w/ 2-Pos. Lever |
| Shock Hardware |
Front: 30x8mm, Rear: DU-Bushing 12.7mm |
E-Bike System
| Drive Unit | Remote | Battery | Charger |
 |
 |
 |
 |

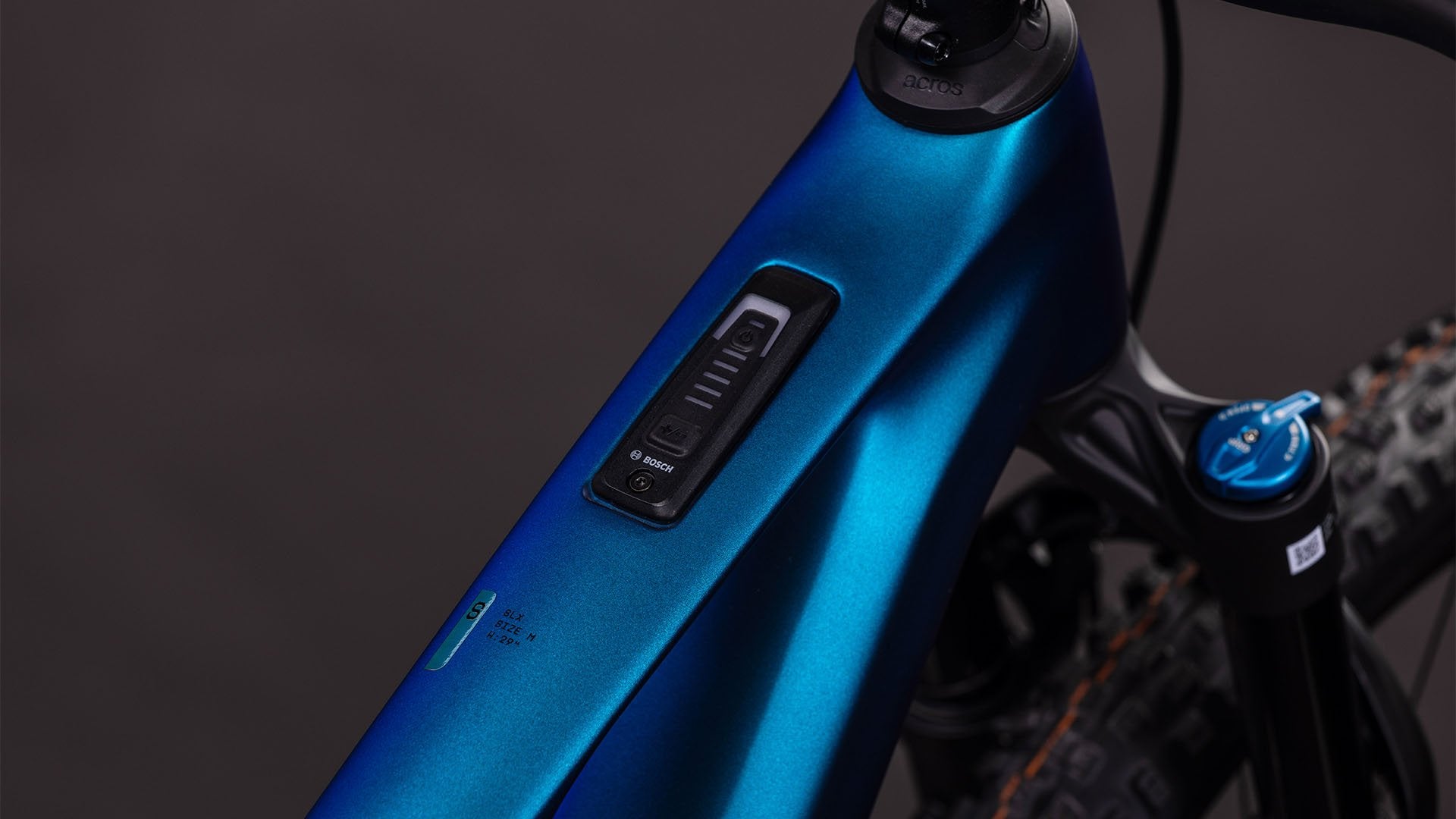

| Bosch Drive Unit Performance SX max. 60Nm (BDU31) | Bosch System Control, Incl. Mini Remote | Bosch CompactTube 400 | Bosch 4A |
Drivetrain & Brakes
| Brake System |
Shimano XT BR-M8220, Hydr. Disc Brake (203/180) |
| Rear Derailleur |
Shimano XT Di2 RD-M8260-SGS, 12-Speed, Electronic Shifting System |
| Shifters |
Shimano XT Di2 SW-M8250-IR, Direct Attach |
| Crankset |

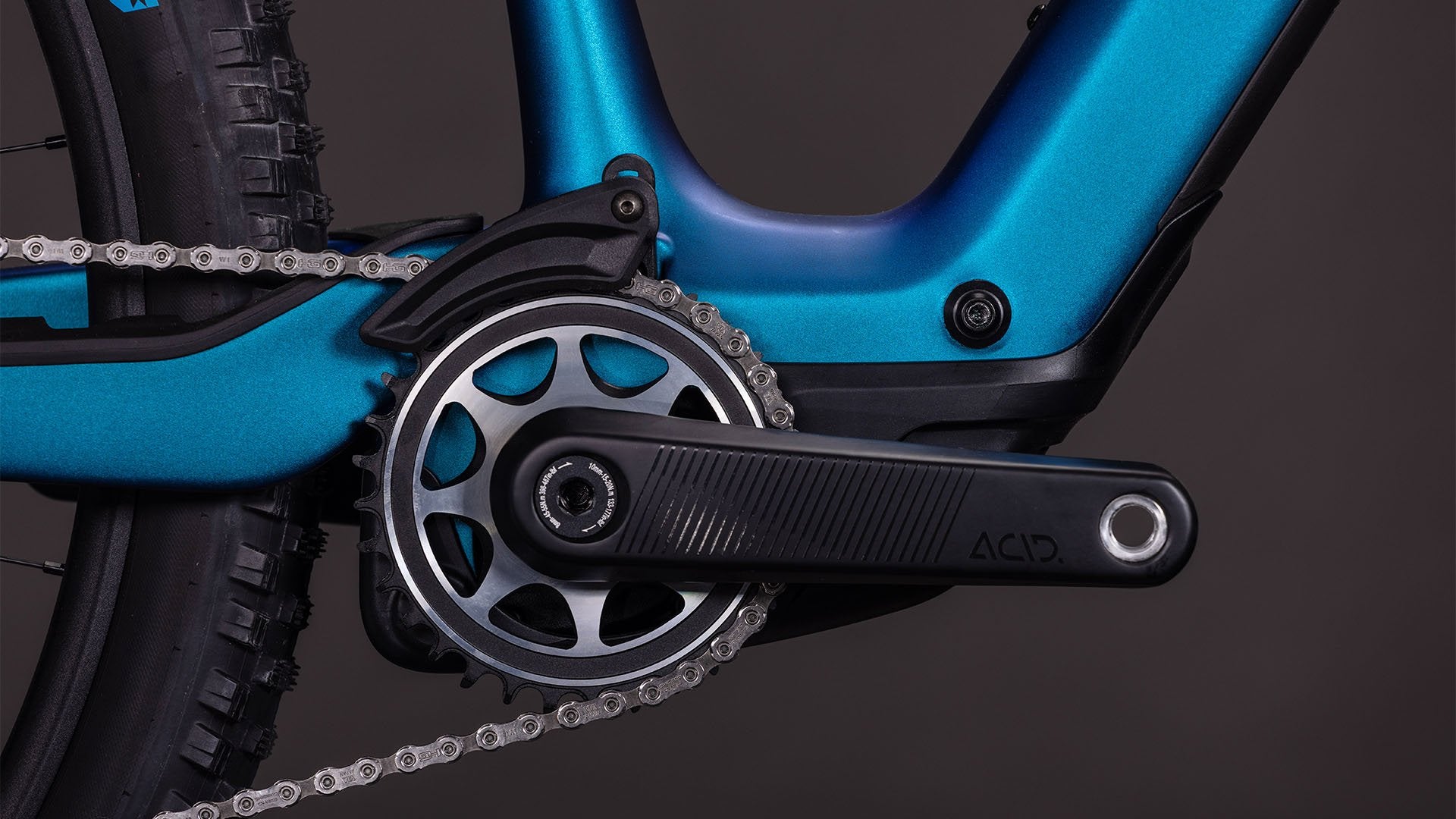

ACID MTB Hybrid Carbon, 32T |
| Cassette |
Shimano XT CS-M8200, 10-51T |
| Chain |
Shimano CN-M8100 |
| Chain Guide |
Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate |
Cockpit
| Headset |
ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment |
| Stem |
Newmen Evolution SL 318.4, 31.8mm |
| Handlebar |
Newmen Advanced 318.25, Carbon, 780mm |
| Grips |
ACID Disrupt, Soft Compound |
Wheels
|
Wheelset |
Newmen Beskar Base 30 base/base, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready |
| Front Tyre |
Schwalbe Nobby Nic, Super Ground, Addix Soft, Kevlar, 2.4 |
| Rear Tyre |
Schwalbe Wicked Will, Super Ground, Addix Speedgrip, Kevlar, 2.4 |
Finishing Kit
| Saddle |
ACID Venec EMTB Trail 140 |
| Seat Post |
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm |
Product Information
| Colour |
nebula´n´black |
| Weight | 17,5 kg |
| ArtNo |
104100 |
