ENGINEERED FOR GOOD TIMES |

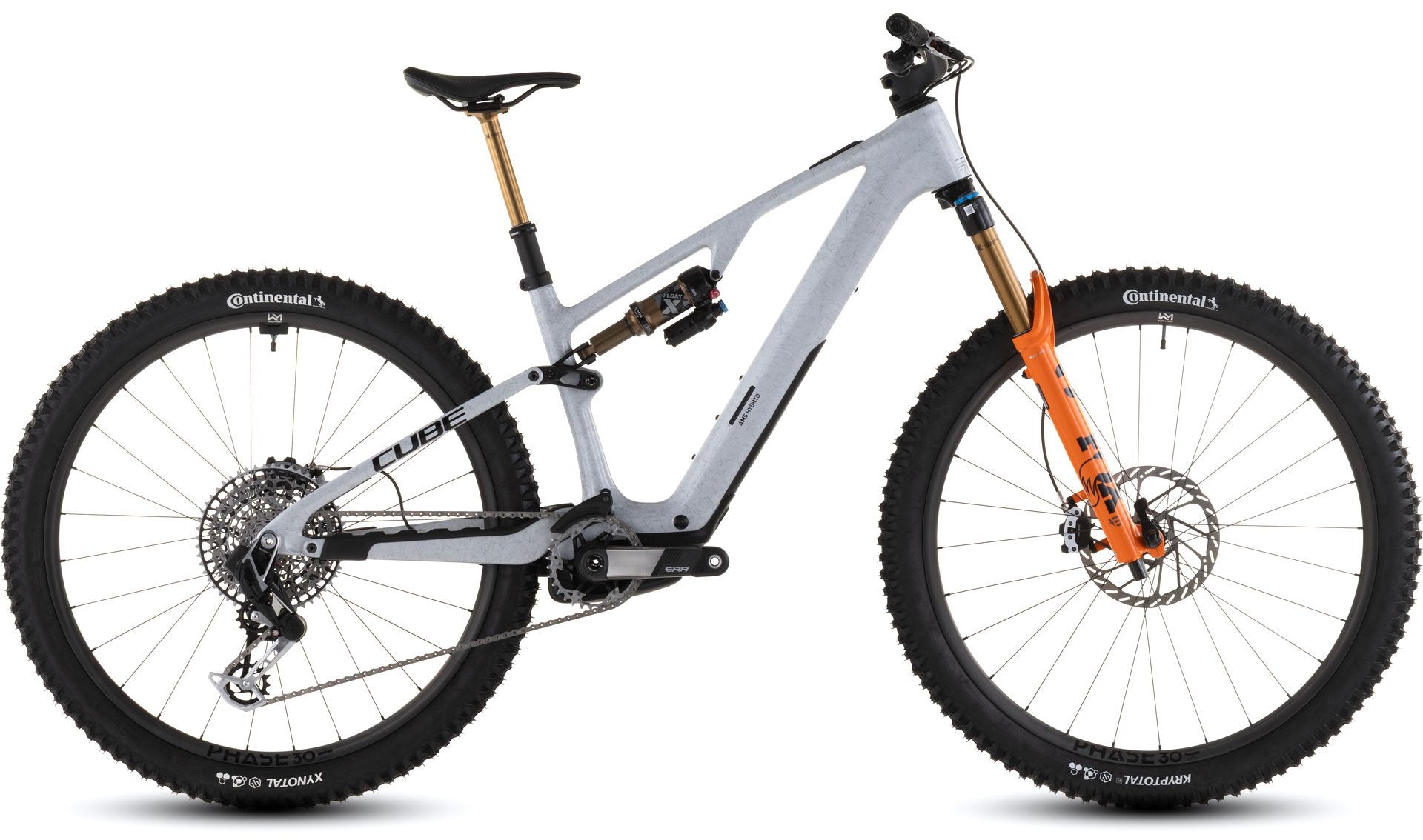

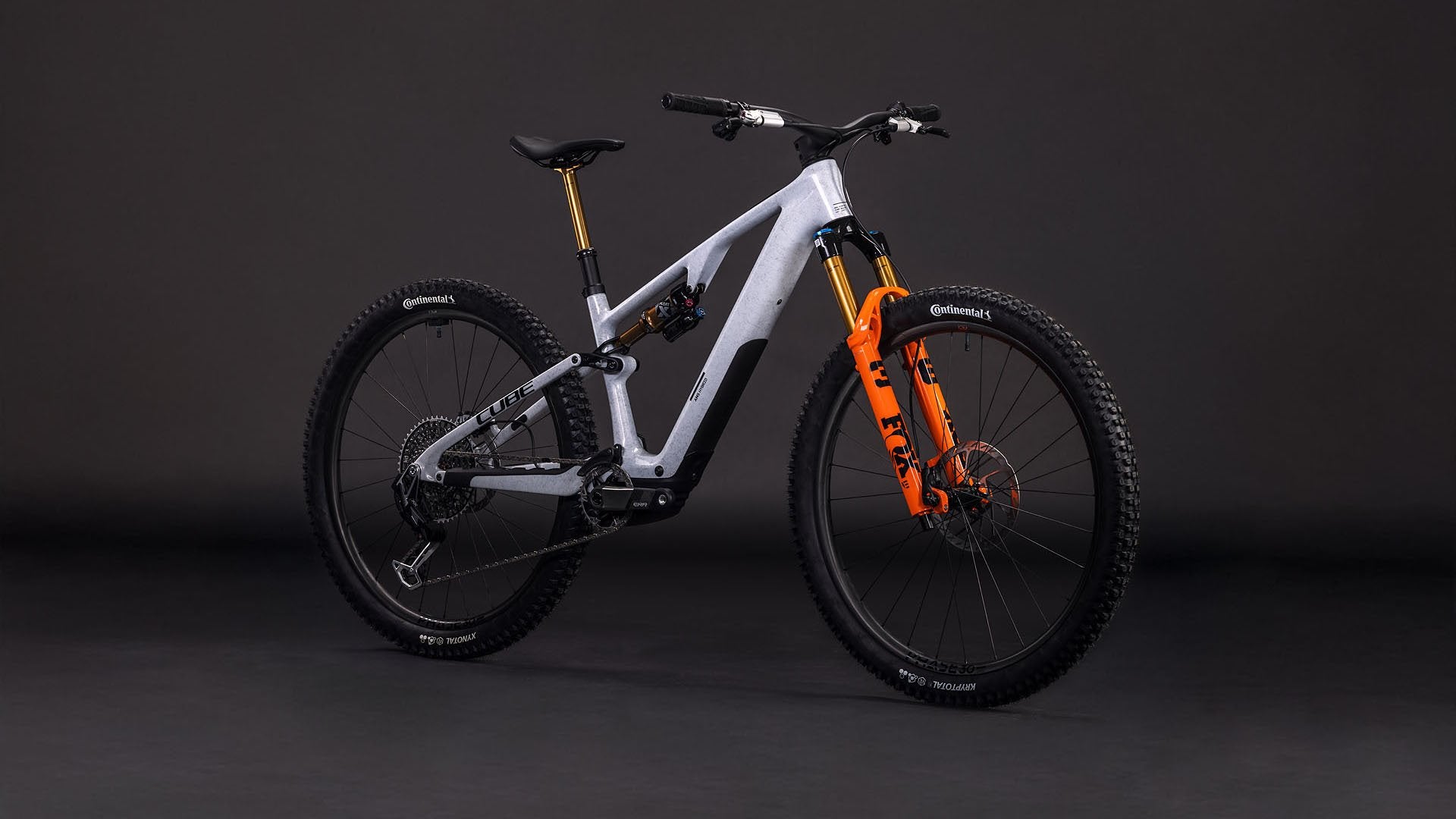

The AMS Hybrid ONE44 C:68X frame makes use of our most advanced C:68X® carbon material, for maximum possible strength and stiffness with the lowest possible weight. The 400Wh battery is incorporated into the down tube, as close to the lightweight Bosch SX motor as possible to improve handling, and the frame is PowerMore-ready for a 250Wh range boost with the optional battery pack. Internal Cable Routing complements the frame's sleek silhouette and there's a lightweight Direct Mount chain guide. With a UDH gear hanger and angle adjustable headset so you can tweak the handling to suit your riding style, it's got everything you need for fast-paced trail riding. |
| Frame Material | Frame Weight | Battery |
| C:68X® | 2100g | 400 Wh |
Frame
| Frame | C:68X® Monocoque Advanced Twin Mold Technology, Effiecient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Fixed Integrated Battery, Advanced Internal Cable Routing |
| Size | S, M, L, XL |
Suspension

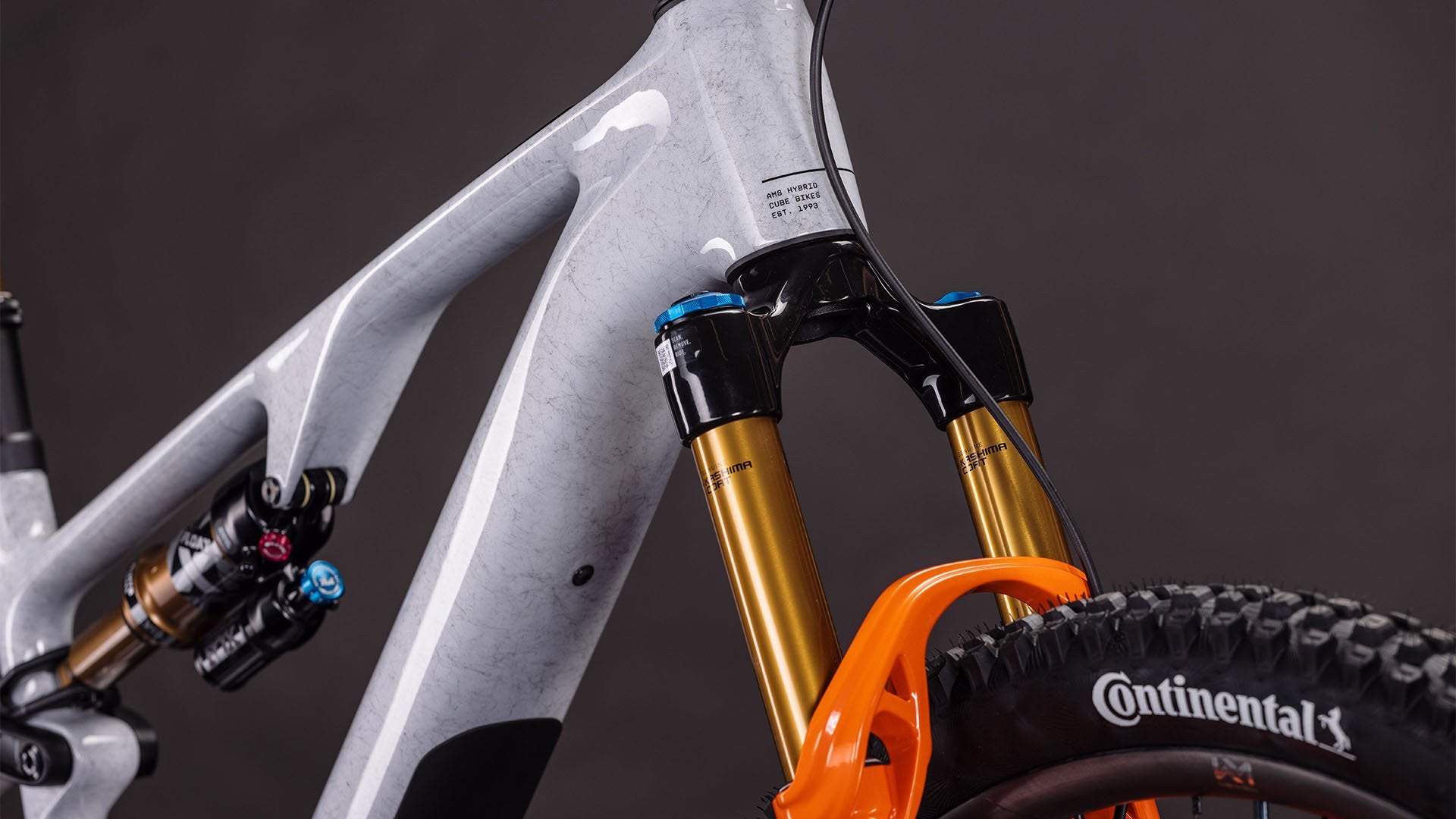

| Suspension Fork | Fox 36 Float Factory FIT GRIP2, Tapered, 15x110mm, 140mm, Kashima Coated |

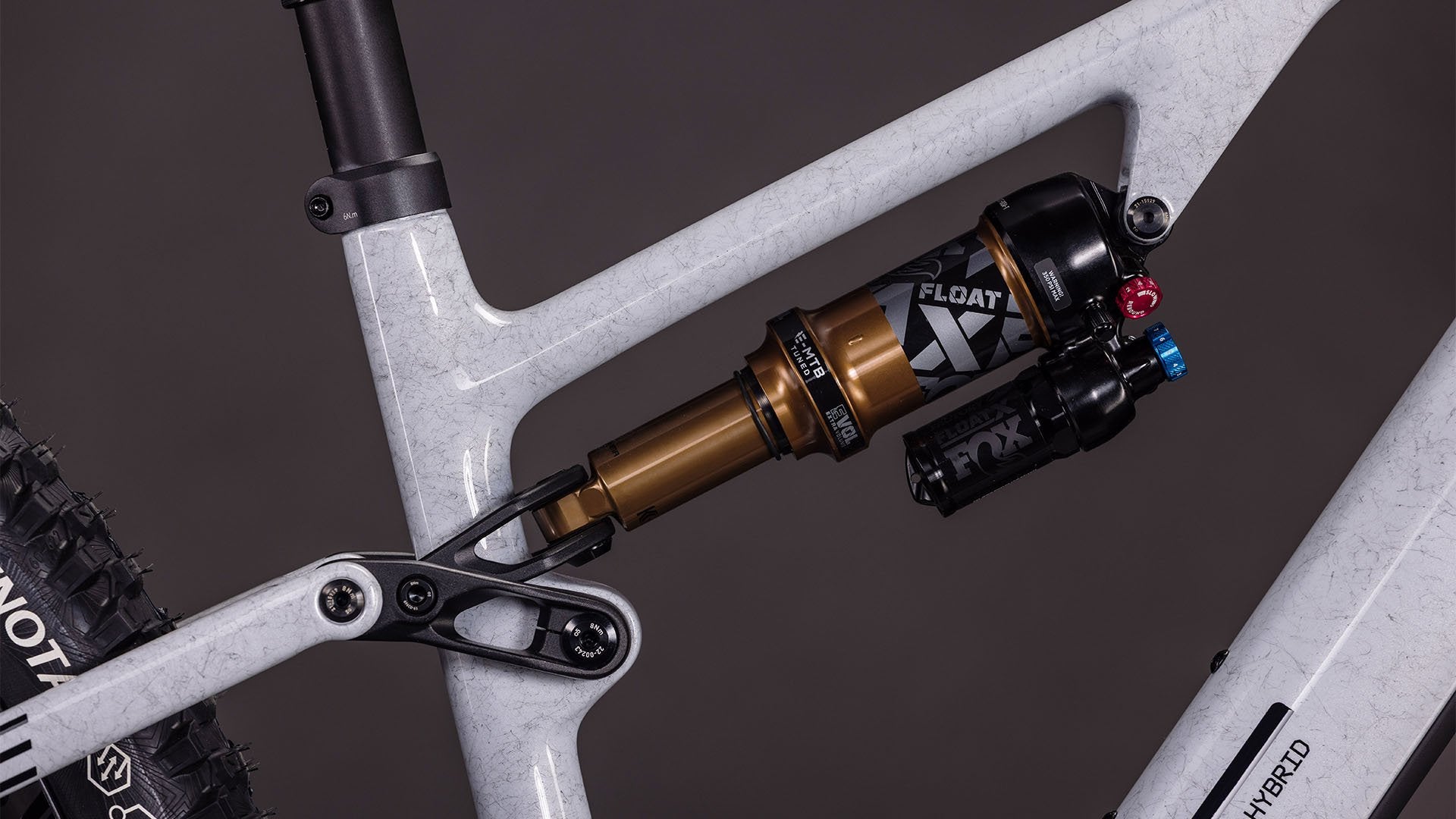

| Shock | Fox Float X Factory, 210x55mm, Adjustable LSC w/ 2-Pos. Lever, Kashima Coated |
| Shock Hardware | Front: 30x8mm, Rear: DU-Bushing 12,7mm |
E-Bike System
| Drive Unit | Remote | Battery | Charger |
 |
 |
 |
 |

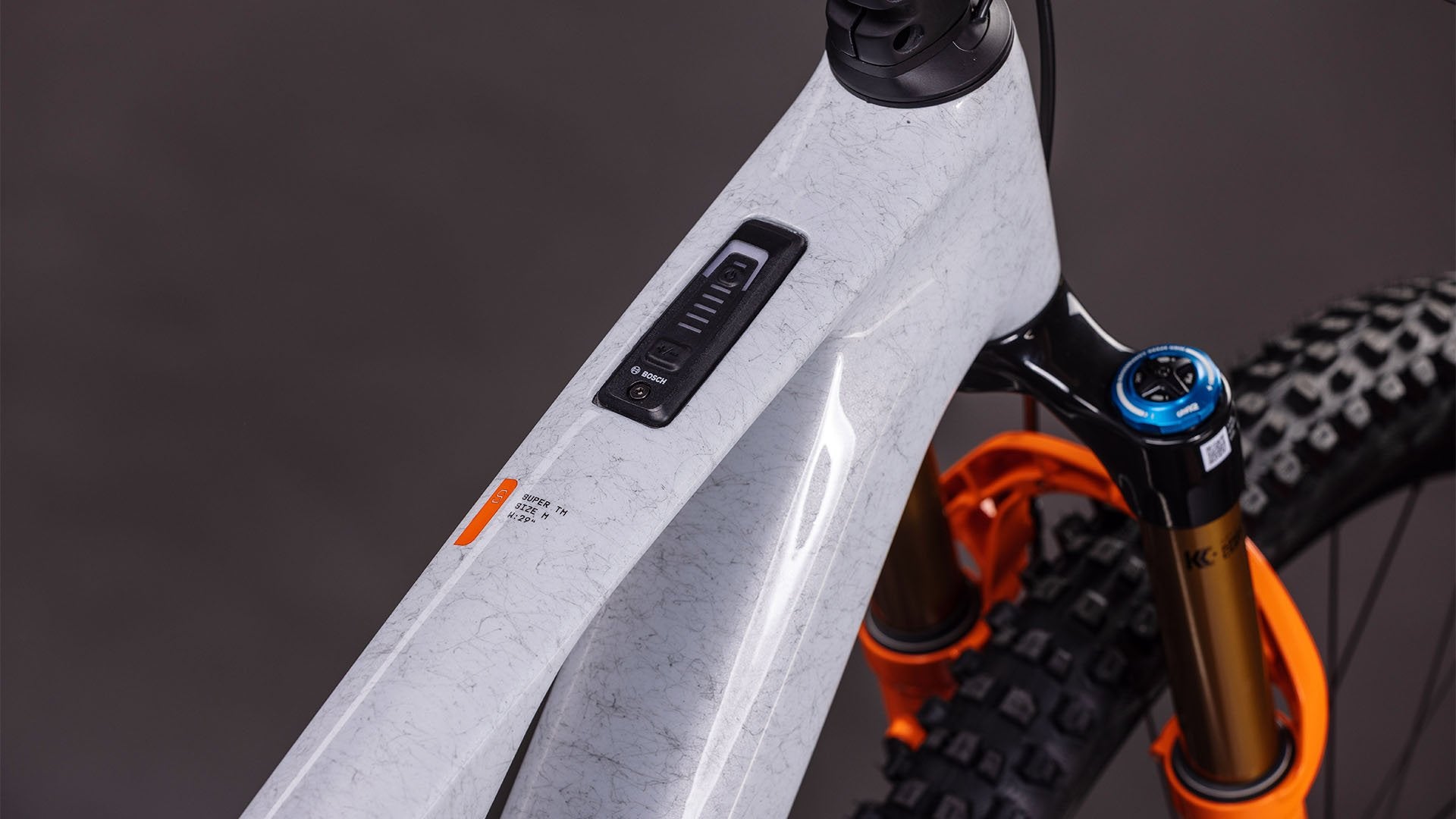

| Bosch Drive Unit Performance SX max. 60Nm (BDU31) | Bosch System Control, Incl. Mini Remote | Bosch CompactTube 400 | Bosch 4A |
Drivetrain & Brakes
| Brake System |
Sram Maven Ultimate, Hydr. Disc Brake (200/180) |
| Rear Derailleur |
Sram XX Eagle AXS™ Transmission, 12-Speed, Electronic Shifting System |
| Shifters |
Sram AXS™ Pod Ultimate Controller |
| Crankset |

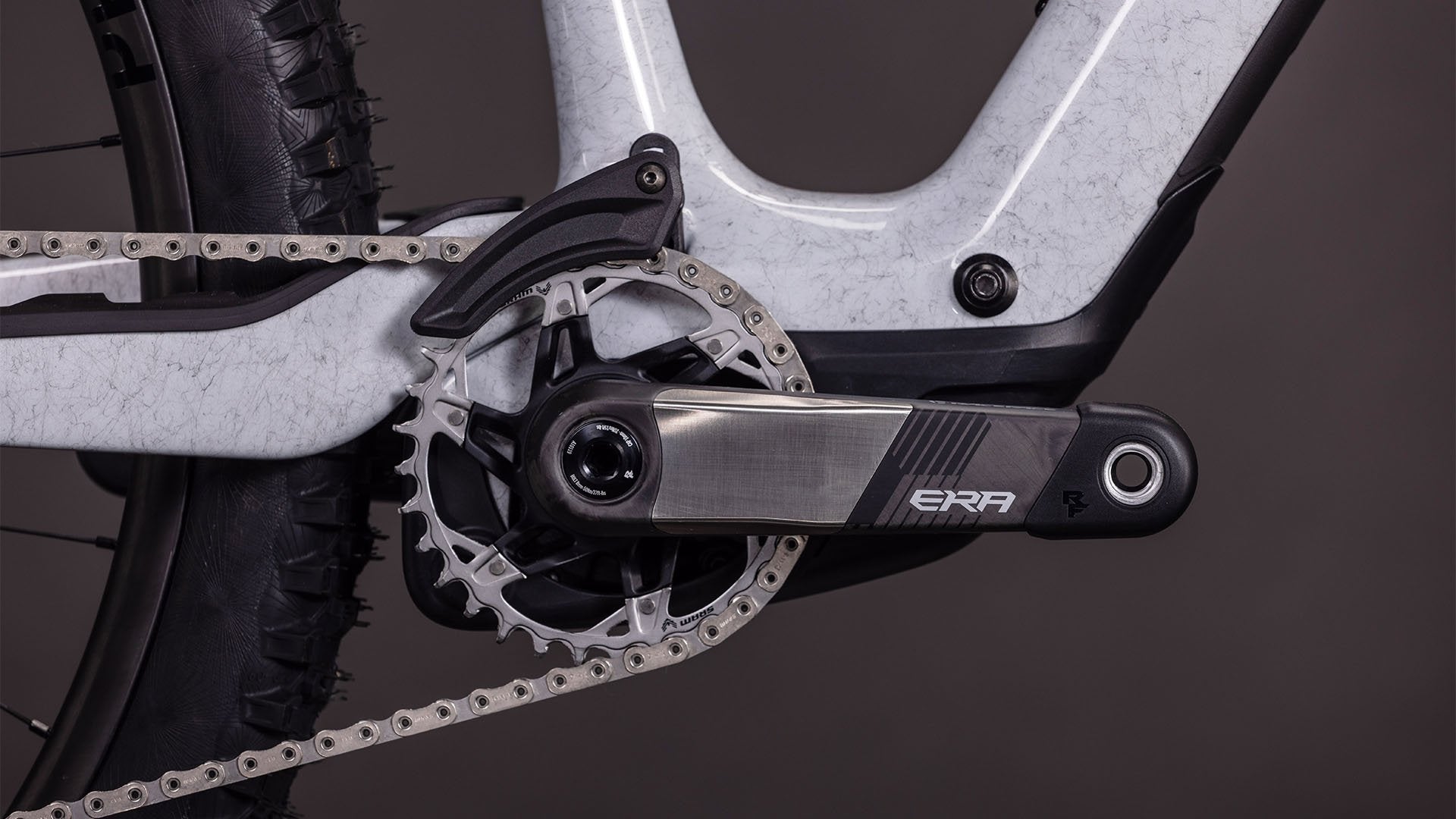

Race Face ERA E-MTB, 32T |
| Cassette |
Sram XS-1297, 10-52T |
| Chain |
Sram XX Eagle™ Transmission |
| Chain Guide | Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate |
Cockpit
| Headset |
ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment |
| Integrated Bar/ Stem |
CUBE Stereo Carbon Cockpit System |
| Grips |
ACID Disrupt, Soft Compound |
Wheels
|
Wheelset |
Newmen Phase 30 base/base, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready |
| Front Tyre |
Conti Kryptotal Front, Enduro Soft, Tubeless Ready, 2.4 |
| Rear Tyre |
Conti Xynotal, Enduro Soft, Tubeless Ready, 2.4 |
Finishing Kit
| Saddle |
ACID Venec EMTB Trail 140 |
| Seat Post |
Fox Transfer Factory 31.6mm, Kashima Coated |
Product Information
| Colour |
foggrey´n´fibre |
| Weight | 18,6 kg |
| ArtNo |
104400 |
