ENJOY
|

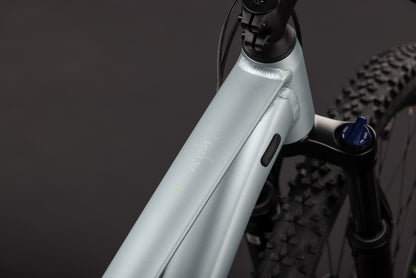

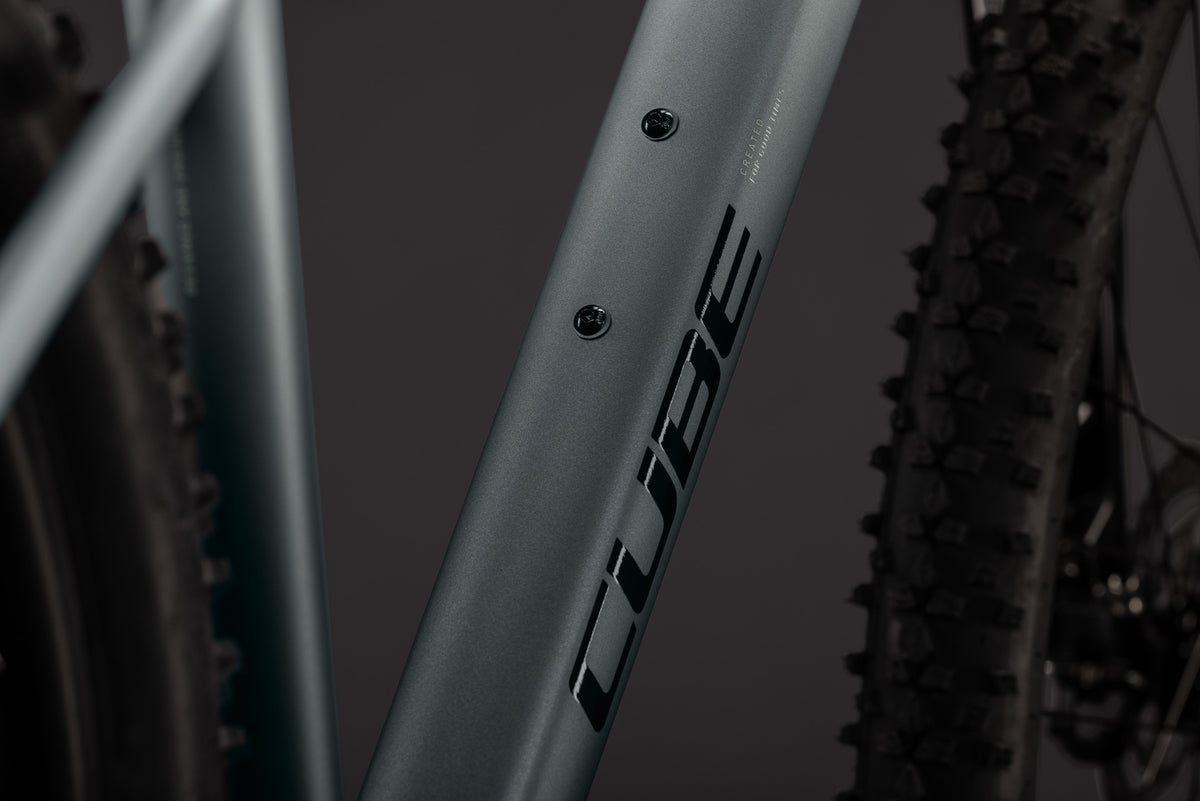

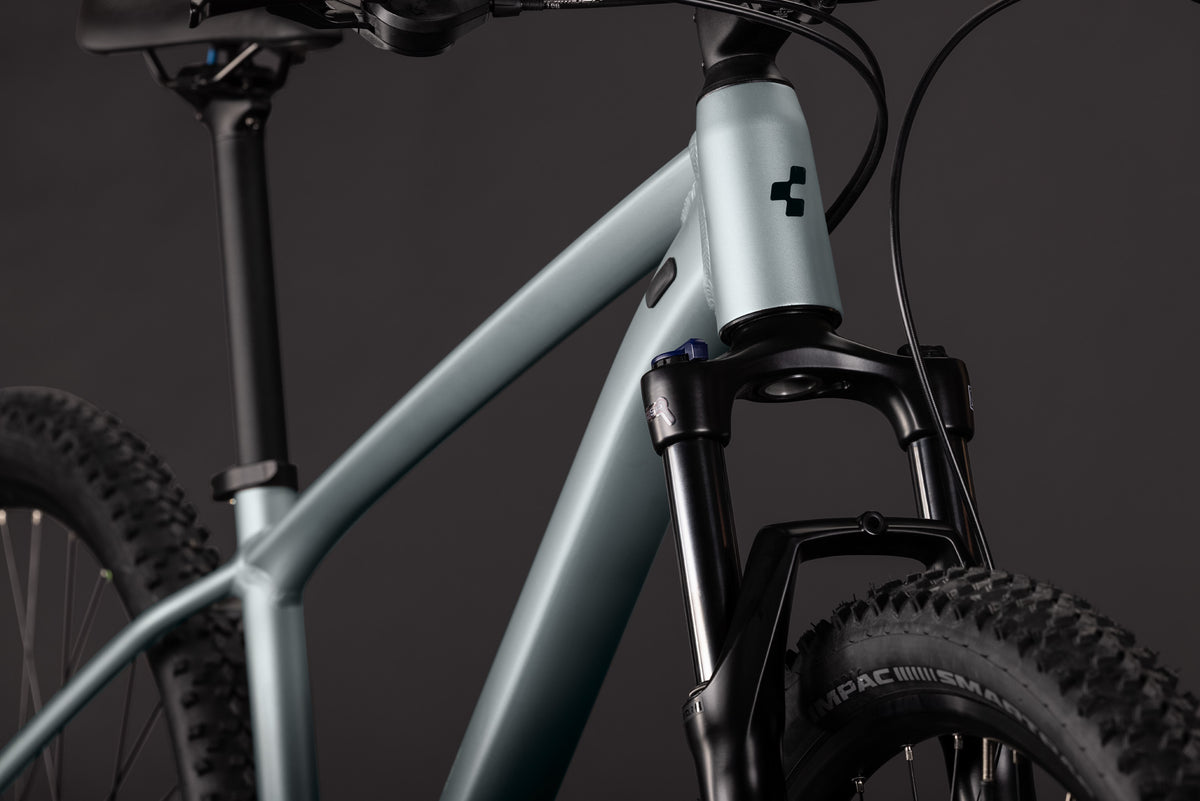

You'll notice that the Aim's High Performance Aluminium frame features almost organic lines, carefully crafted tube profiles and joints that are so smooth, one tube practically flows into the next. None of that is an accident – we believe a frame that functions brilliantly should also have an elegant form. To that end, we routed cables internally – including provision for a dropper seatpost. Mounting points include compatibility with our Semi-Integrated Carrier 2.1 and a flat mount kickstand, while a tapered head tube ensures confidence-inspiring handling and the replaceable gear hanger means it's easy to get up and running again in the event of a knock to the derailleur. We sweat the detail, so you can just pedal... |
| Frame Material | Sizes | |
Aluminium Lite |
Size Split |
Frame
| Frame | Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount |
| Sizes | Size Split: 27.5: XS, S // 29: M, L, XL |
Suspension
| Suspension Fork | SR Suntour XCT, 100mm |
Drivetrain & Brakes
| Brake System | Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (160/160) |
| Rear Derailleur | Shimano Cues RD-U6000-GS, 11-Speed |
| Shifters | Shimano Cues SL-U6000, Rapidfire-Plus |
| Bottom Bracket | Thun Paso-ML, 73mm BSA |

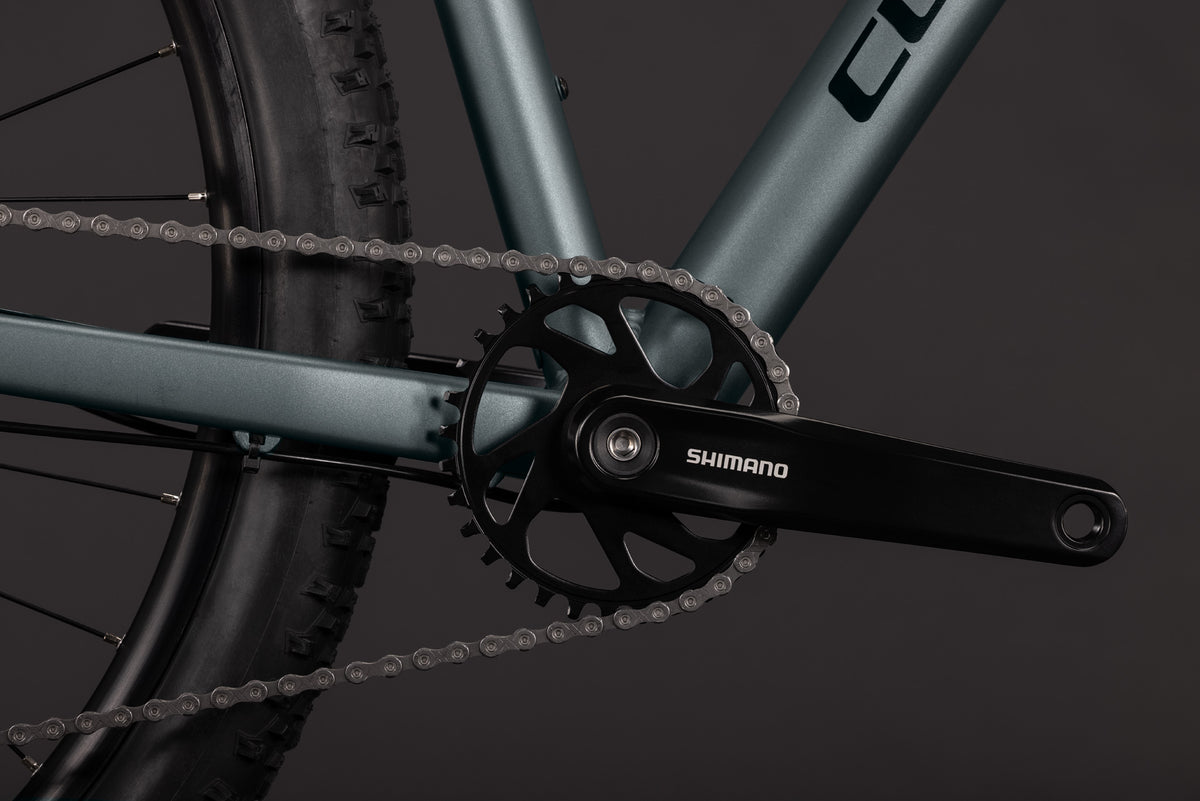

| Crankset | Shimano Cues FC-UT400, 32T |
| Cassette | Shimano Cues CS-LG400, 11-50T |
| Chain | KMC xGlide |
Cockpit
| Headset | CUBE FPH868p, Tapered, Semi-Integrated |
| Stem | CUBE Performance Stem, 31.8mm |
| Handlebar | CUBE Rise Trail Bar, 680mm |
| Grips | ACID Icon |
Wheels
| Wheelset | ACID Pro 25, 32/32 Spokes, QR/QR, Tubeless Ready |
| Tyres | Impac Smartpac, Draht, 2.25 |
Finishing Kit
| Saddle | ACID Venec Lite |
| Seat Post | CUBE Performance Post, 30.9mm |
| Pedals | CUBE PP MTB |
Product Information
| Colour | grey´n´black |
| Weight | 15,5 kg |
| ArtNo | 1140200 |
