PERFORMANCE
|

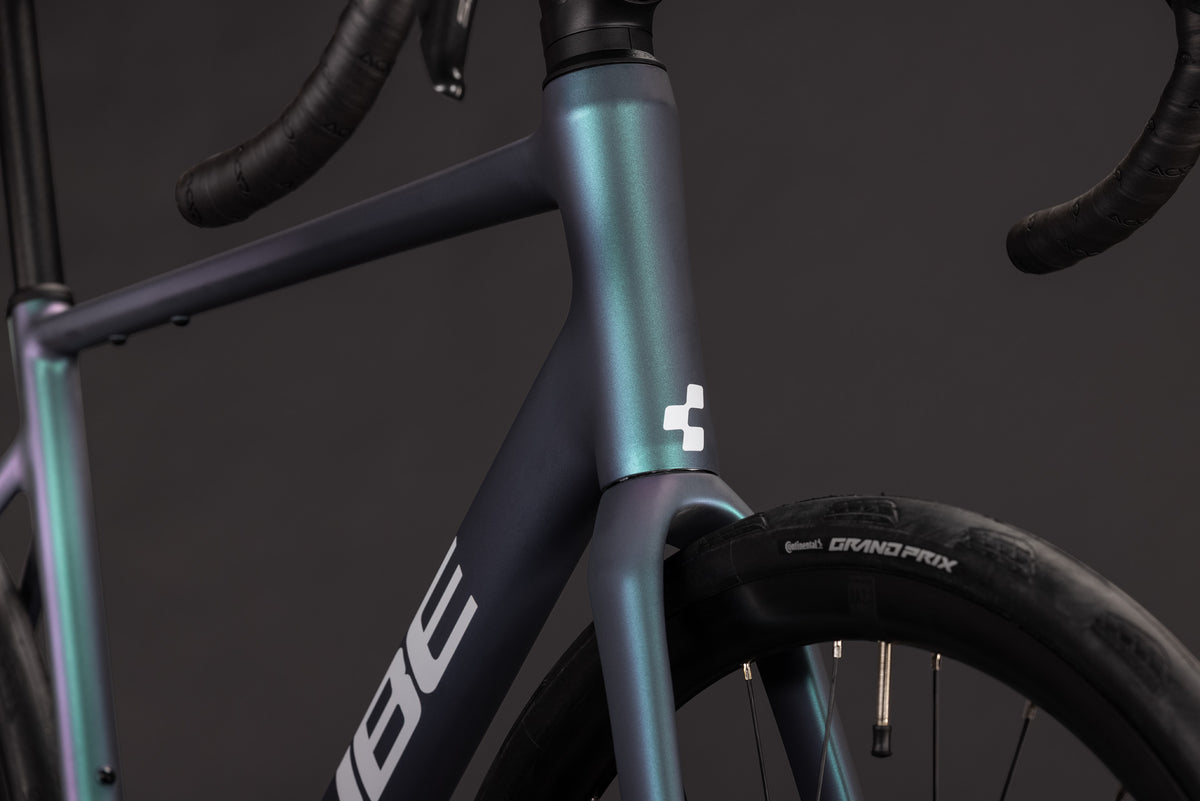

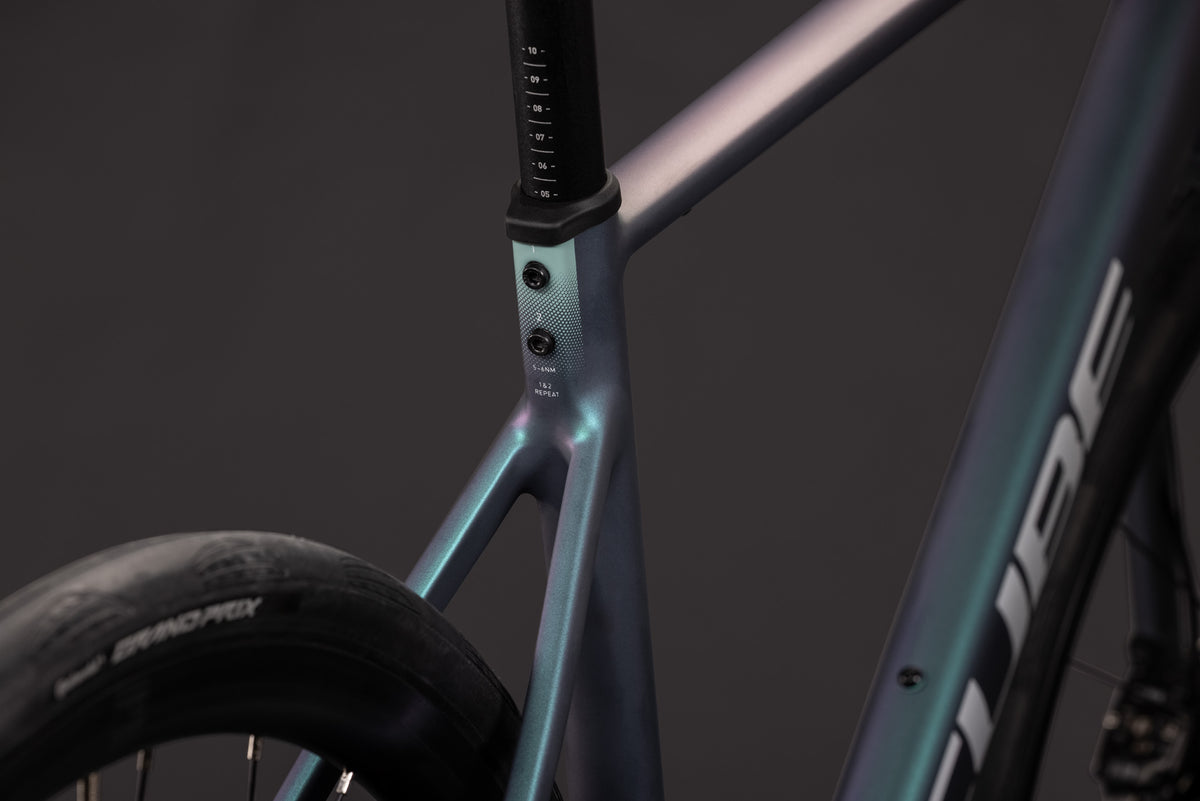

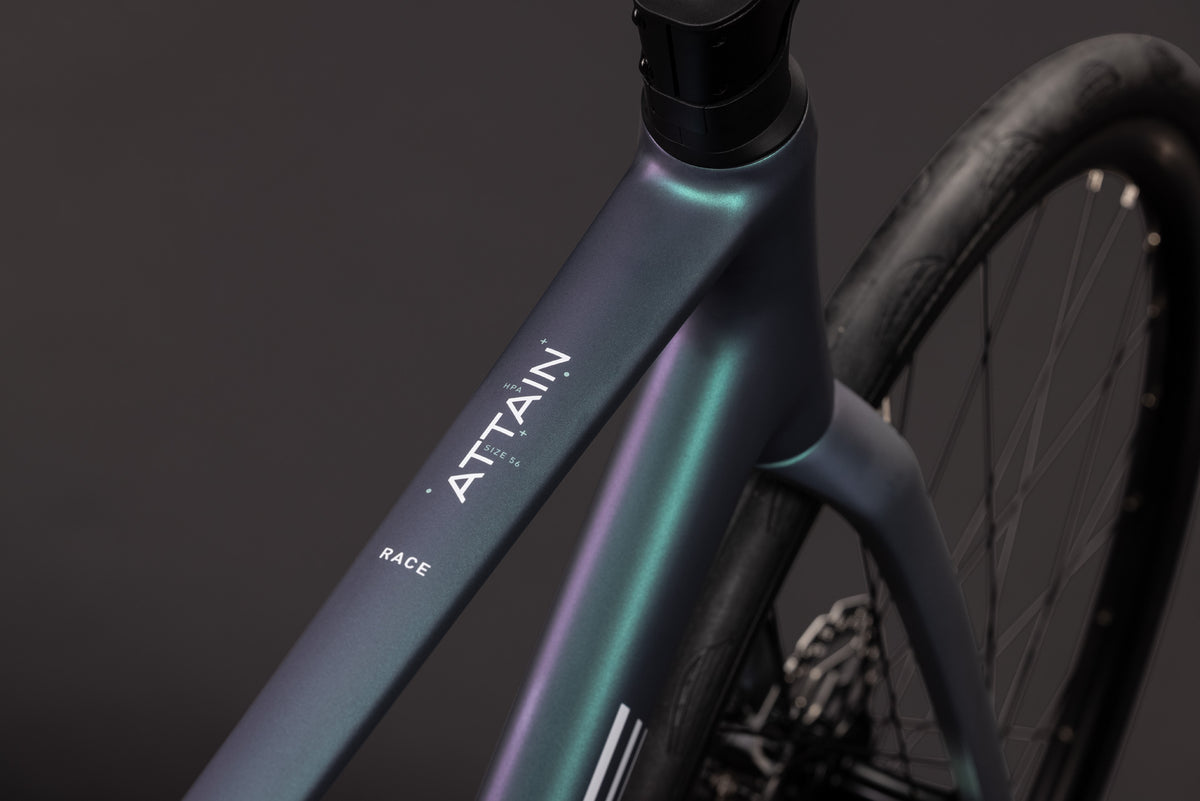

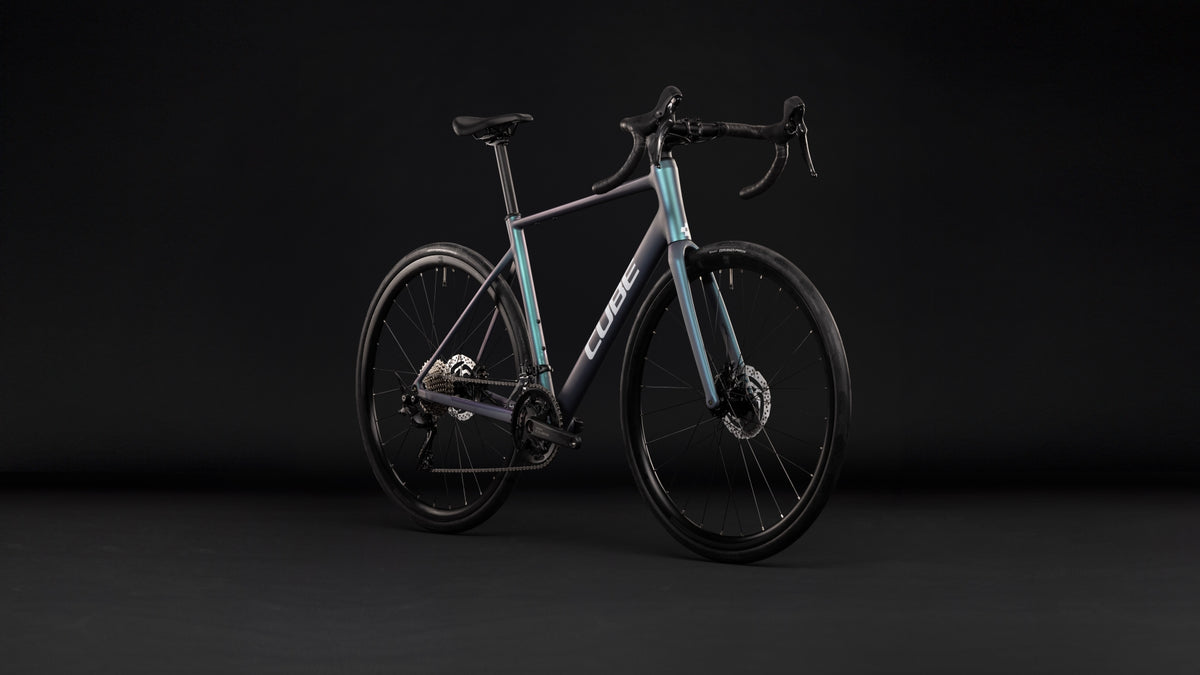

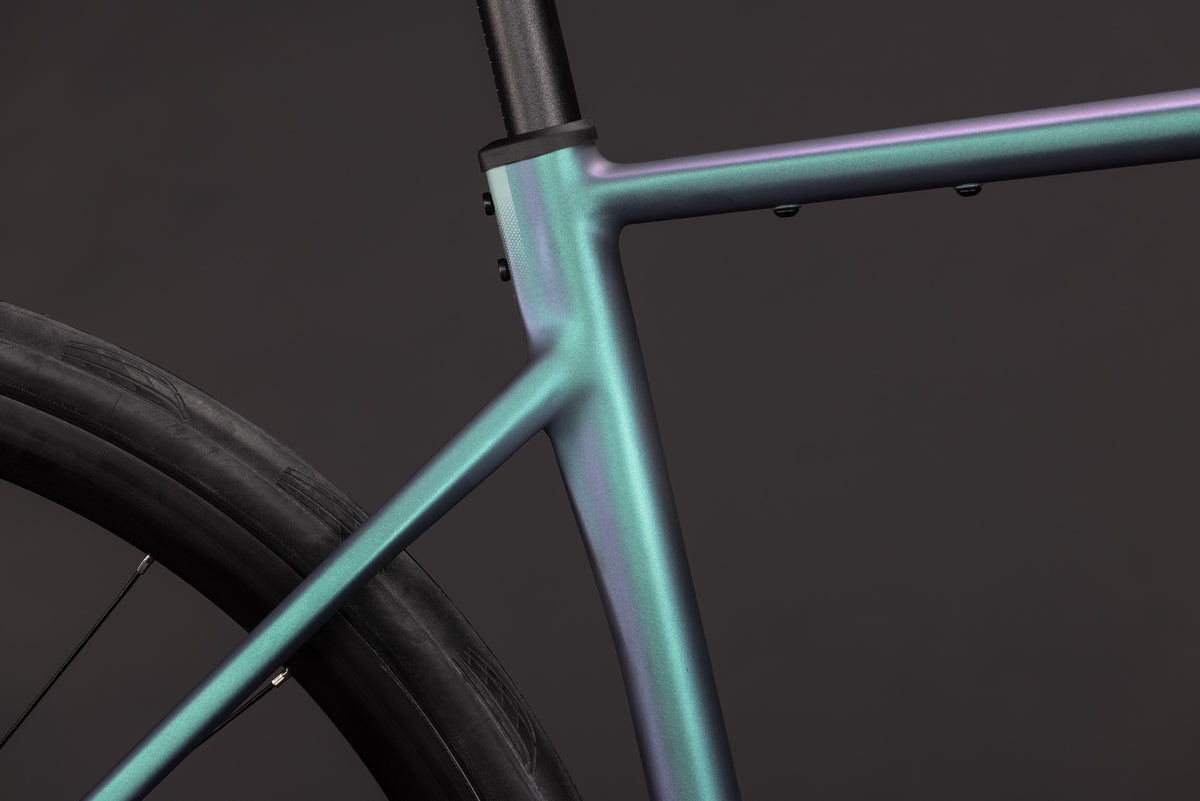

We built the Attain's 6061 semi-aero aluminium chassis with both comfort and performance in mind. A teardrop-profile down tube helps the frame slice through the air and Internal Cable Routing reduces clutter, while Smooth Welding gives tube joints a premium, almost organic appearance. The tapered steerer and thru-axles front and rear ensure pinpoint precision accuracy and efficient power transfer. Slender seatstays and a full carbon fork help reduce road shock and vibration for significantly improved rider comfort, and there's room for tyres up to 33mm. And, with a neatly integrated seatpost clamp and mounting points under the top tube, we like to think we've thought of everything... so you can just ride. |
|
Frame Material
|
Tire clearance
|
|
Aluminium Superlite |
33mm |
Frame
| Frame | Aluminium 6061 T4/T6 Superlite, Road Comfort Geometry, Integrated Cable Routing, Flat Mount Disc, Integrated Seatpost Clamp, 12x142mm, AXH |
| Sizes | 47cm, 50cm, 53cm, 56cm, 58cm, 60cm, 62cm |
| Rigid Fork | CUBE CSL Race C:62 Disc, Full Carbon, 1 1/8" - 1 1/4" Tapered, Flat Mount, 12x100mm |
Drivetrain & Brakes
| Shift / Brake Levers | Shimano Cues ST-6030 |
| Brake System | Shimano Cues BR-U6030, Hydr. Disc Brake, Flat Mount (160/160) |
| Rear Derailleur | Shimano Cues RD-U6040, 11-Speed |
| Front Derailleur | Shimano Cues FD-U6030-L, 31.8mm Clamp |
| Bottom Bracket | Samox BB8601, Pressfit |

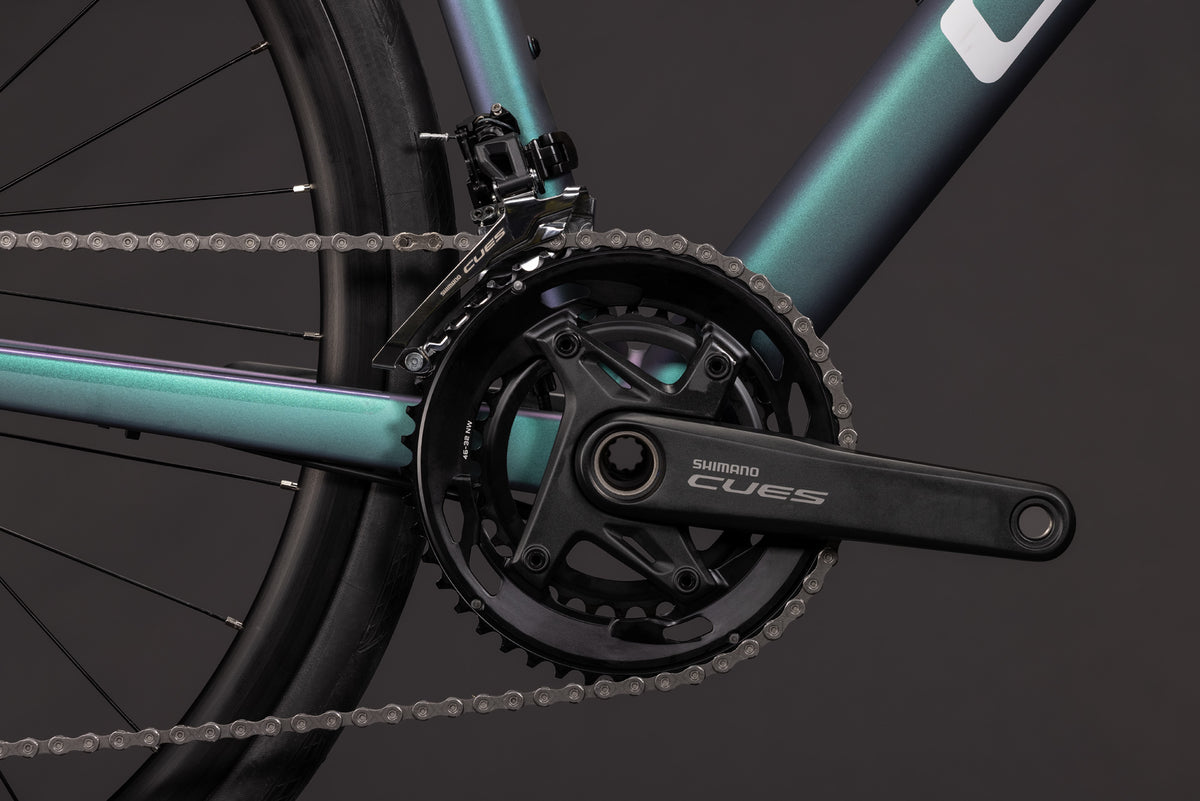

| Crankset | Shimano Cues FC-U6030-2, 46x32T |
| Cassette | Shimano Cues CS-RS400, 11-36T |
| Chain | KMC xGlide |
Cockpit
| Headset | Acros, Top Integrated 1 1/2" w/ Integrated Cable Routing, Bottom Integrated 1 1/4" |
| Stem | CUBE CIS Stem +/- 6°, FPI-Link |
| Handlebar | CUBE Compact Race Bar 31.8 5° 120 NF |
| Handlebar Tape | ACID Bartape RC 3.0 |
Wheels
| Wheelset | ACID RA 2.3 Aero Disc, 28/28 Spokes, 6-Bolt, 12x100mm/12x142mm, Tubeless Ready |
| Tyres | Continental Grand Prix, Kevlar, 32-622 |
Finishing Kit
| Saddle | ACID Nuance Lite |
| Seat Post | CUBE Performance Post, 27.2mm |
Product Information
| Colour | smaragdgrey´n´white |
| Weight | 10,4 kg |
| ArtNo | 1130310 |
