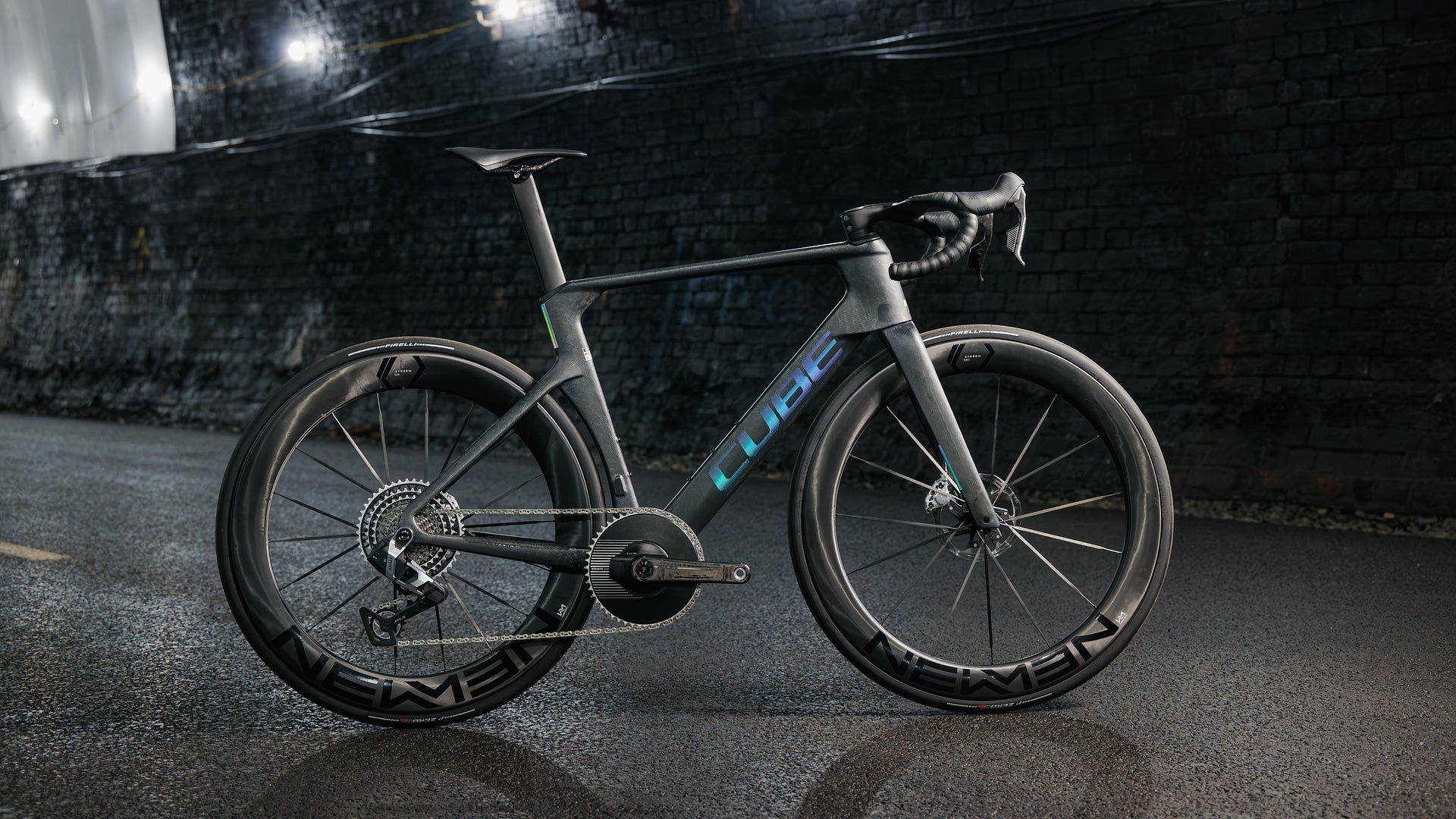

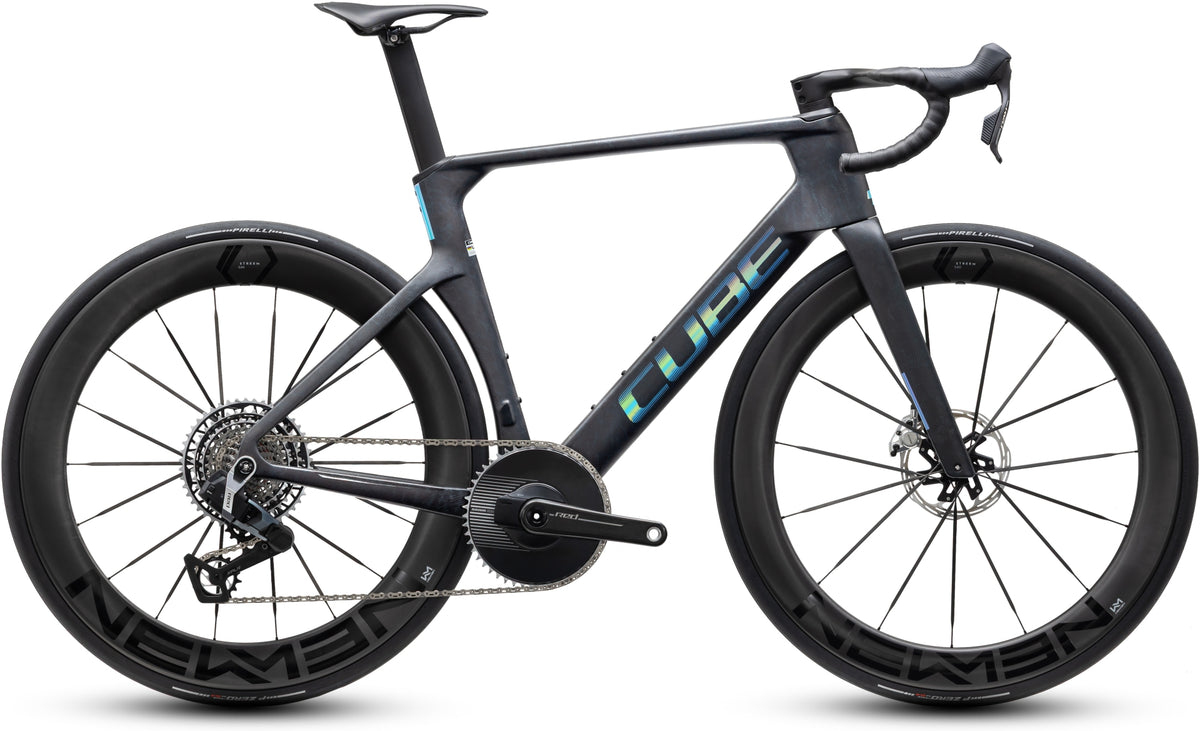

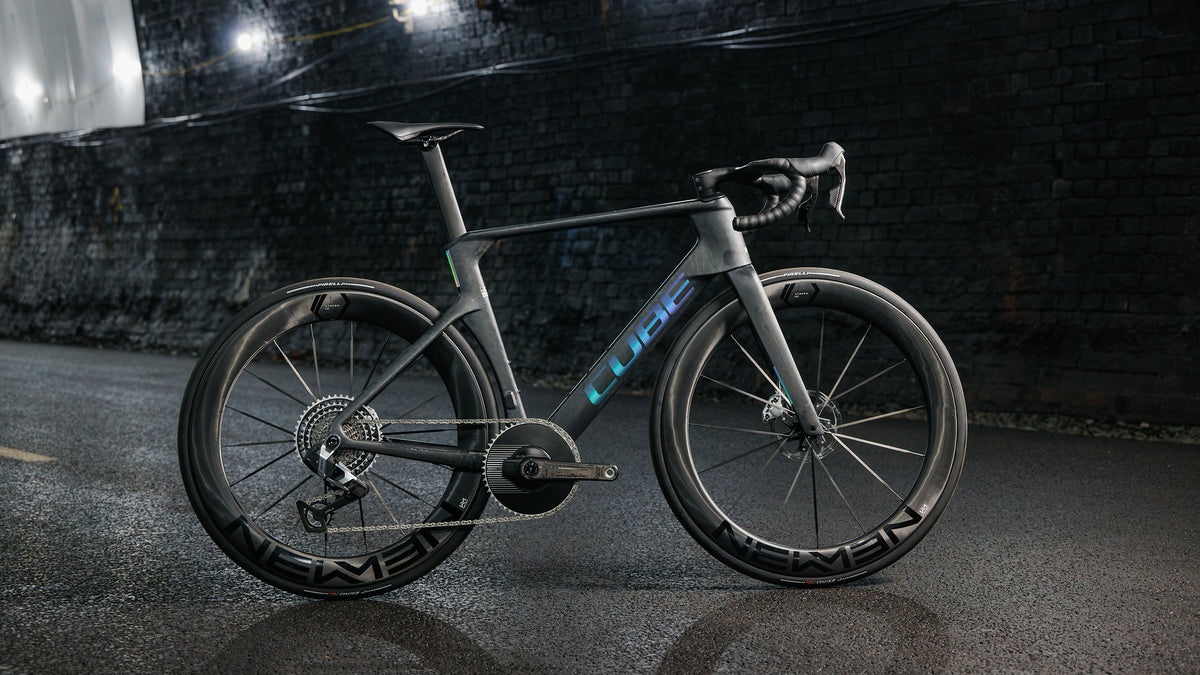

CUBE Litening AERO C:68X Orbit digitalcarbon n prizm

RRP R229,900.00

Sale Sold out

Find a Dealer

View full details

ANATOMY
OF SPEED

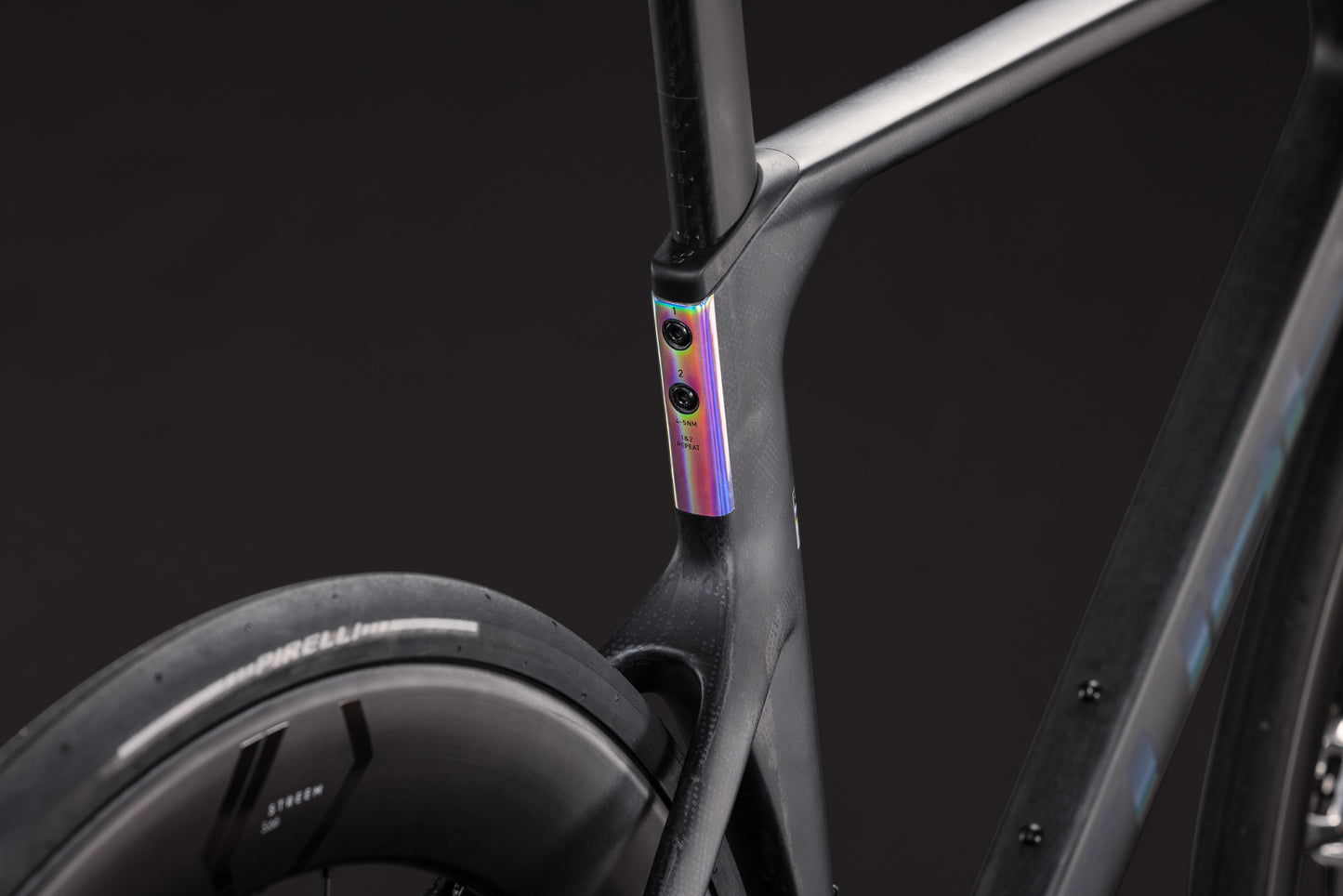

Here at CUBE we love a challenge, so building a race bike that's as aero as possible within UCI rules is exactly the kind of thing that we relish. And here's the result: the Litening AERO frame. Built with our premium C:68X® carbon material and designed with extensive use of Computer Fluid Dynamics and real-world wind tunnel testing, it's now lighter and faster than ever. Around 150g lighter than before for frame and fork, to be precise. And reduced drag by up to 6 watts. Those are differences you can see in your results. With a CUBE IC Aero Max Cockpit, redesigned aero seatpost, clearance for up to 34mm tyres, a future-proof UDH rear end and full compatibility with all CUBE one-piece cockpits, it's got everything you need to race, faster.

Frame Material	Frame Weight	Tire Clearance
C:68X® Carbon	980 g	34 mm

Frame

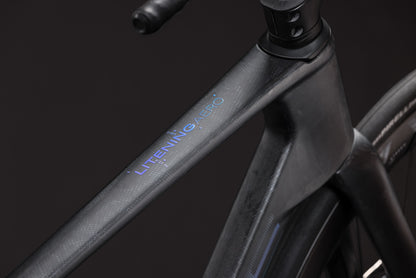

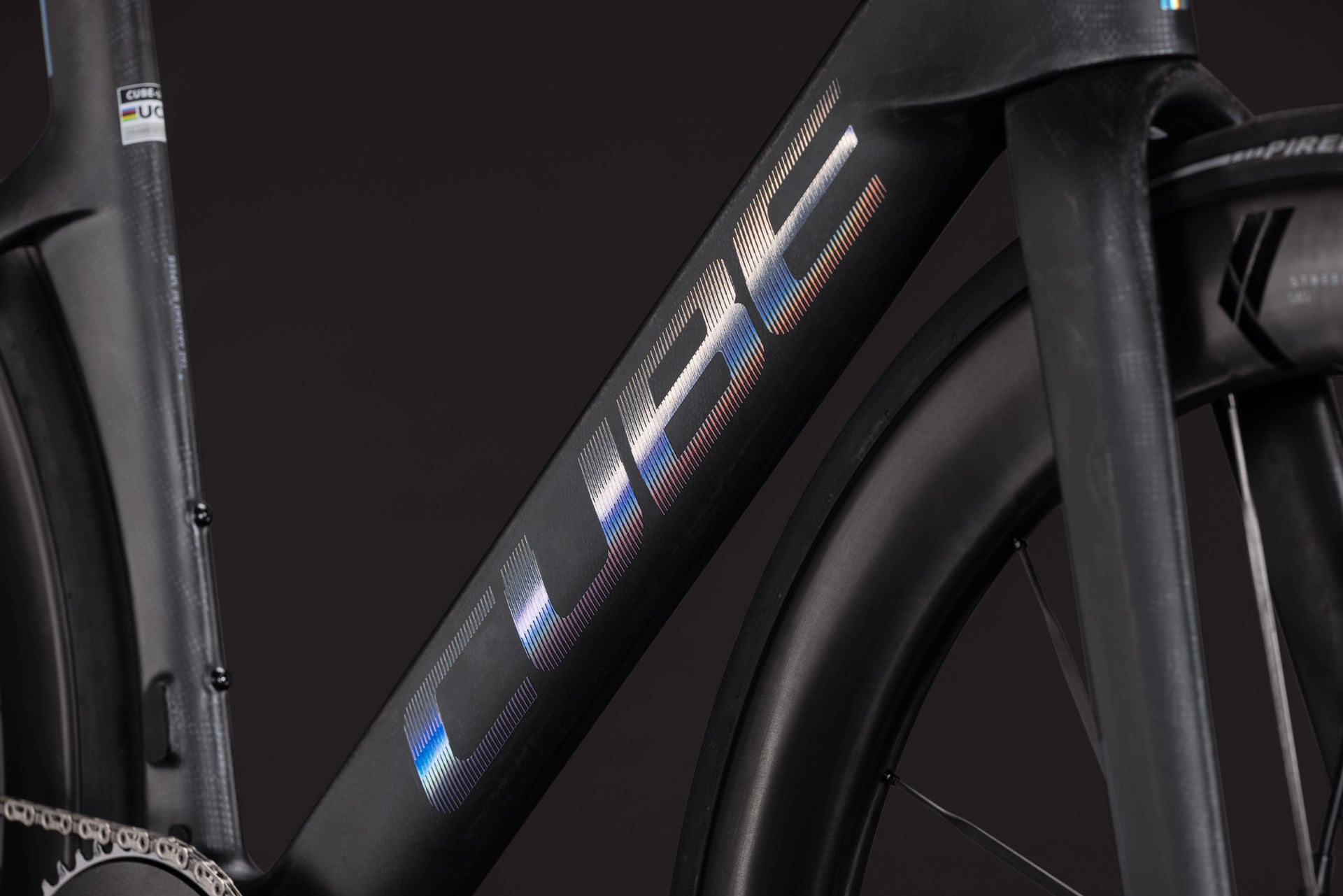

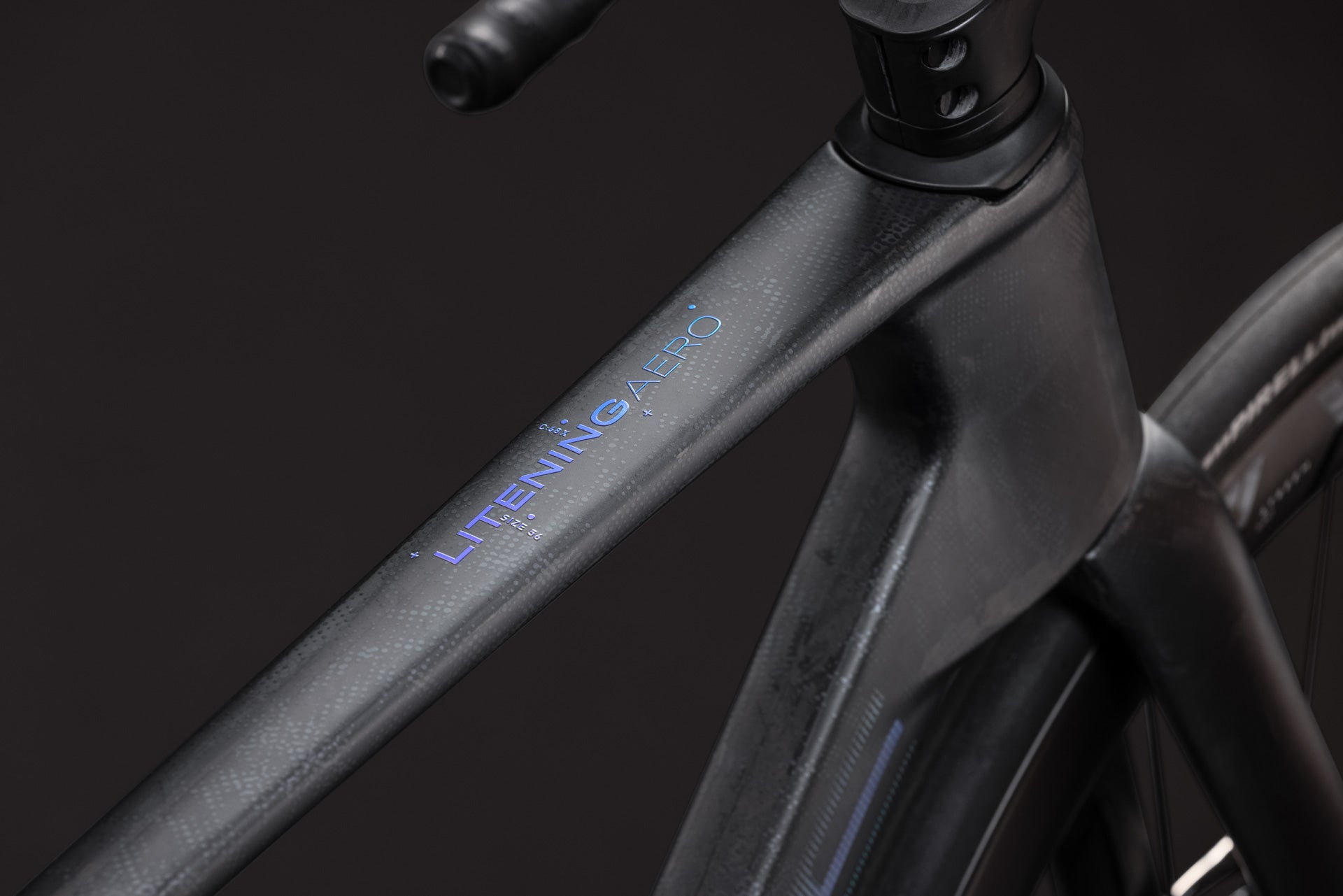

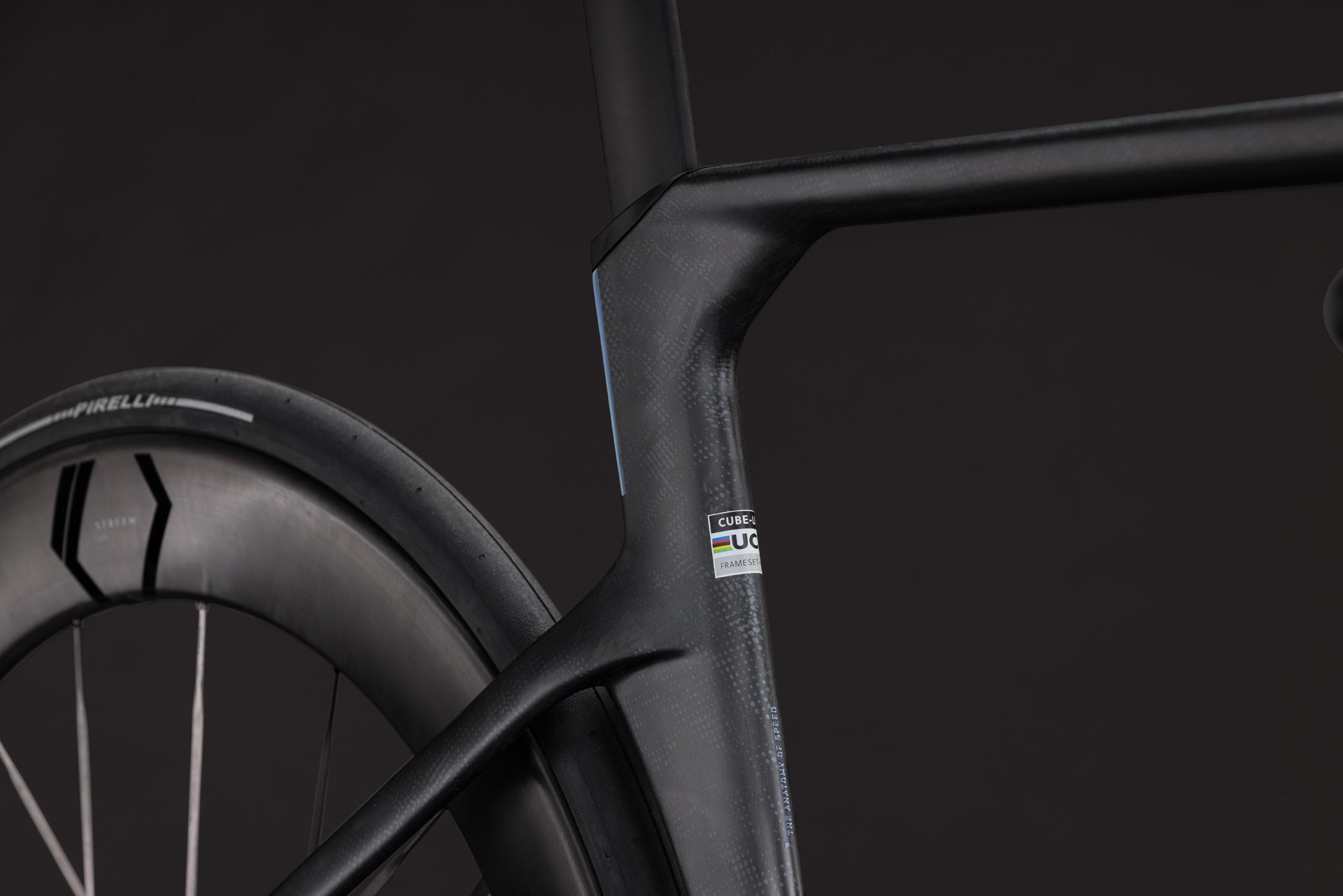

Frame	Litening C:68X® Aero Monocoque Advanced Twin Mold Technology, Aero Optimized Tubes, Full Internal Cable Routing, Flat Mount Disc, 12x142mm, UDH™
Size	50cm, 52cm, 54cm, 56cm, 58cm, 60cm, 62cm

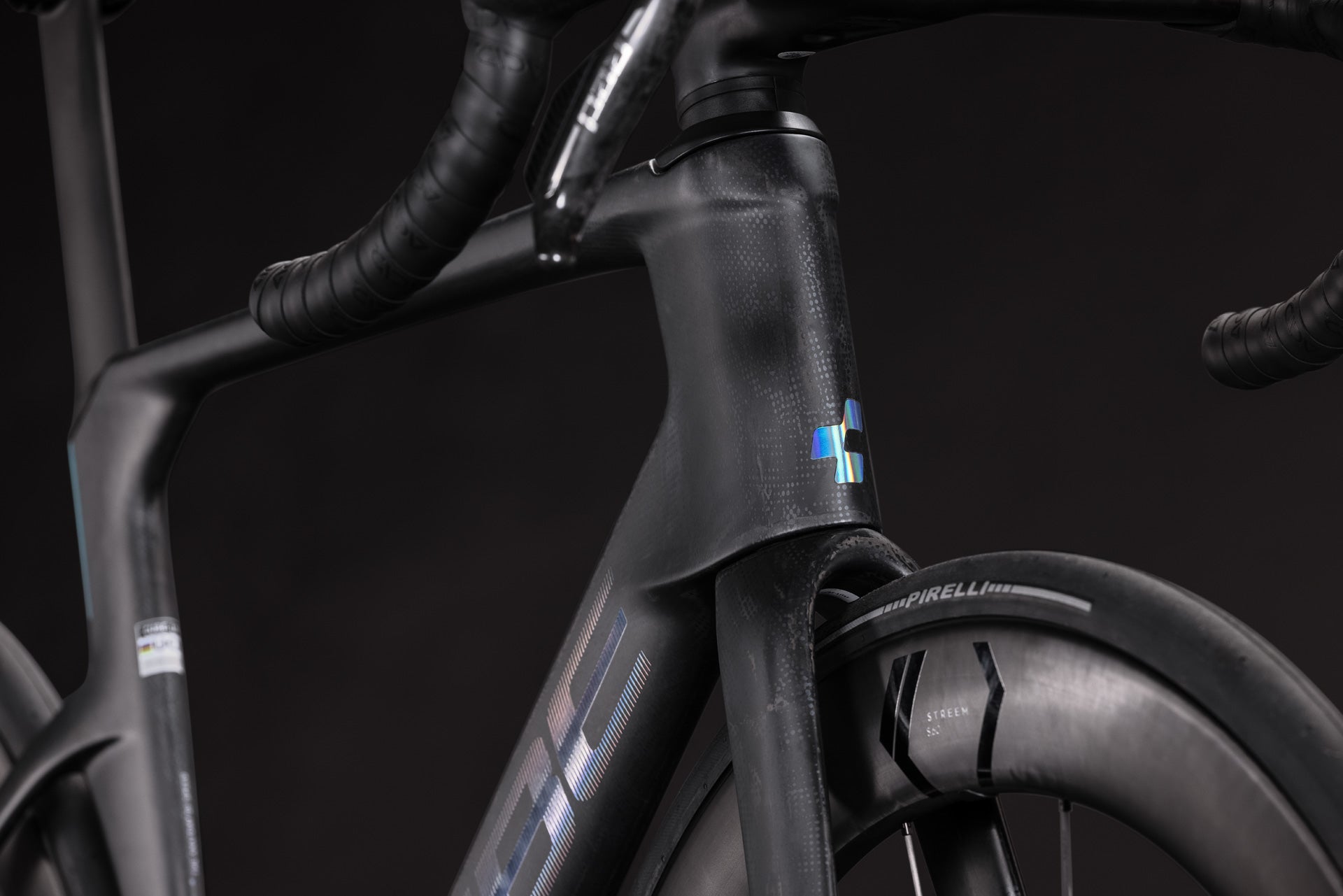

Rigid Fork	Litening C:68X® Aero, Integrated Cable Routing, Flat Mount, 12x100mm

Drivetrain & Brakes

Shift / Brake Levers	Sram Red AXS™ E1
Brake System	Sram Red AXS™ E1 HRD, Hydr. Disc Brake, Flat Mount (160/140)

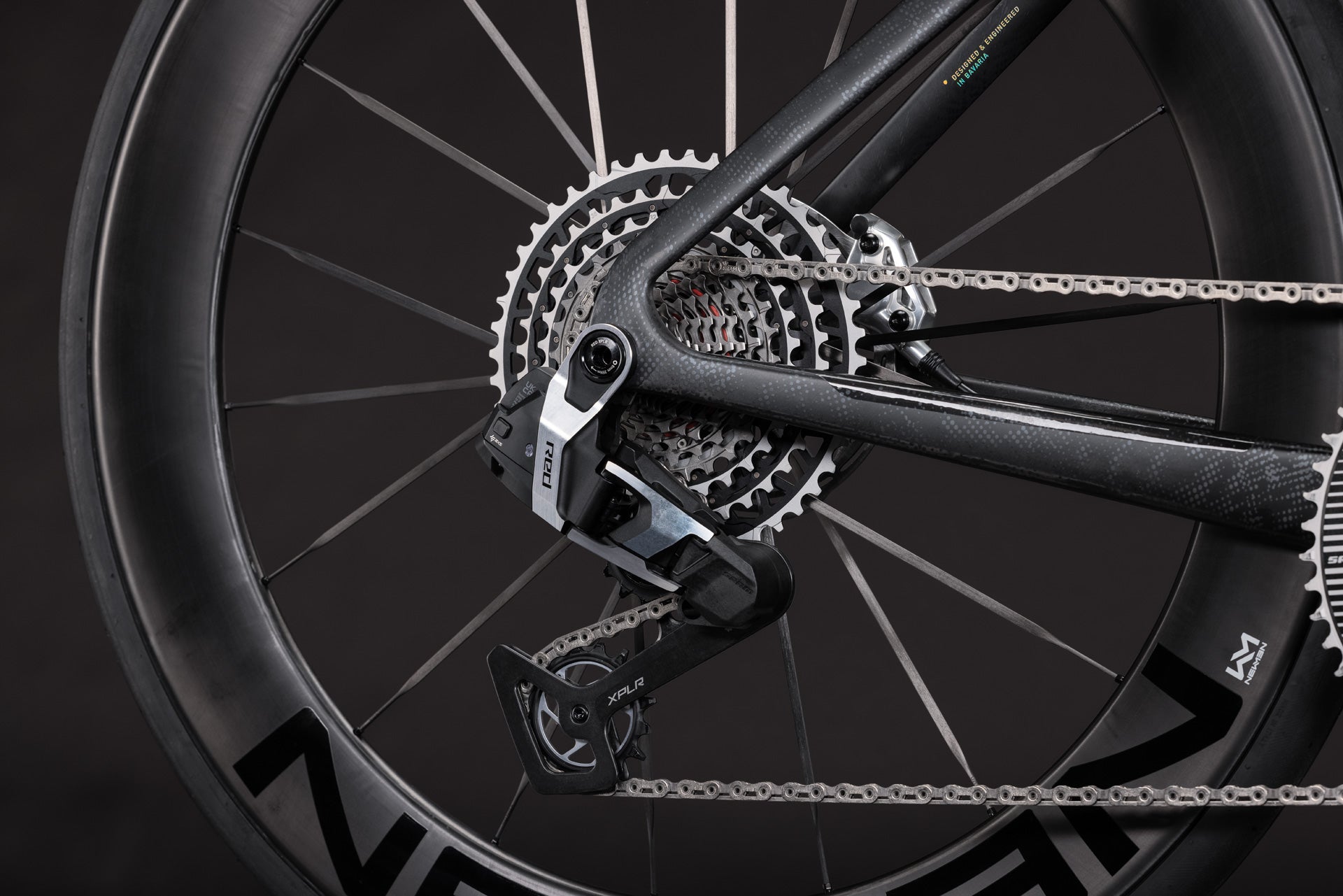

Rear Derailleur	Sram Red XPLR AXS™ E1, 13-Speed
Bottom Bracket	Sram DUB Road, 86mm Pressfit

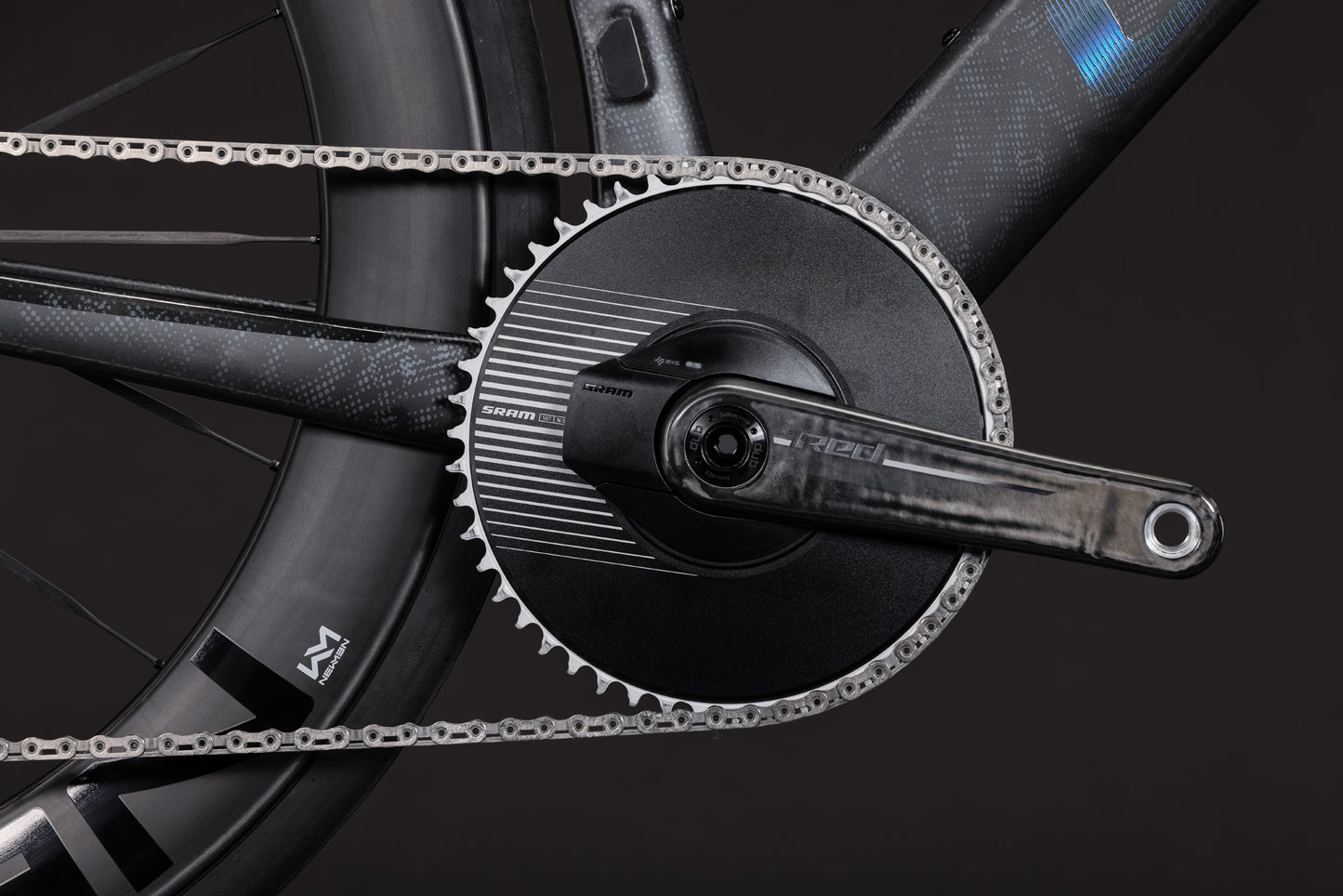

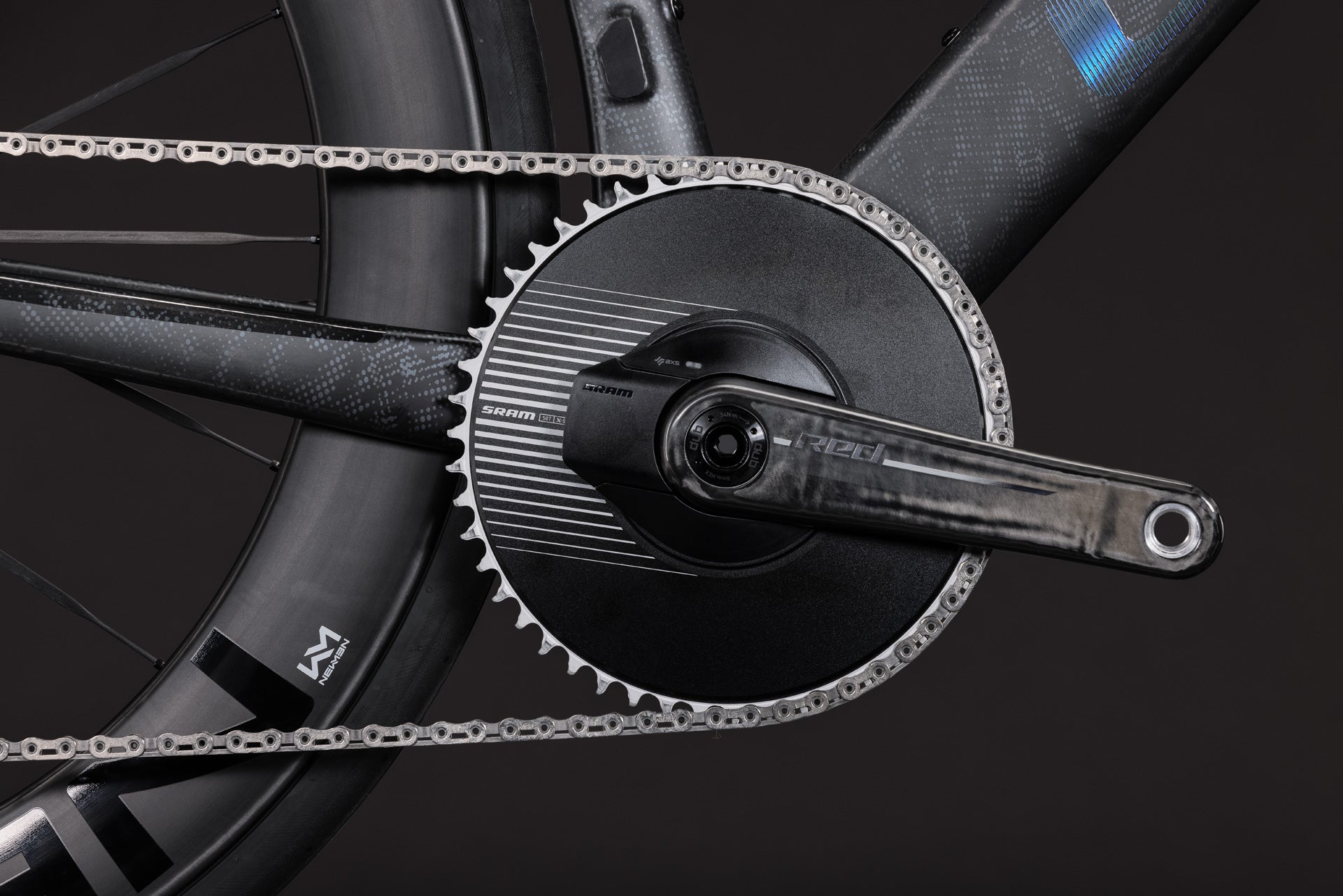

Crankset	Sram Red E1 Powermeter Spider, Dub, Aero Chainring 50T
Cassette	Sram Red XPLR XG-1391 E1, 10-46T
Chain	Sram Red E1

Cockpit

Headset	Acros, Top Integrated 1 1/8", Bottom Integrated 1 1/4"

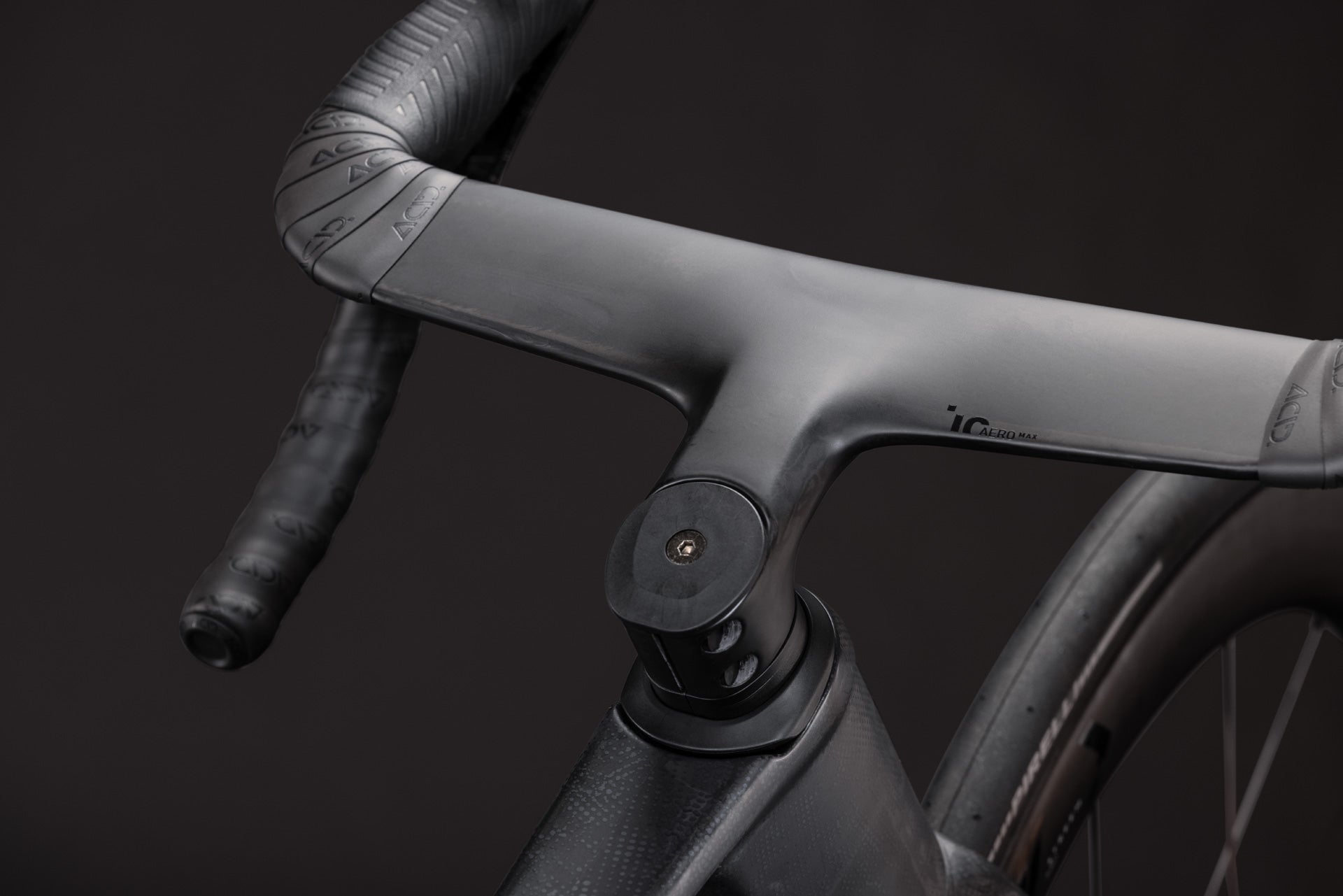

Integrated Bar/ Stem	IC Aero Max Cockpit System, Integrated Cable Routing, Aero Spacer System, Garmin Mount Interface
Handlebar Tape	ACID Bartape RC 2.5

Wheels

Wheelset	Newmen Streem S.60/66 VONOA Carbon, 15/18 Carbon Spokes, Centerlock, 12x100mm/12x142mm, Tubeless Ready
Tyres	Pirelli P ZERO™ Race SL‑R, 28-622, Tubeless Ready
