ANATOMY
|

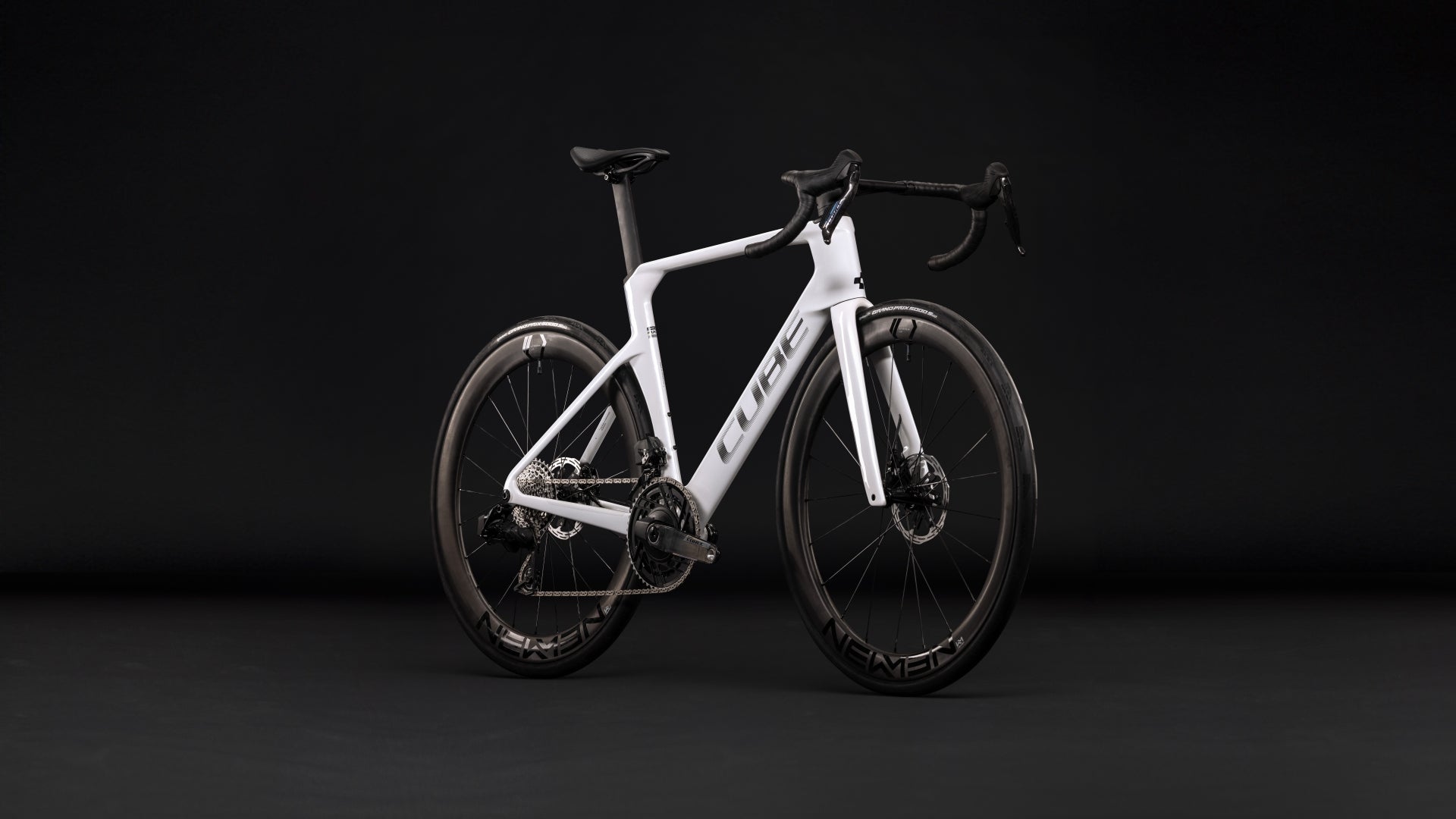

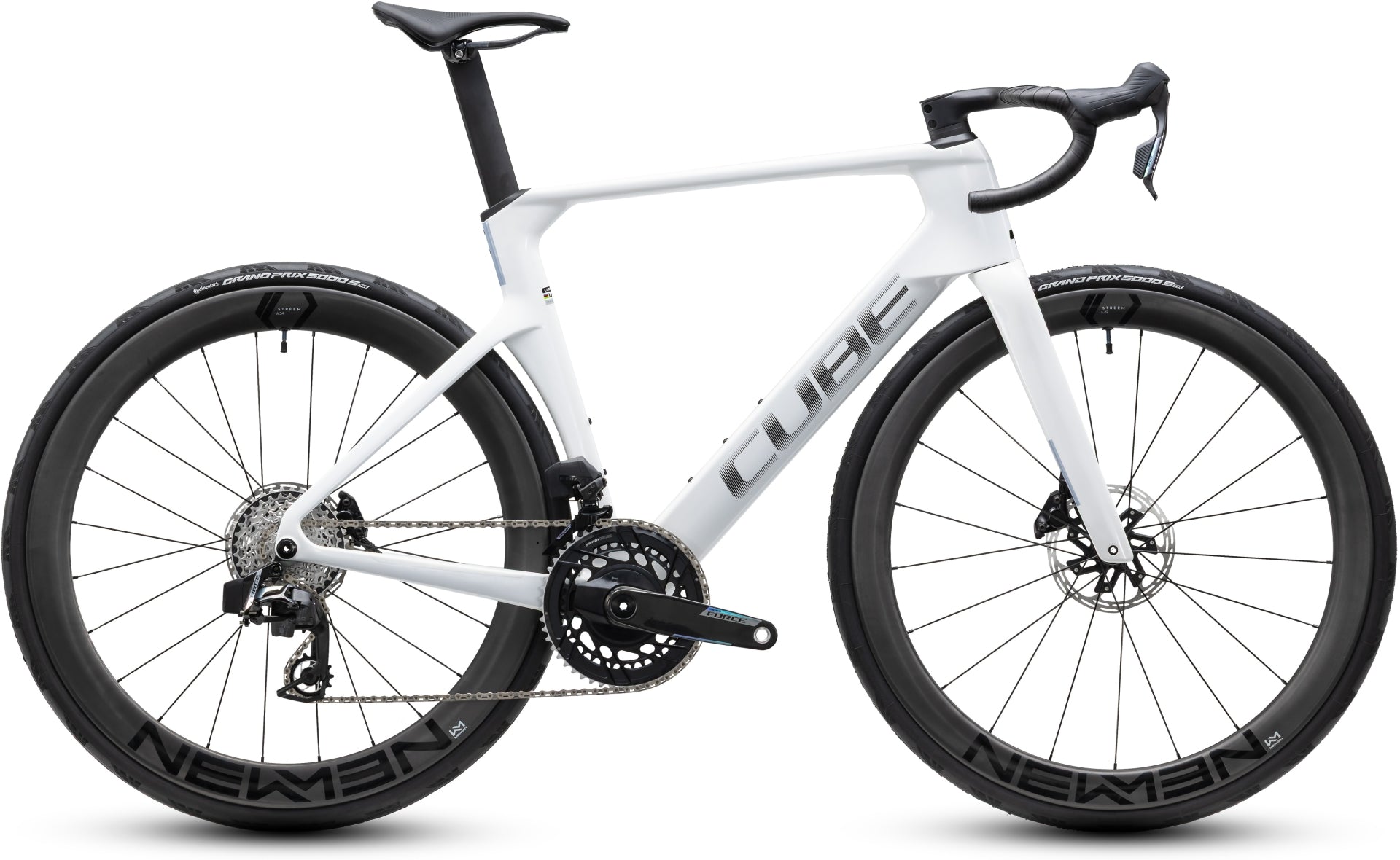

Here at CUBE we love a challenge, so building a race bike that's as aero as possible within UCI rules is exactly the kind of thing that we relish. And here's the result: the Litening AERO frame. Built with our premium C:68X® carbon material and designed with extensive use of Computer Fluid Dynamics and real-world wind tunnel testing, it's now lighter and faster than ever. Around 150g lighter than before for frame and fork, to be precise. And reduced drag by up to 6 watts. Those are differences you can see in your results. With a CUBE IC Aero Cockpit, redesigned aero seatpost, clearance for up to 34mm tyres, a future-proof UDH rear end and full compatibility with all CUBE one-piece cockpits, it's got everything you need to race, faster. |
| Frame Material | Frame Weight | Tire Clearance |
C:68X® Carbon |
980 g |
34 mm |
Frame

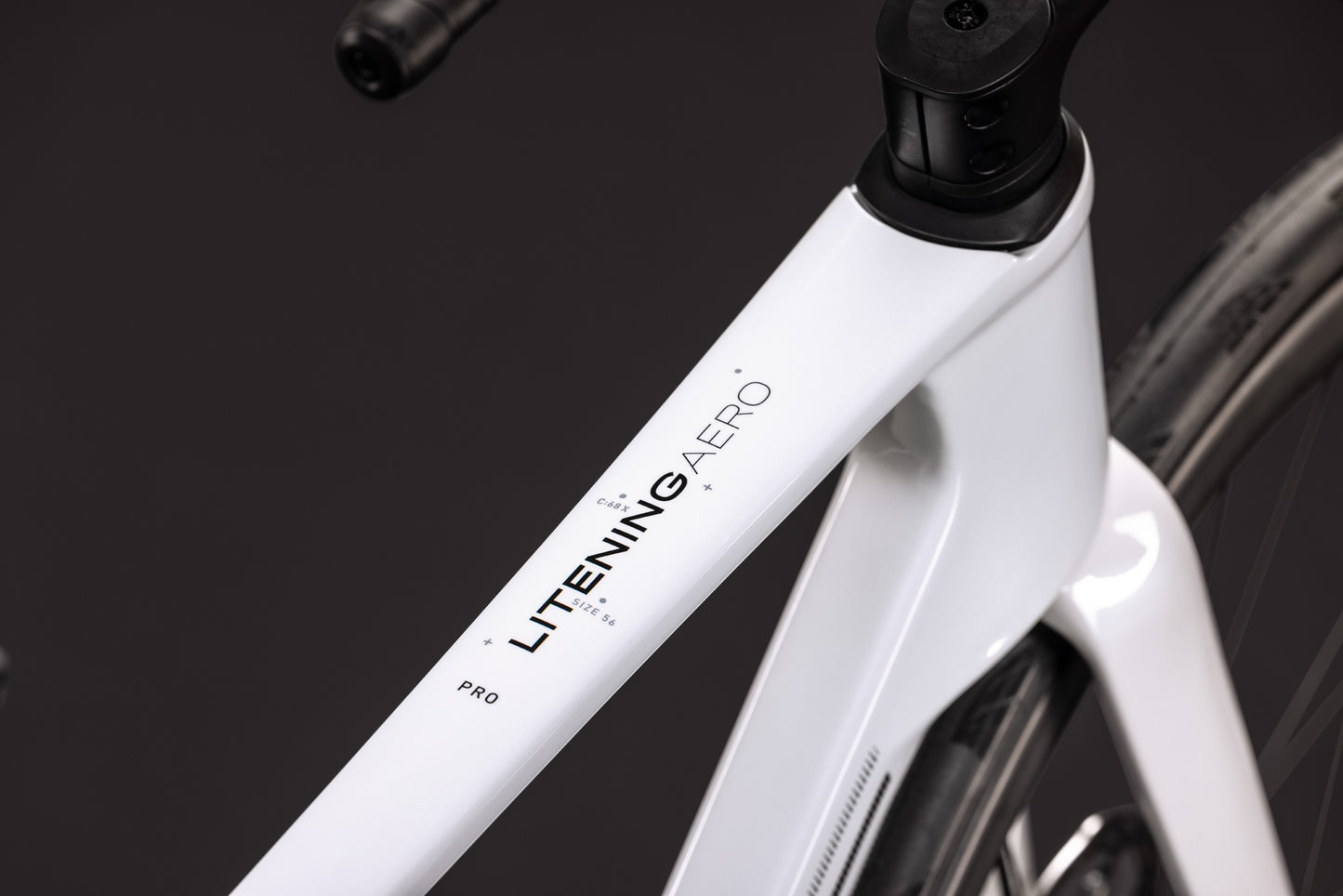

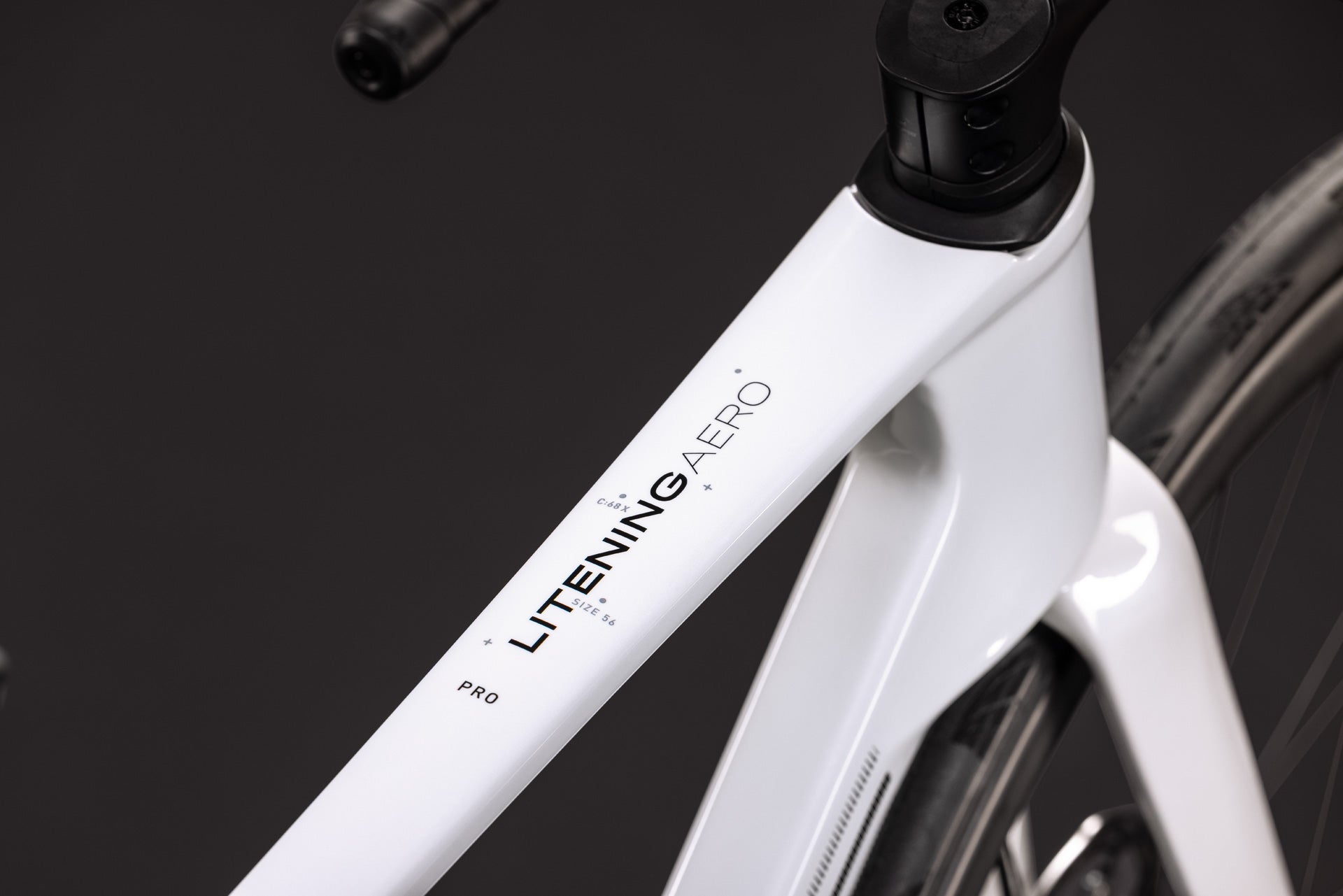

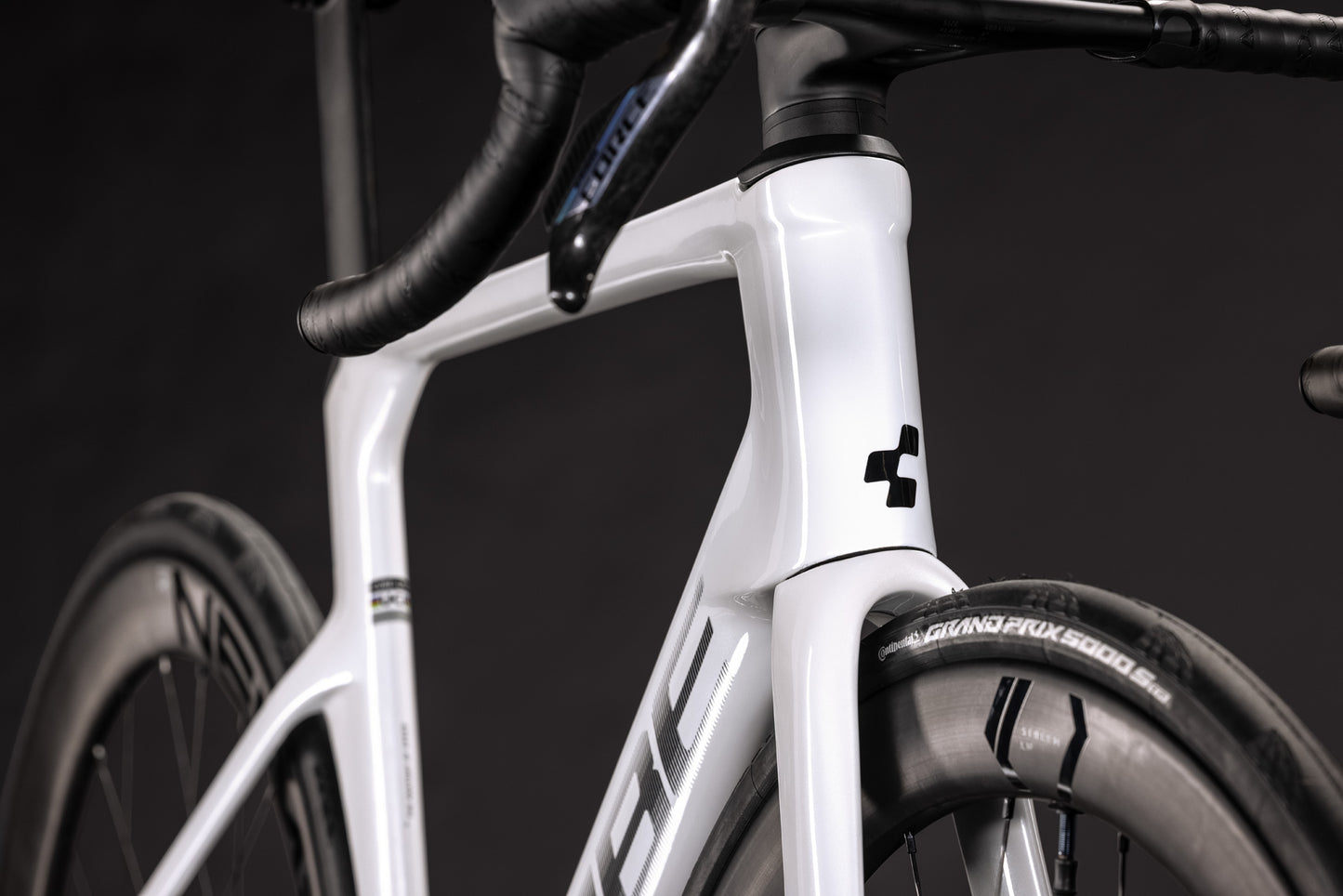

| Frame | Litening C:68X® Aero Monocoque Advanced Twin Mold Technology, Aero Optimized Tubes, Full Internal Cable Routing, Flat Mount Disc, 12x142mm, UDH™ |
| Size | 50cm, 52cm, 54cm, 56cm, 58cm, 60cm, 62cm |

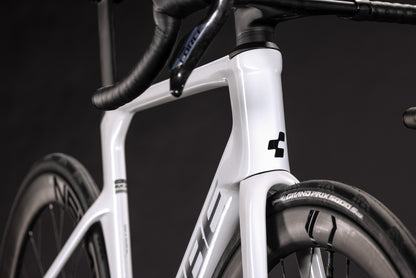

| Rigid Fork | Litening C:68X® Aero, Integrated Cable Routing, Flat Mount, 12x100mm |
Drivetrain & Brakes
| Shift / Brake Levers | Sram Force AXS™ E1 |
| Brake System | Sram Force AXS™ E1 HRD, Hydr. Disc Brake, Flat Mount (160/160) |
| Rear Derailleur | Sram Force AXS™ E1, 12-Speed |
| Front Derailleur | Sram Force AXS™ E1 |
| Bottom Bracket | Sram DUB Road, 86mm Pressfit |

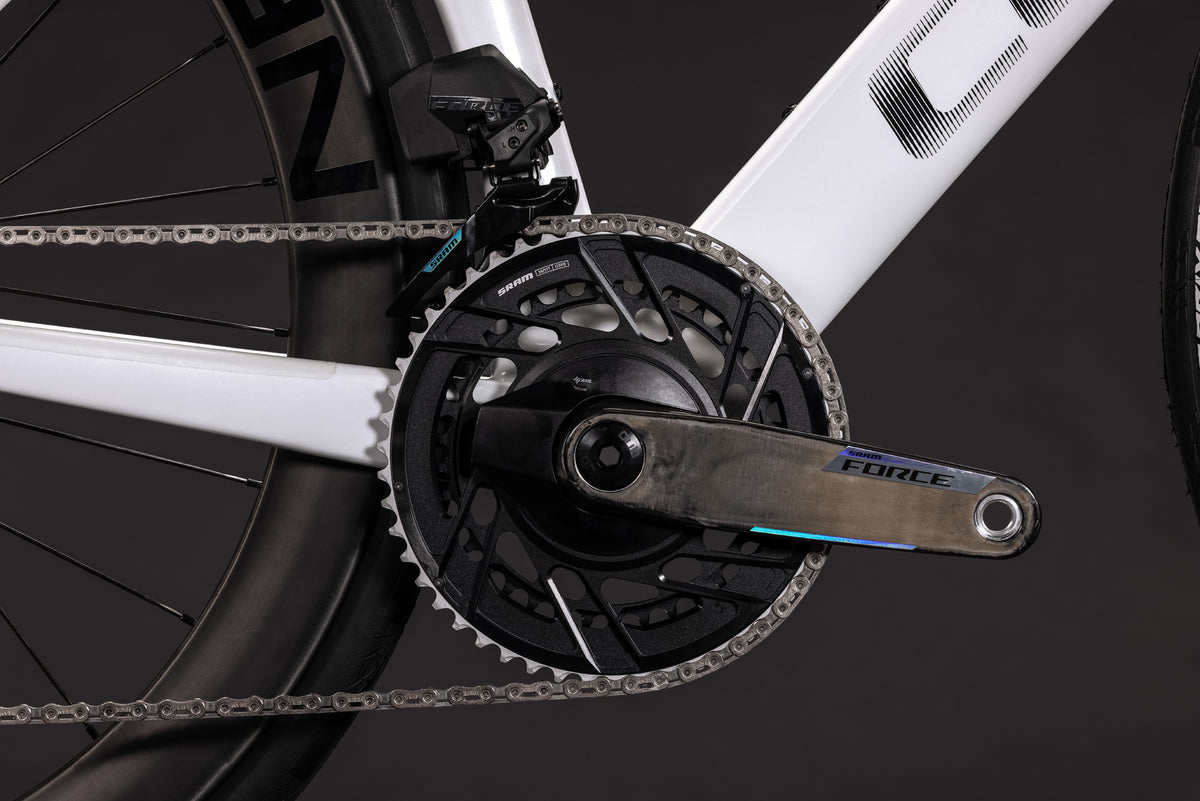

| Crankset | Sram Force AXS™ E1, Powermeter Spider, Dub, 50x37T |
| Cassette | Sram Force XG-1270 E1, 10-36T |
| Chain | Sram Force E1 |
Cockpit
| Headset | Acros, Top Integrated 1 1/8", Bottom Integrated 1 1/4" |

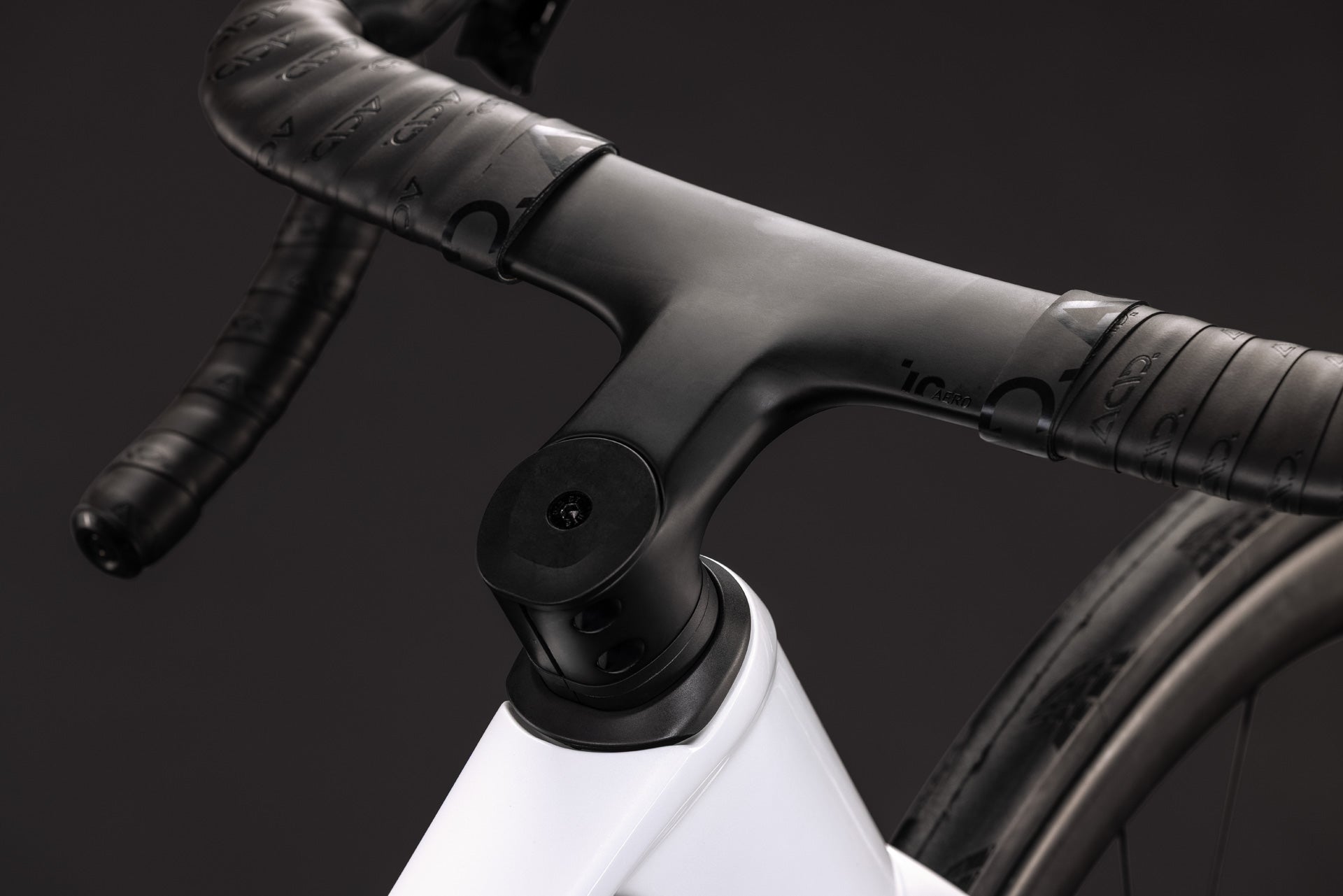

| Integrated Bar/ Stem | IC Aero Cockpit System, Integrated Cable Routing, Aero Spacer System, Garmin Mount Interface |
| Handlebar Tape | ACID Bartape RC 2.5 |
Wheels
| Wheelset | Newmen Streem A.49/54 Carbon, 21/24 Spokes, Centerlock, 12x100mm/12x142mm, Tubeless Ready |
| Tyres | Continental Grand Prix 5000 S-TR, Kevlar, 30-622, Tubeless Ready |
Finishing Kit
| Saddle | ACID Nuance SLT Carbon |

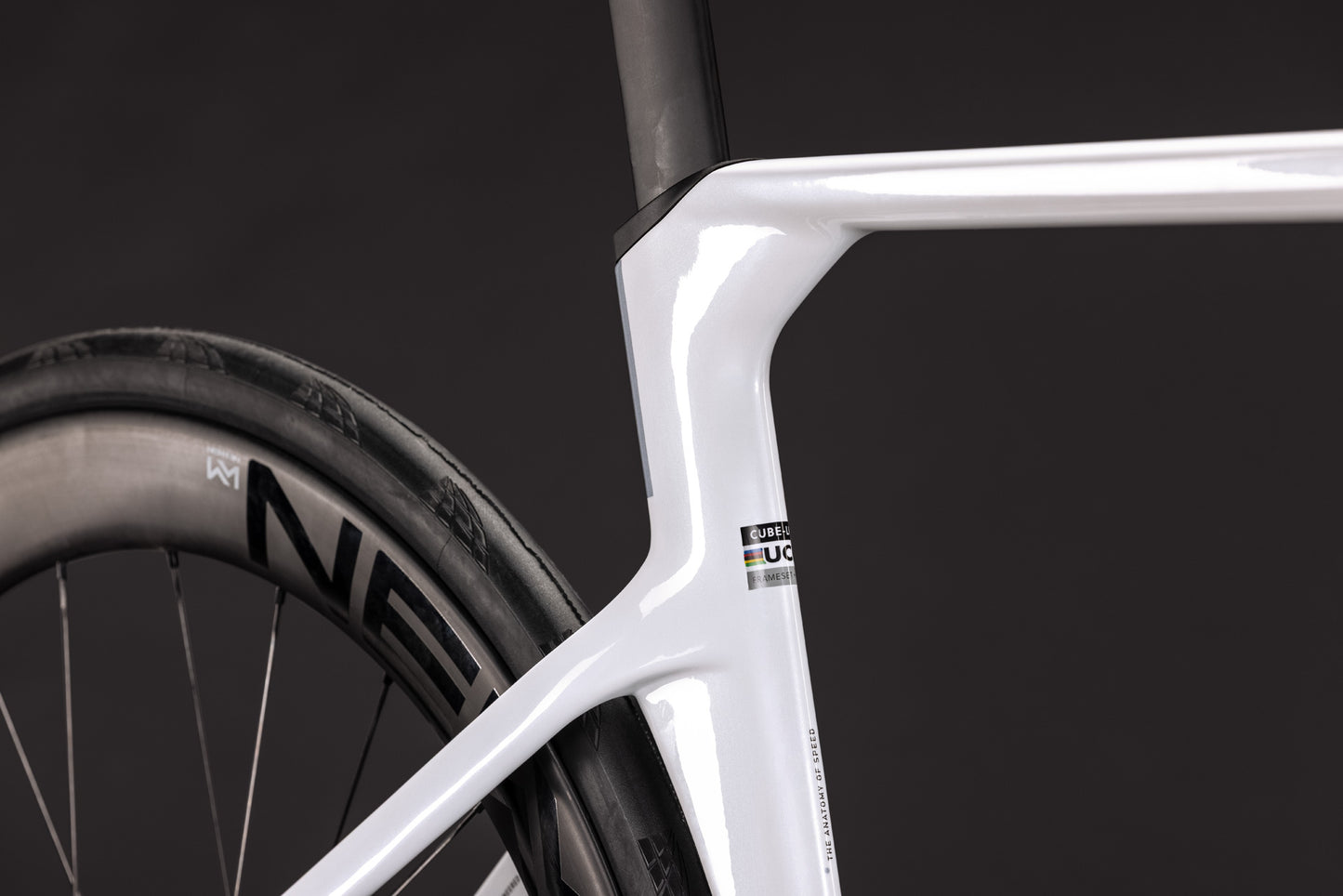

| Seat Post | Litening C:68X® Aero, Comfort Flex |
Product Information
| Colour | chalky´n´black |
| Weight | 7,6 kg |
| ArtNo | 1133200 |
