ANATOMY
|

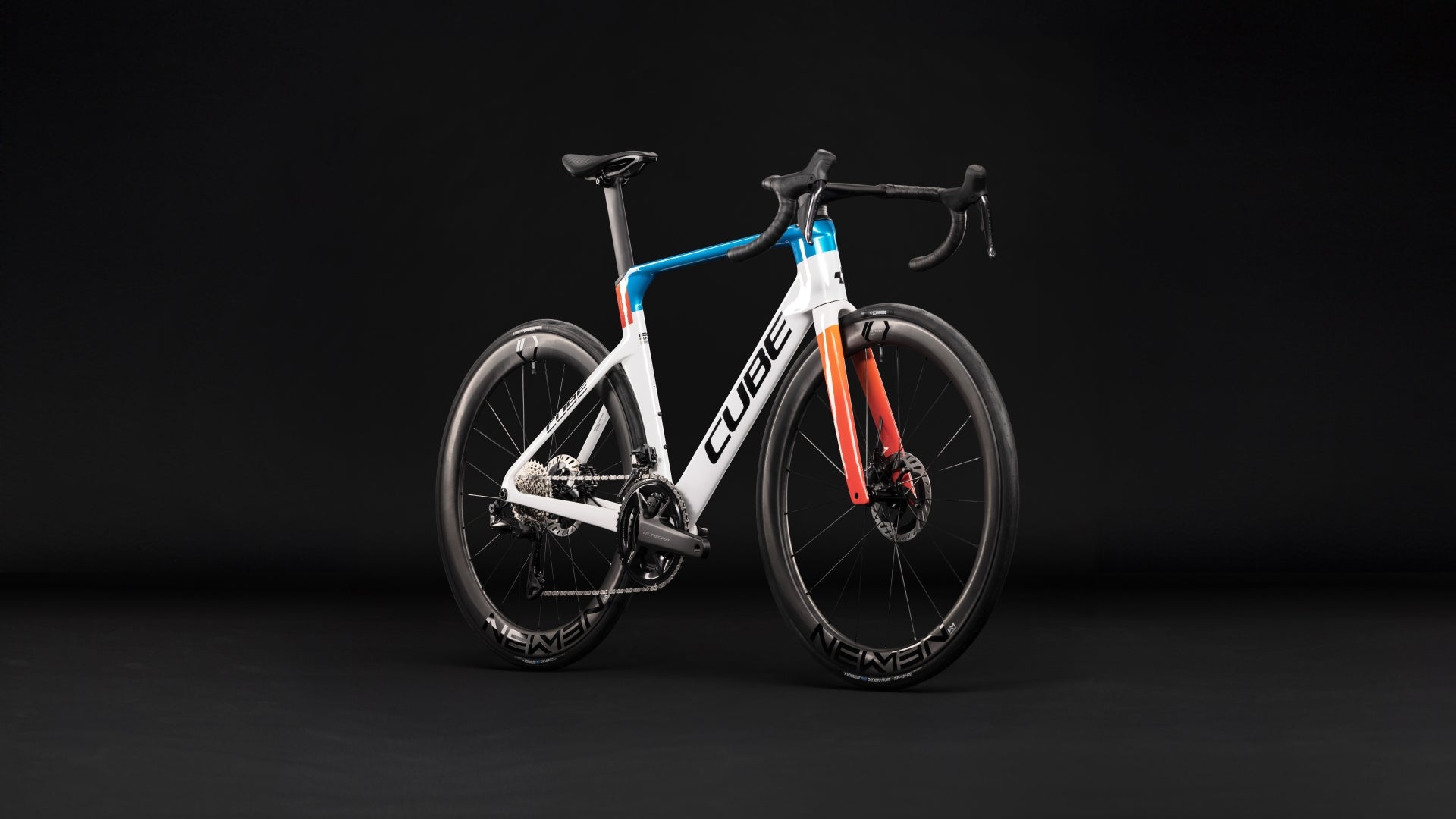

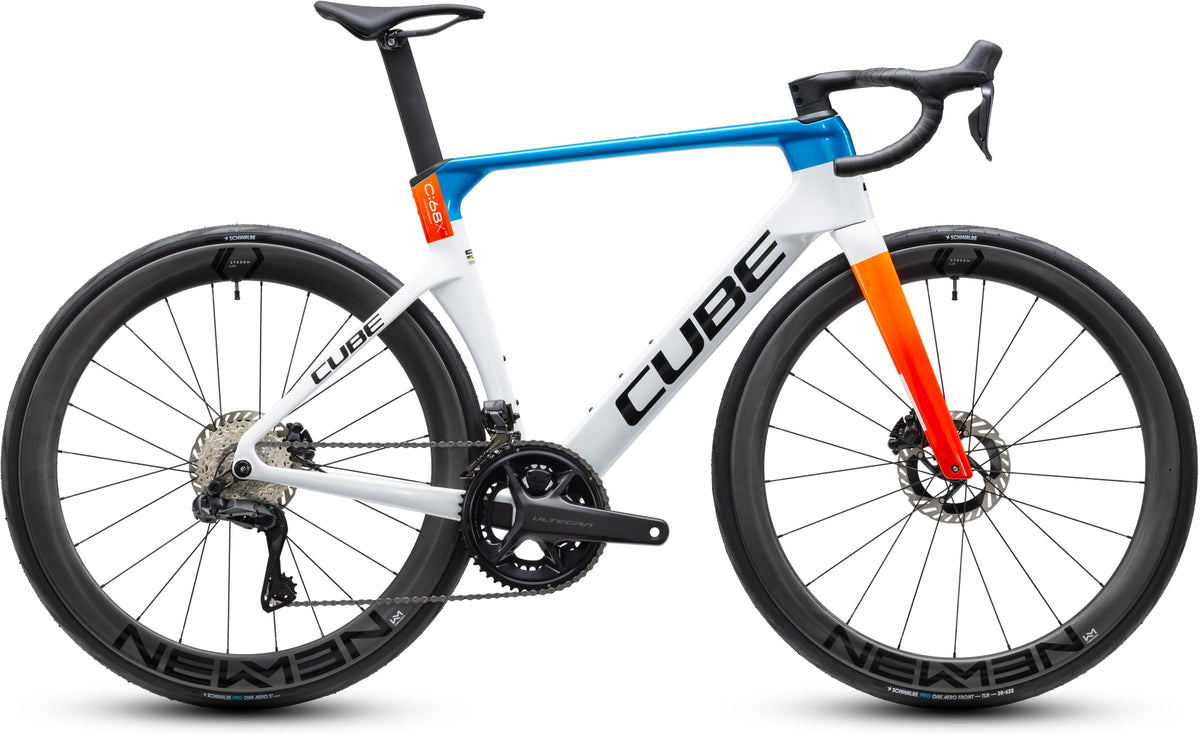

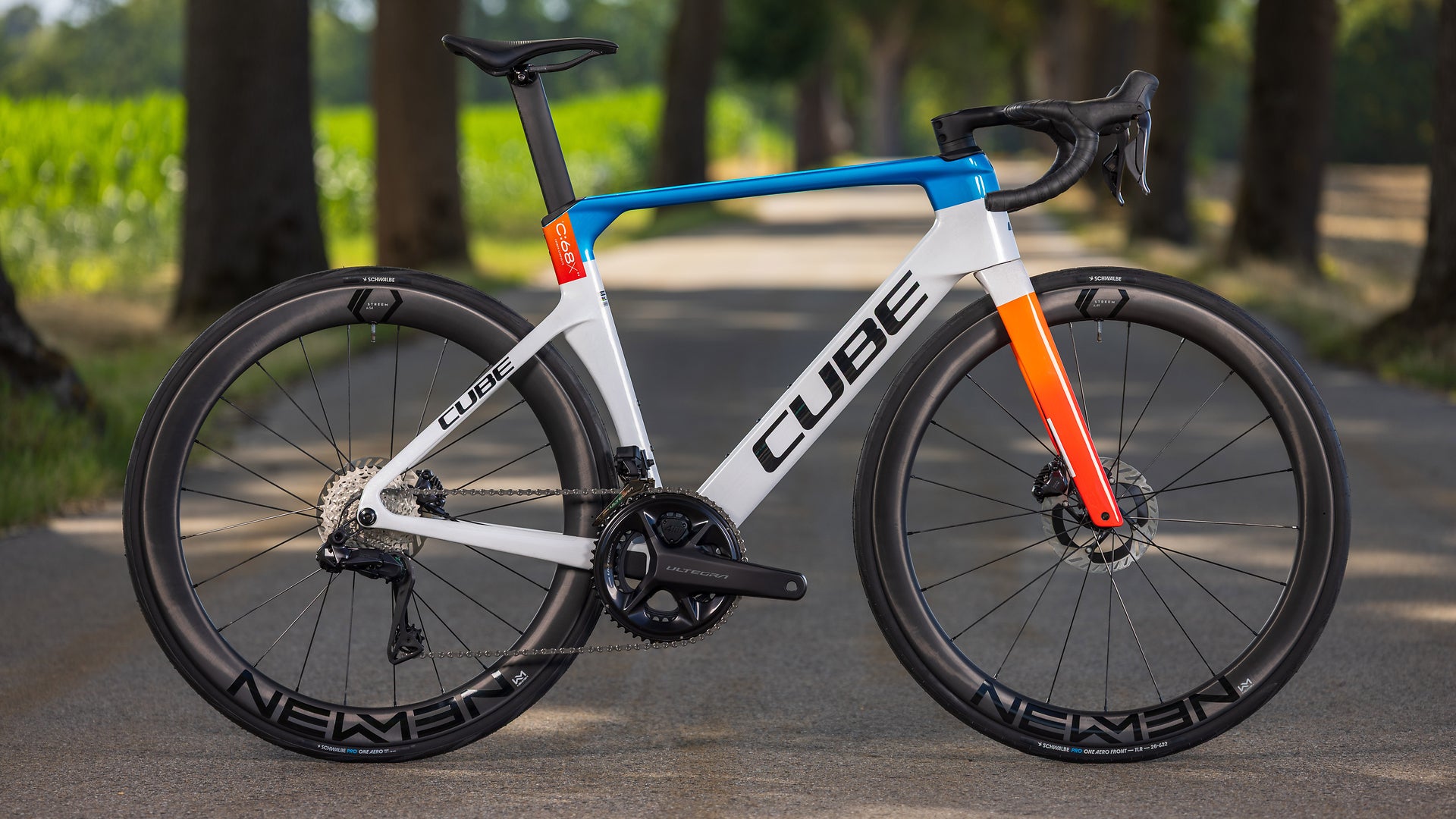

Here at CUBE we love a challenge, so building a race bike that's as aero as possible within UCI rules is exactly the kind of thing that we relish. And here's the result: the Litening AERO frame. Built with our premium C:68X® carbon material and designed with extensive use of Computer Fluid Dynamics and real-world wind tunnel testing, it's now lighter and faster than ever. Around 150g lighter than before for frame and fork, to be precise. And reduced drag by up to 6 watts. Those are differences you can see in your results. With a CUBE IC Aero Cockpit, redesigned aero seatpost, clearance for up to 34mm tyres, a future-proof UDH rear end and full compatibility with all CUBE one-piece cockpits, it's got everything you need to race, faster. |
| Frame Material | Frame Weight | Tire Clearance |
C:68X® Carbon |
980 g |
34 mm |
Frame

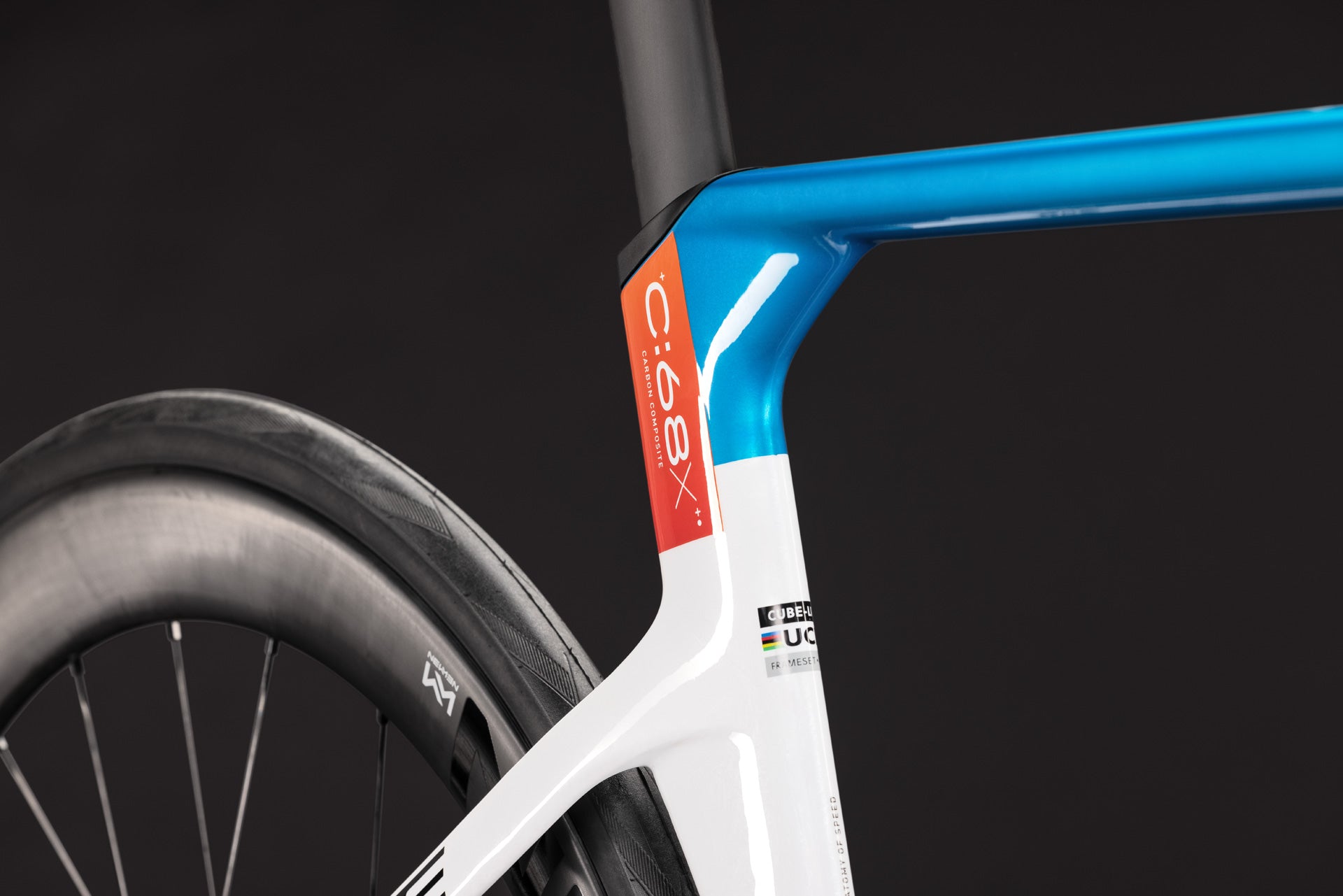

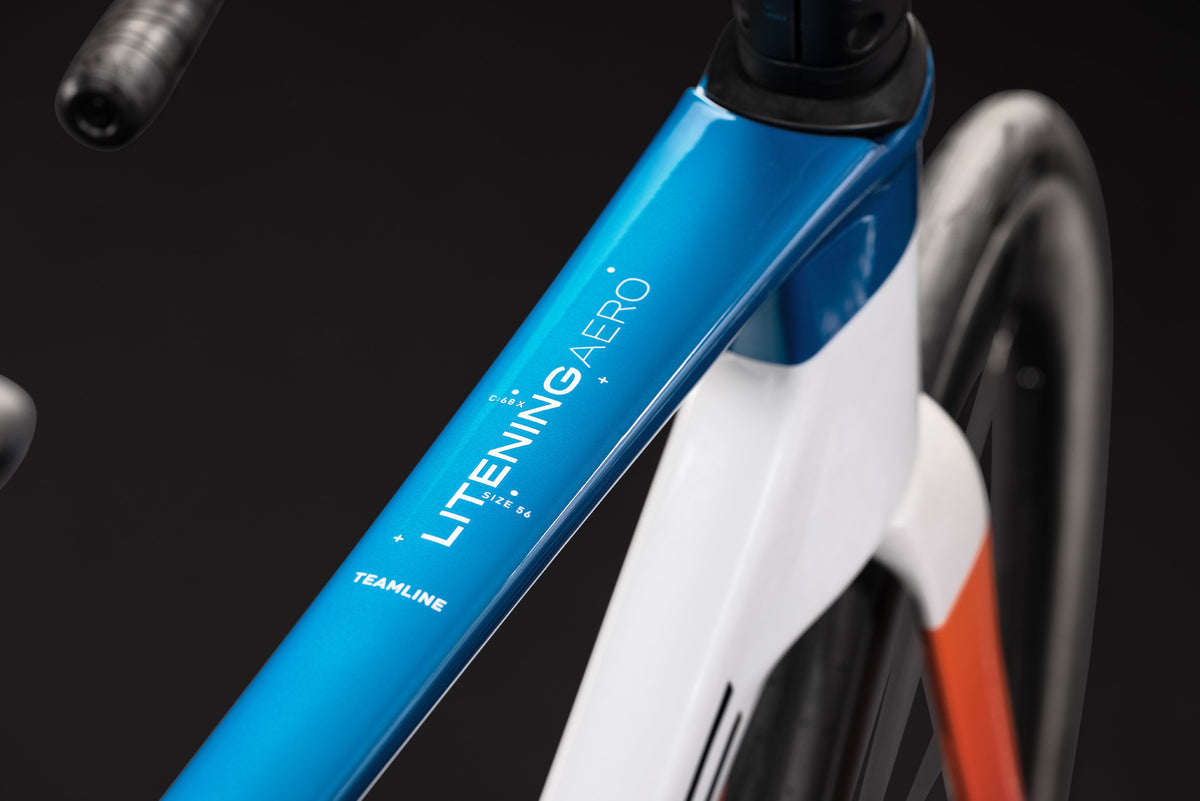

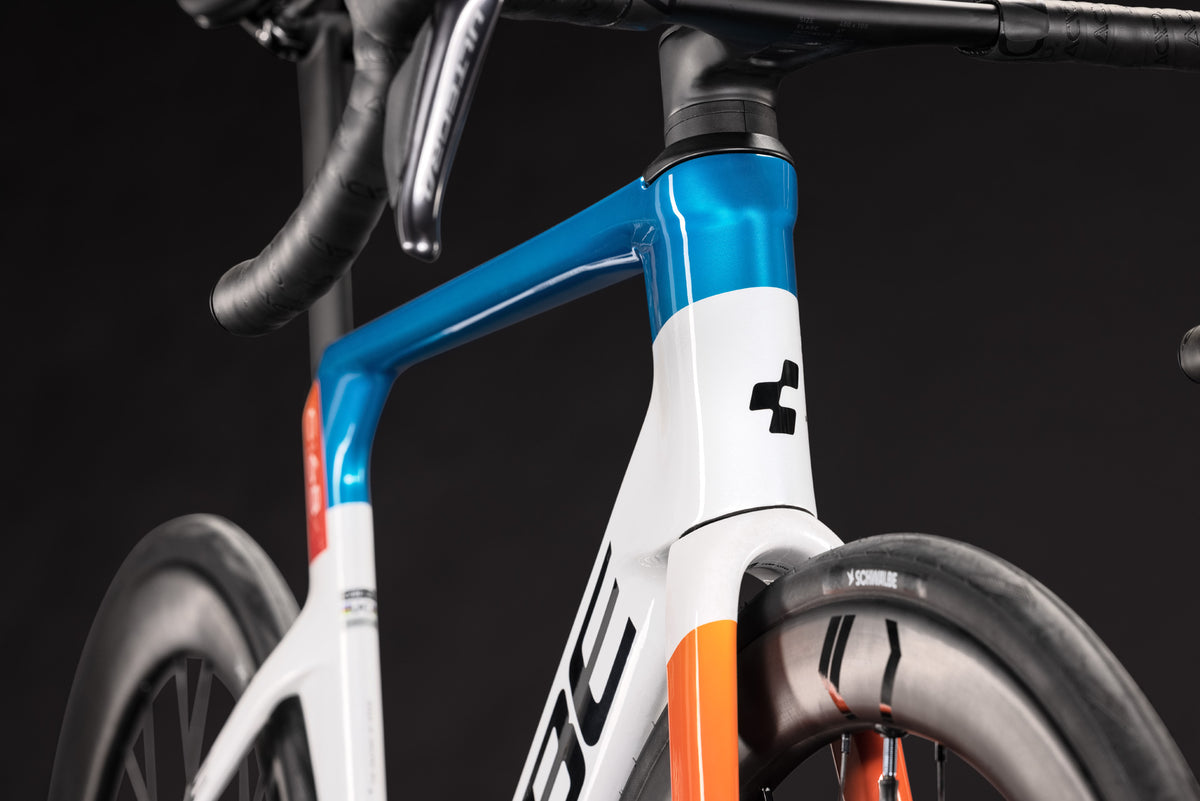

| Frame | Litening C:68X® Aero Monocoque Advanced Twin Mold Technology, Aero Optimized Tubes, Full Internal Cable Routing, Flat Mount Disc, 12x142mm, UDH™ |
| Size | 50cm, 52cm, 54cm, 56cm, 58cm, 60cm, 62cm |
| Rigid Fork | Litening C:68X® Aero, Integrated Cable Routing, Flat Mount, 12x100mm |
Drivetrain & Brakes
| Shift / Brake Levers | Shimano Ultegra Di2 ST-R8170 |
| Brake System | Shimano Ultegra BR-R8170, Hydr. Disc Brake, Flat Mount (160/160) |
| Rear Derailleur | Shimano Ultegra Di2 RD-R8150-GS. 12-Speed |
| Front Derailleur | Shimano Ultegra Di2 FD-R8150-F |
| Bottom Bracket | Acros Threadfit Ceramic |

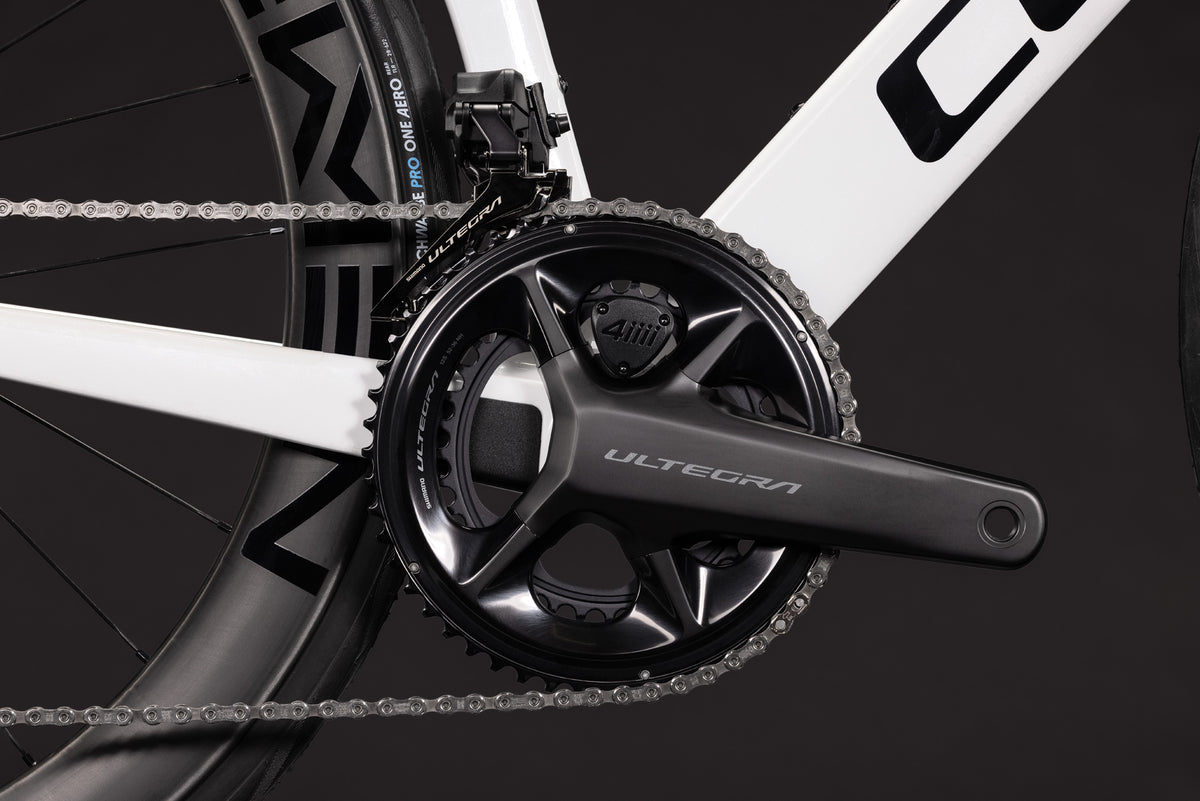

| Crankset | Shimano Ultegra FC-R8100, Hollowtech II, 52x36T, 4iiii Precision 3+ Powermeter dual side |
| Cassette | Shimano Ultegra CS-R8101, 11-34T |
| Chain | Shimano CN-M8100 |
Cockpit
| Headset | Acros, Top Integrated 1 1/8", Bottom Integrated 1 1/4" |

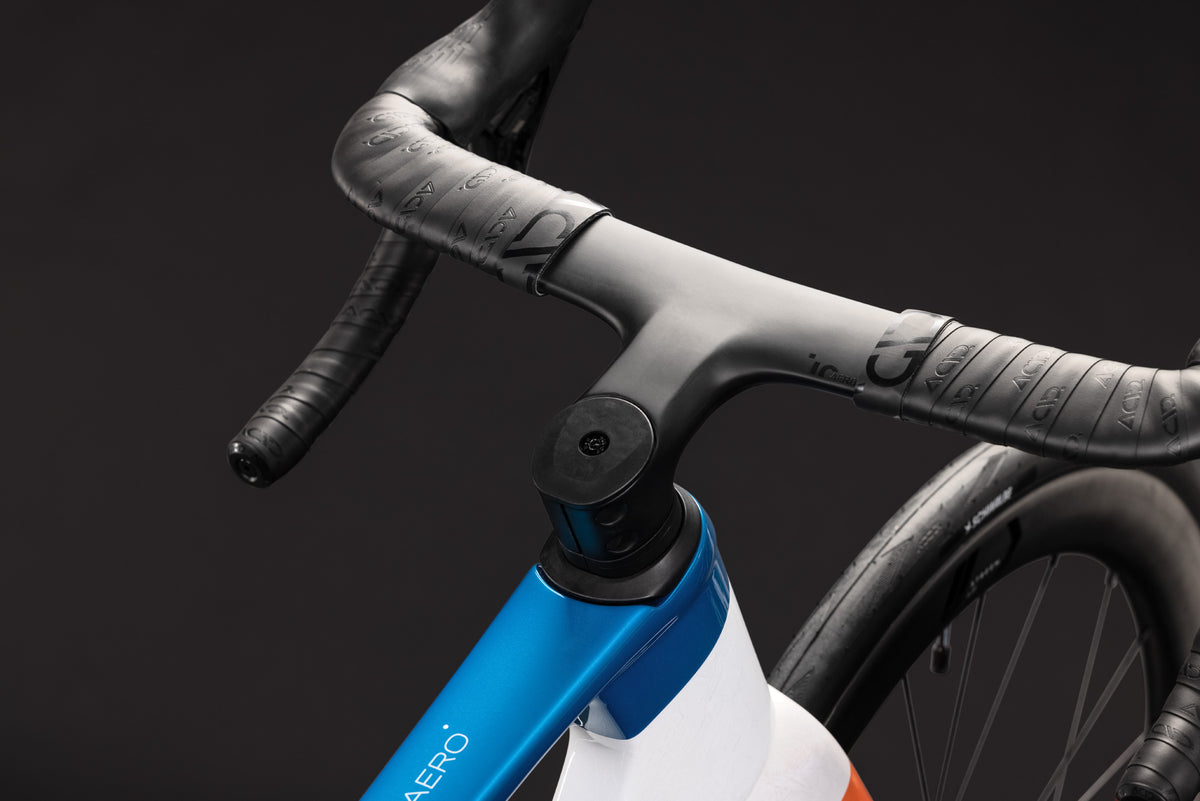

| Integrated Bar/ Stem | IC Aero Cockpit System, Integrated Cable Routing, Aero Spacer System, Garmin Mount Interface |
| Handlebar Tape | ACID Bartape RC 2.5 |
Wheels
| Wheelset | Newmen Streem A.49/54 Carbon, 21/24 Spokes, Centerlock, 12x100mm/12x142mm, Tubeless Ready |
| Tyres | Schwalbe Pro One Aero, TLR, 28-622 |
Finishing Kit
| Saddle | ACID Nuance SLT Carbon |

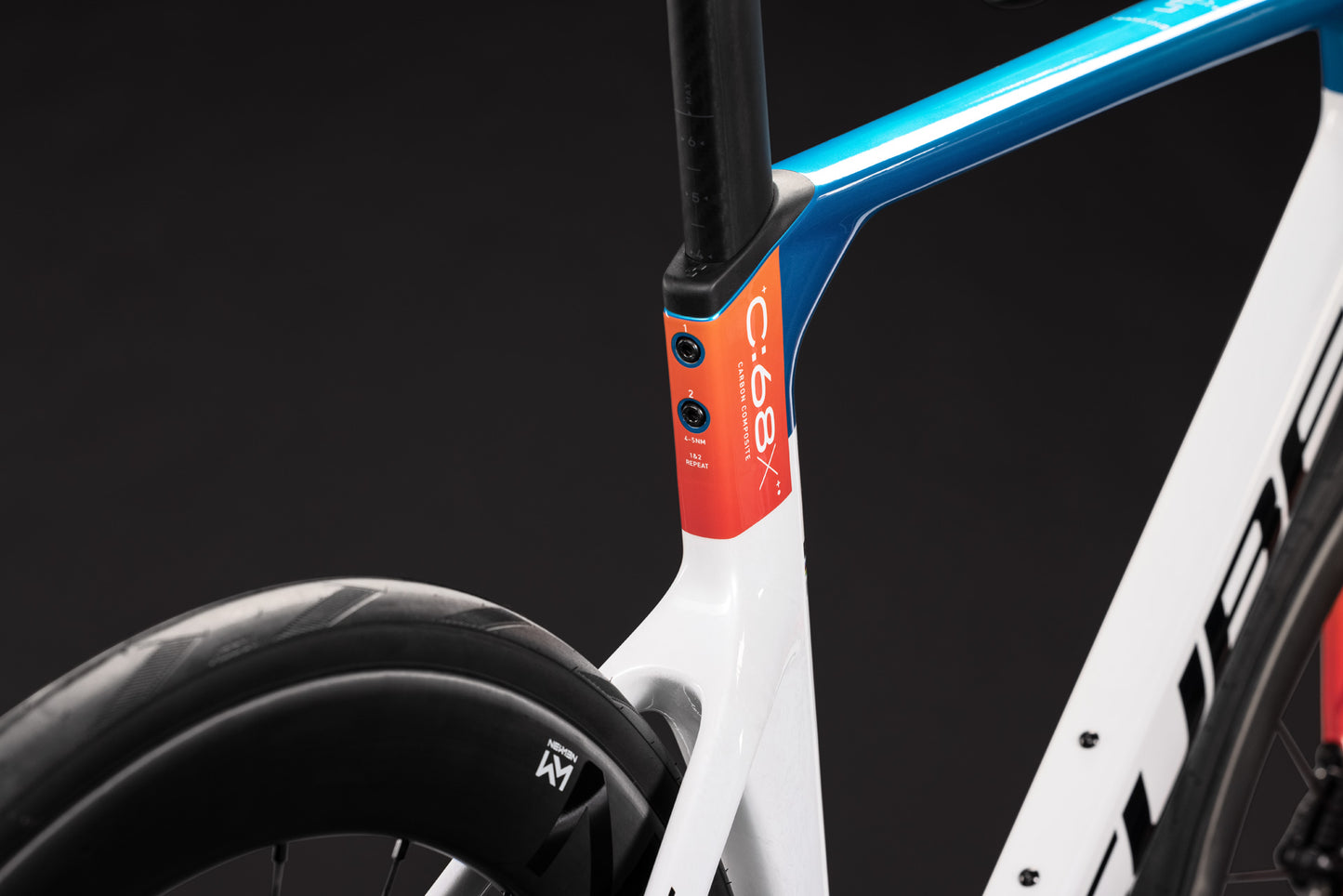

| Seat Post | Litening C:68X® Aero, Comfort Flex |
Product Information
| Colour | teamline |
| Weight | 7,5 kg |
| ArtNo | 1133310 |
