CHALLENGING
|

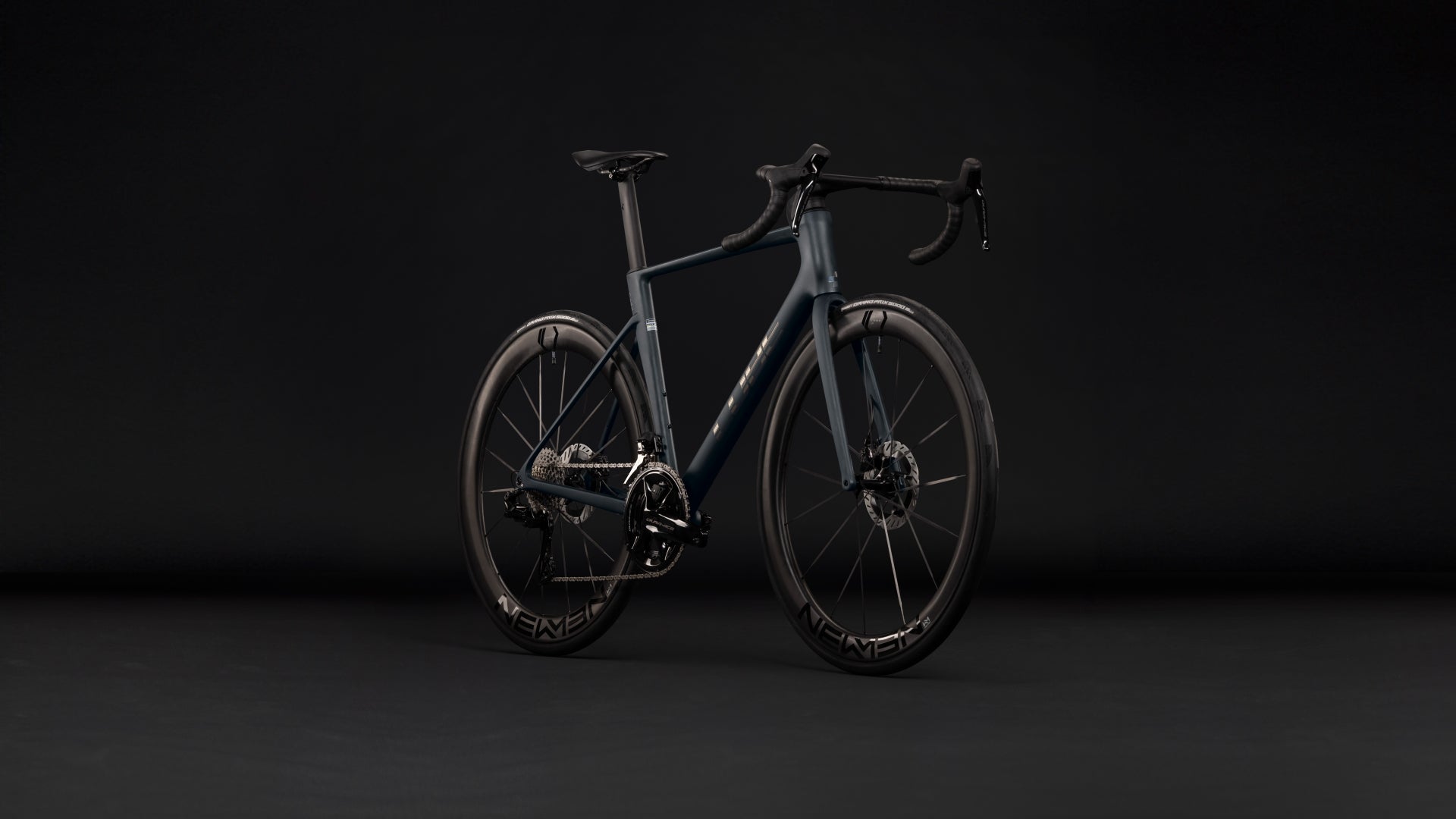

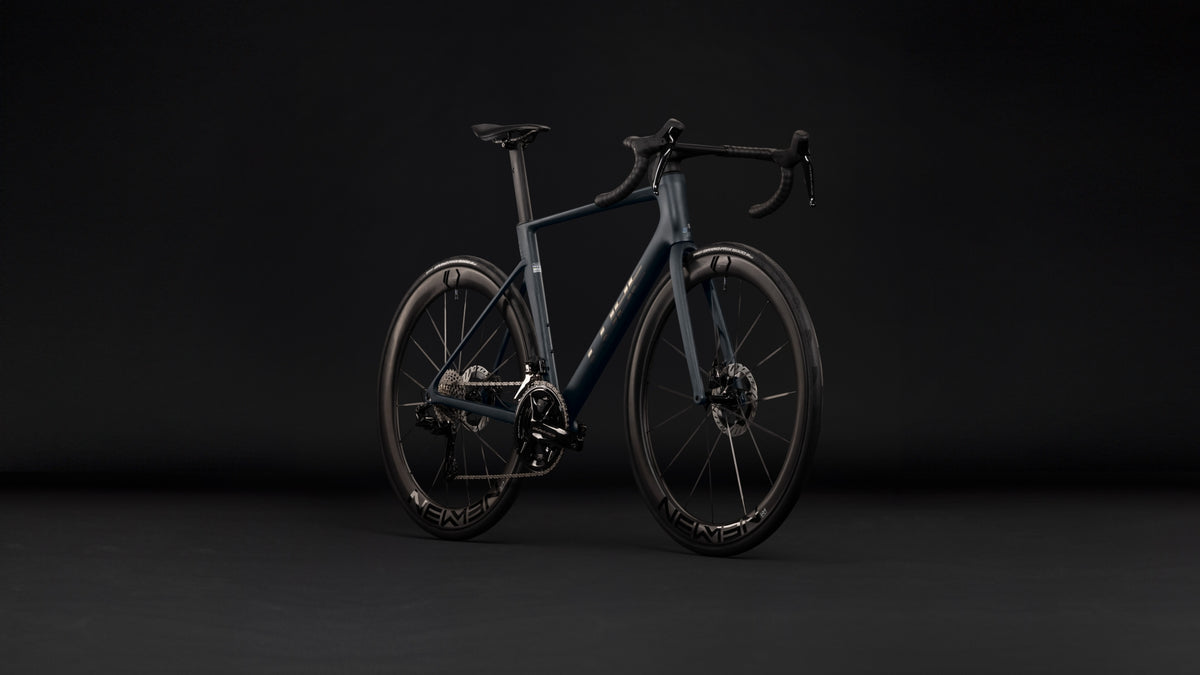

A bike that reduces wind resistance is great, but a race bike should also – of course – be as light as possible. So, with the Litening AIR, we worked with pro peloton riders to develop a frame from our premium C:68X® carbon that combines the best of both worlds. At around 799g for a mid-sized frame it's svelte enough to easily build a UCI-compliant 6.8kg bike, but – with details like Full Internal Cable Routing, careful tube profiles and our IC Aero One-Piece Carbon Cockpit – it's still slippery through the air, incredibly good at translating pedalling into forward progress, and comfortable for long days in the saddle. The overall weight saving on a classic road bike is a difference you can clearly feel – and see in your results! |
| Frame Material | Frame Weight | Tire Clearance |
C:68X® Carbon |
799 g |
34 mm |
Frame

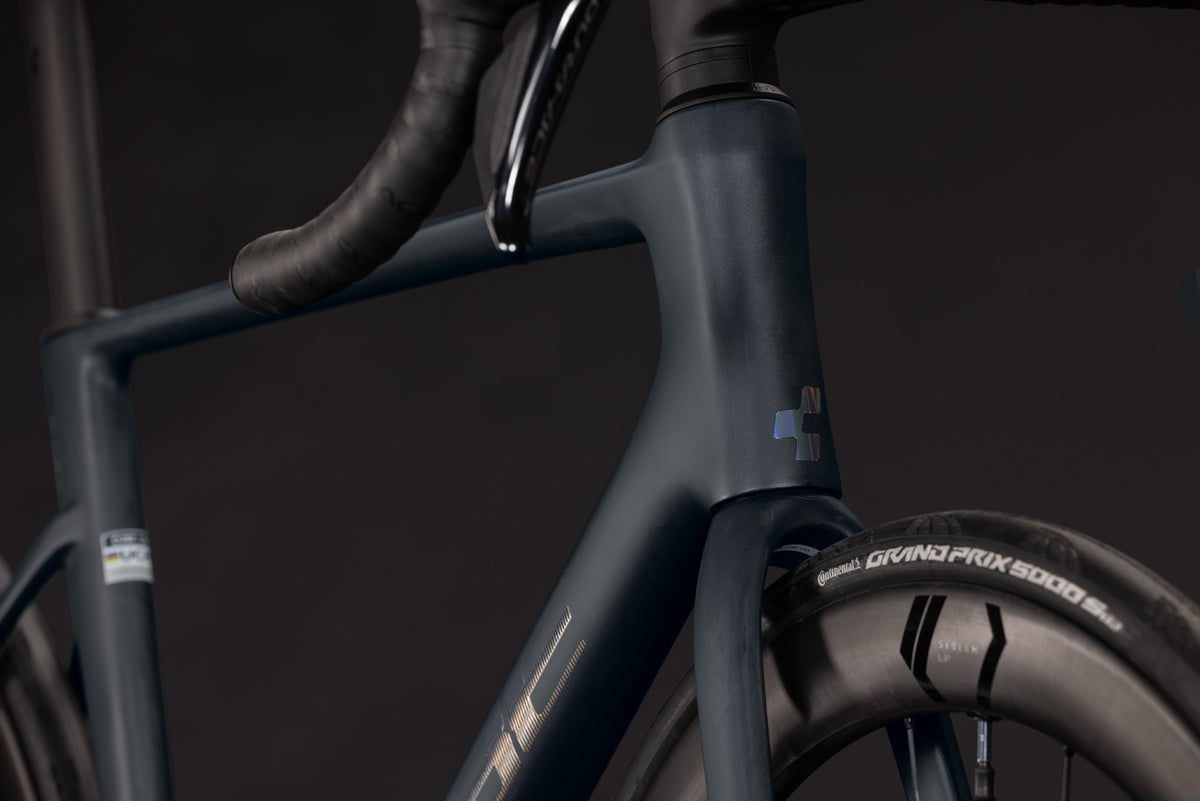

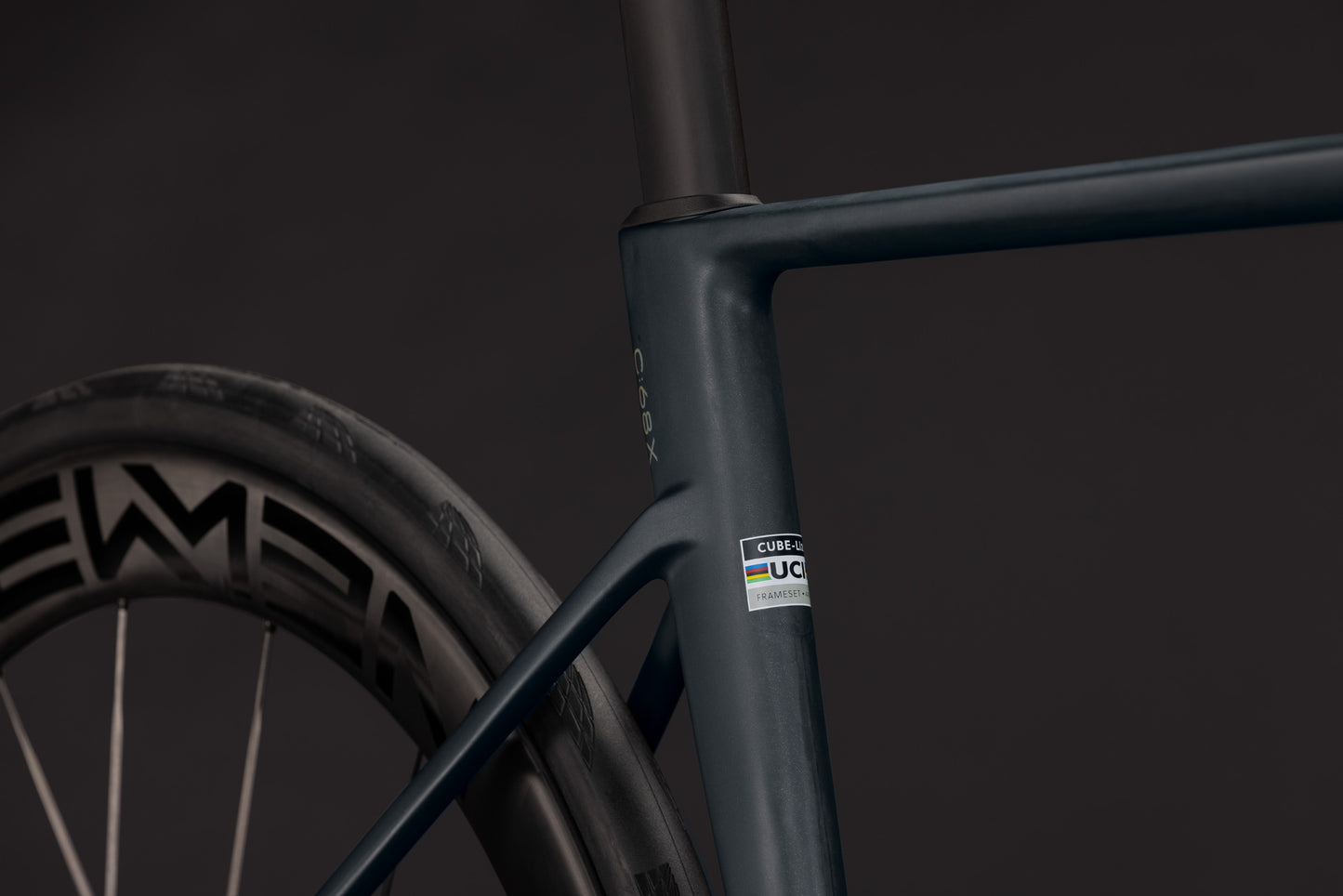

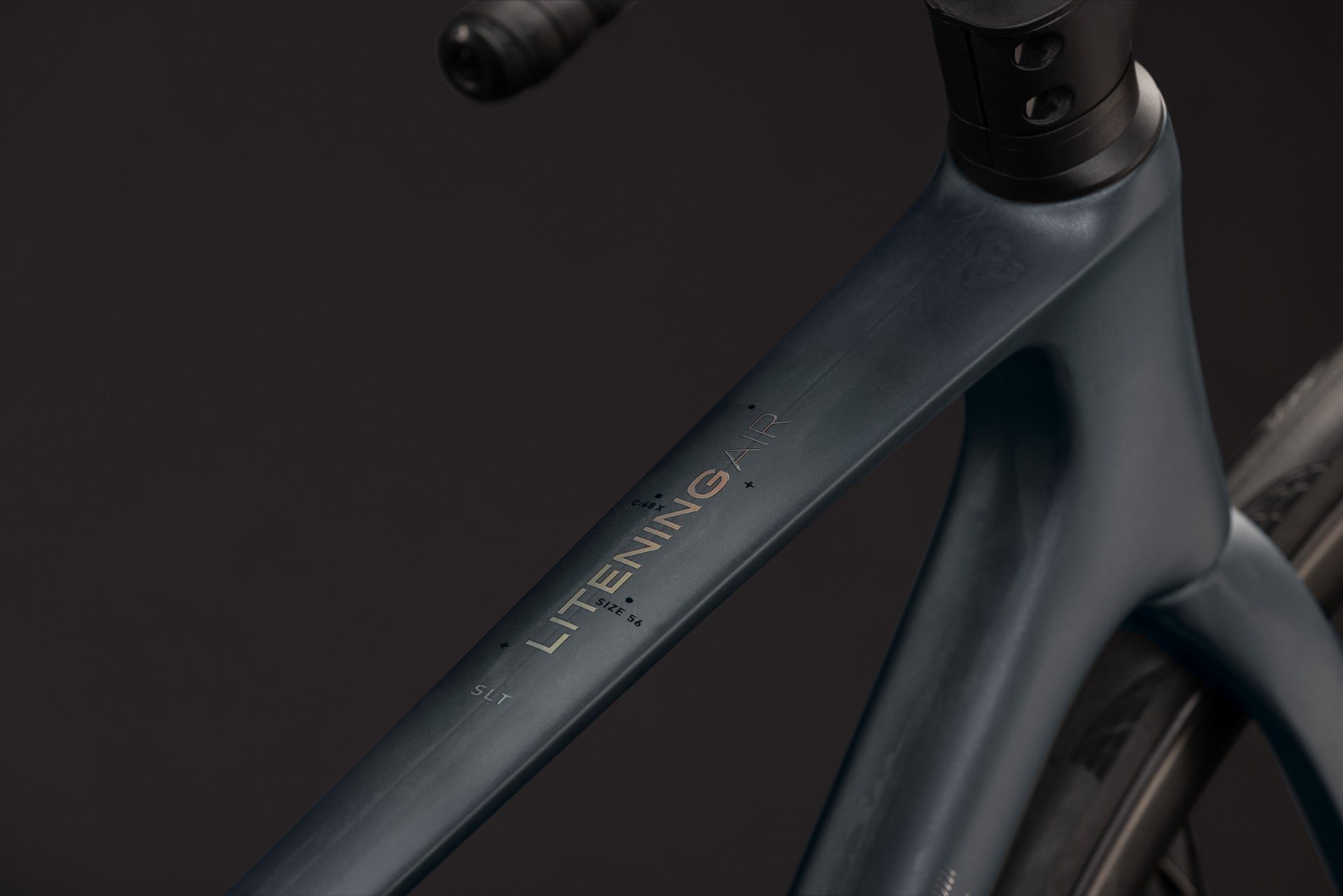

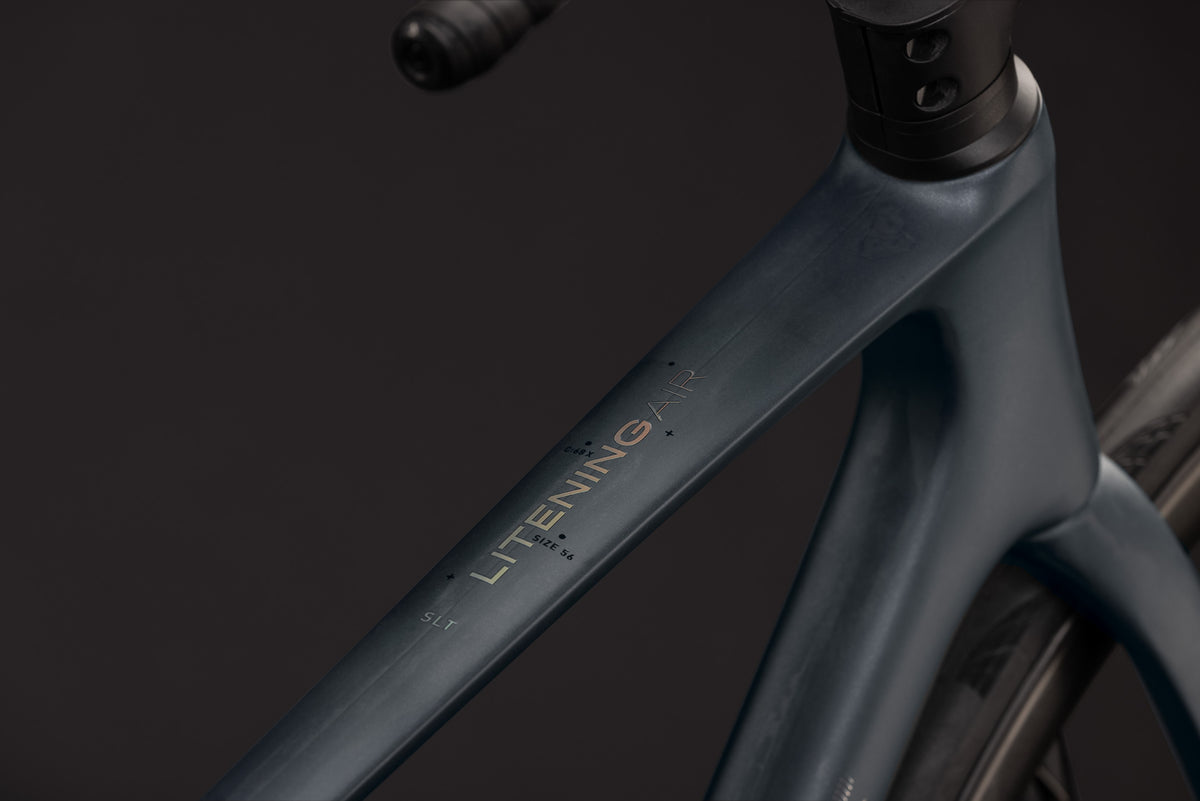

| Frame | Litening C:68X® Air Monocoque Advanced Twin Mold Technology, Aero-Weight Optimized Tubes, Full Internal Cable Routing, Flat Mount Disc |
| Size | 50cm, 52cm, 54cm, 56cm, 58cm, 60cm |
| Rigid Fork | Litening C:68X® Air, Integrated Cable Routing, Flat Mount Disc |
Drivetrain & Brakes
| Shift / Brake Levers | Shimano Dura Ace Di2 ST-R9270 |
| Brake System | Shimano Dura Ace BR-R9270, Hydr. Disc Brake, Flat Mount (160/160) |
| Rear Derailleur | Shimano Dura Ace Di2 RD-R9250-D, 12-Speed |
| Front Derailleur | Shimano Dura Ace Di2 FD-R9250-F, Braze-On |
| Bottom Bracket | Acros Threadfit Ceramic |

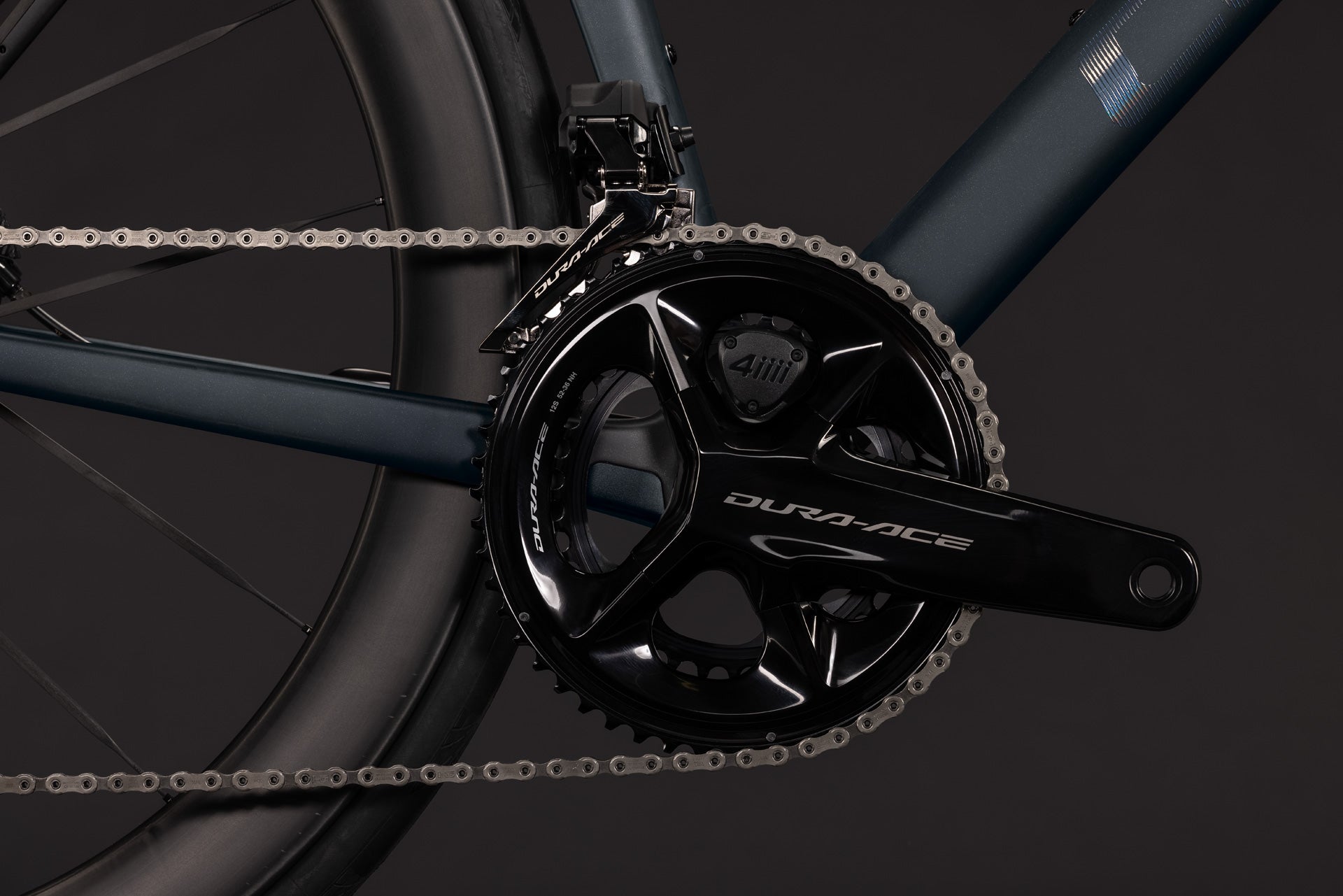

| Crankset | Shimano Dura Ace FC-R9200, Hollowtech ll, 52x36T, 4iiii Precision 3+ Powermeter dual side |
| Cassette | Shimano Dura Ace CS-R9200, 11-34T |
| Chain | Shimano CN-M9100 |
Cockpit
| Headset | Acros, Top Integrated 1 1/2" w/ Integrated Cable Routing, Bottom Integrated 1 1/4" |

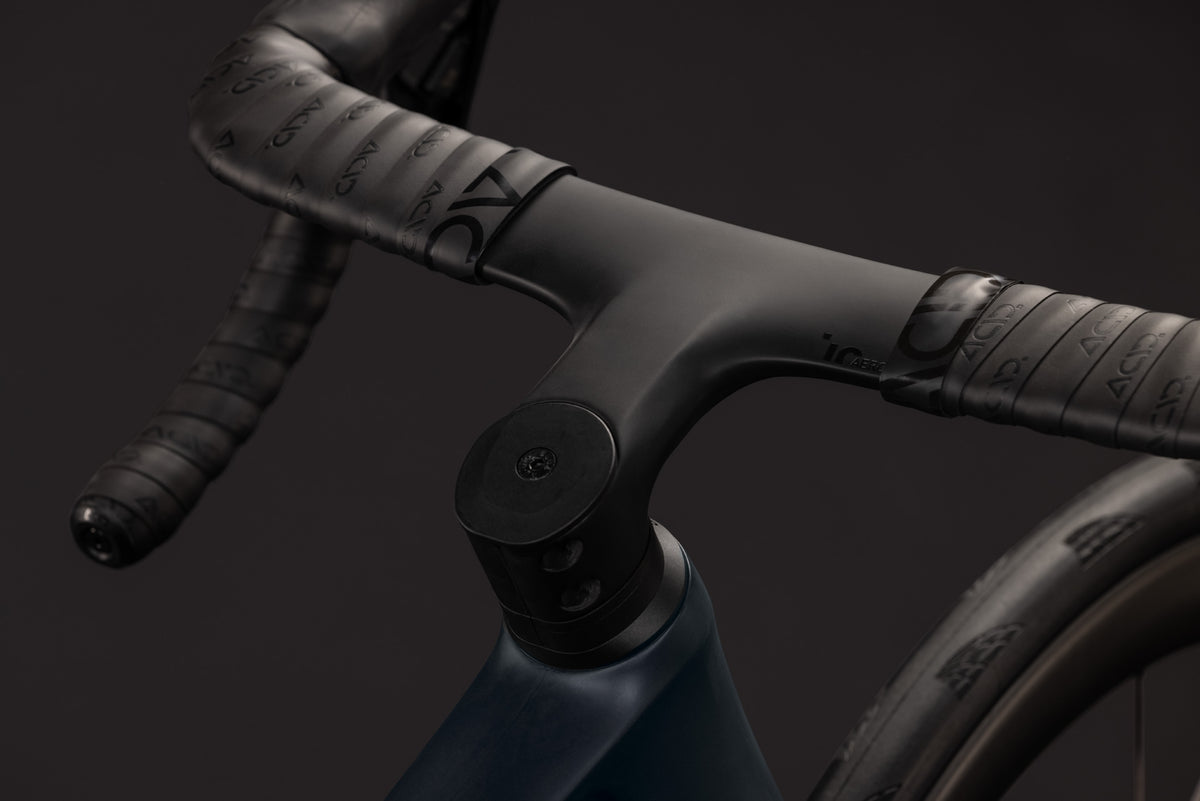

| Integrated Bar/ Stem | IC Aero Cockpit System, Integrated Cable Routing, Aero Spacer System, Garmin Mount Interface |
| Handlebar Tape | ACID Bartape RC 2.5 |
Wheels
| Wheelset | Newmen Streem A.49/54 VONOA Carbon, 15/18 Carbon Spokes, Centerlock, 12x100mm/12x142mm, Tubeless Ready |
| Tyres | Continental Grand Prix 5000 S-TR, Kevlar, 28-622, Tubeless Ready |
Finishing Kit

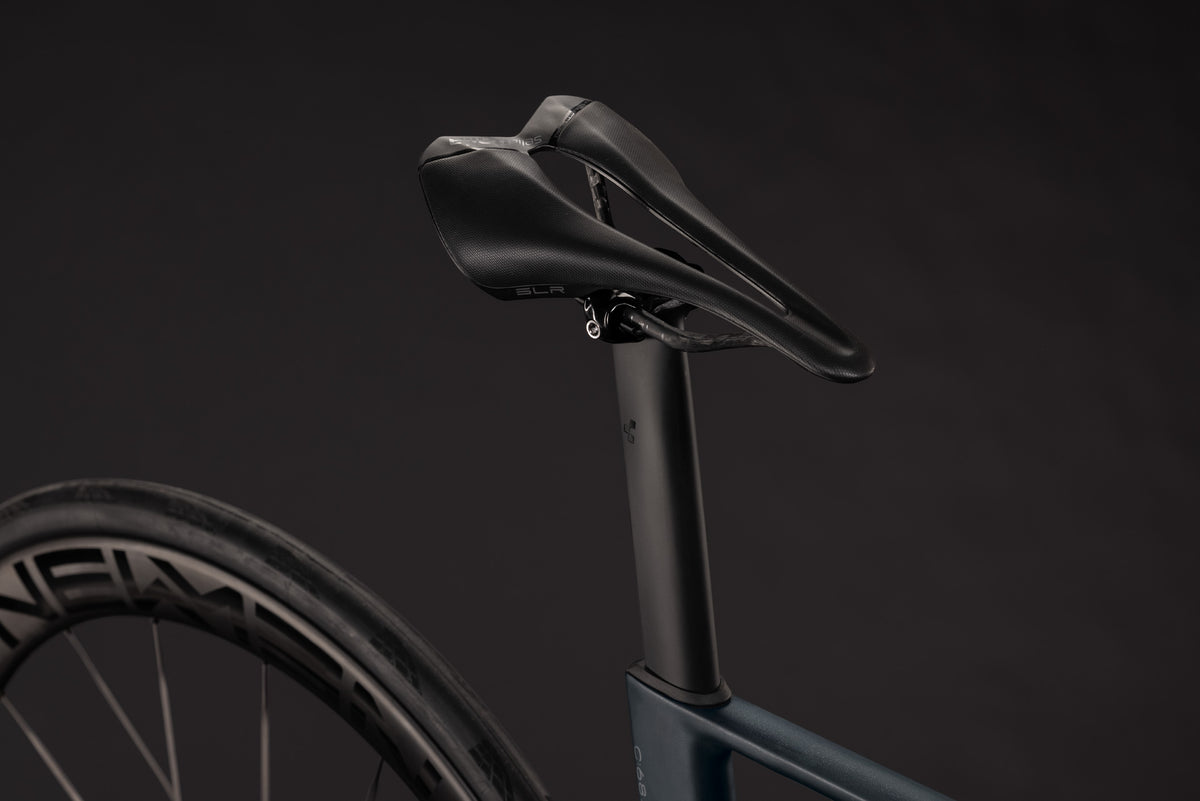

| Saddle | Selle Italia SLR Racing Replica |

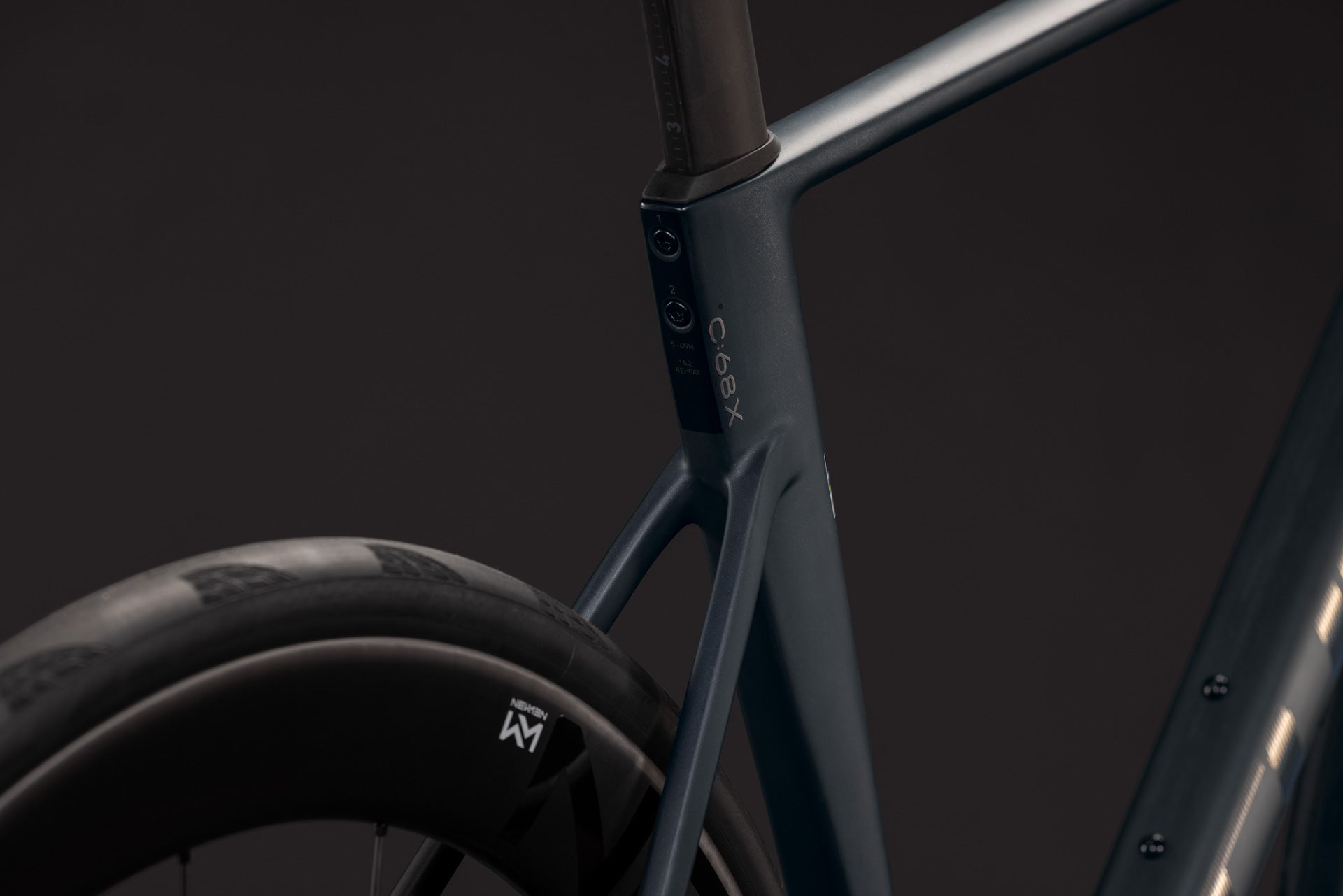

| Seat Post | Litening C:68X® Aero, Comfort Flex |
Product Information
| Colour | halogrey´n´prizm |
| Weight | 6,8 kg |
| ArtNo | 1134900 |
