GRAVEL
|

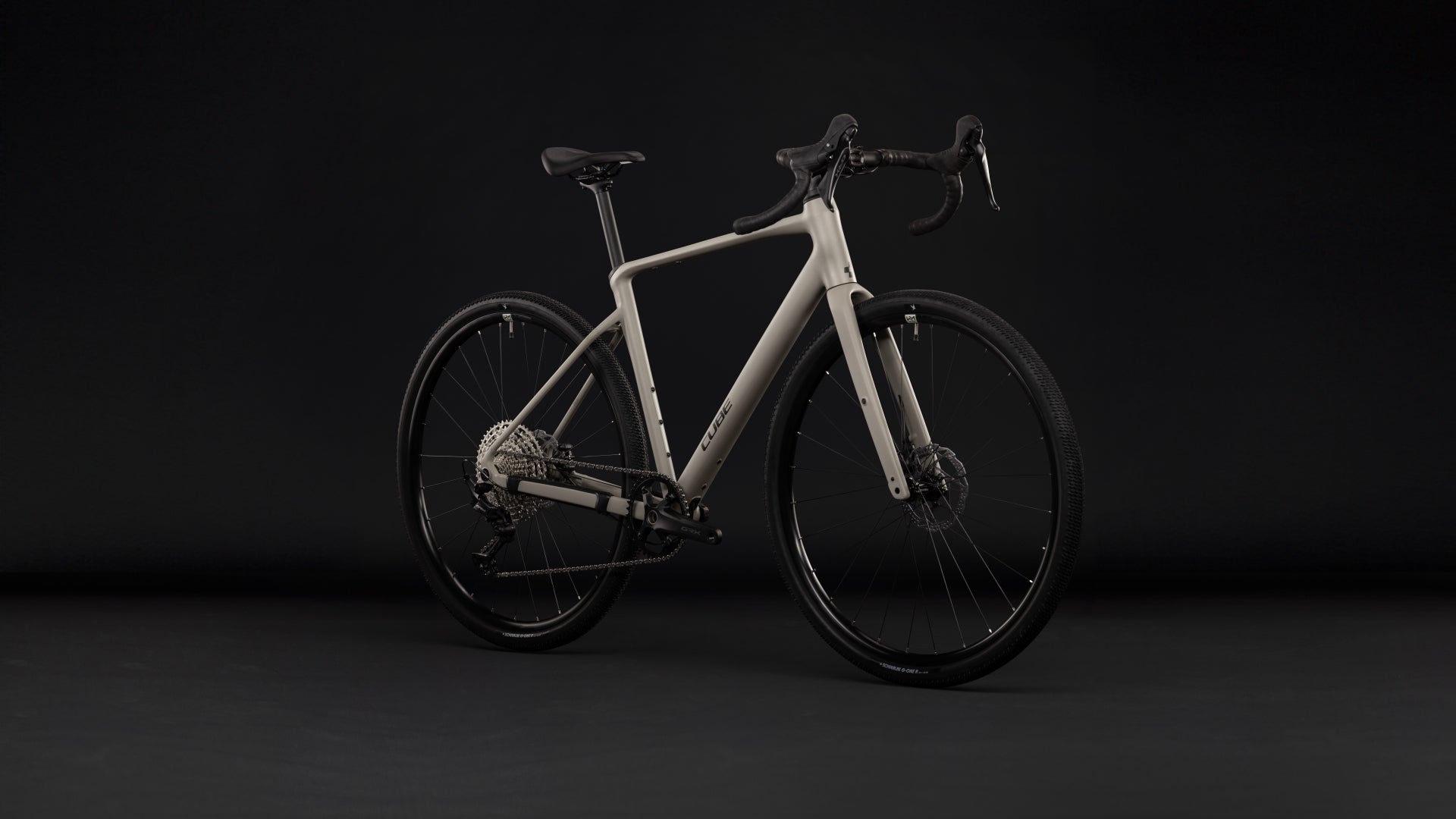

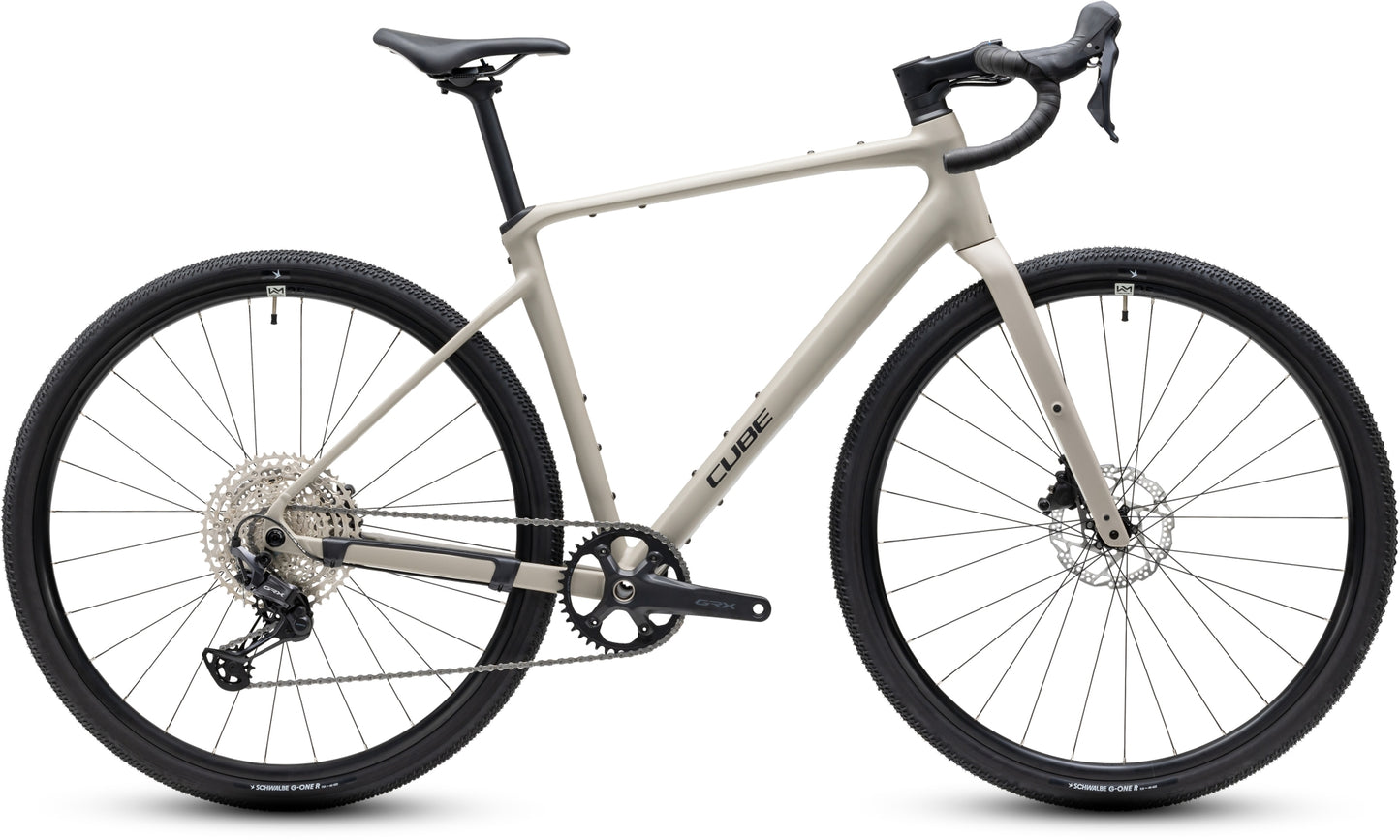

When you're exploring, having the right gear at your fingertips is important. That's why, for the Nuroad EX, we chose Shimano's gravel-specific GRX 1x12 gears – they're dependable and wide-ranging. A Newmen Performance 25 Gravel wheelset equipped with light, tough and grippy Schwalbe 45mm tyres – and Shimano GRX hydraulic disc brakes – keep you in full control, all of the time. There's a vibration-filtering, full carbon fork for ride-all-day comfort. And a full complement of rack mounts – both front and rear – makes it easy to set up your Nuroad EX for anything from the daily commute to longer tours. |
| Frame Material | Sizes | Tire clearance |
Aluminium |
Split Size |
50 mm |
Frame

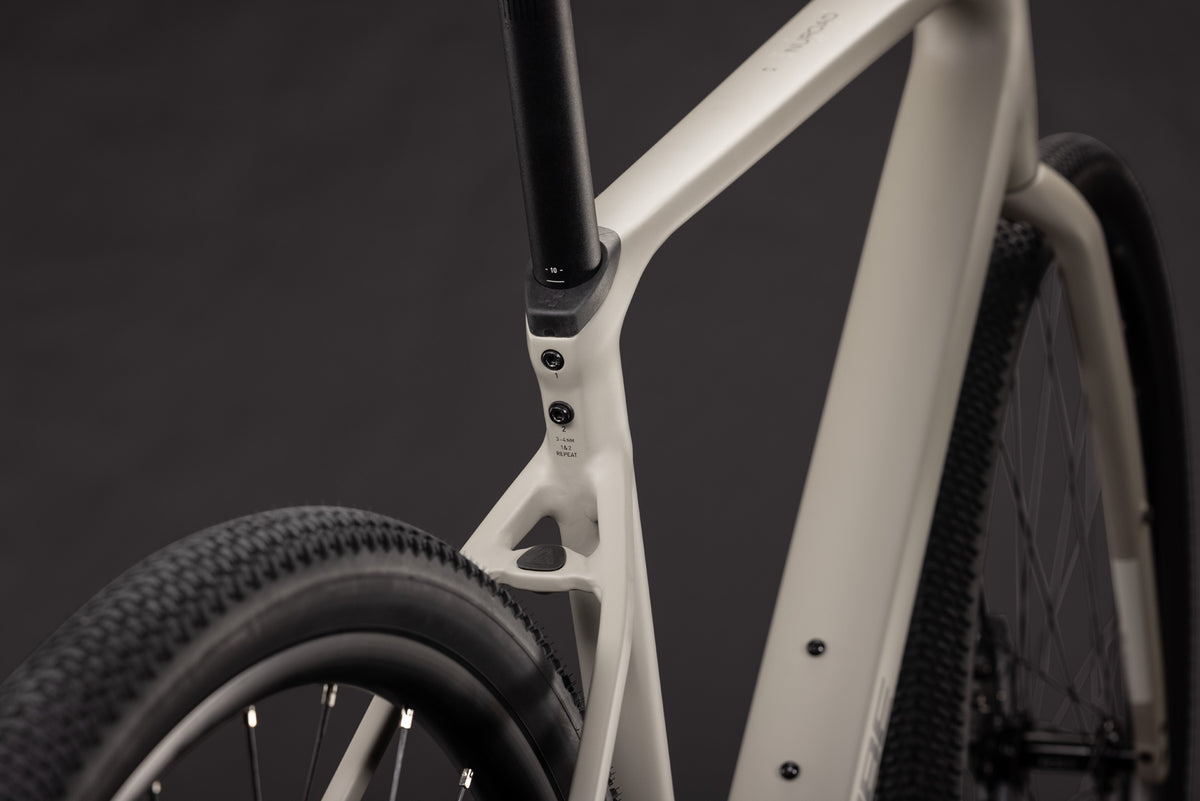

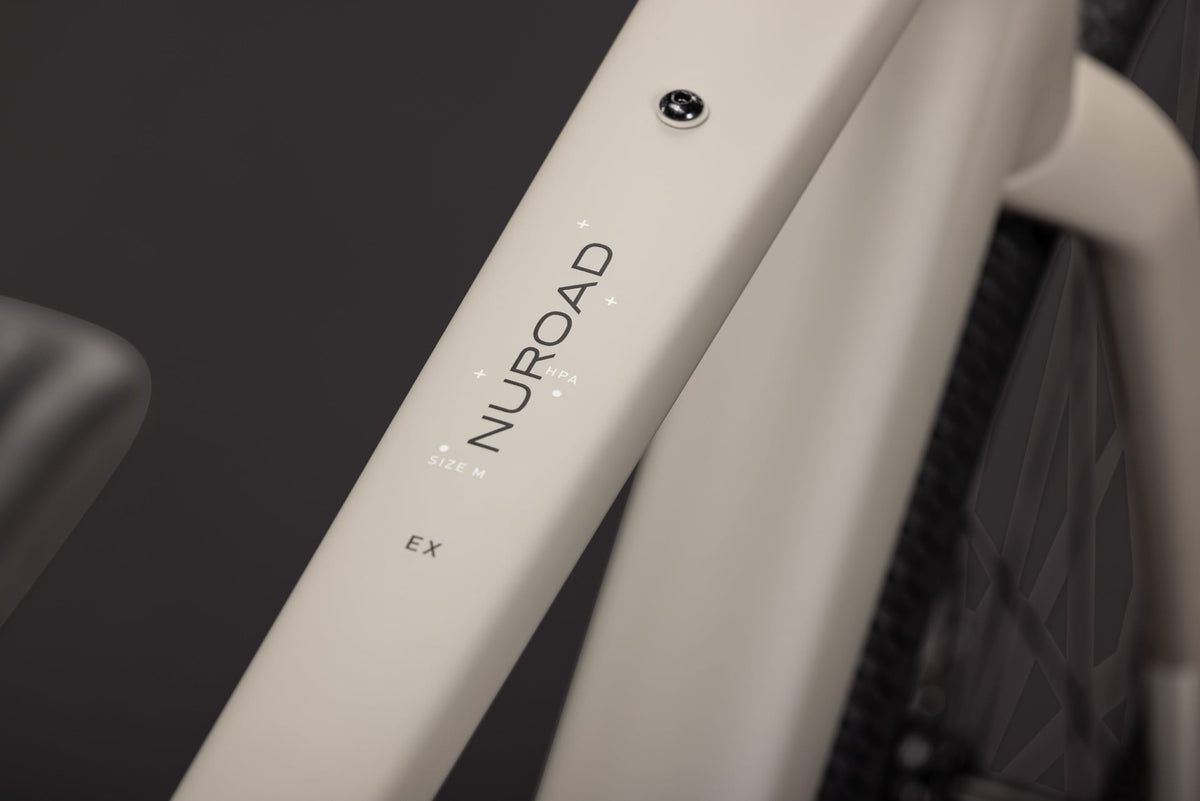

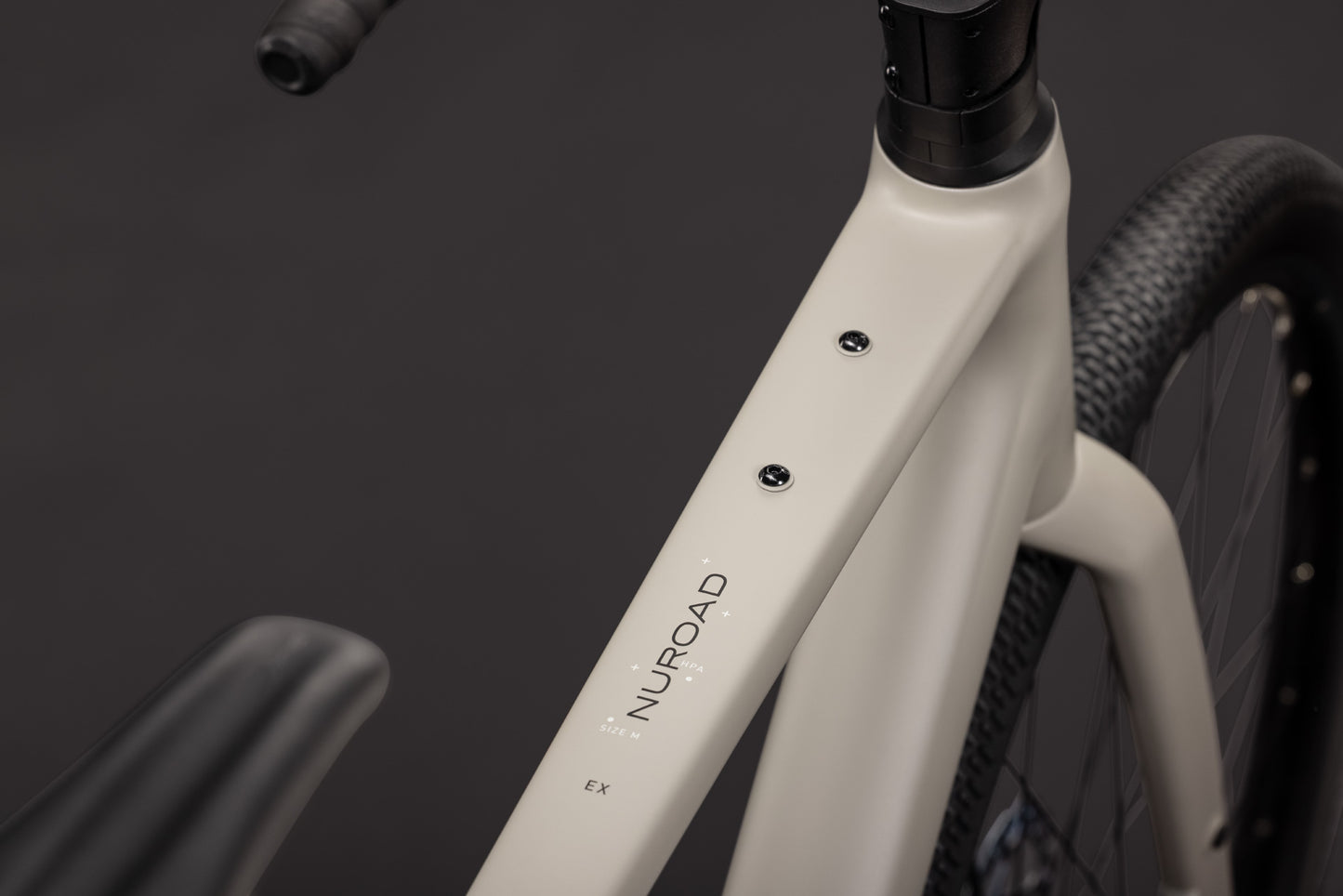

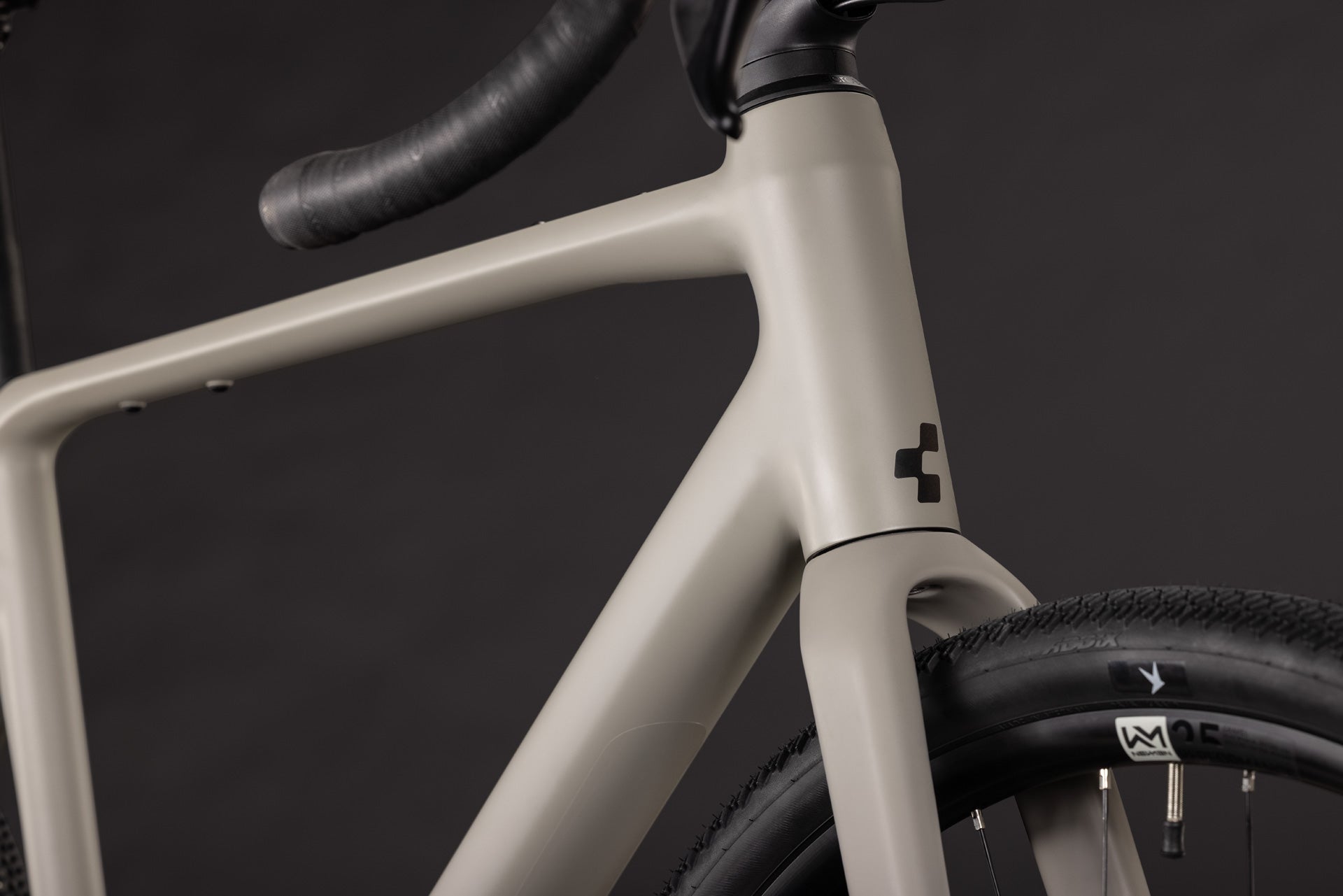

| Frame | Aluminium 6061 T6 Superlite, Internal Cable Routing, Integrated Seat Post Clamp, Flat Mount Disc, Fender & Rack Option, 12x142mm, UDH™ |
| Sizes | Size Split: 27.5: XXS // 28: XS, S, M, L, XL, XXL |
| Rigit Fork | CUBE C:62®, 1 1/8" - 1 1/2" Tapered, Integrated Cable Routing, Flat Mount Disc, Fender & Lowrider Mounts, Internal Light Cable Option, 12x100mm |
Drivetrain & Brakes
| Shift Brake/Levers | Shimano GRX ST-RX610 |
| Brake System | Shimano GRX BR-RX410, Hydr. Disc Brake, Flat Mount (160/160) |
| Rear Derailleur | Shimano GRX RD-RX822-SGS, 12-Speed |
| Bottom Bracket | Samox BB8601, Pressfit |

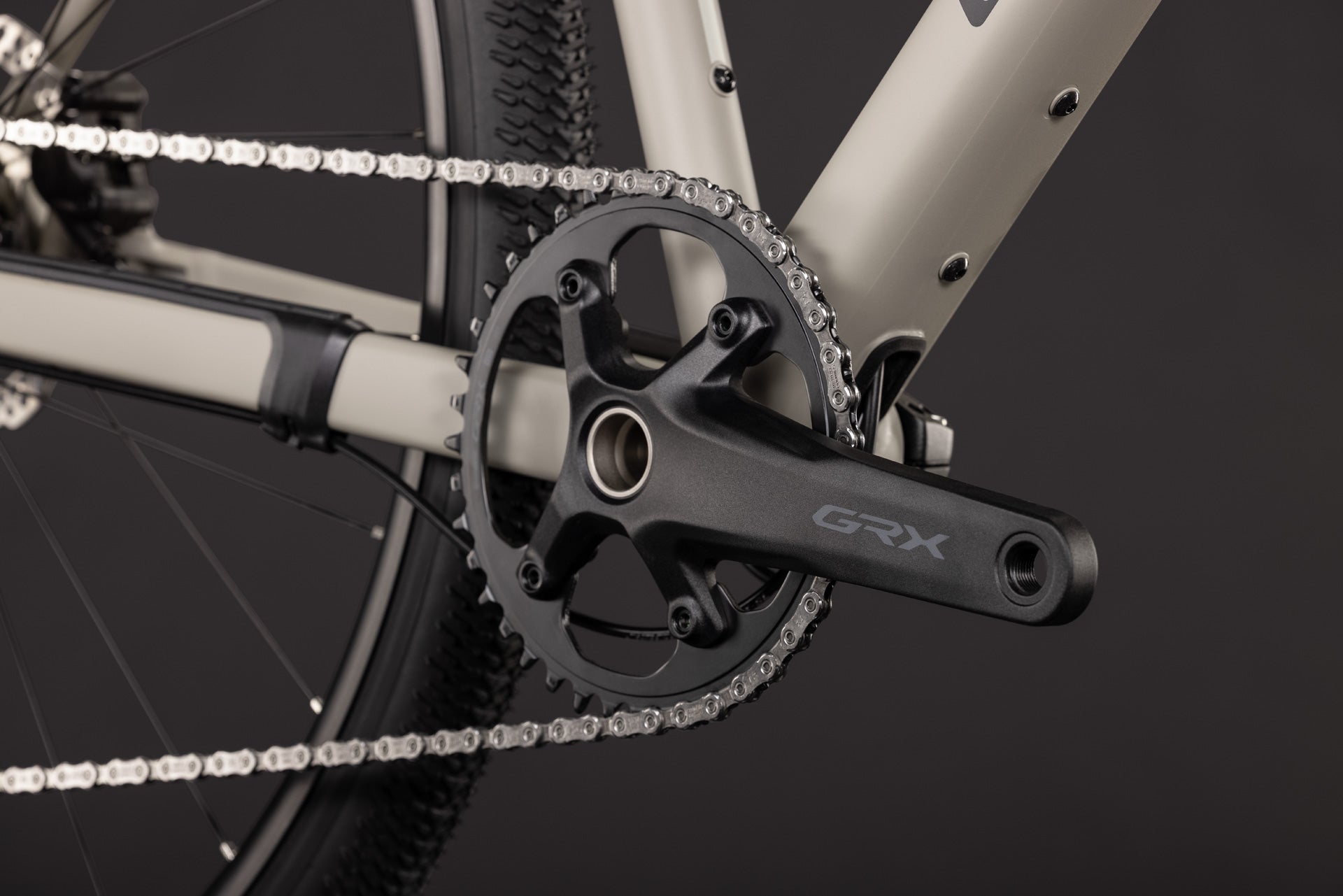

| Crankset | Shimano GRX FC-RX610, 40T |
| Cassette | Shimano Deore CS-M6200, 10-51T |
| Chain | Shimano CN-M6100 |
Cockpit
| Headset | Acros, Top Integrated 1 1/2" w/ Integrated Cable Routing, Bottom Integrated 1 1/2" |
| Stem | UBE CIS Stem +/- 6°, FPI-Link |
| Handlebar | CUBE Gravel Race Bar |
| Handlebar Tape | ACID Bartape CC 3.0 |
Wheels
| Wheelset | Newmen Performance X.R.25, 28/28 Spokes, Centerlock, 12x100mm / 12x142mm, Tubeless Ready |
| Tyres | Schwalbe G-One R Performance, Kevlar, TLR, 45-622 (XXS: G-One R Pro, Kevlar, TLR, 45-584) |
Finishing Kit
| Saddle | ACID Nuance Lite |
| Seat Post | CUBE Performance Post, 27.2mm |
Product Information
| Colour | oatgrey´n´black |
| Weight | 10,5 kg |
| ArtNo | 1135300 |
