REAL FUN
|

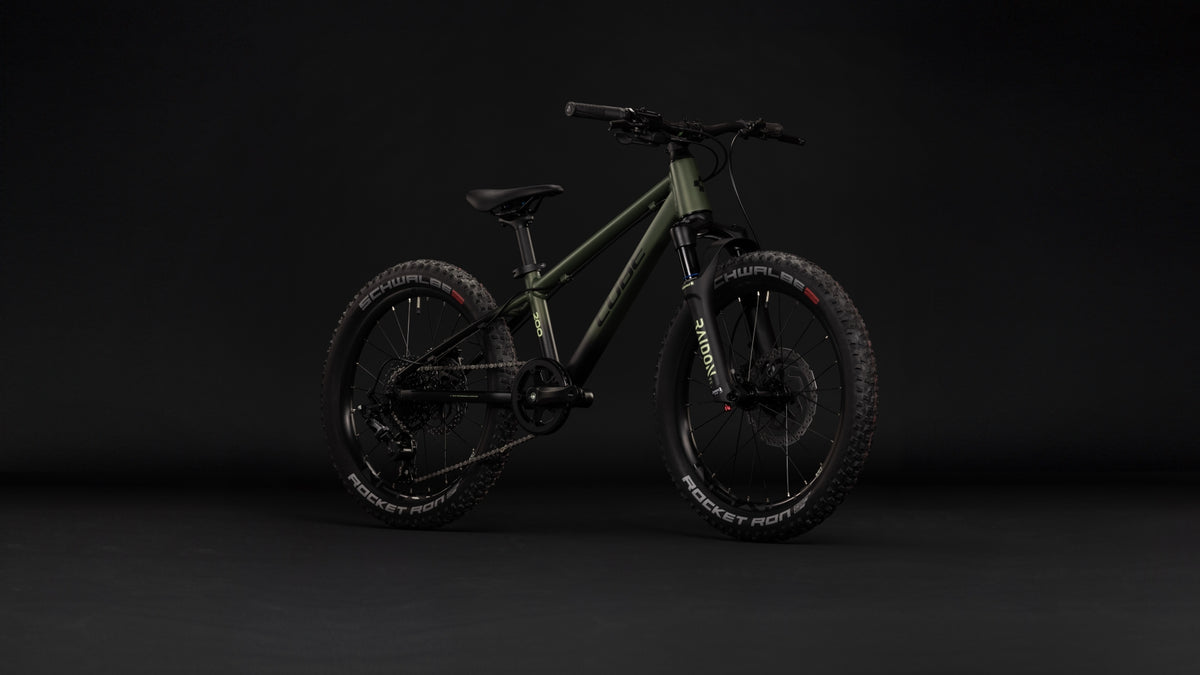

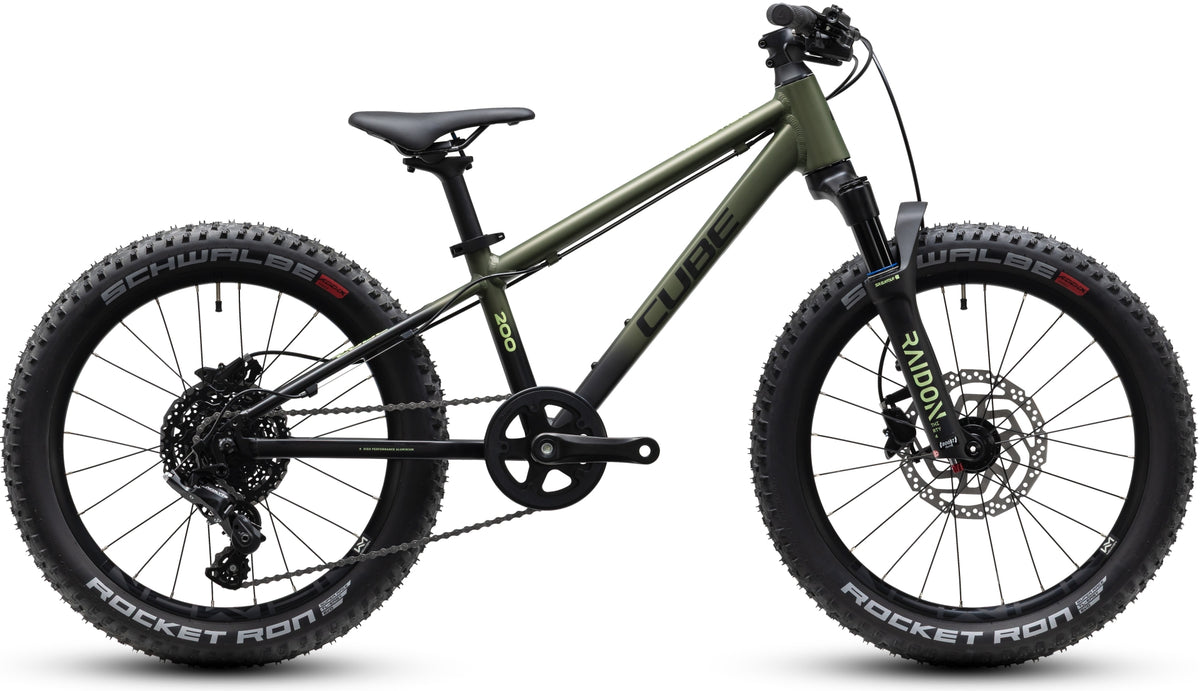

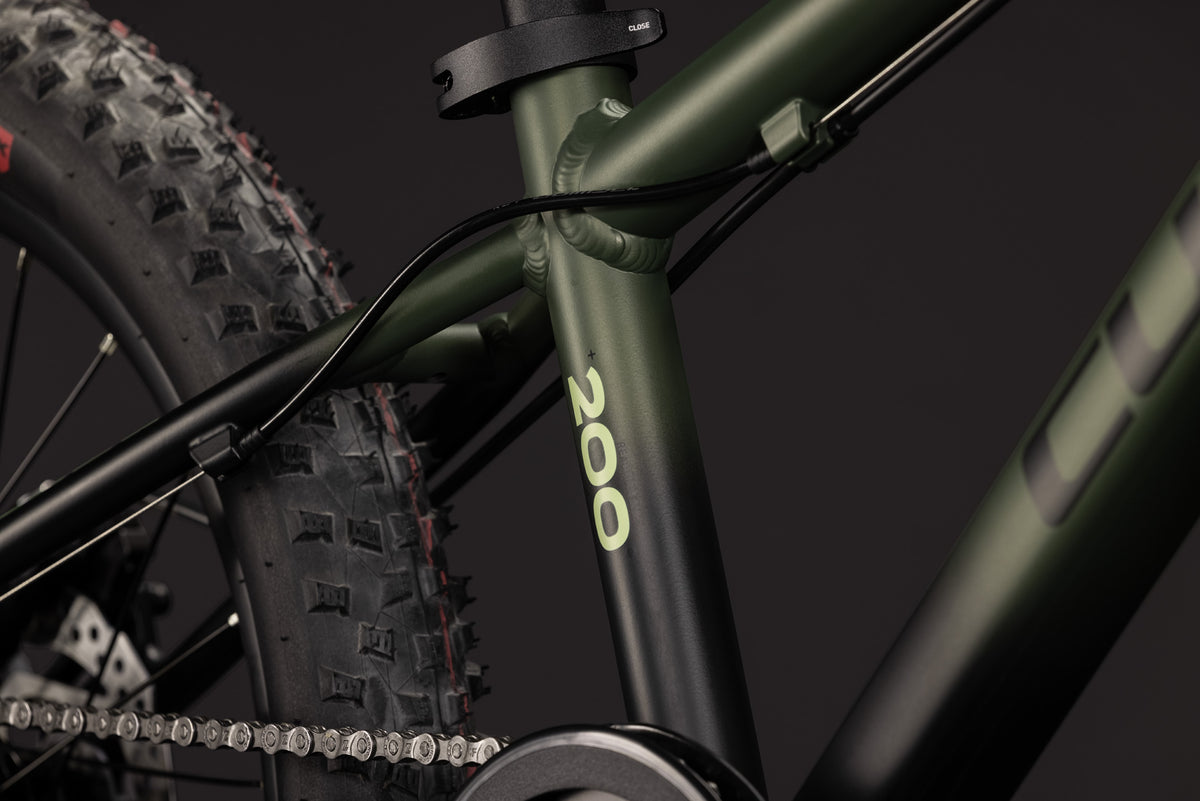

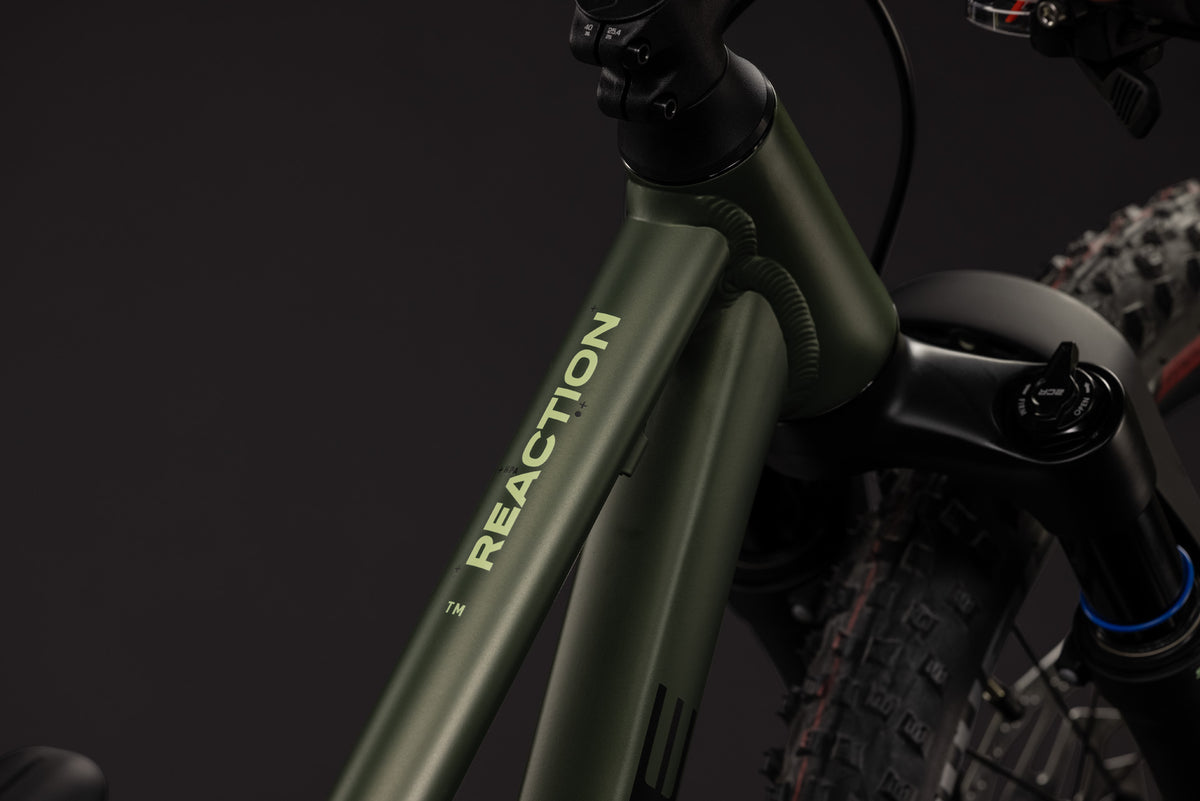

The Reaction 200 TM is made from the same kind of heat-treated 6061 aluminium tubes that you'll find on our performance adult bikes. We also use the same mechanical tube-forming process to adjust tube shapes for the best combination of strength and weight. Making the most of all this frame wizardry is a suspension fork, designed specifically to work with a small frame and a light rider. Disc brake mounts and cable routing allow for the greater safety and stopping power of discs. And a replaceable derailleur hanger insures against expensive repairs in the event of minor mishaps. |
| Frame Material | Wheels | |
Aluminium Lite |
20" |
Frame
| Frame | Aluminium Lite 6061 |
| Sizes | 20" |
Suspension

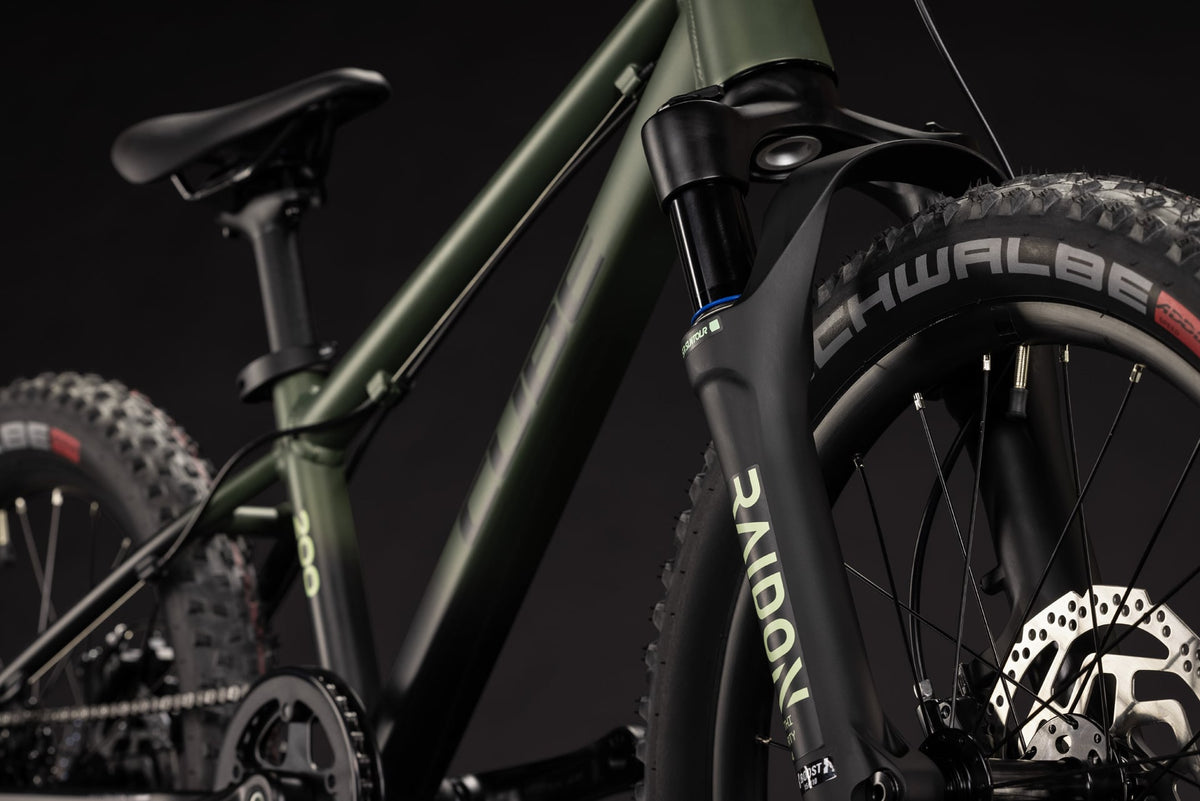

| Suspension Fork | SR Suntour Raidon34, 50mm |
Drivetrain & Brakes
| Brake System | Shimano BR-MT200, Hydr. Disc Brake (180/160) |
| Rear Derailleur | Microshift Acolyte RD-M5185S, 8-Speed |
| Shifters | Microshift Acolyte SL-M6280-R |
| Bottom Bracket | Thun Paso-ML, 68mm, BSA |

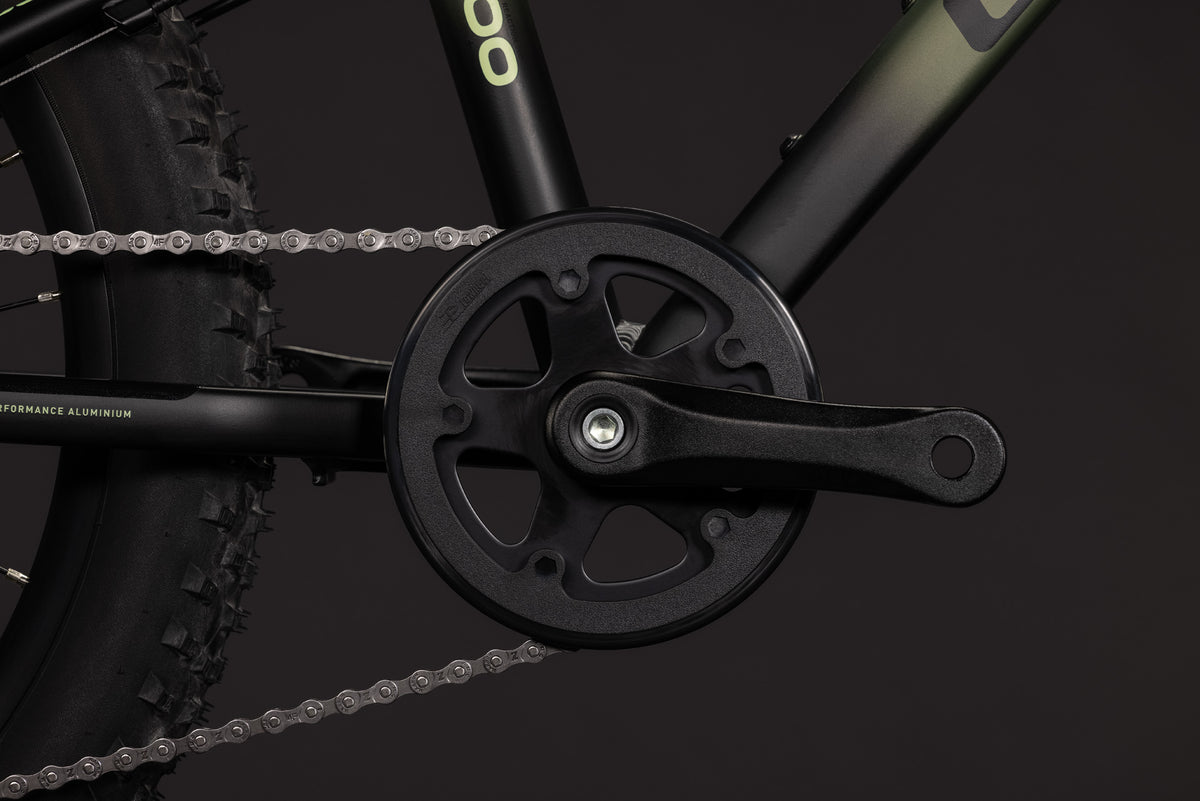

| Crankset | Prowheel A105, 32T, 114mm with Chainguard |
| Cassette | Microshift Acolyte CS-H083, 11-38T |
| Chain | KMC Z8.3 |
Cockpit
| Headset | VP Z-t, Top ZS 1 1/8" (OD 44mm), Bottom ZS 1 1/2" (OD 56mm) |
| Stem | CUBE Aluminium Lite |
| Handlebar | CUBE Kids 540mm, Ø 19mm |
| Grips | ACID Nuro Rookie 19.0 |
Wheels
| Wheelset | Newmen Evolution X.A.25, 24/24 Spokes, Tubeless Ready |
| Tyres | Schwalbe Rocket Ron Kevlar, 2.25 |
Finishing Kit

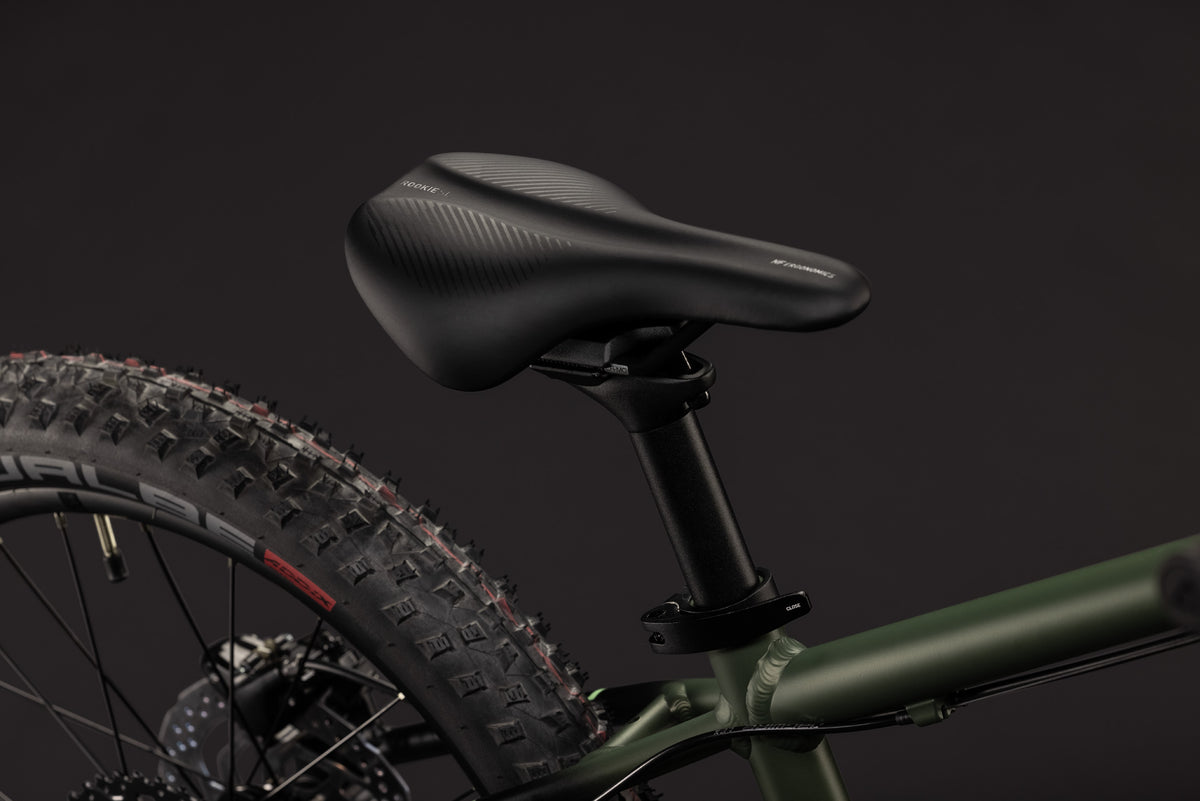

| Saddle | CUBE Kids |
| Seat Post | CUBE Aluminium Lite, 27.2mm |
| Pedal | CUBE PP MTB |
Product Information
| Colour | reedgreen´n´lime |
| Weight | 9,8 kg |
| ArtNo | 1152300 |
