JUNIOR
|

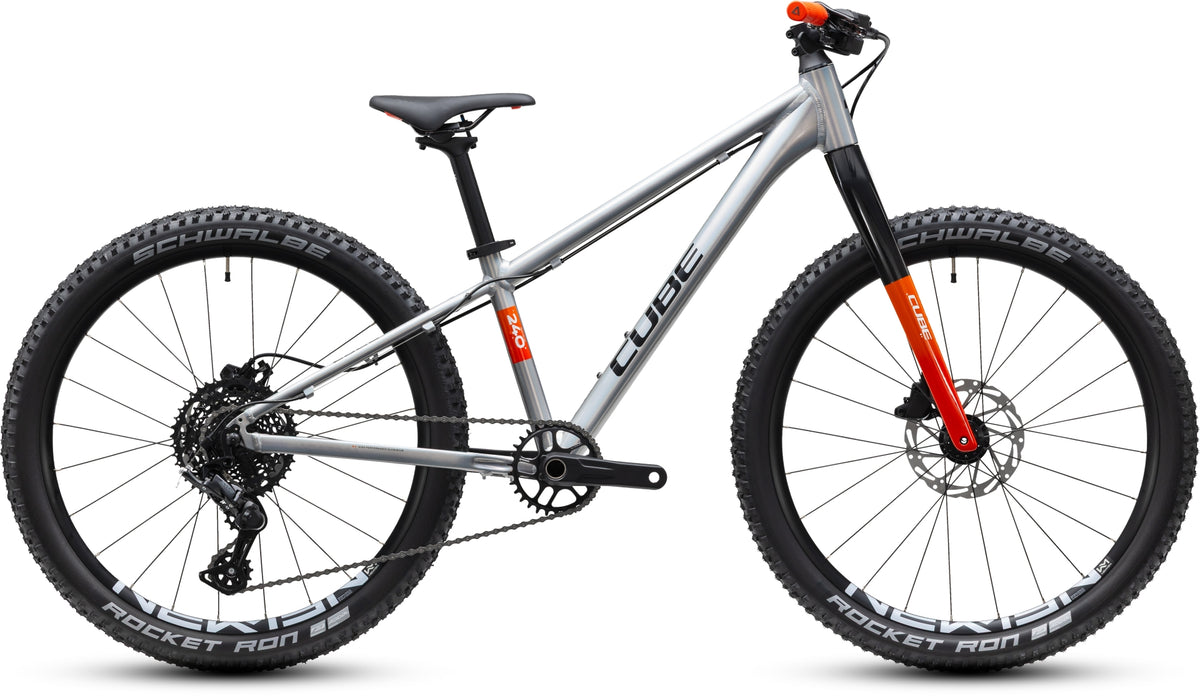

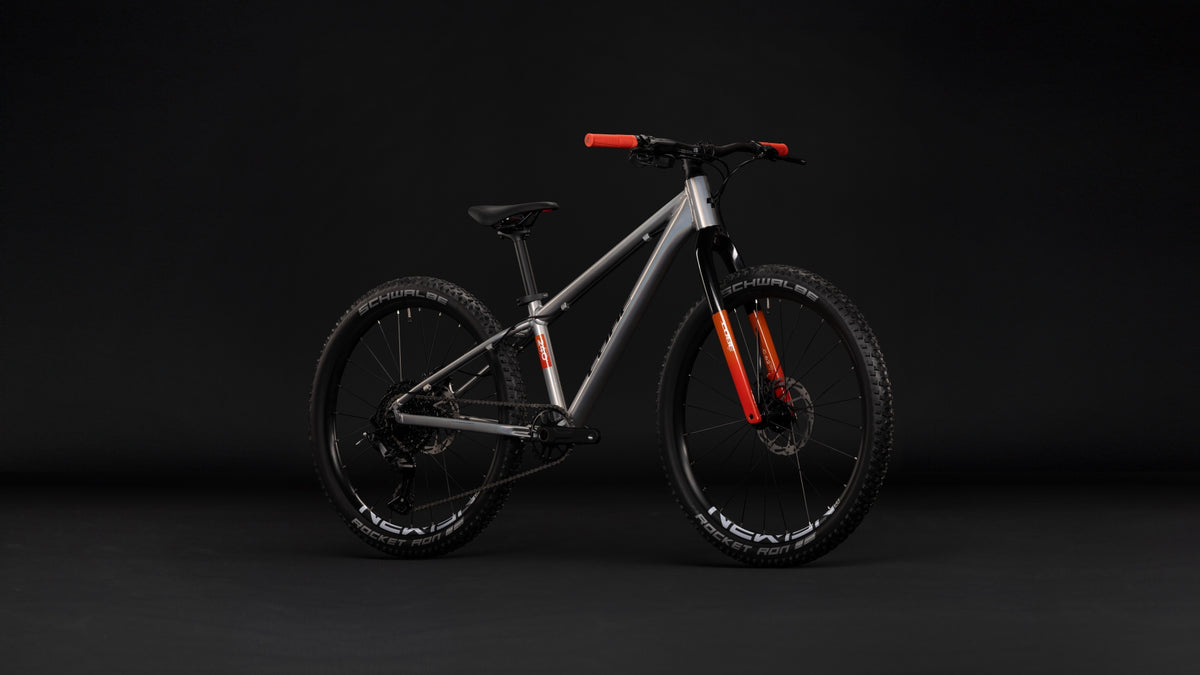

The Reaction 240 TM is made from the same kind of heat-treated 6061 aluminium tubes that you'll find on our performance adult bikes. We also use the same mechanical tube-forming process to adjust tube shapes for the best combination of strength and weight, as well as tyre clearance. Making the most of all this frame wizardry is a suspension fork, designed specifically to work with a small frame and a light rider. Disc brake mounts and cable routing allow for the greater safety and stopping power of discs. And a replaceable derailleur hanger insures against expensive repairs in the event of minor mishaps |
| Frame Material | Wheels | |
Aluminium Lite |
24" |
Frame

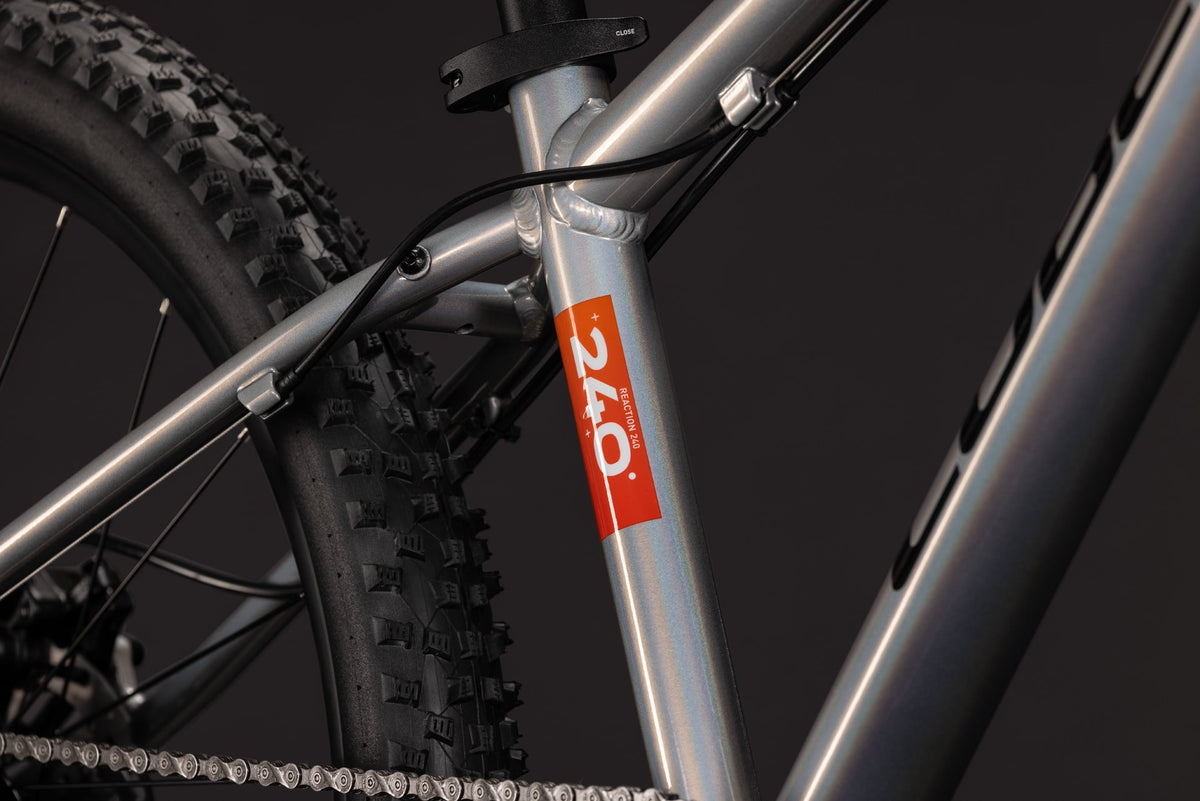

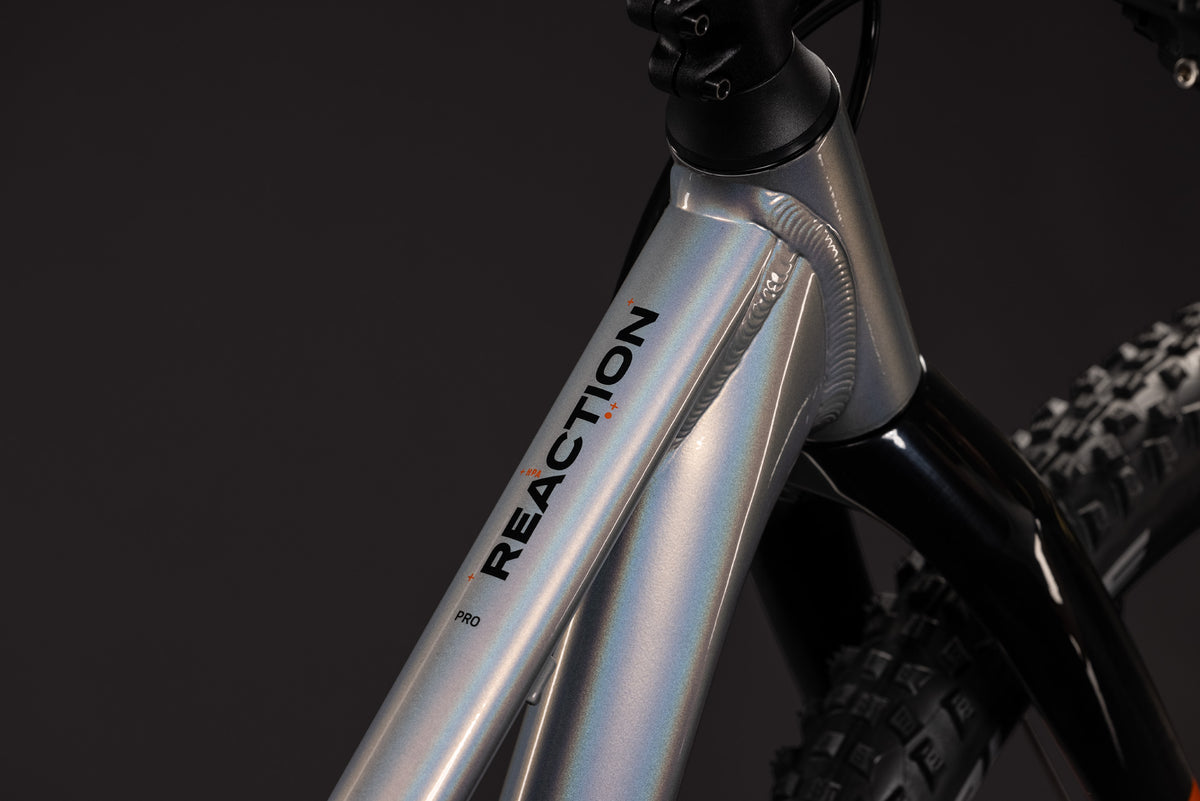

| Frame | Aluminium Lite 6061 |
| Sizes | 24" |

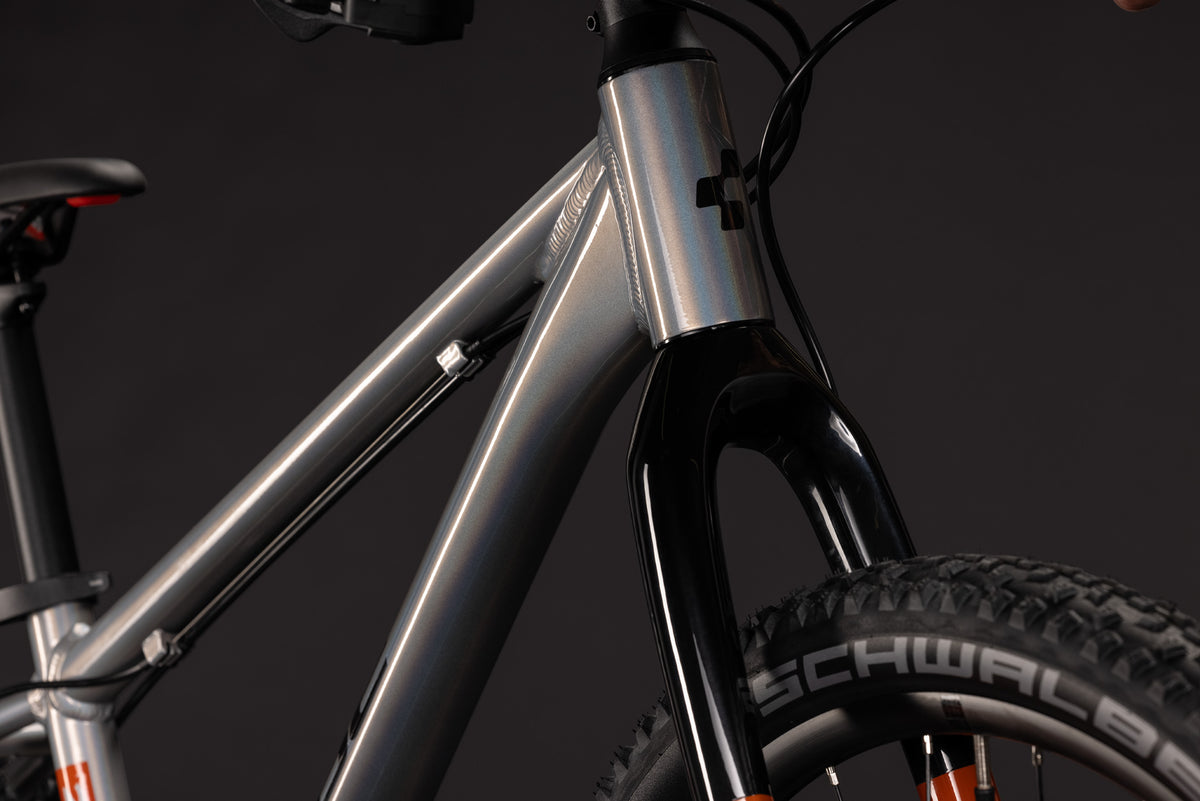

| Rigit Fork | CUBE Kids Carbon, 1 1/8", Internal Cable Routing, Flat Mount Disc, 12x100mm |
Drivetrain & Brakes
| Brake System | Tektro HD-M275, Hydr. Disc Brake (160/160) |

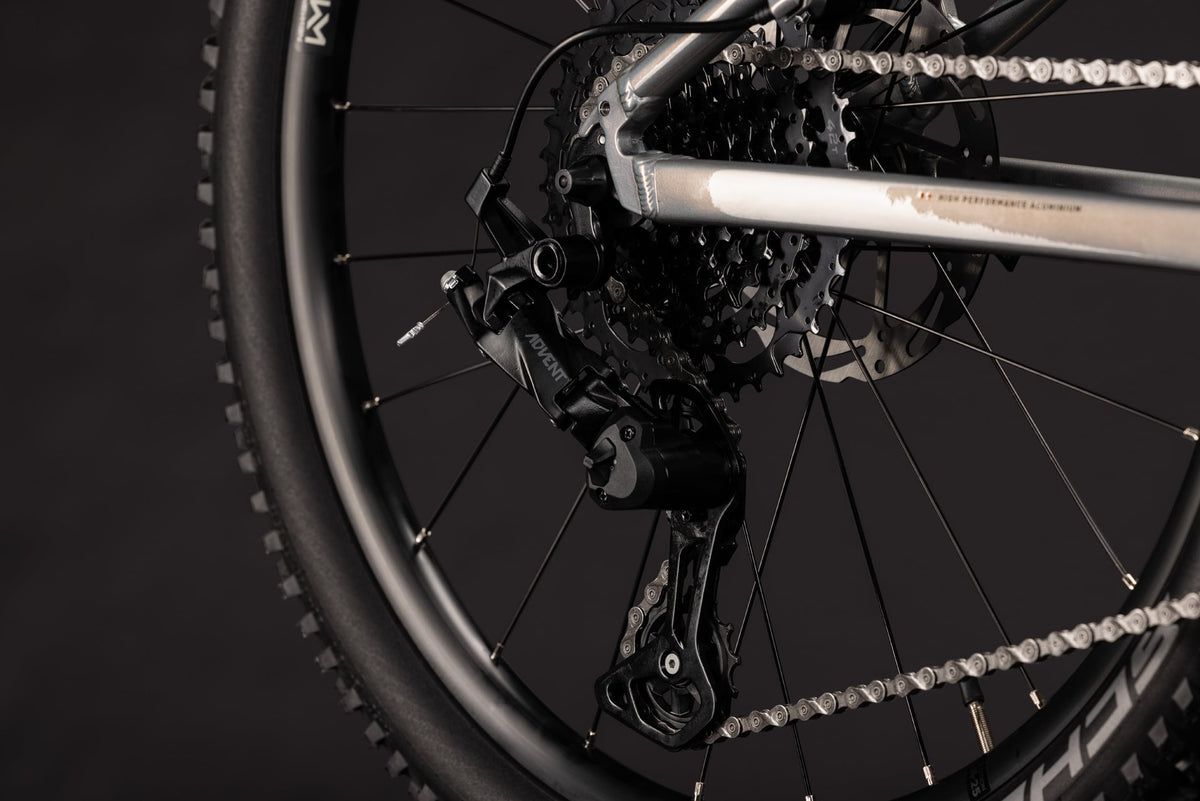

| Rear Derailleur | Microshift Advent RD-M6195M, 9-Speed |
| Shifters | Microshift Advent SL-M9295-R |
| Bottom Bracket | Prowheel BSA PW-MB68 |

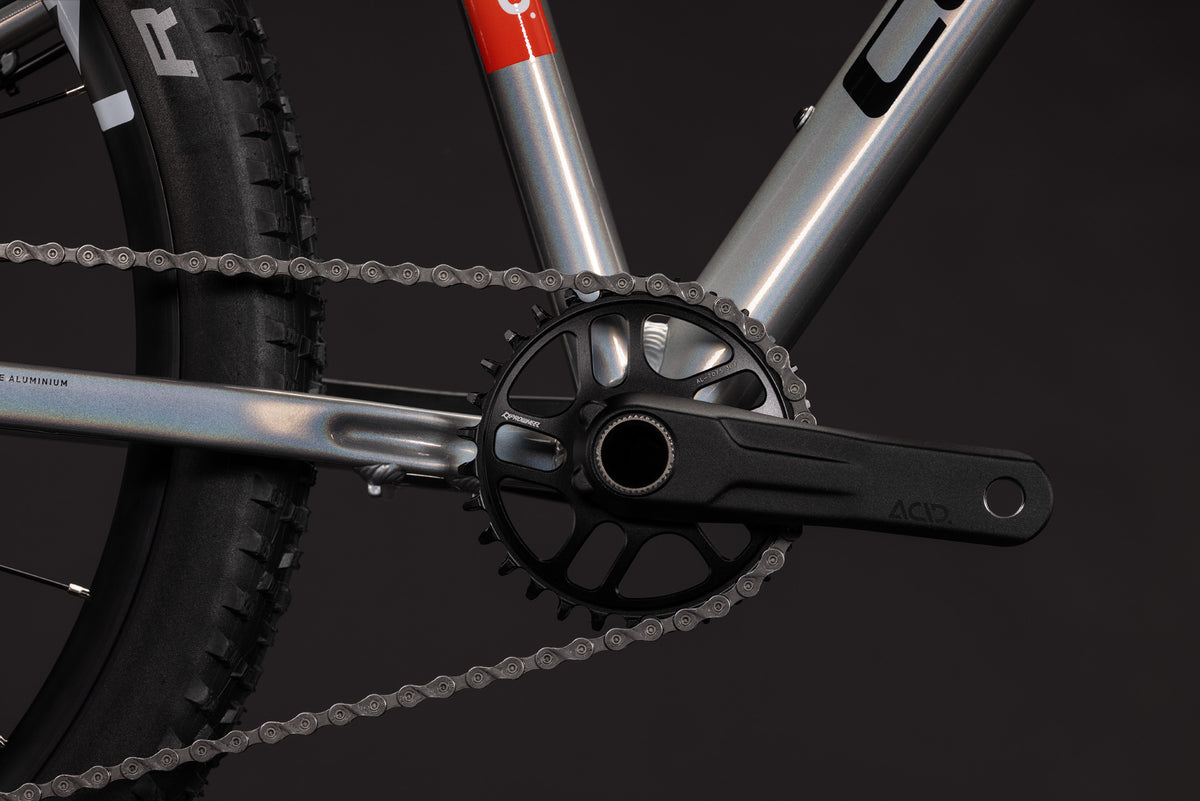

| Crankset | ACID AR SLT, 30T, 130mm |
| Cassette | Microshift CS-H093, 11-42T |
| Chain | KMC X9 |
Cockpit
| Headset | CUBE A-Headset |
| Stem | CUBE Aluminium Lite |
| Handlebar | CUBE Kids 590mm, Ø 19mm |
| Grips | ACID Nuro Rookie 19.0 |
Wheels
| Wheelset | Newmen Evolution X.A.25, 24/24 Spokes, Tubeless Ready |
| Tyres | Schwalbe Rocket Ron Kevlar, 2.1 |
Finishing Kit

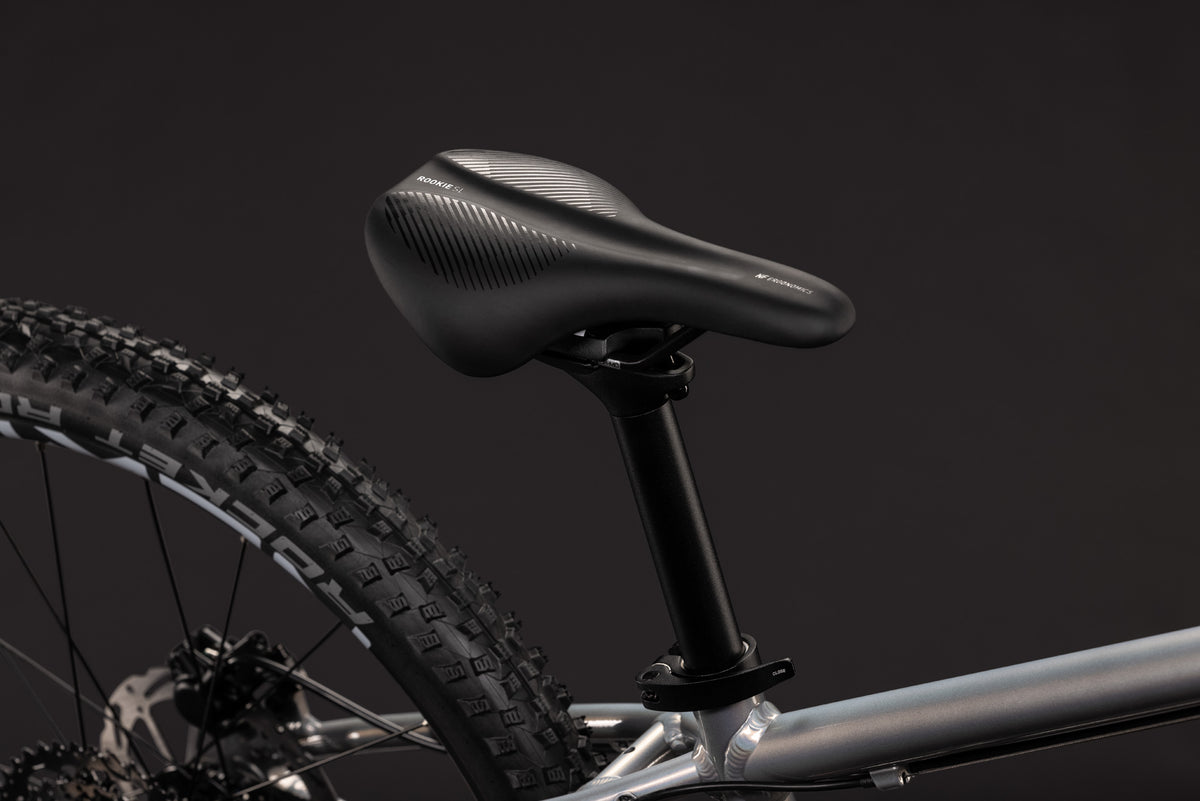

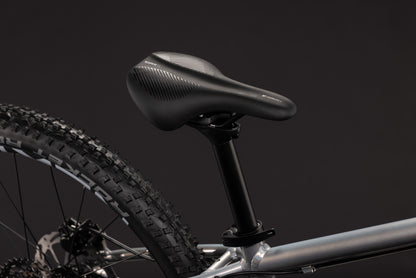

| Saddle | CUBE Kids |
| Seat Post | CUBE Performance Post, 27.2mm |
| Pedal | CUBE PP MTB |
Product Information
| Colour | prizmpolished´n´red |
| Weight | 9,0 kg |
| ArtNo | 1152400 |
