CROSS-COUNTRY EXCELLENCE |

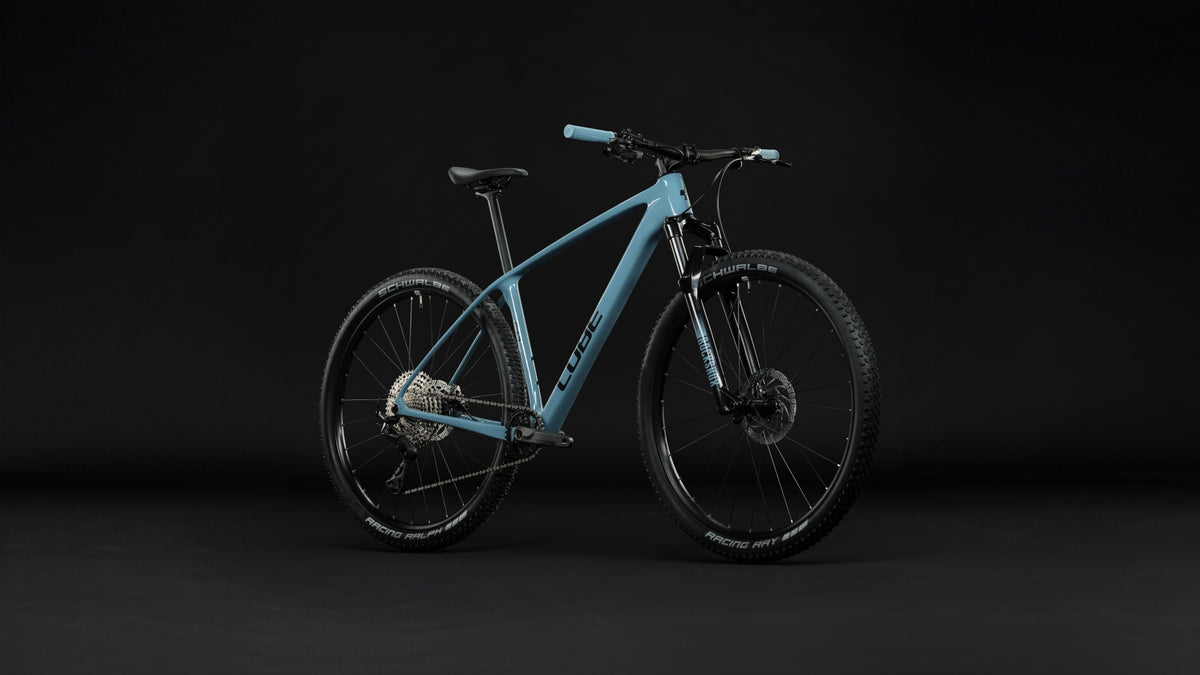

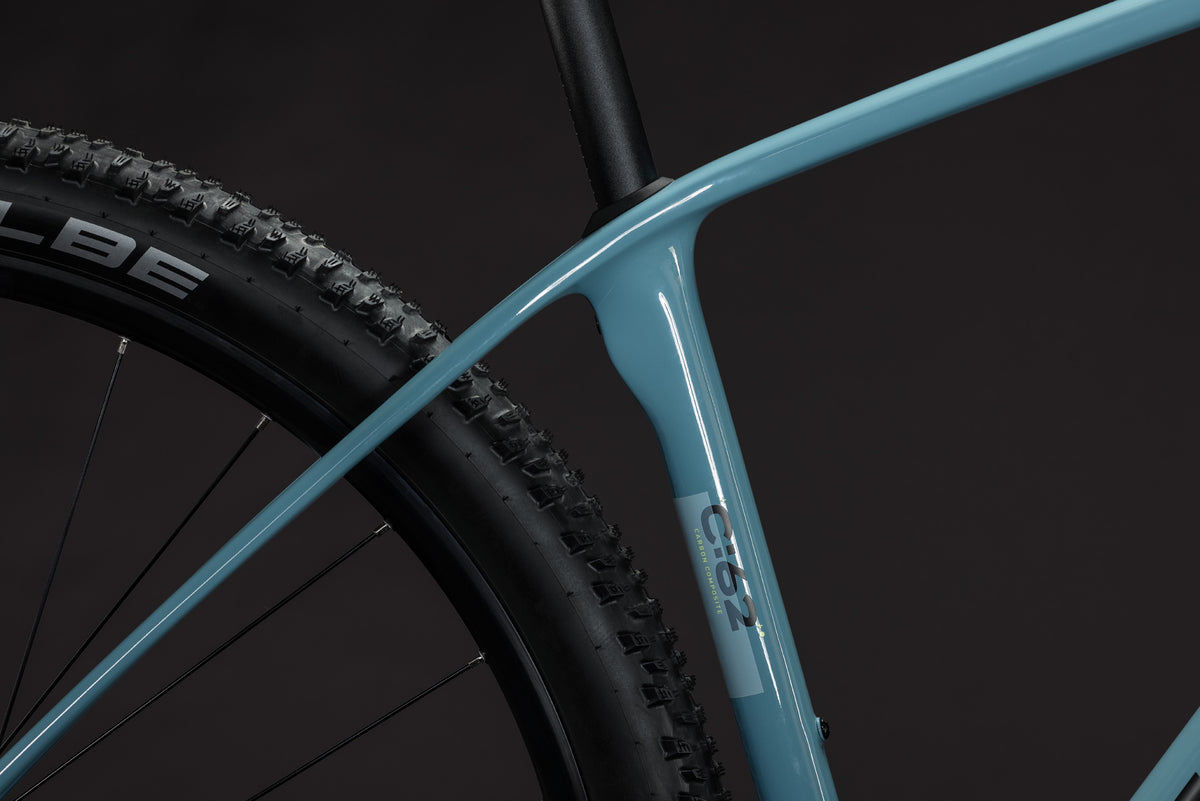

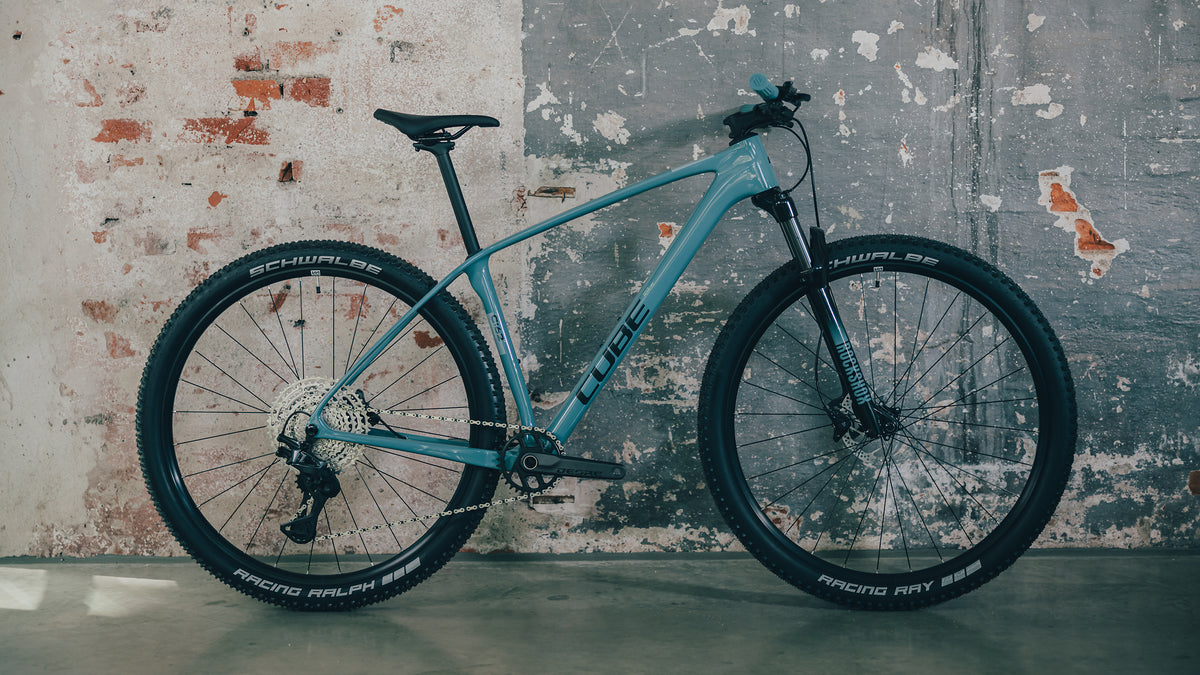

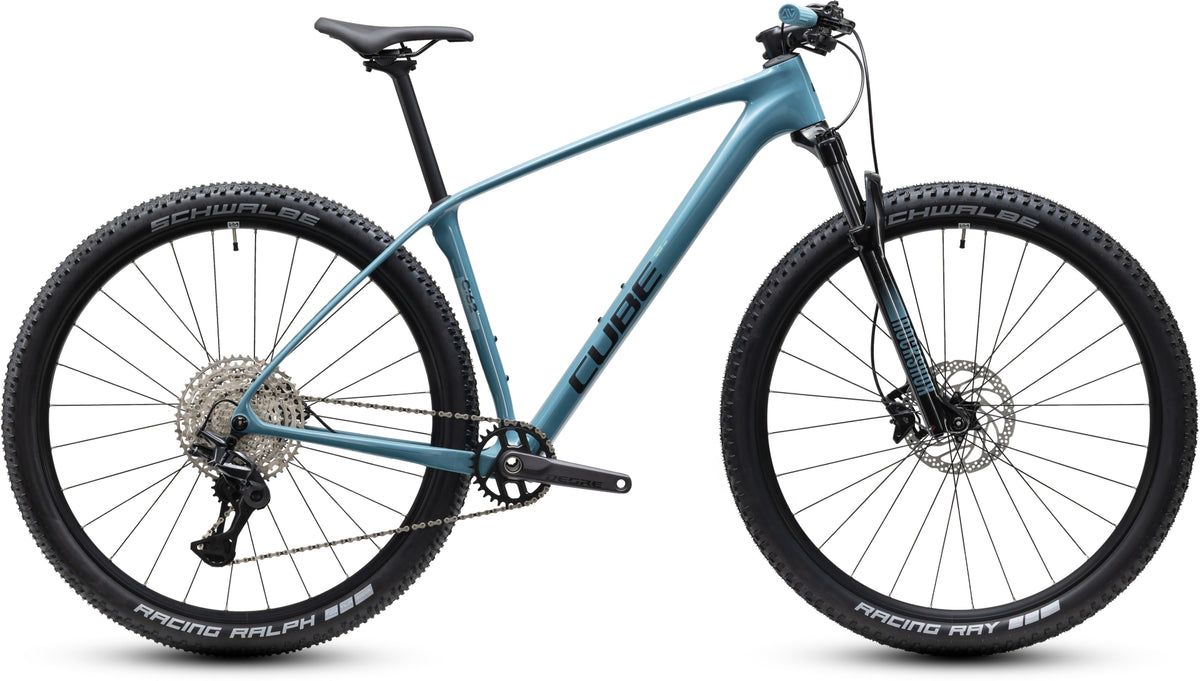

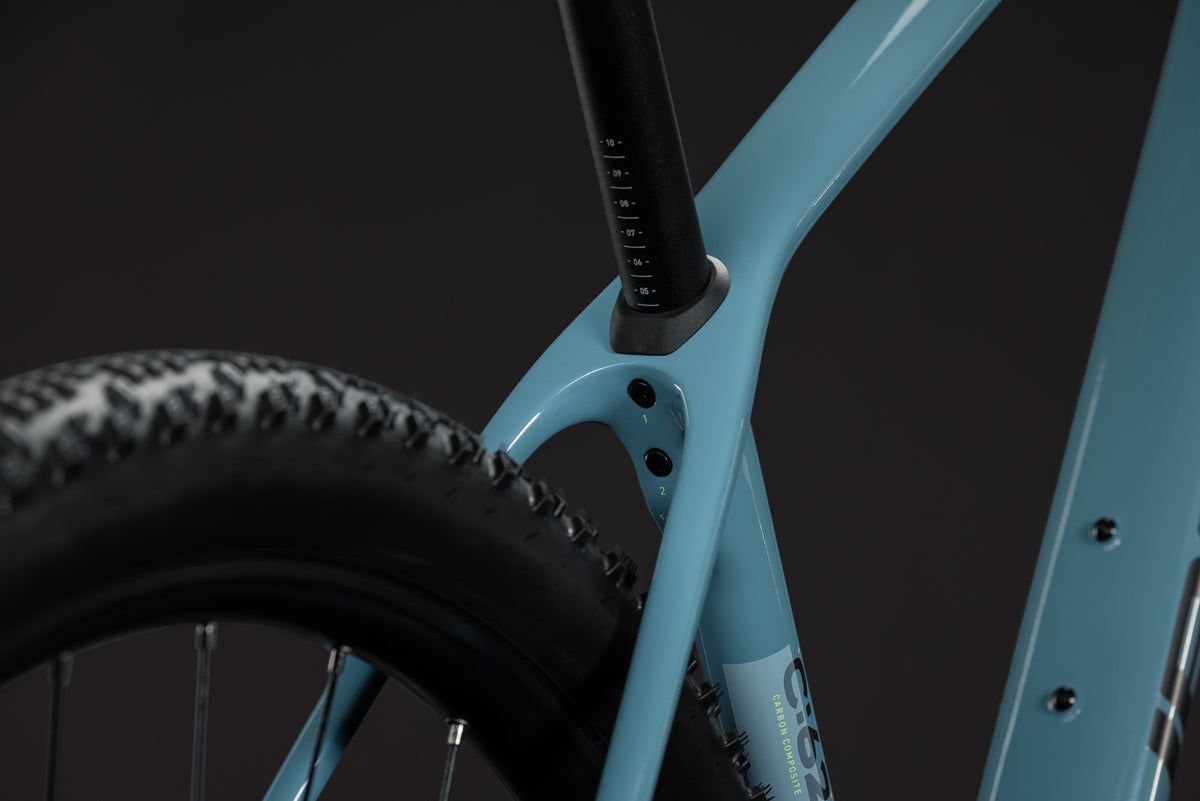

There's a good reason for the Reaction C:62's beautifully organic lines and slender stays: it makes for an exceptionally fast, light frame. Our premium C:62® carbon and Advanced Twin Mold manufacturing is just the start. There's an integrated seat clamp, for secure fastening and the neatest possible appearance. Semi-Internal Cable Routing complements the frame's clean aesthetic and UDH means it's future-proof, while Agile Ride Geometry does exactly what you'd expect, delivering safe but responsive handling. And, with Size Split, there's a range from XS to XXL to suit practically any rider. |
| Frame Material | Boost | Sizes |
C:62® Carbon |
148x12mm |
Size Split |
Frame
| Frame | C:62® Monocoque Advanced Twin Mold Technology, Boost 12x148mm, Full Internal Cable Routing, Dropper Post ready, UDH™ |
| Size | Size Split: 27.5: XS // 29: S, M, L, XL, XXL |
Suspension

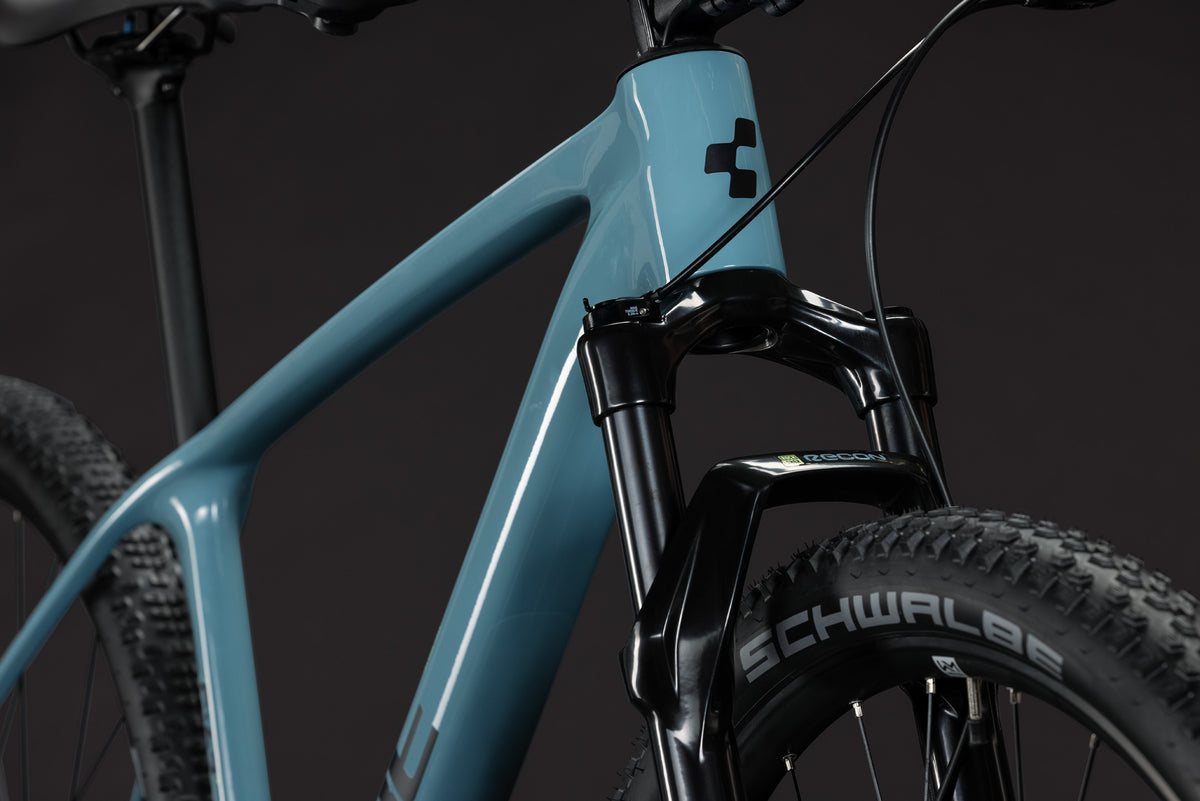

| Suspension Fork | RockShox Recon Silver RL AIR, 100mm, OneLoc |
Drivetrain & Brakes
| Brake System | Shimano BR-MT410, Hydr. Disc Brake (180/160) |
| Rear Derailleur | Shimano XT RD-M8200-SGS, ShadowPlus, 12-Speed |
| Shifters | Shimano XT SL-M8200 |
| Bottom Bracket | Shimano BB-MT500PA, 92mm Pressfit |

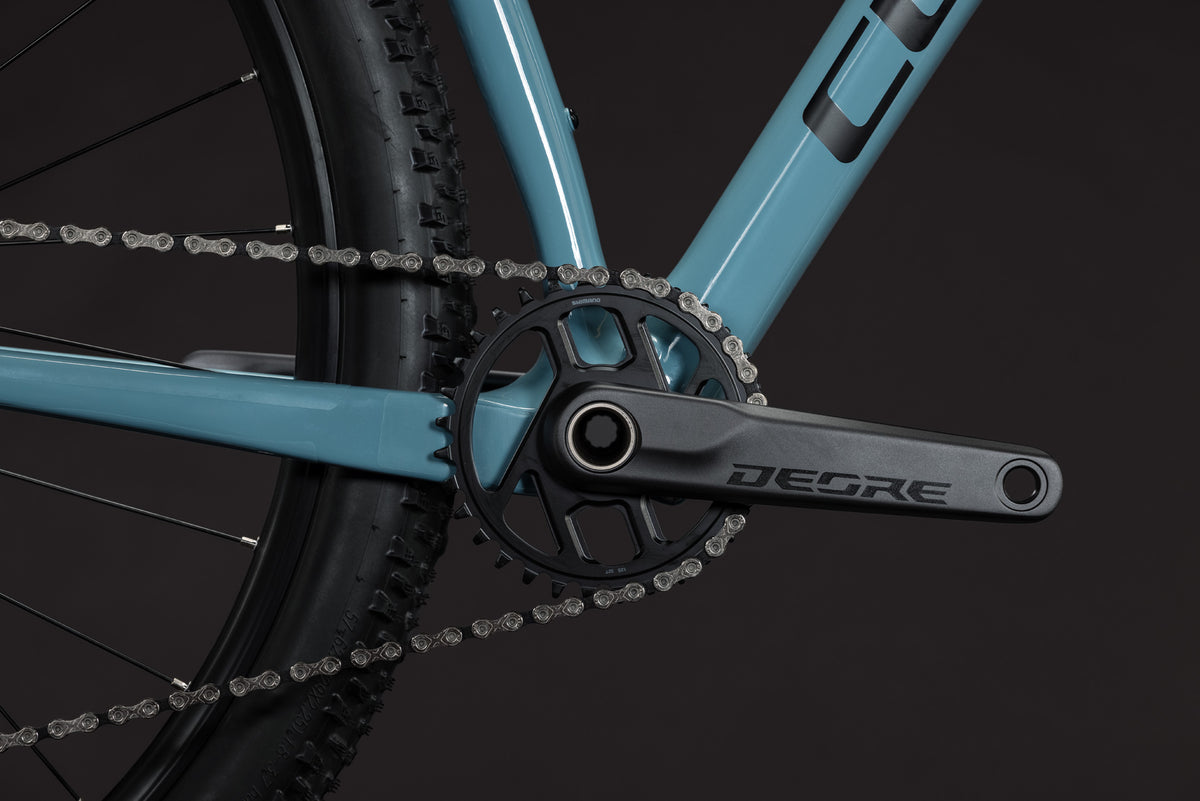

| Crankset | Shimano Deore FC-M6200, 32T |
| Cassette | Shimano Deore CS-M6100, 10-51T |
| Chain | KMC X12 |
Cockpit

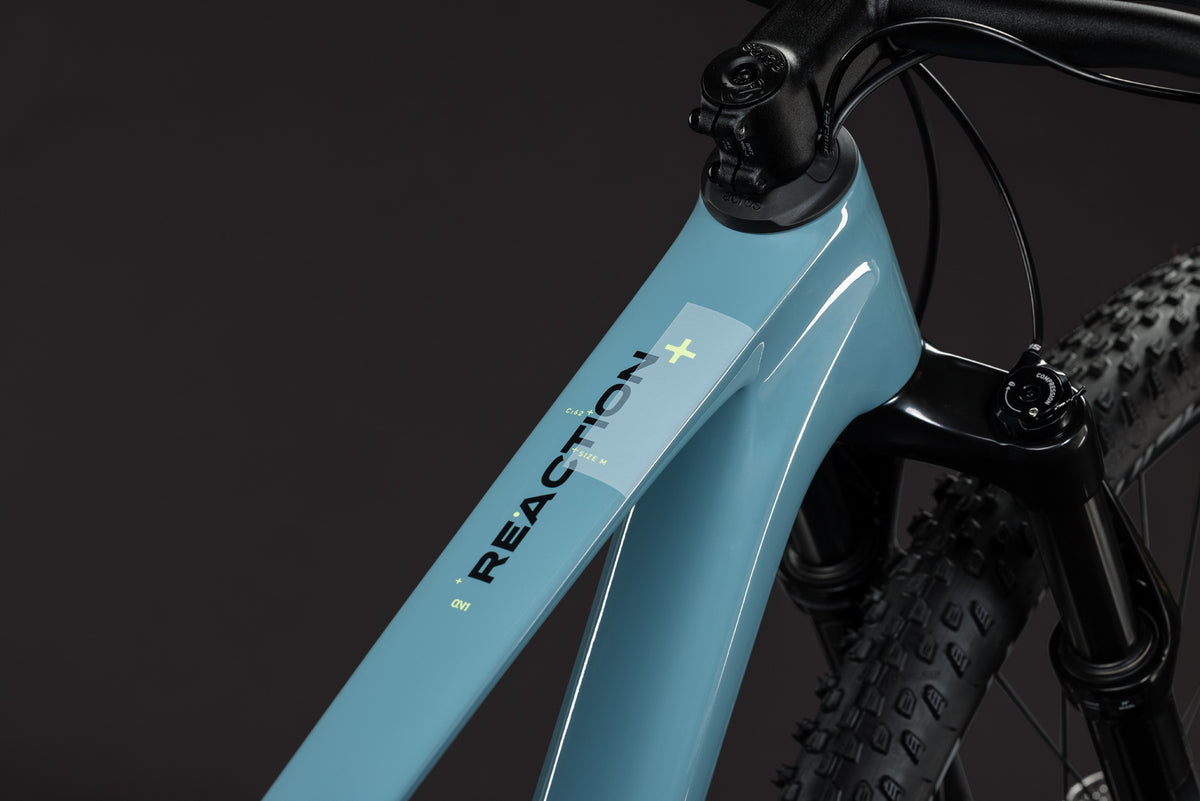

| Headset | Acros AIF-557, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
| Stem | CUBE Performance Stem SLX, FPI-Link, 31.8mm |
| Handlebar | CUBE Rise Trail Bar 318, VariGrip System |
| Grips | ACID Icon Pro, VGS |
Wheels
| Wheelset | Newmen Performance 30 light/light, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready |
| Front Tyre | Schwalbe Racing Ray, Addix Performance, Kevlar, 2.25 |
| Rear Tyre | Schwalbe Racing Ralph, Addix Performance, Kevlar, 2.25 |
Finishing Kit
| Saddle | ACID Nuance Lite |
| Seat Post | CUBE Performance Post, 27.2mm |
Product Information
| Colour | surfblue´n´black |
| Weight | 12,2 kg |
| ArtNo | 1143100 |
