CROSS-COUNTRY EXCELLENCE |

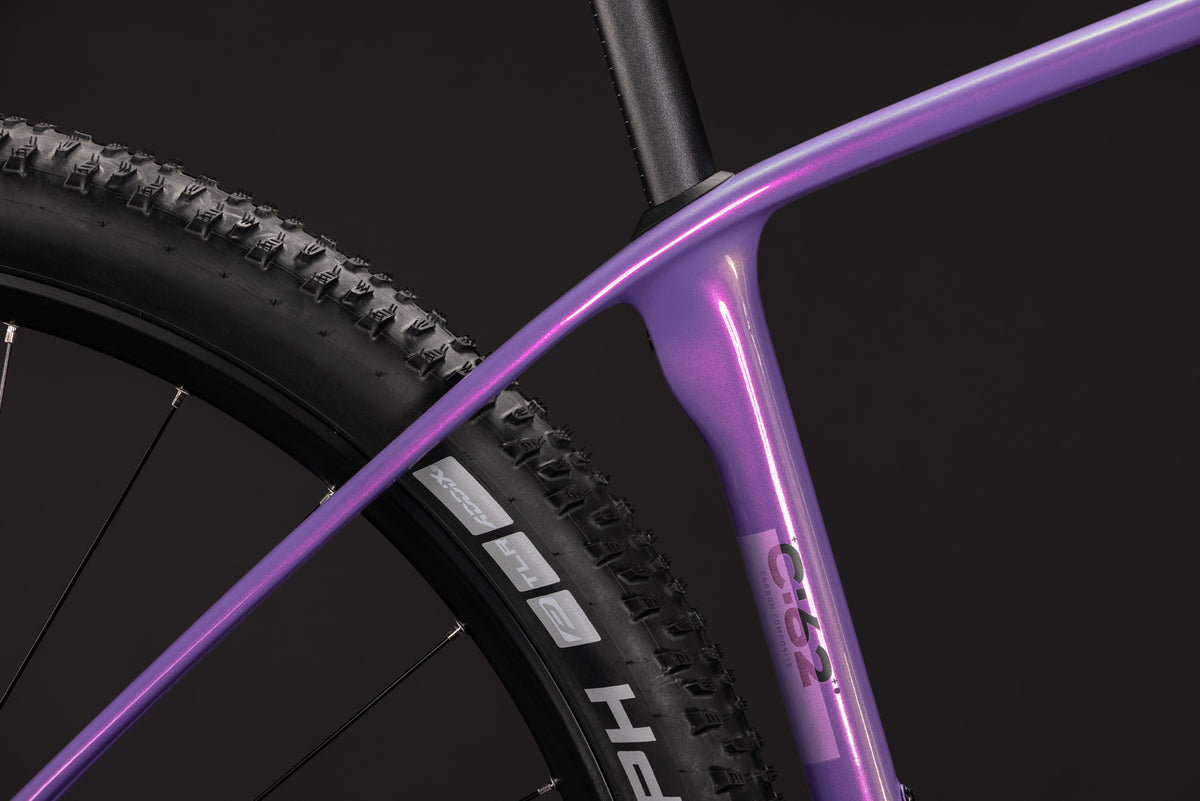

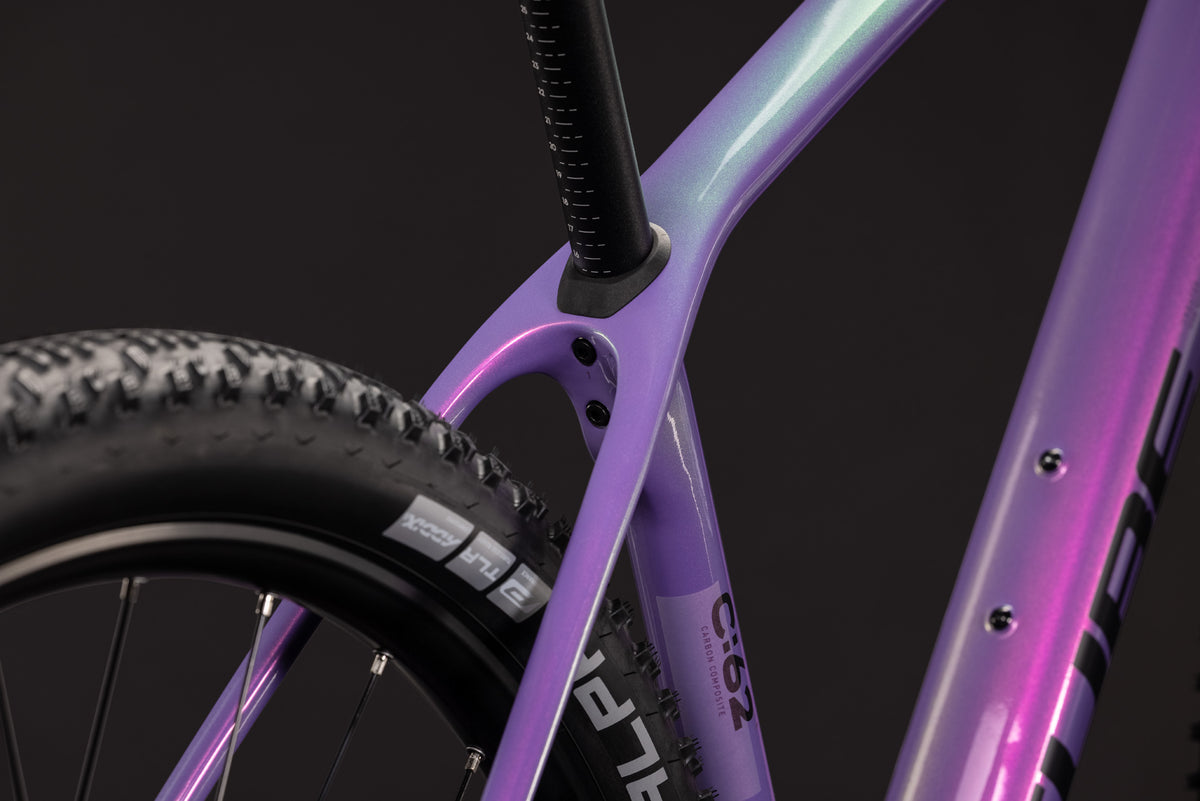

There's a good reason for the Reaction C:62's beautifully organic lines and slender stays: it makes for an exceptionally fast, light frame. Our premium C:62® carbon and Advanced Twin Mold manufacturing is just the start. There's an integrated seat clamp, for secure fastening and the neatest possible appearance. Semi-Internal Cable Routing complements the frame's clean aesthetic and UDH means it's future-proof, while Agile Ride Geometry does exactly what you'd expect, delivering safe but responsive handling. And, with Size Split, there's a range from S to XXL to suit practically any rider. |
| Frame Material | Boost | |
C:62® Carbon |
|
148x12mm |
Frame
| Frame | C:62® Monocoque Advanced Twin Mold Technology, Boost 12x148mm, Full Internal Cable Routing, Dropper Post ready, UDH™ |
| Size | 29: S, M, L, XL, XXL |
Suspension

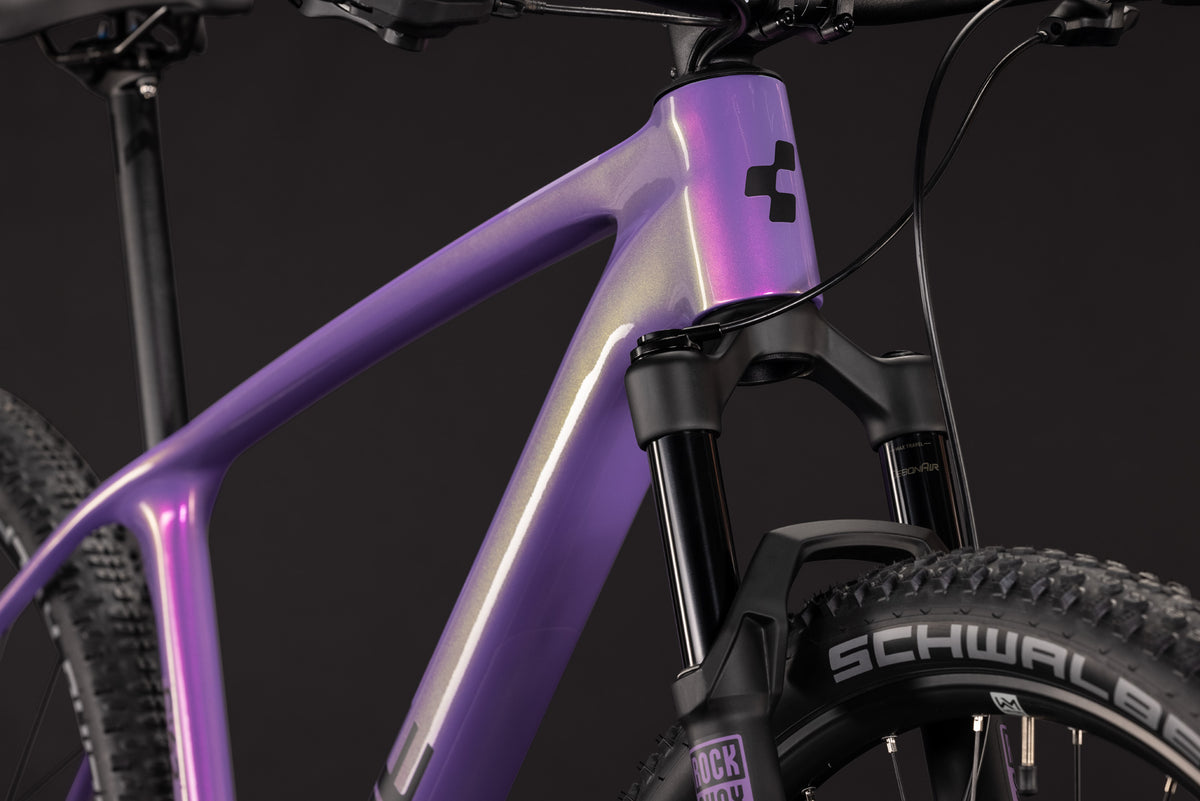

| Suspension Fork | RockShox SID SL Base, Tapered, 15x110mm, 100mm, OneLoc |
Drivetrain & Brakes
| Brake System | Shimano XT BR-M8200, Hydr. Disc Brake (180/160) |
| Rear Derailleur | Shimano XT RD-M8200-SGS, ShadowPlus, 12-Speed |
| Shifters | Shimano XT SL-M8200-IR, Direct Attach |
| Bottom Bracket | Shimano BB-MT500PA, 92mm Pressfit |

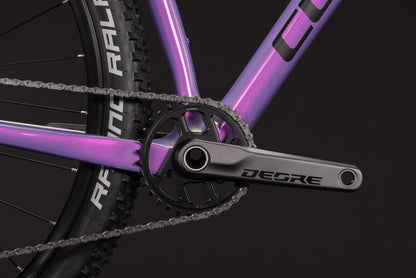

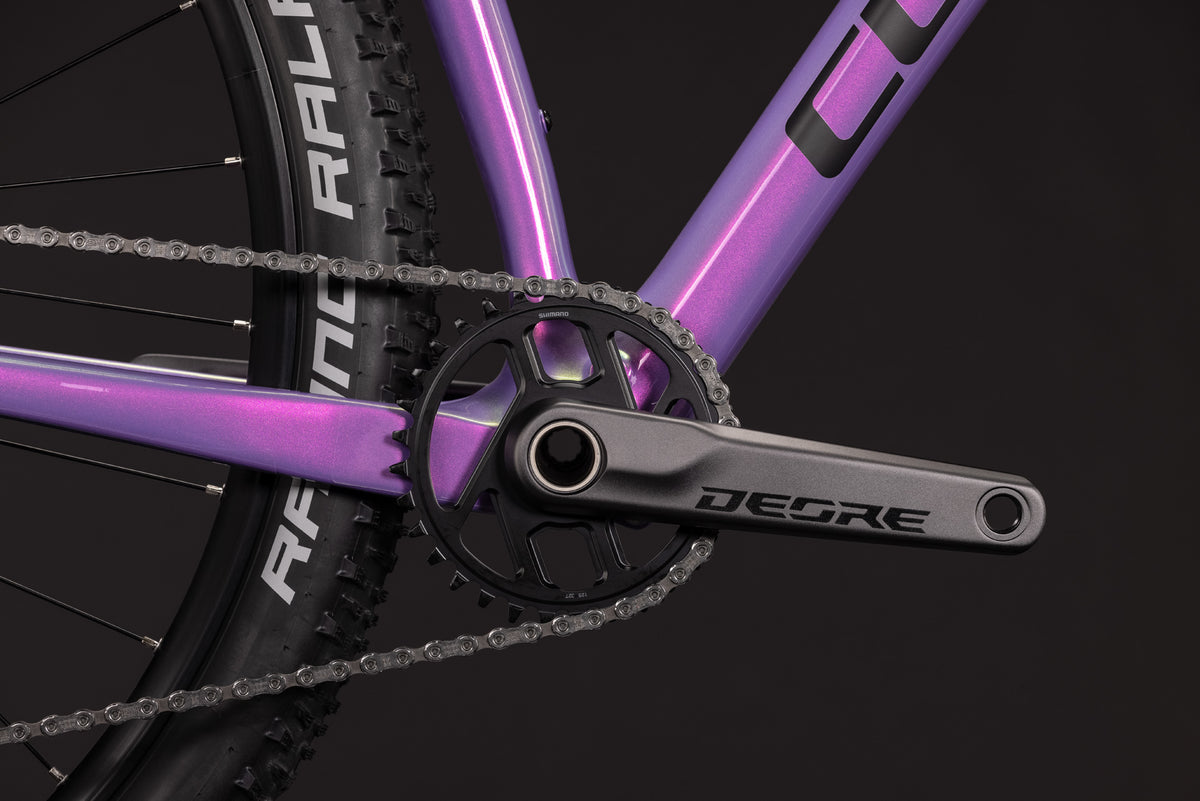

| Crankset | Shimano Deore FC-M6200, 32T |
| Cassette | Shimano XT CS-M8100, 10-51T |
| Chain | Shimano CN-M8100 |
Cockpit
| Headset | Acros AIF-557, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
| Stem | Newmen Evolution 318.4, 31.8mm |

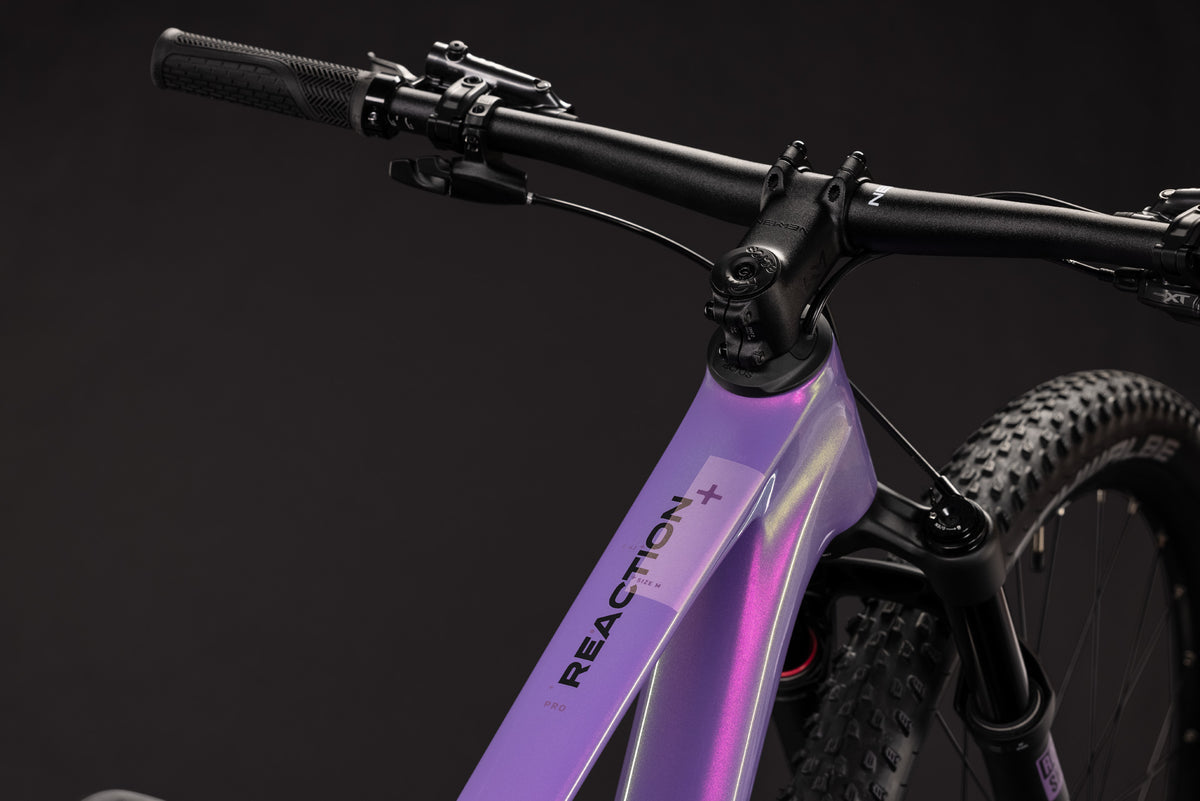

| Handlebar | Newmen Performance 318.10, VariGrip System |
| Grips | Newmen Slat VGS |
Wheels
| Wheelset | Newmen Performance 30 light/light, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready |
| Front Tyre | Schwalbe Racing Ray, Addix Performance, Kevlar, 2.25 |
| Rear Tyre | Schwalbe Racing Ralph, Addix Performance, Kevlar, 2.25 |
Finishing Kit
| Saddle | ACID Nuance Lite |
| Seat Post | Newmen Evolution, 27.2mm |
Product Information
| Colour | cosmicpurple´n´black |
| Weight | 11,0 kg |
| ArtNo | 1143210 |
