TRAIL
|
There's more than one way to get down a tough trail, and the Reaction TM proves the point. With a 65° head angle, 73.5° seat tube angle and a low standover, it's designed to be stable and reassuring when the trail is throwing questions at you and you're not sure of the answer. Short chainstays tuck the rear wheel under the rider for tight handling and superior traction, and there's plenty of clearance to run tyres up to 2.5in. Stealth dropper routing is standard, of course, as is a UDH hanger for future-proof gearing. And we included a durable moulded chainstay protector for quiet descents, plus an ISCG chain guide to keep everything on track. |
|
Frame Material
|
Tire clearance
|
Boost
|
Sizes
|
Aluminium Lite |
2.6'' |
148x12mm |
Size Split |
Frame
| Frame | Aluminium Lite, Trail Motion Geometry, AMF, Internal Cable Routing, Tapered Headtube, ISCG05, Boost 148, UDH™ |
| Sizes | 27.5: XS, S // 29: M, L, XL |
Suspension

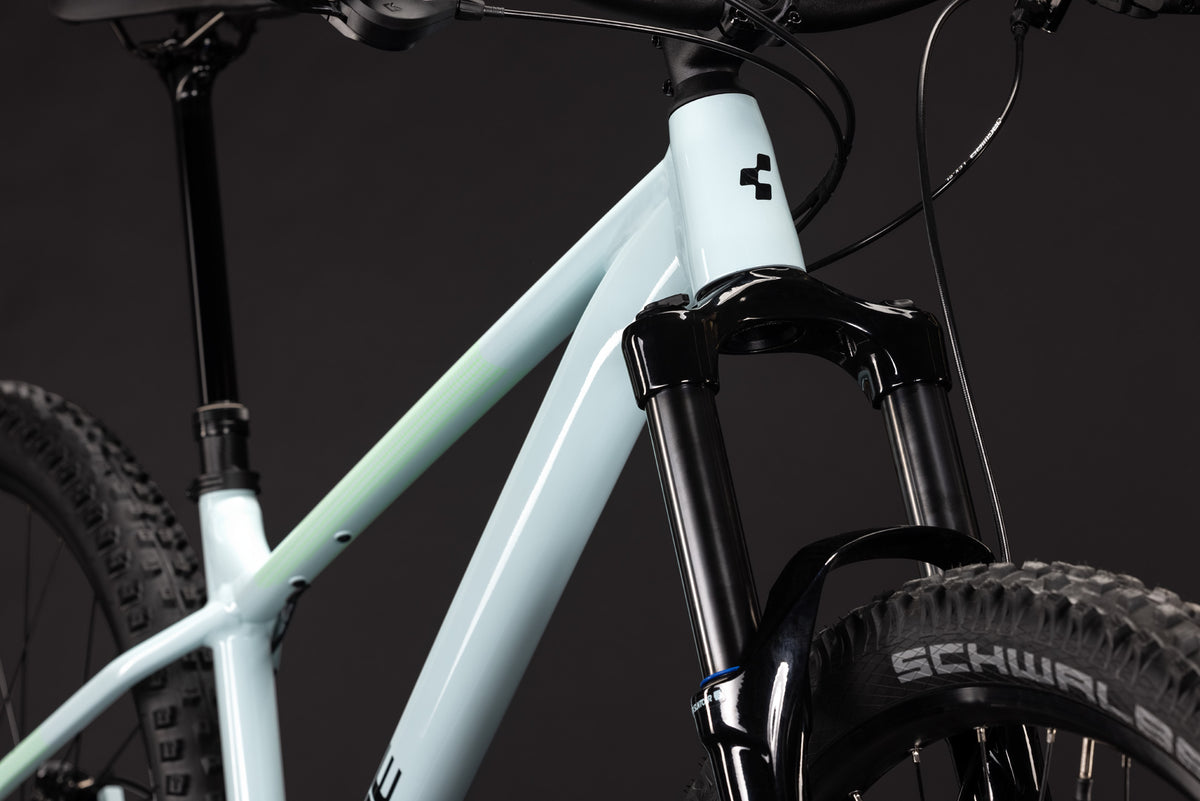

| Suspension Fork | SR Suntour XCR36 2CR Air, Tapered, 15x110mm, 140mm |
Drivetrain & Brakes
| Brake System | Magura Louise, Hydr. Disc Brake (203/180) |
| Rear Derailleur | Shimano Cues RD-U6000-GS, 11-Speed |
| Shifters | Shimano Cues SL-U6000, Rapidfire Plus |
| Bottom Bracket | Prowheel BSA PW-MB68 |

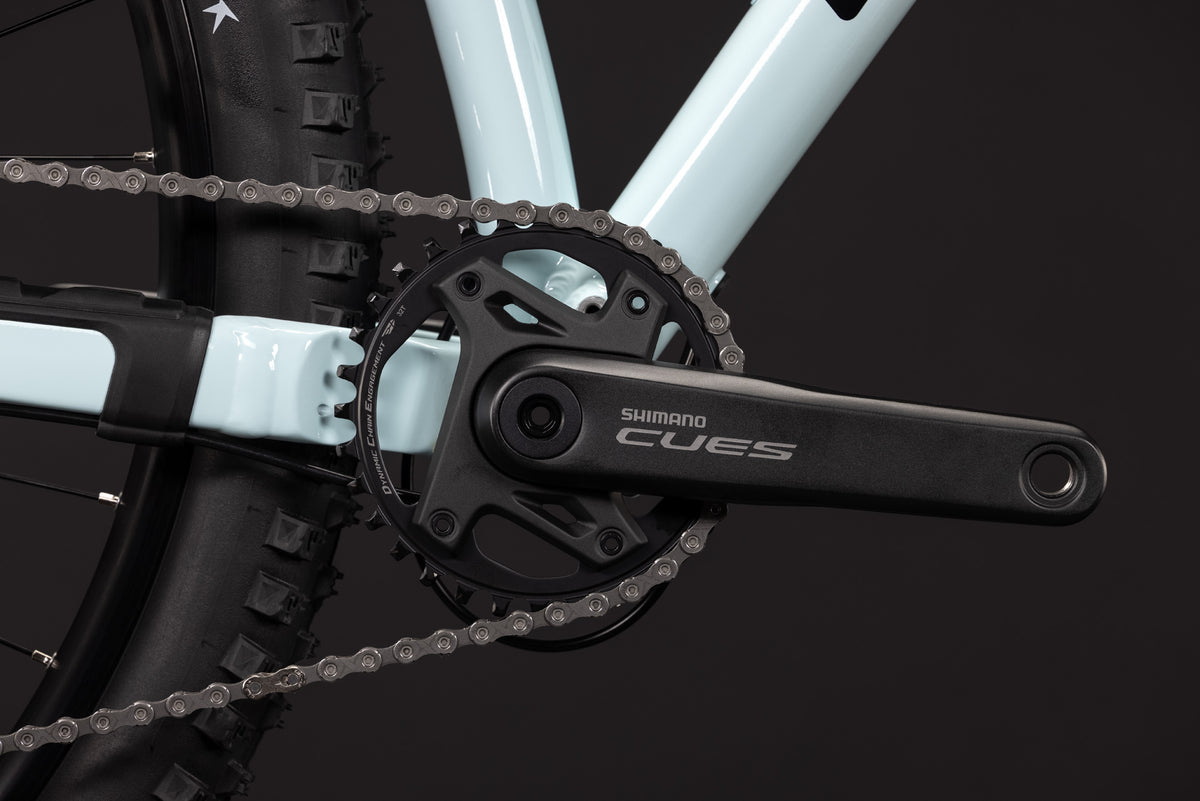

| Crankset | Shimano Cues FC-U6000-1, 32T |
| Cassette | KMC LG-11, 11-50T |
| Chain | KMC xGlide |
Cockpit
| Headset | VP Integrated, Top 1 1/8", Bottom 1 1/2" |
| Stem | CUBE Performance Stem SLX, FPI-Link, 31.8mm |
| Handlebar | Newmen Evolution SL 318.25, 760mm |
| Grips | ACID React Pro |
Wheels
| Wheelset | ACID SLX 30, 32/32 Spokes, 15x110mm/12x148mm, Tubeless Ready |
| Front Tyre | Schwalbe Magic Mary, Soft, Trail, Draht, 2.4 |
| Rear Tyre | Schwalbe Tacky Chan, Soft, Trail, Draht, 2.4 |
Finishing Kit
| Saddle | ACID Venec Lite |
| Seat Post | CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, Travel Adjust, 30.9mm |
Product Information
| Colour | kolibri´n´black |
| Weight | 16,1 kg |
| ArtNo | 1142100 |
