TRAIL
|

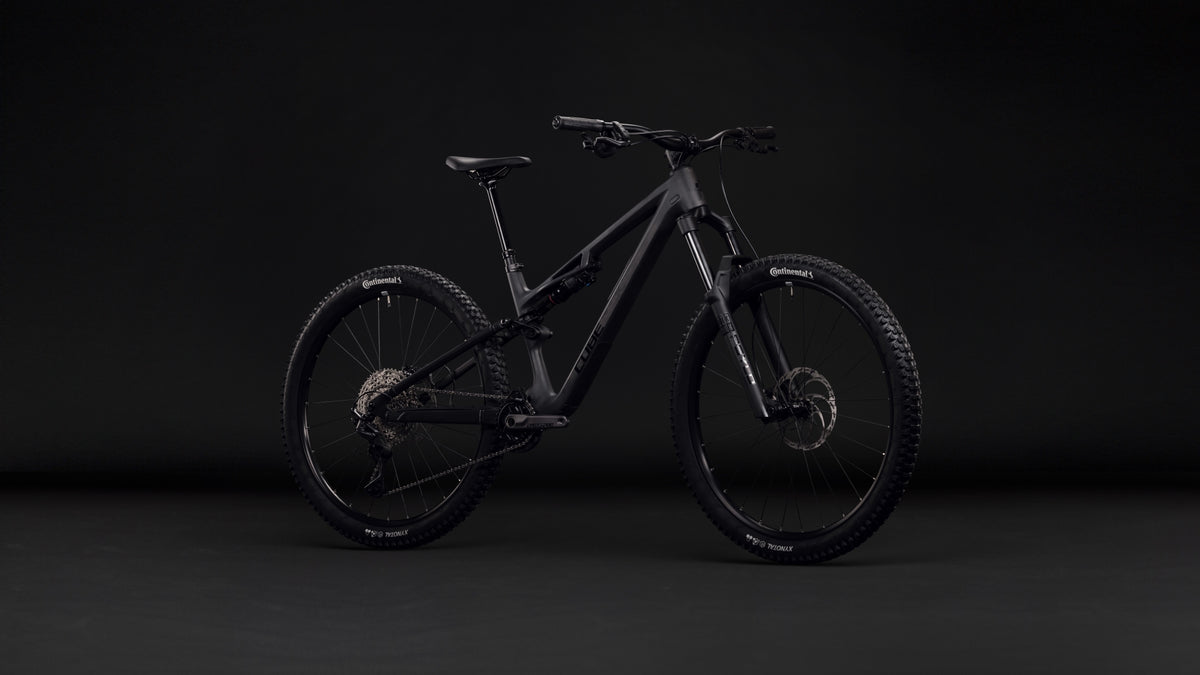

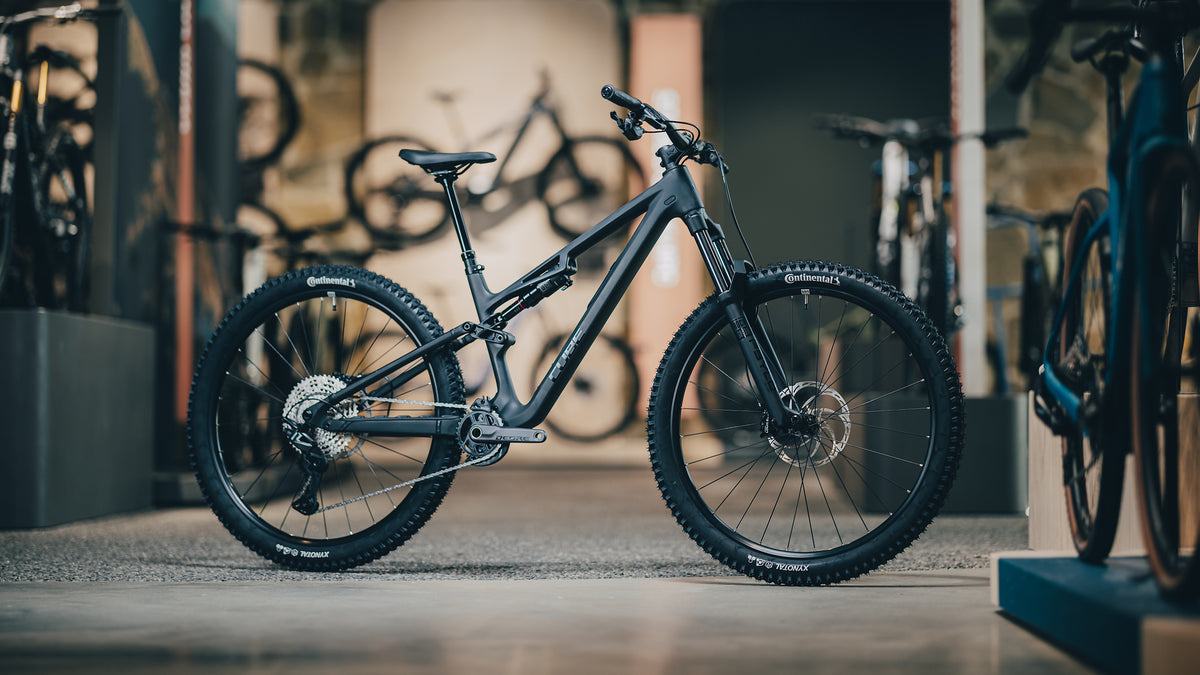

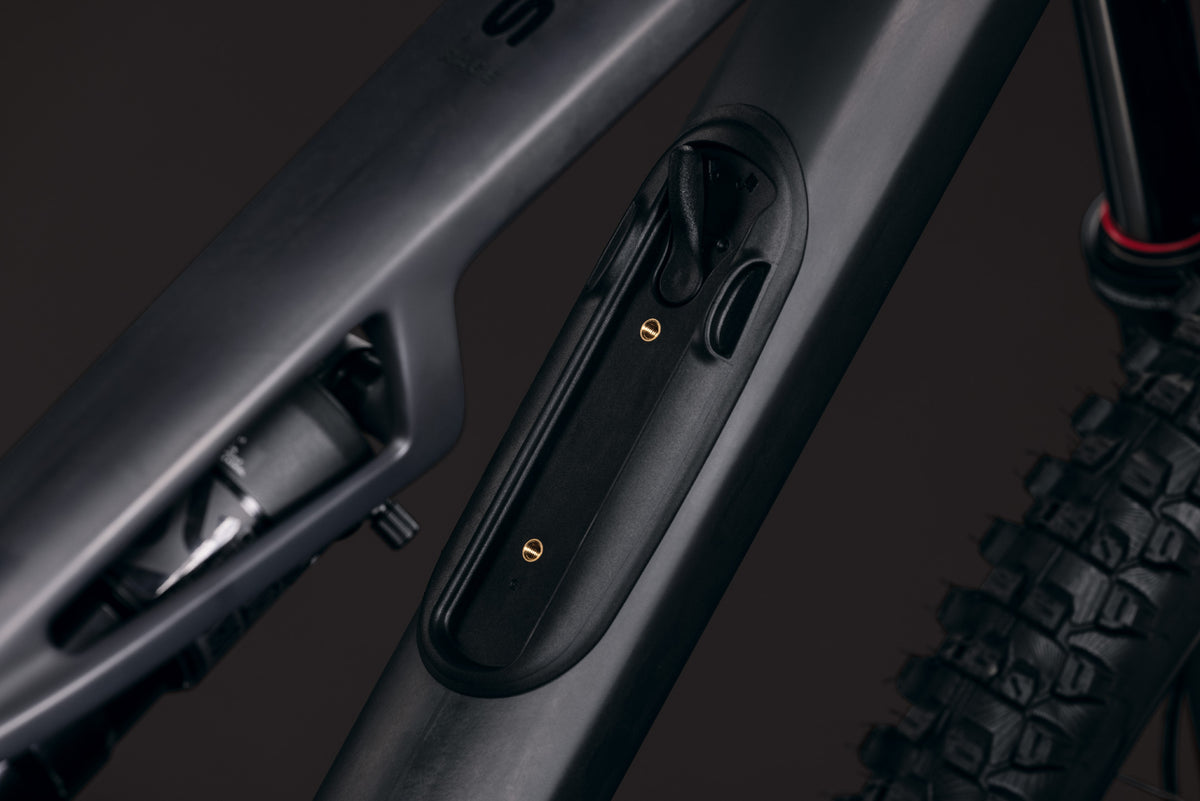

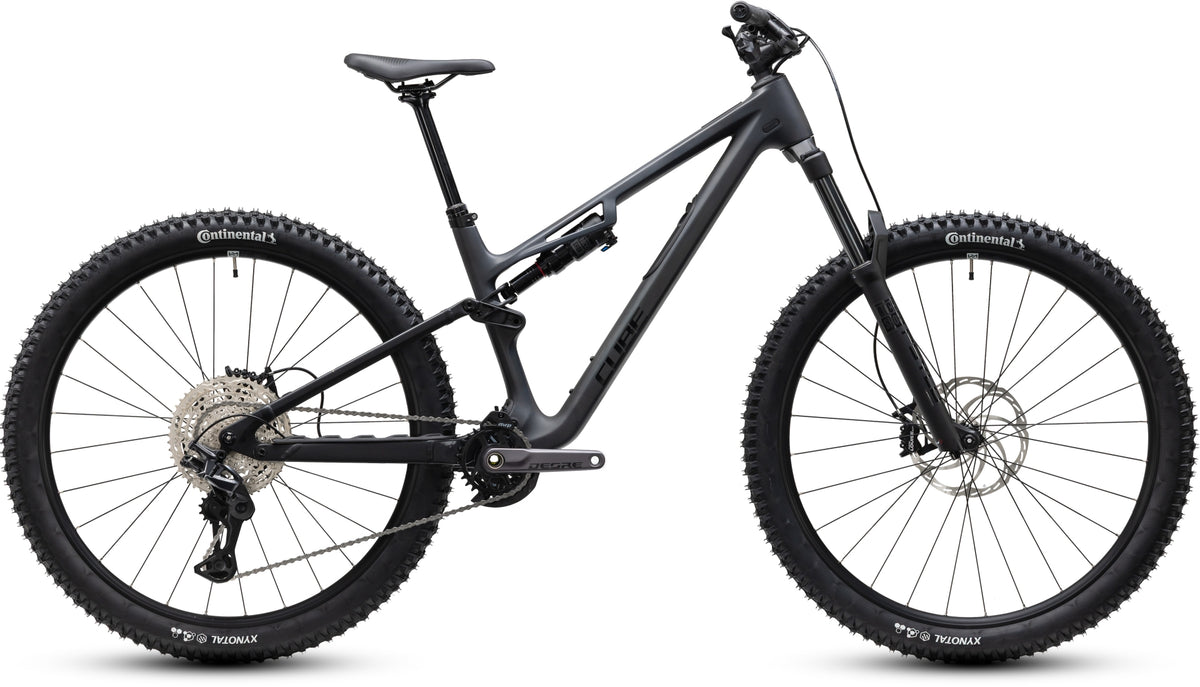

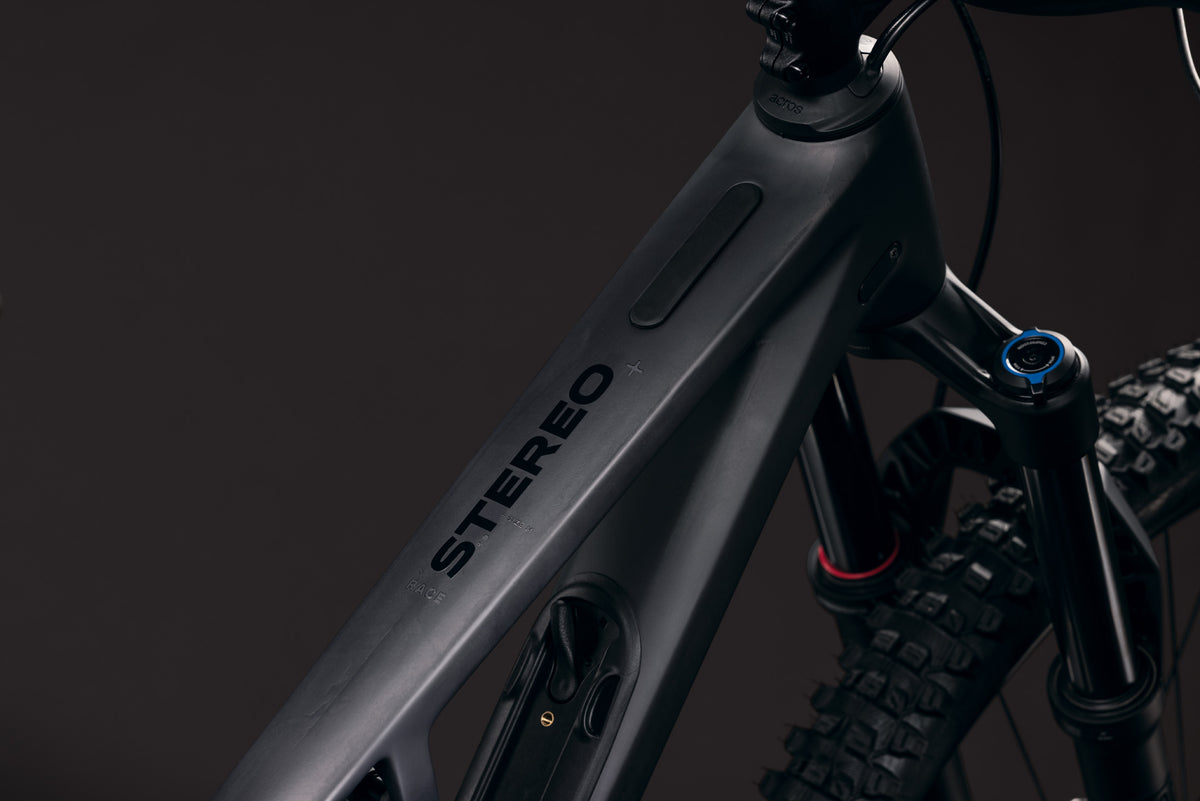

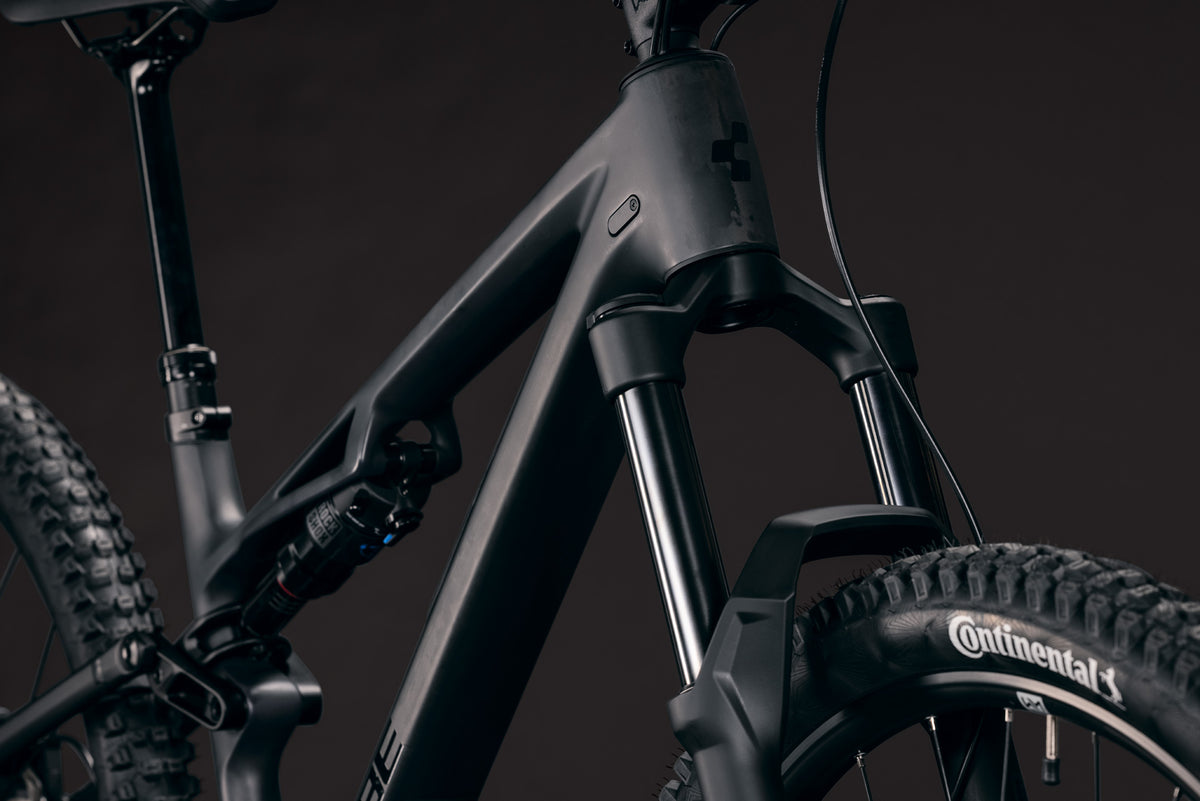

Look, we'll be the first to admit we're pleased with the Stereo HPC's looks. It's pretty sleek, right? The High Performance Carbon front triangle and aluminium rear end are certainly neat. But dig a little deeper, and it's also about practicality and function. So the straight seat tube, for example, allows for a longer dropper post with deeper insertion. The threaded bottom bracket features a secure, three-bolt ISCG05 chain guide mount. The UDH dropout is tough and future-proof. There's a new and improved down tube storage system. An angle-adjust headset with Internal Cable Routing, but also head tube ports for optional semi-internal cables. And a modular top tube mount for your Garmin/Wahoo/X-Mount device. Trail-ready, all of it. |
| Frame Material | Headset Angle Adjustment | |
Carbon Front Triangle |
0.6° |
Frame
| Frame | C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, ISCG 05, UDH™ |
| Sizes | S, M, L, XL |
Suspension
| Suspension Fork | RockShox Psylo Silver RC Air, Tapered, 15x110mm, 150mm |

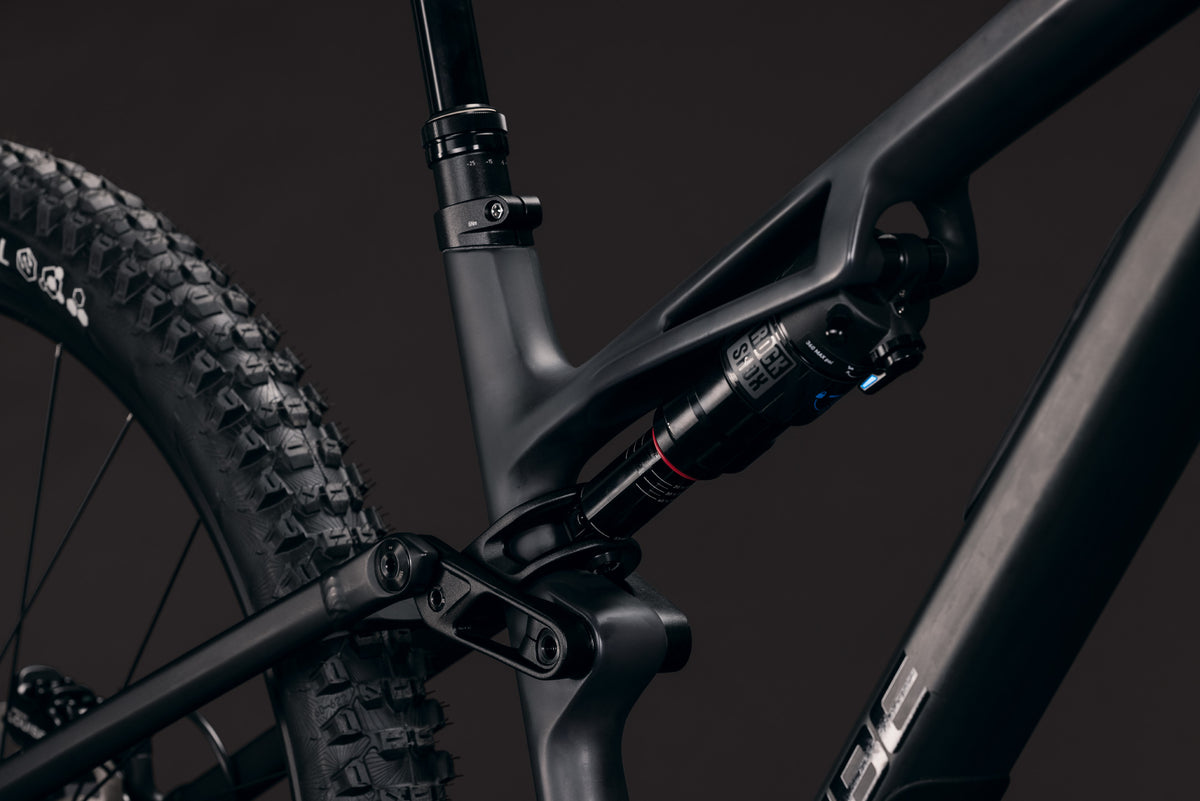

| Shock | ockShox Deluxe Select+, 210x55mm, Rebound/Compression Adjust, 2-Position Lever |
| Shock Hardware | Front: 35x8mm, Rear: w/o DU-Bushing 15 mm |
Drivetrain & Brakes
| Brake System | Magura Louise, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203) |
| Rear Derailleur | Shimano XT RD-M8200-SGS, ShadowPlus, 12-Speed |
| Shifters | Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus |
| Bottom Bracket | Shimano BB-MT501, 73mm BSA |

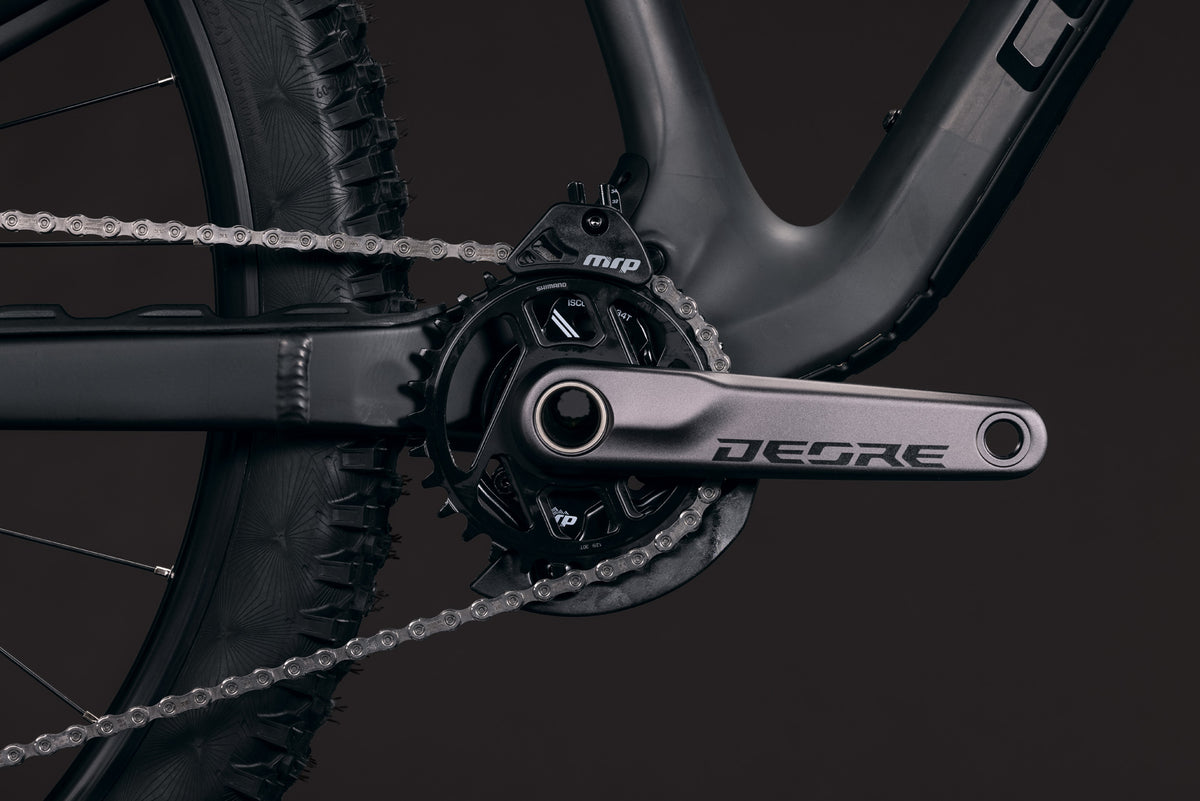

| Crankset | Shimano Deore FC-M6200, Hollowtech II, 30T |
| Cassette | Shimano Deore CS-M6200, 10-51T |
| Chain | Shimano CN-M6100 |
Cockpit
| Headset | Acros AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment |
| Stem | Newmen Evolution 318.4, 31.8mm |
| Handlebar | Newmen Beskar 318.40, 800mm |
| Grips | ACID Endure |
Wheels
| Wheelset | Newmen Performance 30 base/base, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready |
| Tyres | Conti Xynotal, Enduro Soft, Tubeless Ready, 2.4 |
Finishing Kit
| Saddle | ACID Venec Lite |

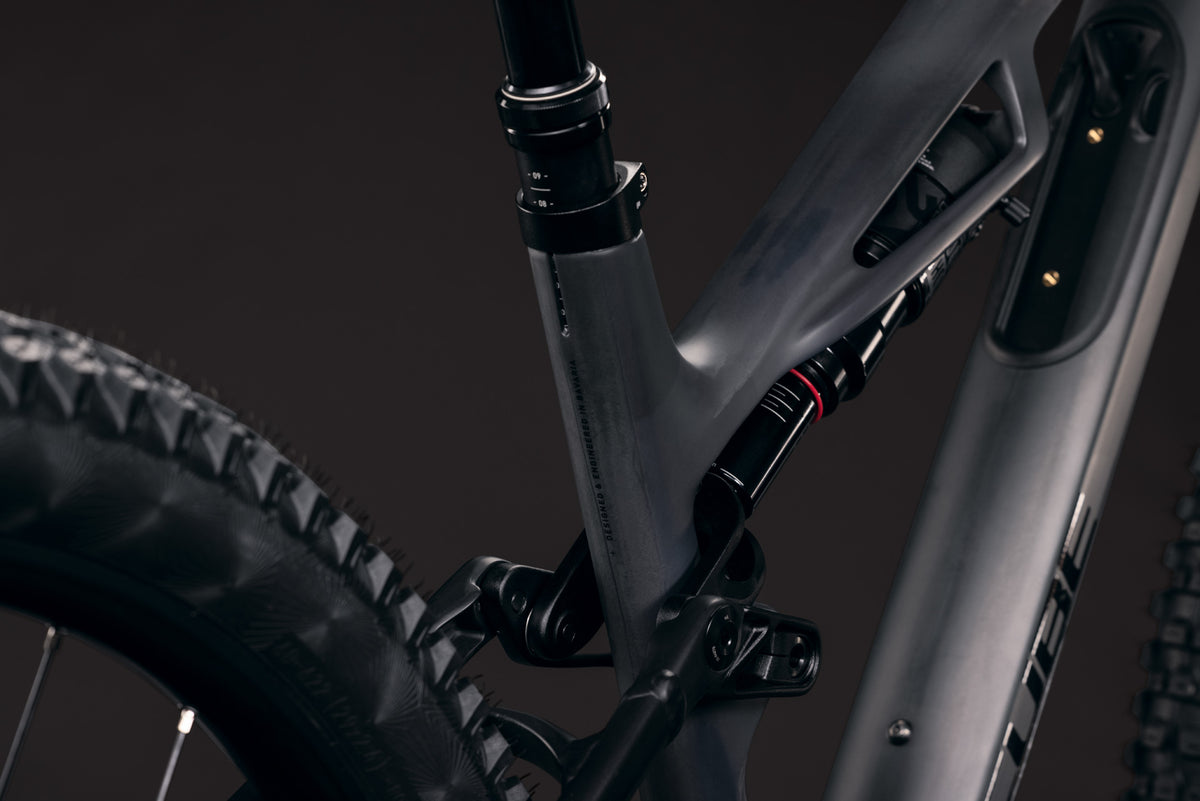

| Seat Post | CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, Travel Adjust, 31.6mm |
| Extras | ACID Stash 0,6 |
Product Information
| Colour | carbon´n´black |
| Weight | 16,3 kg |
| ArtNo | 1172200 |
