TRAILS,
|

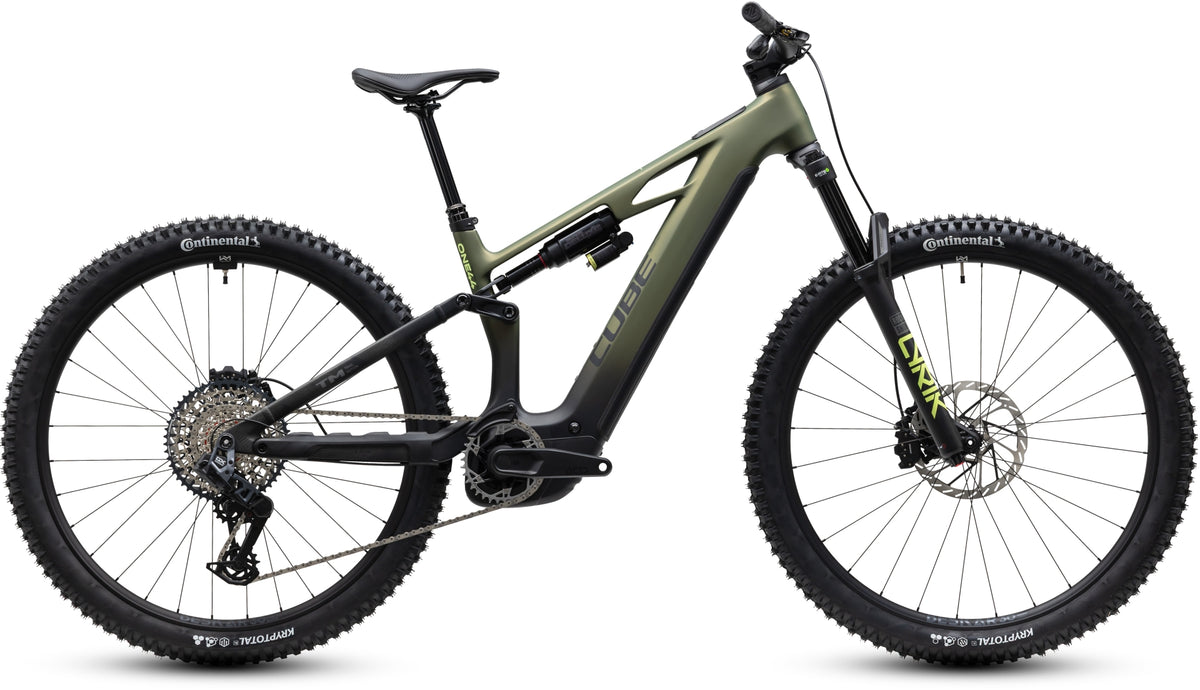

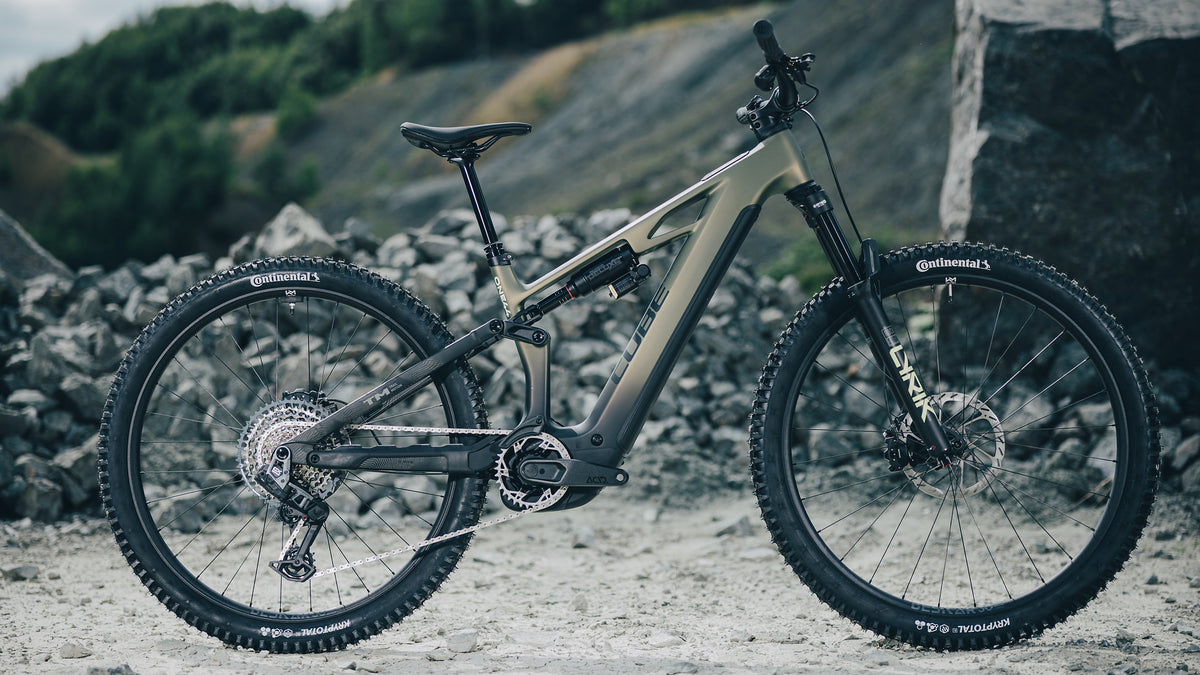

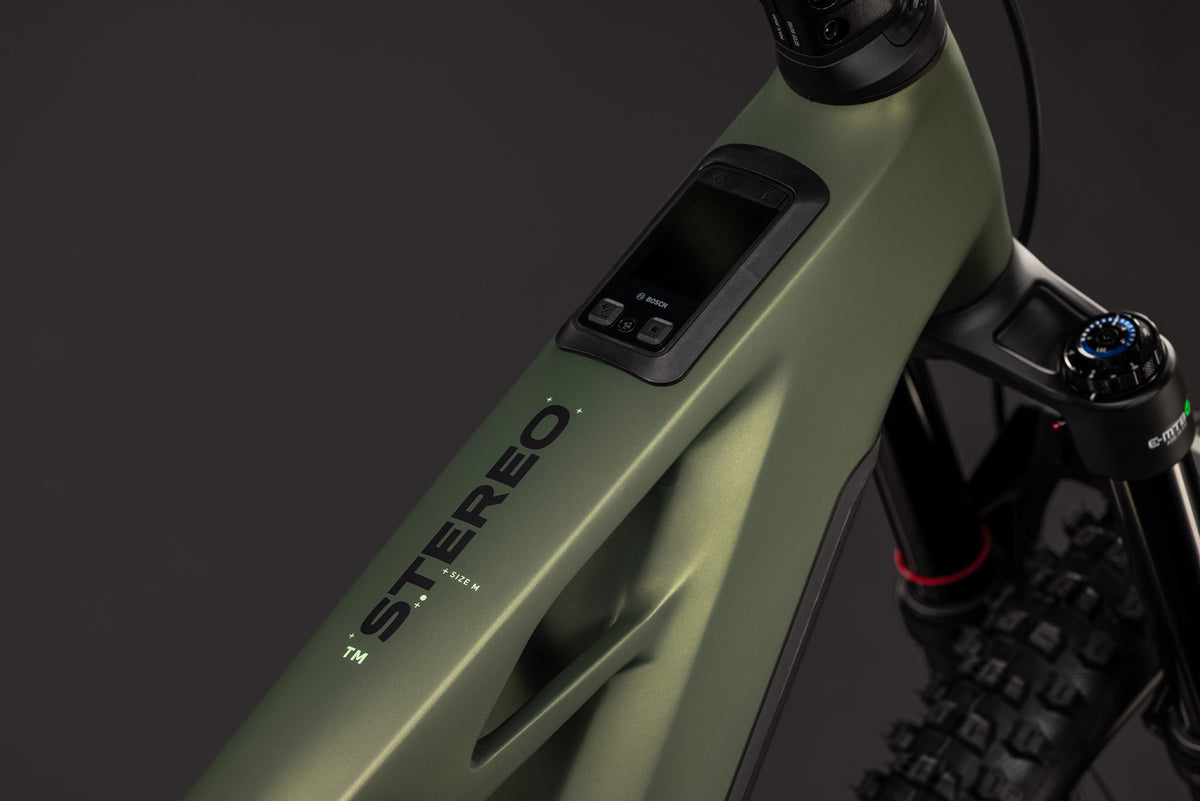

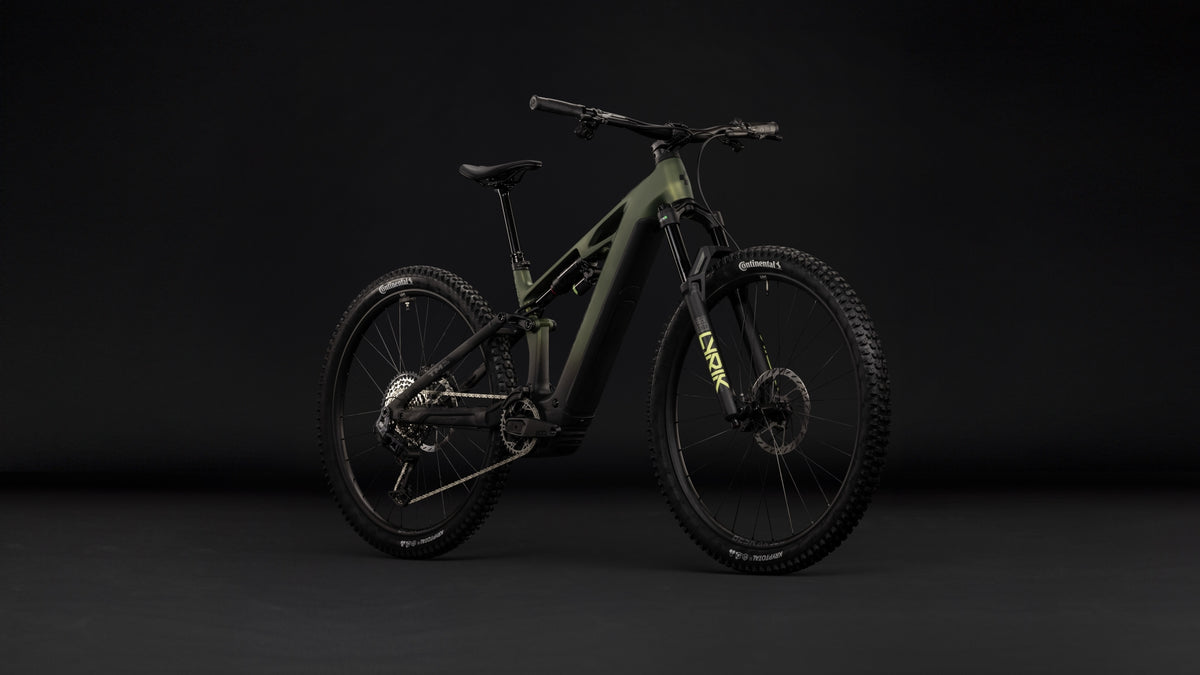

At CUBE we're all about the detail. So, for example, we fitted the Stereo Hybrid ONE44 HPC with an angle-adjustable headset – so you can tweak the Agile Trail Geometry just the way you like it. Advanced Internal Cable Routing complements the frame's clean lines, while the integrated Kiox 400C top tube controller shows you exactly what's going on with the Bosch CX drive and 800Wh PowerTube battery. There's a Direct Mount chain guide to keep your gears running smoothly and a future-proof UDH dropout – plus the frame is X-Connect ready, so you can just plug in a compatible ACID front light. With a 150mm fork, 140mm of rear-wheel travel and Size Split for a wide range of sizes, it's the trail-ready e-mtb for anyone. |
| Frame Material | Battery | Sizes | Headset Angle Adjustment |
Carbon Front Triangle |
800Wh |
Size Split |
0.6° |
Frame
| Frame | C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing |
| Sizes | Size Split: 27.5: S // 29: M, L, XL |
Suspension

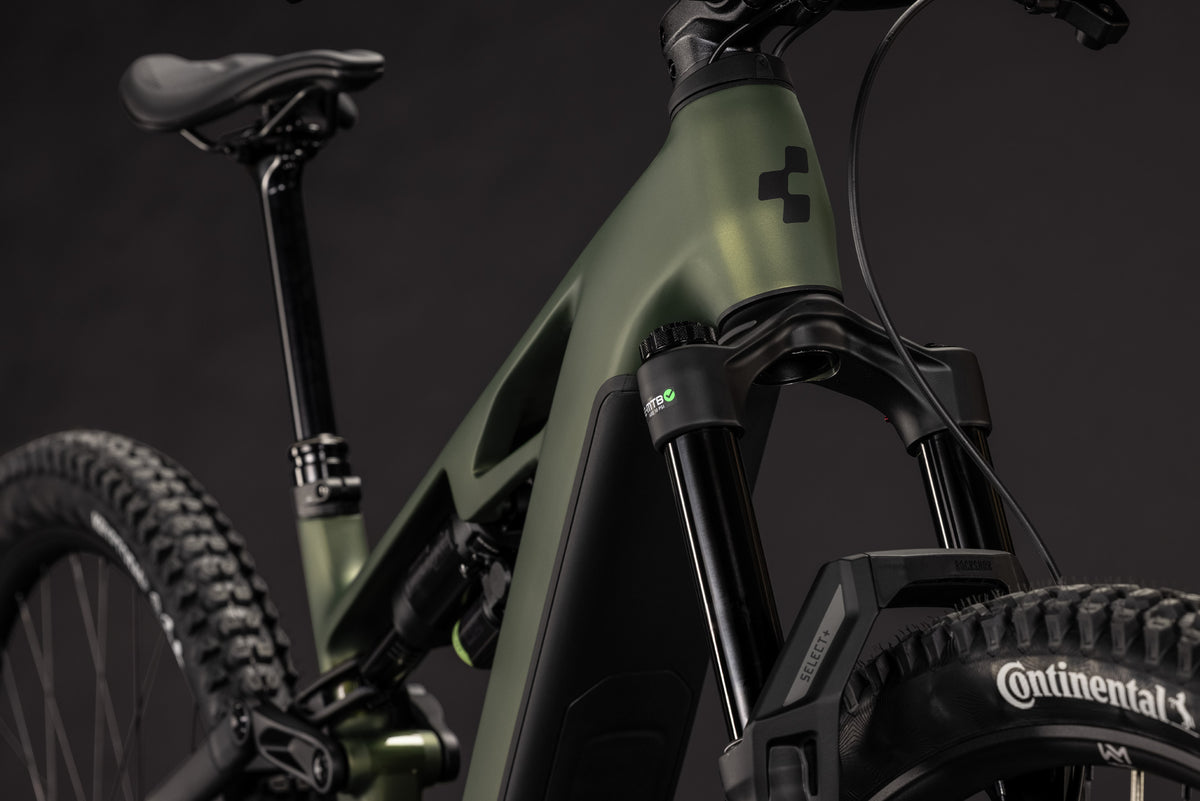

| Suspension Fork | RockShox Lyrik Select+ Charger 3.2 RC2 Air, Tapered, 15x110mm, 150mm |

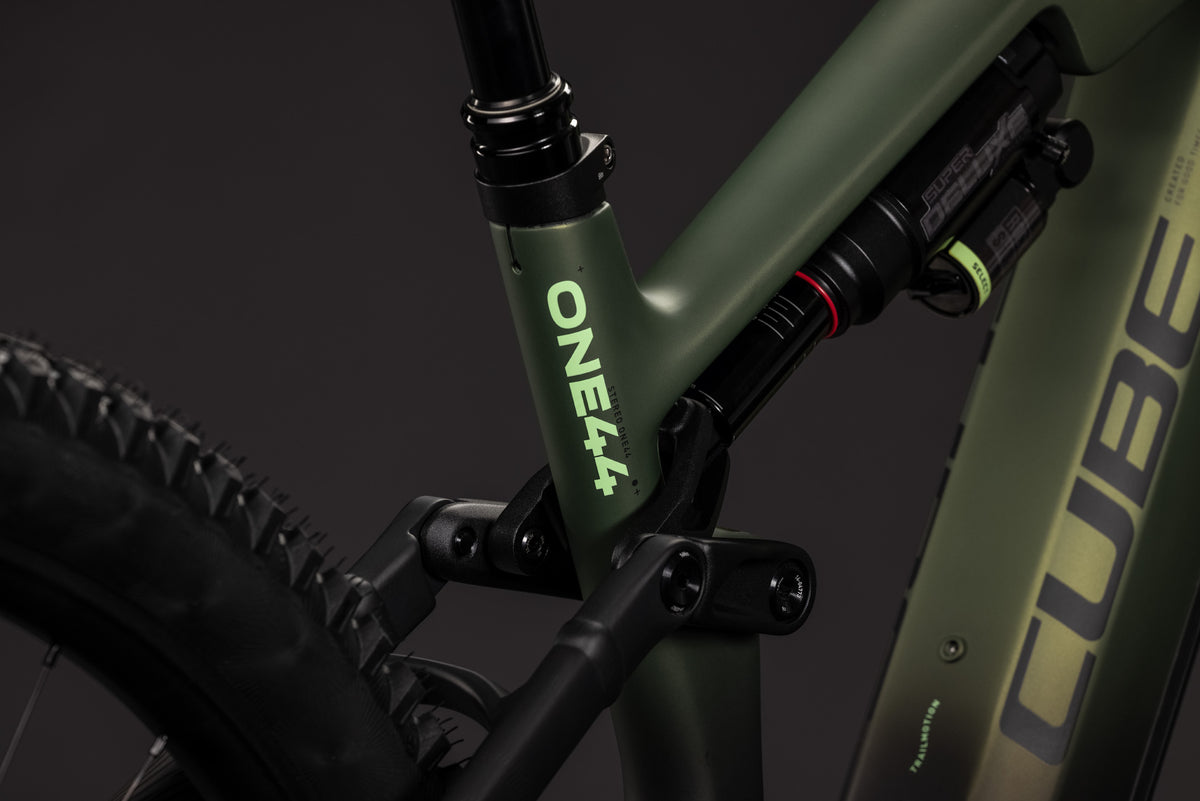

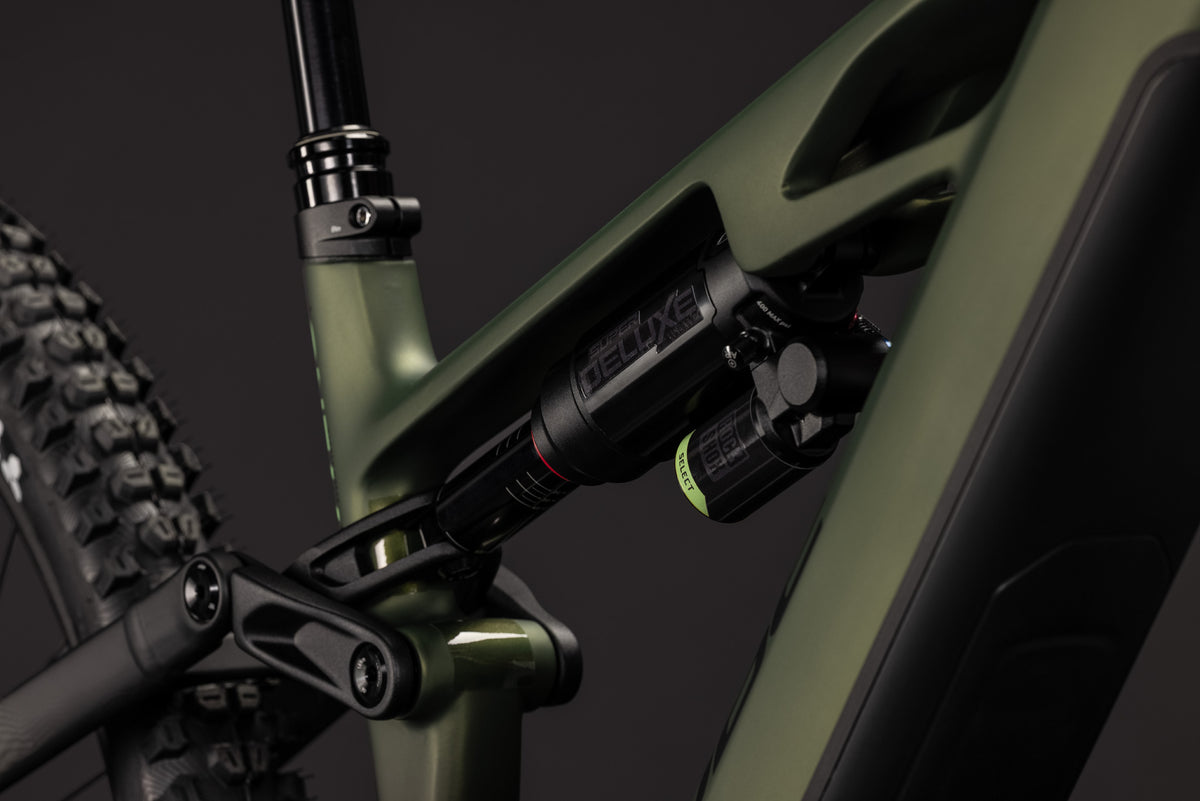

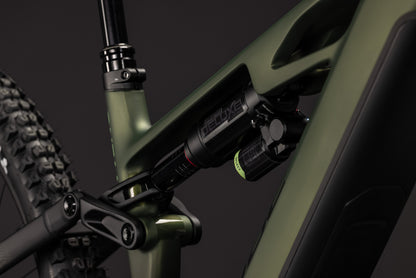

| Shock | RockShox Super Deluxe Select, 230x60 (27.5: 210x55mm), Rebound Adjust, 2-Position Lever |
| Shock Hardware | Front: 30x8mm, Rear: DU-Bushing 12.7mm |
E-Bike System
DRIVE UNIT |
REMOTE |
BATTERY |
DISPLAY |
CHARGER |
 |
 |
 |
 |
 |
| Bosch Drive Unit Performance Line CX max. 120Nm (BDU38) | Bosch Mini Remote | Bosch PowerTube 800 | Bosch Kiox 400C | Bosch 4A |
Drivetrain & Brakes
| Brake System | SRAM Maven Bronze, Hydr. Disc Brake (200/200) |
| Rear Derailleur | SRAM GX Eagle AXS™ Transmission, 12-Speed |
| Shifters | SRAM AXS™ Pod Controller |

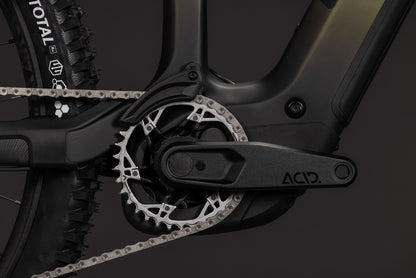

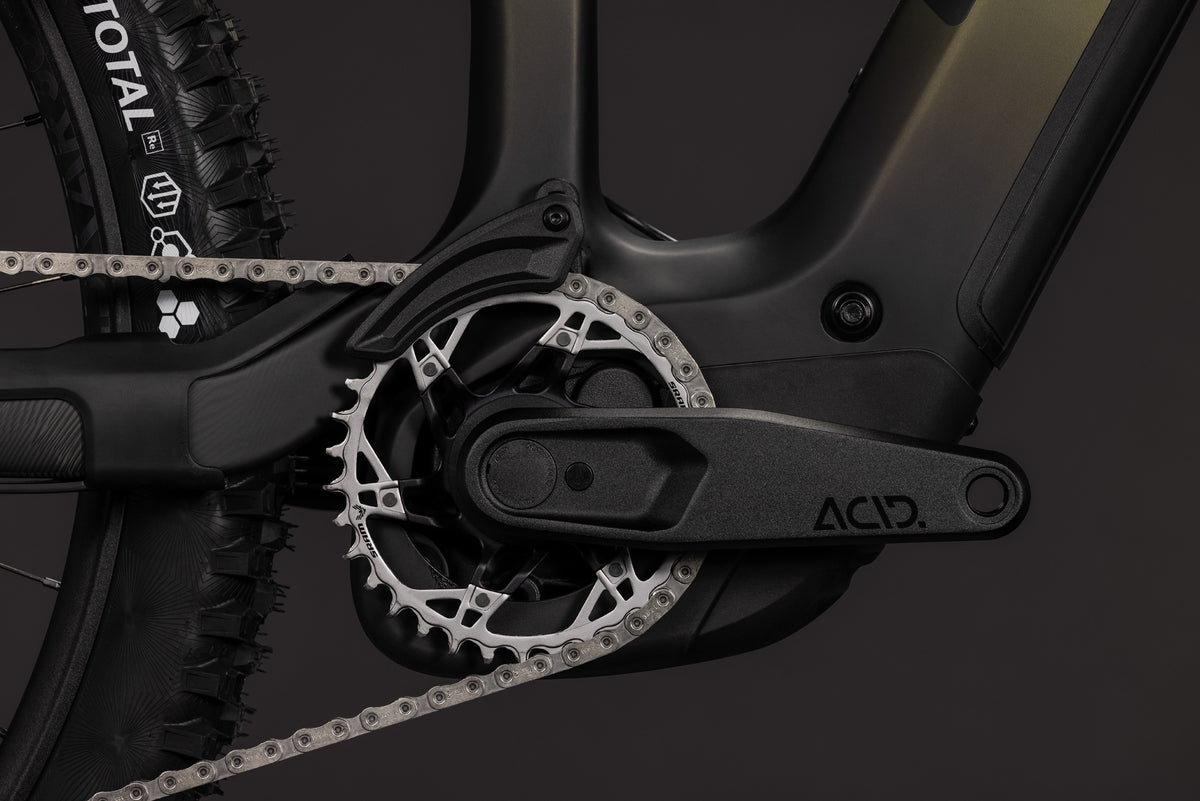

| Crankset | ACID MTB Hybrid Pro, 27.5: 36T // 29: 34T |
| Cassette | SRAM XS-1275, 10-52T |
| Chain | SRAM GX Eagle™ Transmission |

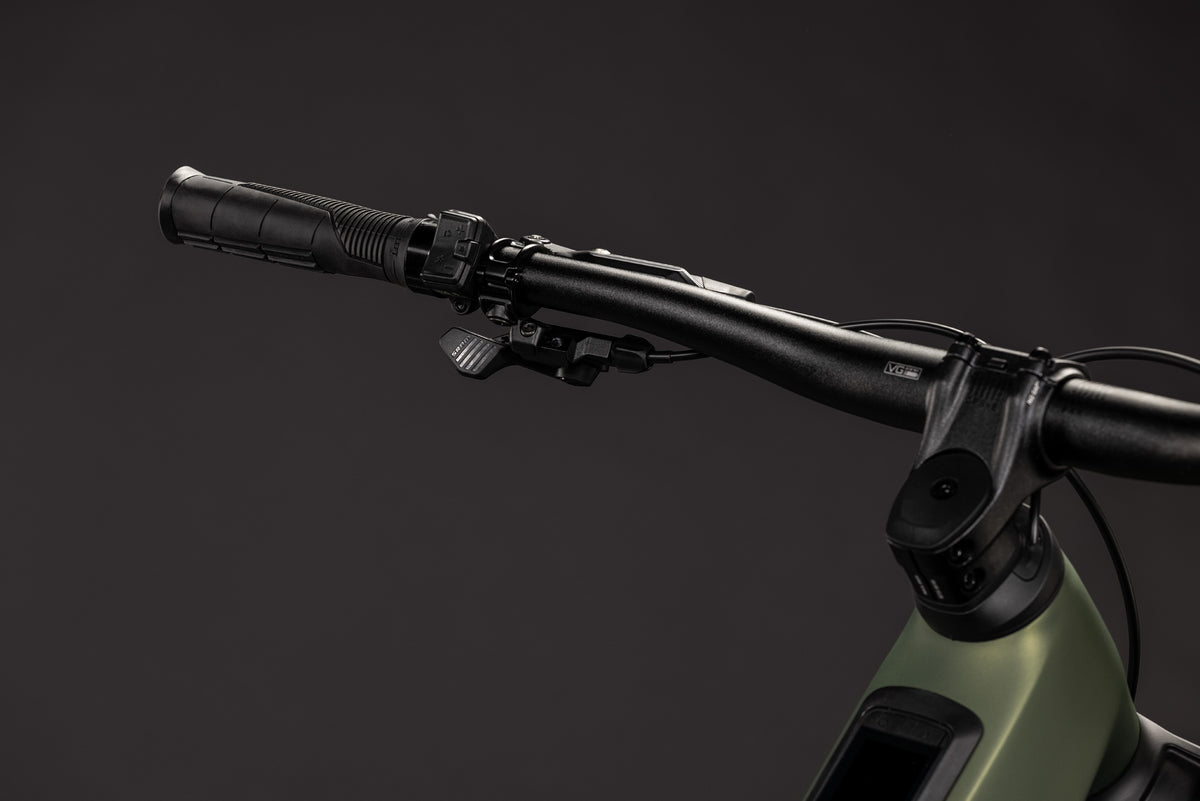

Cockpit
| Headset | Acros AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface |
| Stem | CUBE Performance Stem E-MTB 35, FPI-Link |
| Handlebar | CUBE Rise Trail Bar 35 VariGrip System |
| Grips | ACID Endure VariGrip System |
Wheels
| Wheelset | Newmen Beskar 30 base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready |
| Front Tyre | Conti Kryptotal Front, Enduro Soft, Tubeless Ready, 2.4 |
| Rear Tyre | Conti Kryptotal Rear, Downhill Soft, Tubeless Ready, 2.4 |
Finishing Kit
| Saddle | ACID Venec EMTB Trail 140 |
| Seat Post | CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm |
| Pedals | ACID PP MTB |
Product Information
| Colour | reedgreen´n´gills |
| Weight | 24,4 kg |
| ArtNo | 1103700 |
