TRAIL
|
We built the Stereo Hybrid ONE44 to be as adaptable as it is capable. With its 800Wh PowerTube battery and powerful Bosch CX drive unit with up to 120Nm of assistance, it features 140mm of front- and rear-wheel travel and includes space for mudguards. Internal Cable Routing flatters the frame's clean, organic lines. There's a set of Semi-Integrated Carrier 2.0 mounting points for the addition of an optional luggage carrier, the UDH dropout is future-proof and the Direct Mount chain guard is neat and unobtrusive. Plus, with Size Split, there's a frame to suit almost every rider. |
Frame
| Frame | Aluminum Superlite, Gravity Casting Technology, Efficient Comfort Control, FSP 4-Link, Agile Comfort Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points, Integrated Seatclamp |
| Sizes | Size Split: 27.5: S // 29: M, L, XL |
Suspension
| Fork | RockShox Psylo Silver RC Air, Tapered, 15x110mm, 140mm |

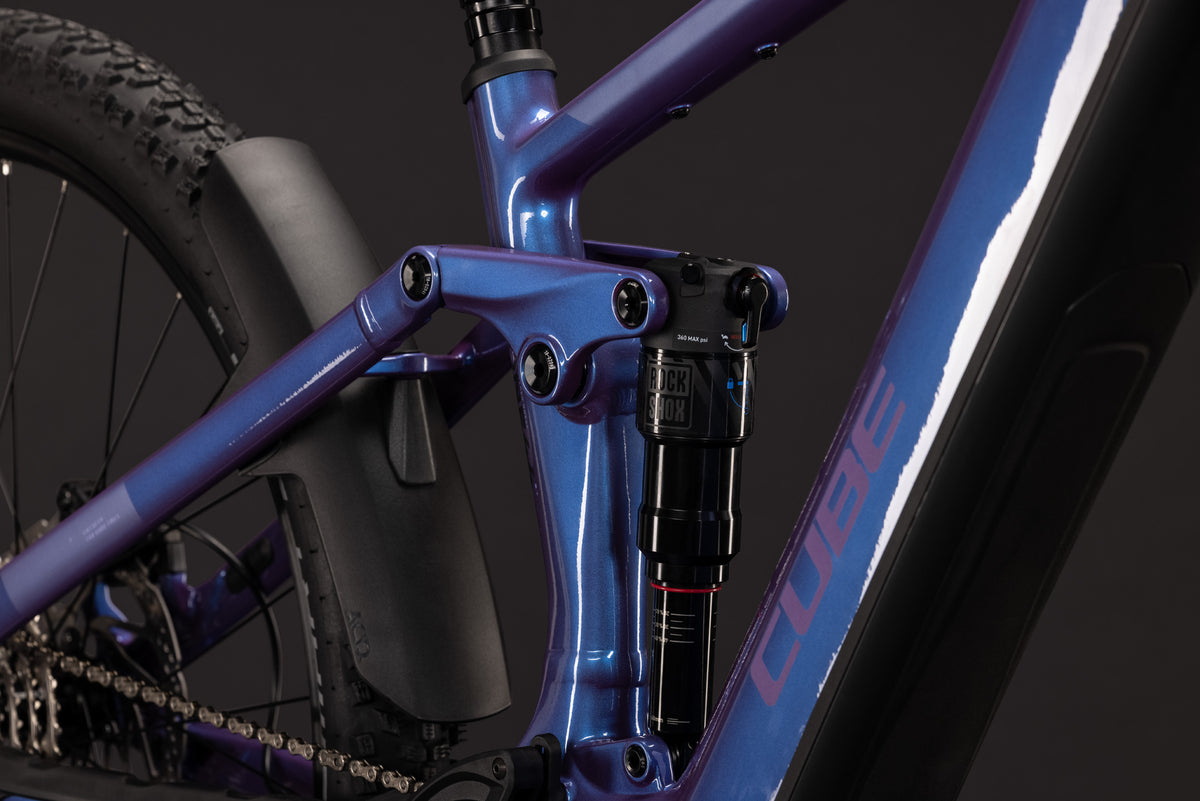

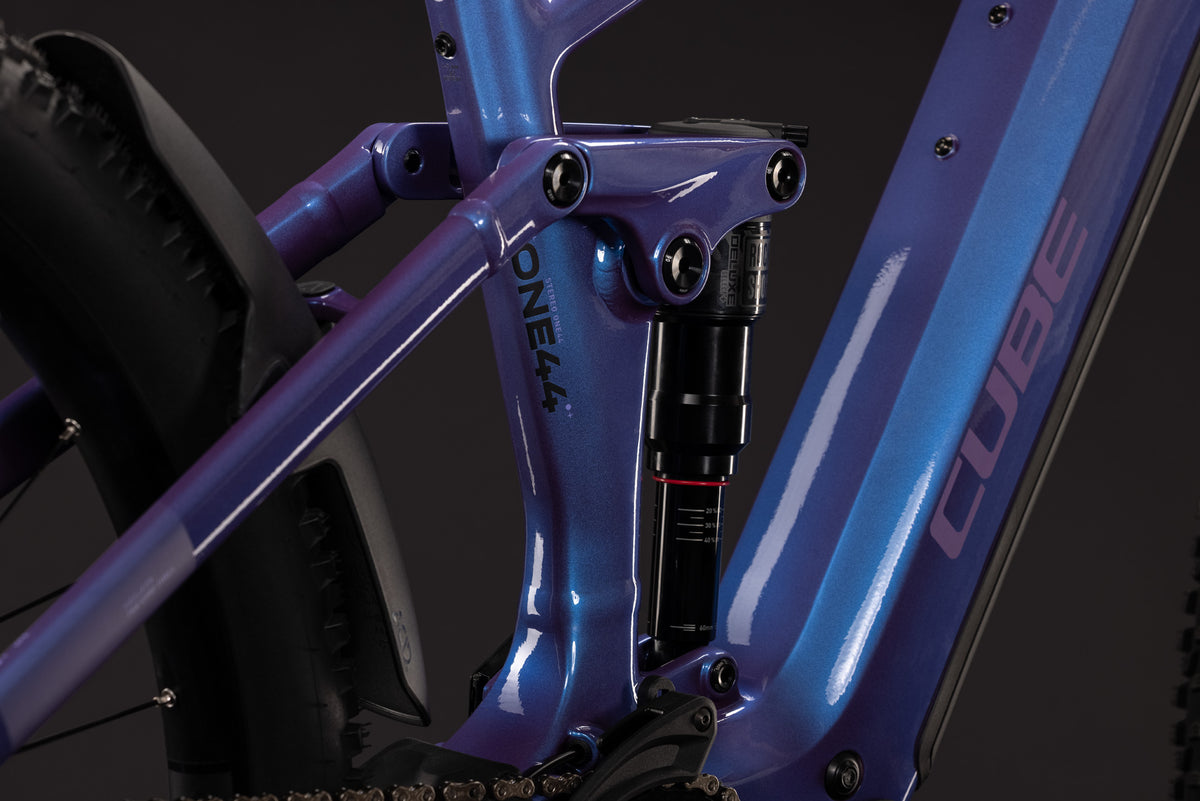

| Shock | RockShox Deluxe Select+, 205x60mm (27.5: 185x55mm), Rebound Adjust, Lockout, Trunnion Mount |
| Shock Hardware | Top: 54mm Trunnion Mount, Bottom: 22.2x8mm |
E-Bike System
DRIVE UNIT |
REMOTE |
BATTERY |
CHARGER |
 |
 |
 |
 |
| Bosch Drive Unit Performance Line CX max. 120Nm (BDU38) | Bosch Purion 200 with Integrated Display | Bosch PowerTube 800 | Bosch 2A |
Drivetrain & Brakes
| Brake System | Shimano BR-MT420, Hydr. Disc Brake (203/203) |
| Rear Derailleur | Shimano XT RD-M8200-SGS, ShadowPlus, 12-Speed |
| Shifters | Shimano Deore SL-M6210-IR, Direct Attach, Single Click |
| Crankset | ACID MTB Hybrid Pro, 27.5: 36T // 29: 34T |
| Cassette | Shimano Deore CS-M6200, 10-51T |
| Chain | KMC e12 |
| Chain Guide | Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate |

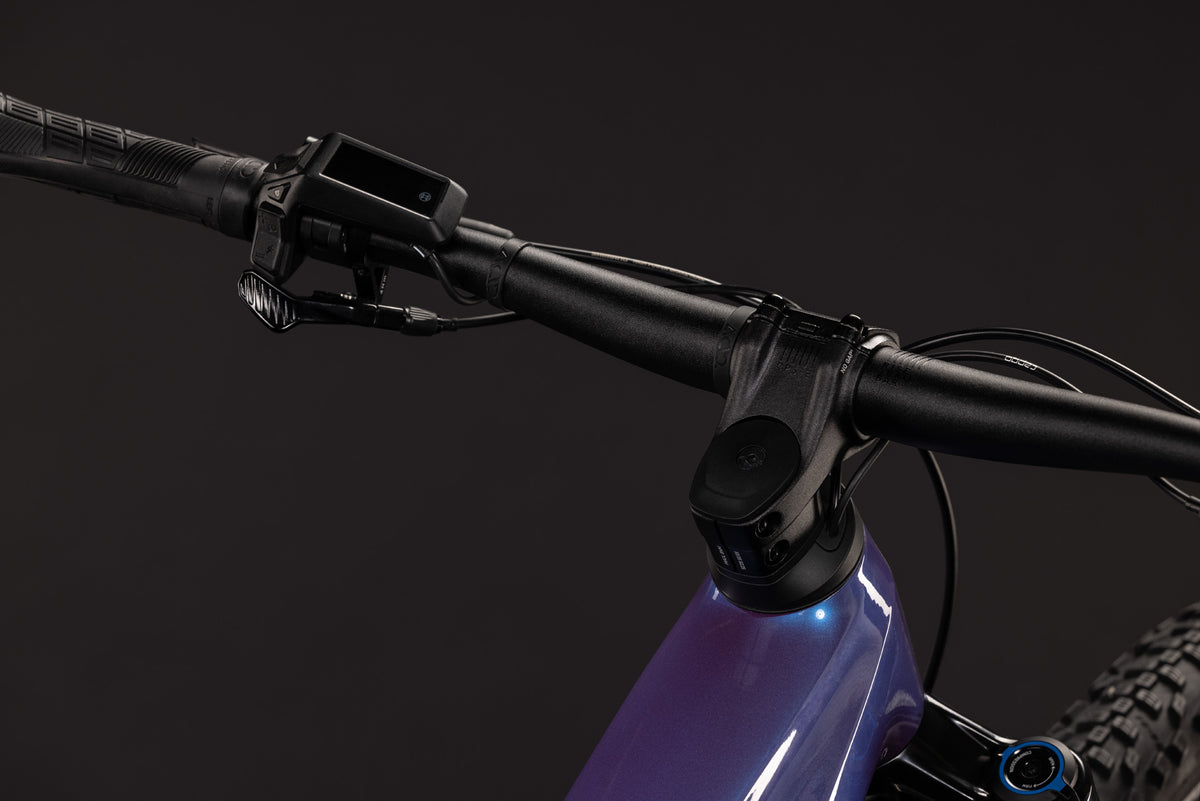

Cockpit
| Headset | Acros AZF-1034, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), X-Connect Interface |
| Stem | CUBE Performance Stem E-MTB 35, FPI-Link |
| Handlebar | CUBE Rise Trail Bar 35 |
| Grips | ACID Hybrid Perform |
Wheels
| Wheelset | ACID SLX 30, 32/32 Spokes, 15x110mm/12x148mm, Tubeless Ready |
| Tyres | Schwalbe Smart Sam, Active, 2.6 |
Finishing Kit
| Saddle | ACID Venec EMTB Plus 145 |
| Seat Post | CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm |
| Pedals | ACID PP MTB |
Product Information
| Colour | blueiris´n´purple |
| Weight | 26,7 kg |
| ArtNo | 1102220 |
