LIGHTWEIGHT TOUGHNESS |

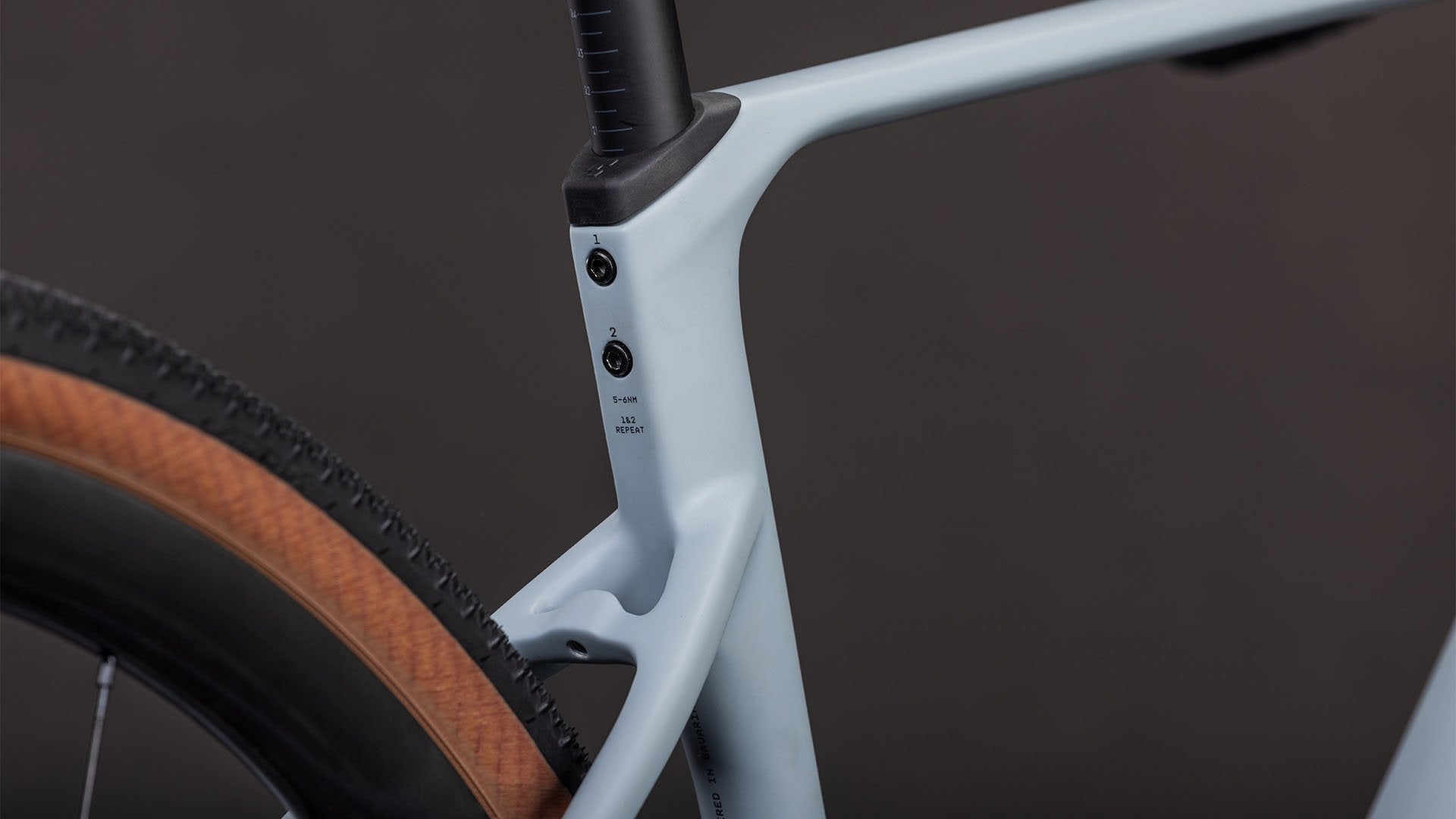

The Nuroad C:62 frame takes everything we know about carbon gravel frames and takes it up a notch. We increased tyre clearance up to 50mm (45mm with mudguards). There's an integrated seat clamp and semi-integrated cable routing to complement the frame's elegant, organic appearance. It's UDH-ready, for versatility and future-proofing. The C:62® carbon fork has two carrier mounting positions. And the frame weight for all this practical innovation? Just 1,150g for a mid-sized frame. So it's tough, but also extremely light. That's versatility, redefined for a new era of gravel exploration. |
| Frame Material | Tire Clearance |
| C:62® | 50 mm |
Frame
| Frame |
C:62® Advanced Twin Mold Technology, Internal Cable Routing, Integrated Seat Post Clamp, Flat Mount Disc, Fender/Rack & Kickstand Option, 12x142mm, UDH™ |
| Size | XS (50cm), S (53cm), M (56cm), L (58cm), XL (61cm) |
| Rigid Fork | CUBE C:62® Technology, 1 1/8" - 1 1/2" Tapered, Integrated Cable Routing, Flat Mount Disc, Fender & Lowrider Mounts, Internal Light Cable Option, 12x100mm |
Drivetrain & Brakes
| Shift / Brake Levers |
Shimano GRX ST-RX820 |
| Brake System |
Shimano GRX BR-RX820, Hydr. Disc Brake, Flat Mount (160/160) |
| Rear Derailleur | Shimano GRX RD-RX820, 12-Speed |
| Front Derailleur | Shimano GRX FD-RX820-F |
| Bottom Bracket | Shimano SM-BB71-41B, 86mm Pressfit |

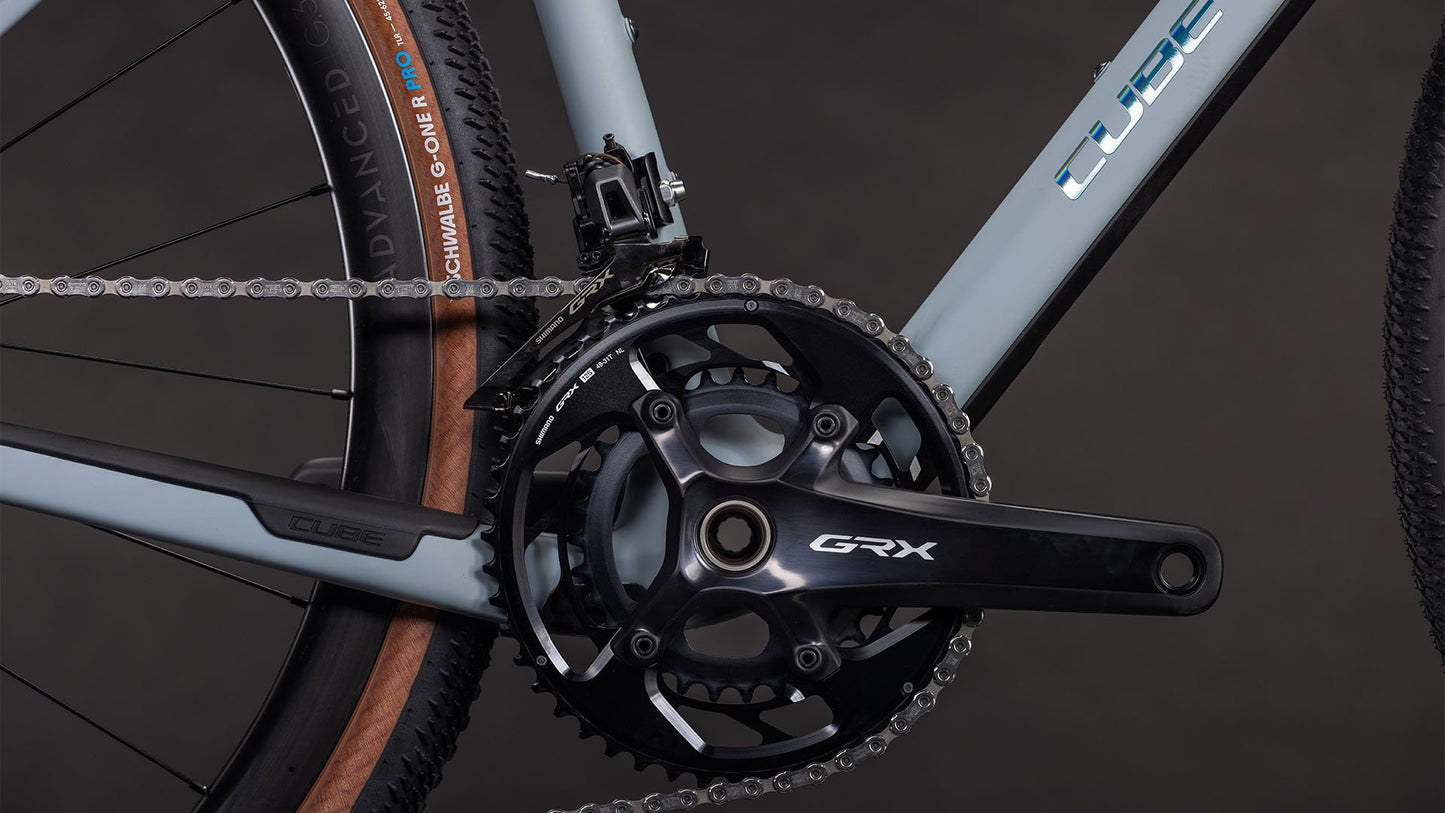

| Crankset | Shimano GRX FC-RX820, 48x31T |
| Cassette |
Shimano 105 CS-HG710, 11-36T |
| Chain | Shimano CN-M7100 |
Cockpit
| Headset | ACROS, Top Integrated 1 1/2" w/ Integrated Cable Routing, Bottom Integrated 1 1/2" |
| Stem |
CUBE CIS Stem w/ Cable Routing, FPI-Link |
| Handlebar | Newmen Advanced Gravel Bar 318, Carbon, 31.8mm |
| Handlebar Tape | ACID Bartape CX |
Wheels
|
Wheelset |
Newmen Advanced G.34 Carbon, 21/21 Spokes, 12x100mm/12x142mm, Tubeless Ready |
| Tyres |
Schwalbe G-One R Pro, TLR, 45-622 |
Finishing Kit
| Saddle |
ACID Nuance Pro |
| Seat Post |
Newmen Advanced, Carbon, 27.2mm |
Product Information
| Colour |
vulcan´n´prism |
| Weight | 8,7 kg |
| ArtNo |
130200 |
