CROSS-COUNTRY EXCELLENCE |

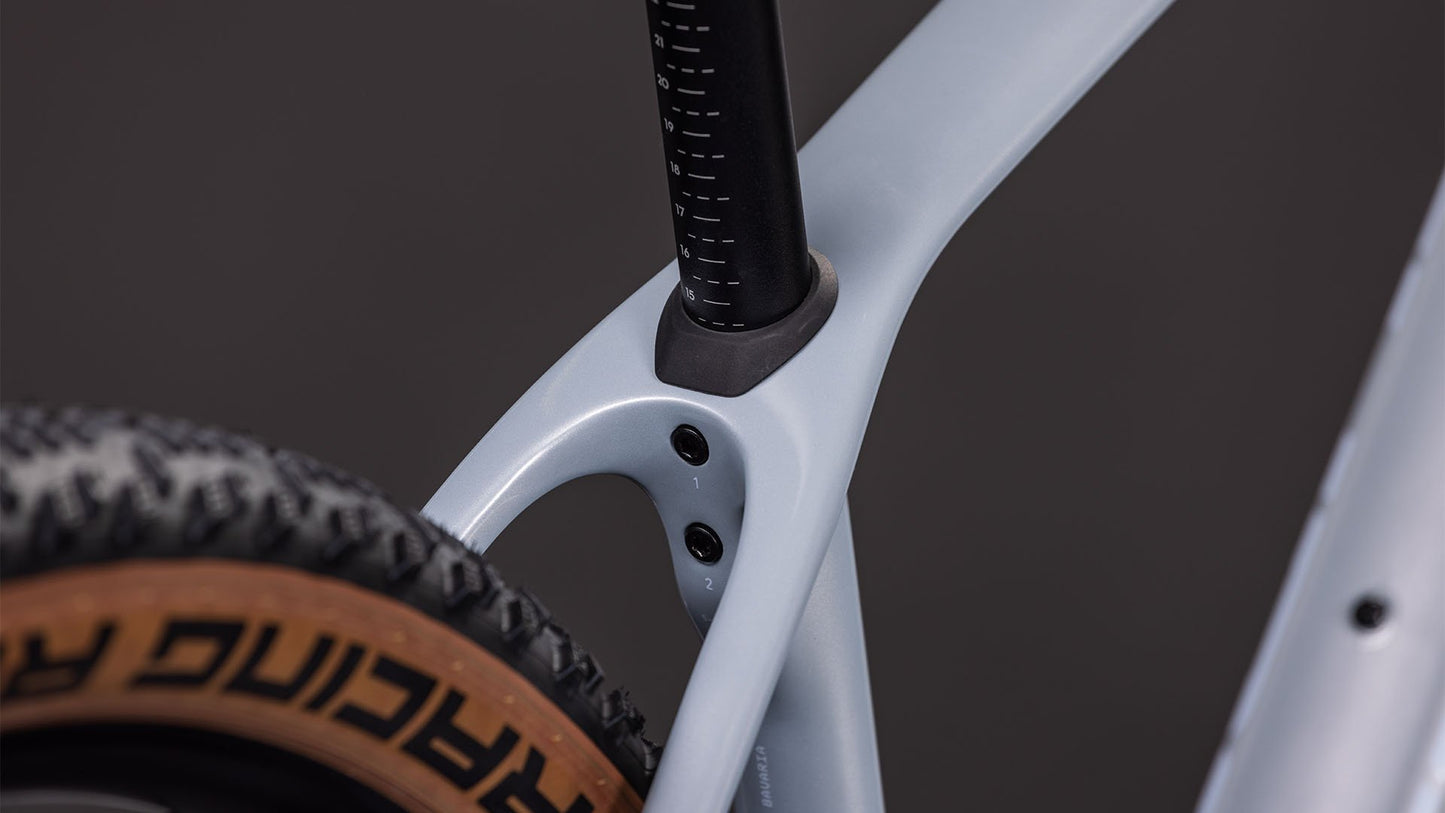

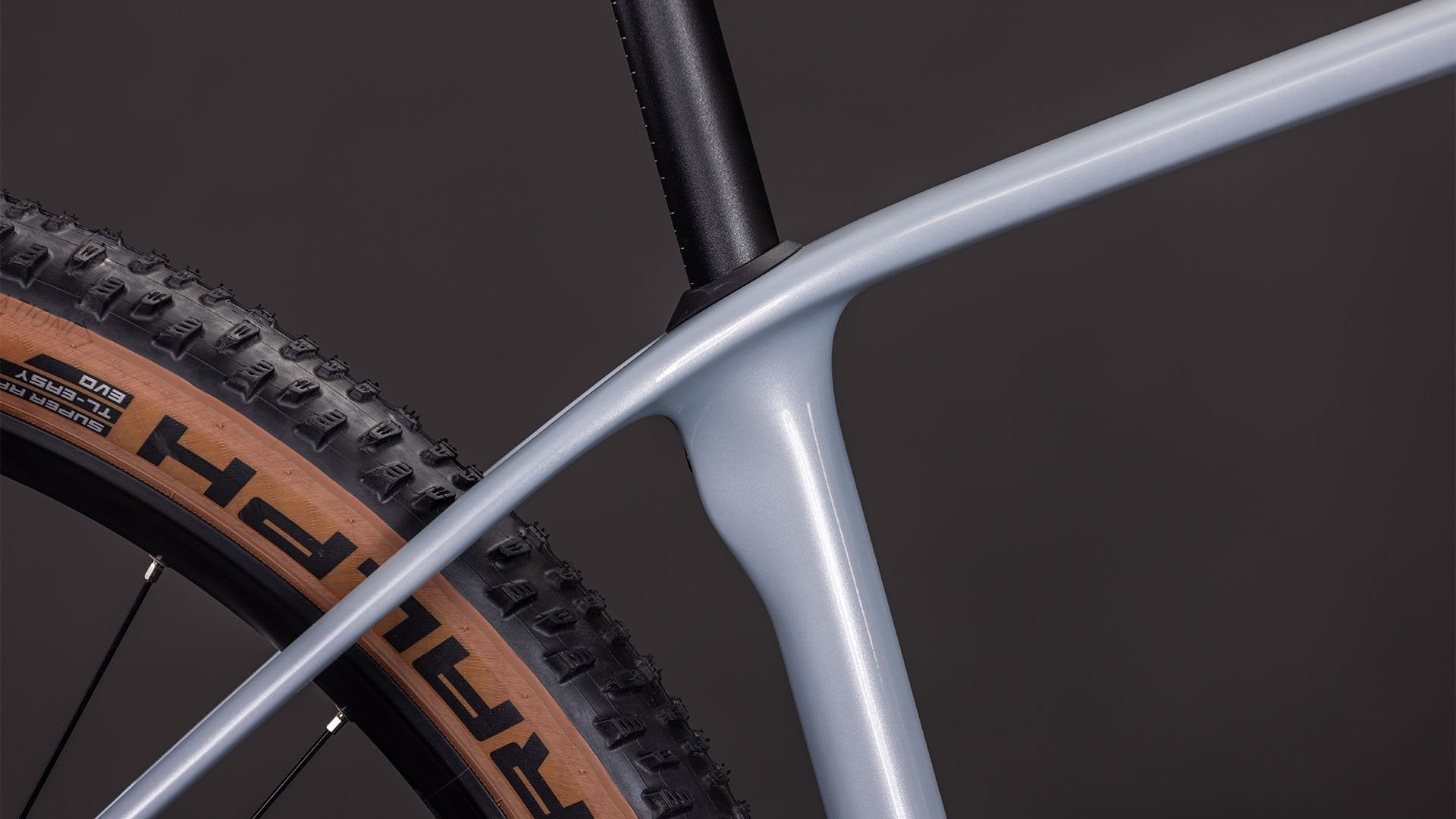

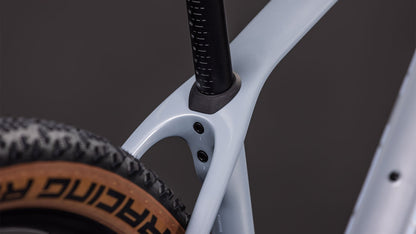

There's a good reason for the Reaction C:62's beautifully organic lines and slender stays: it makes for an exceptionally fast, light frame. Our premium C:62® carbon and Advanced Twin Mold manufacturing is just the start. There's an integrated seat clamp, for secure fastening and the neatest possible appearance. Semi-integrated cable routing complements the frame's clean aesthetic and reduces the need for maintenance. UDH means it's future-proof, while Agile Ride Geometry does exactly what you'd expect, delivering safe but responsive handling. And, with a wide range of sizes from S to XXL, there's one to suit practically any rider. |
| Frame Material |
| C:62® |
Frame
| Frame |
C:62® Monocoque Advanced Twin Mold Technology, Boost 12x148mm, Full Internal Cable Routing, Dropper Post ready, UDH™ |
| Size | 29: S, M, L, XL, XXL |
Suspension
| Suspension Fork |

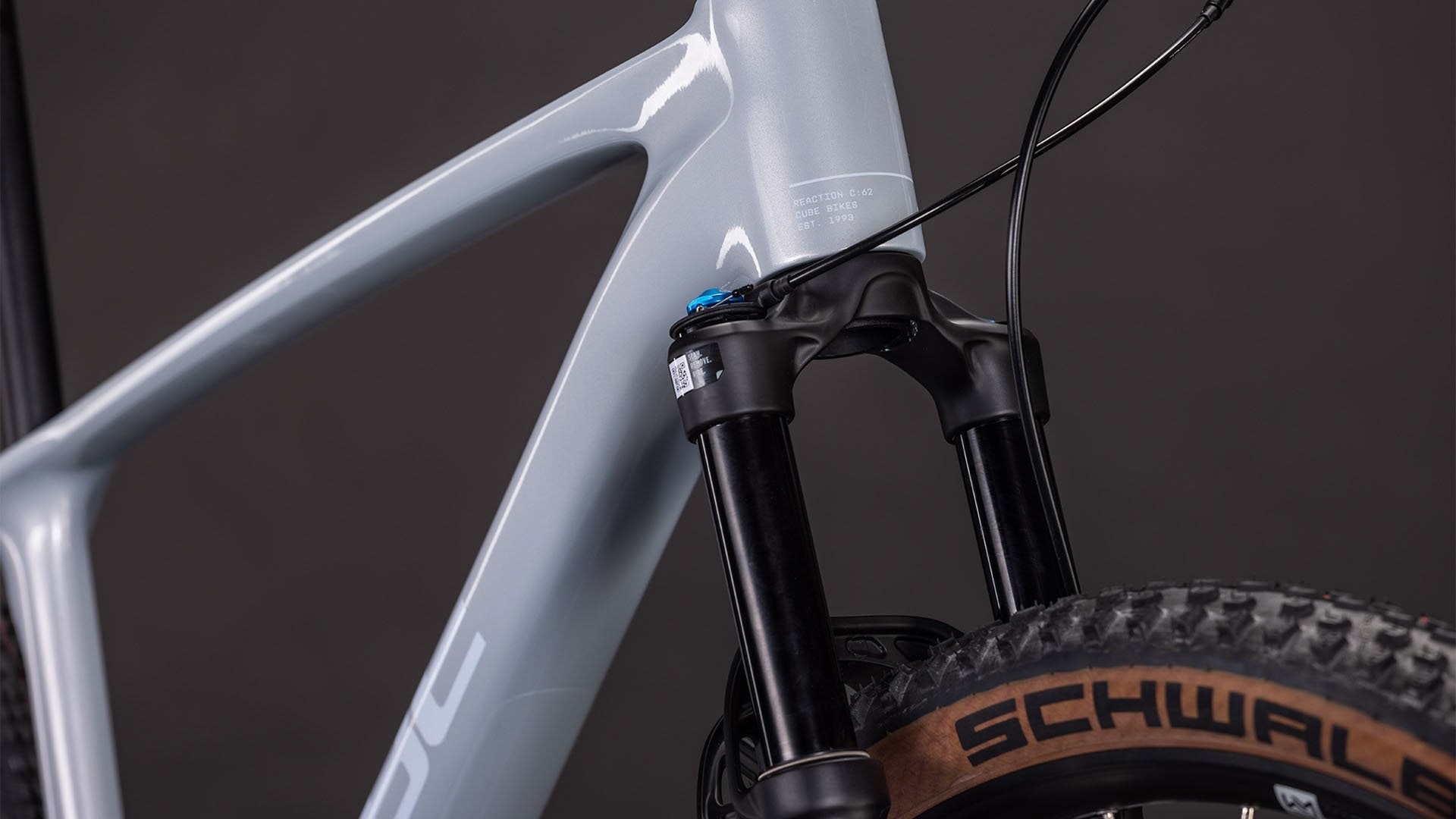

Fox 32 SC Float Performance, 2-Position Remote, Tapered, 15x110mm, 100mm |
Drivetrain & Brakes
| Brake System |
Shimano XT BR-M8100, Hydr. Disc Brake (160/180) |

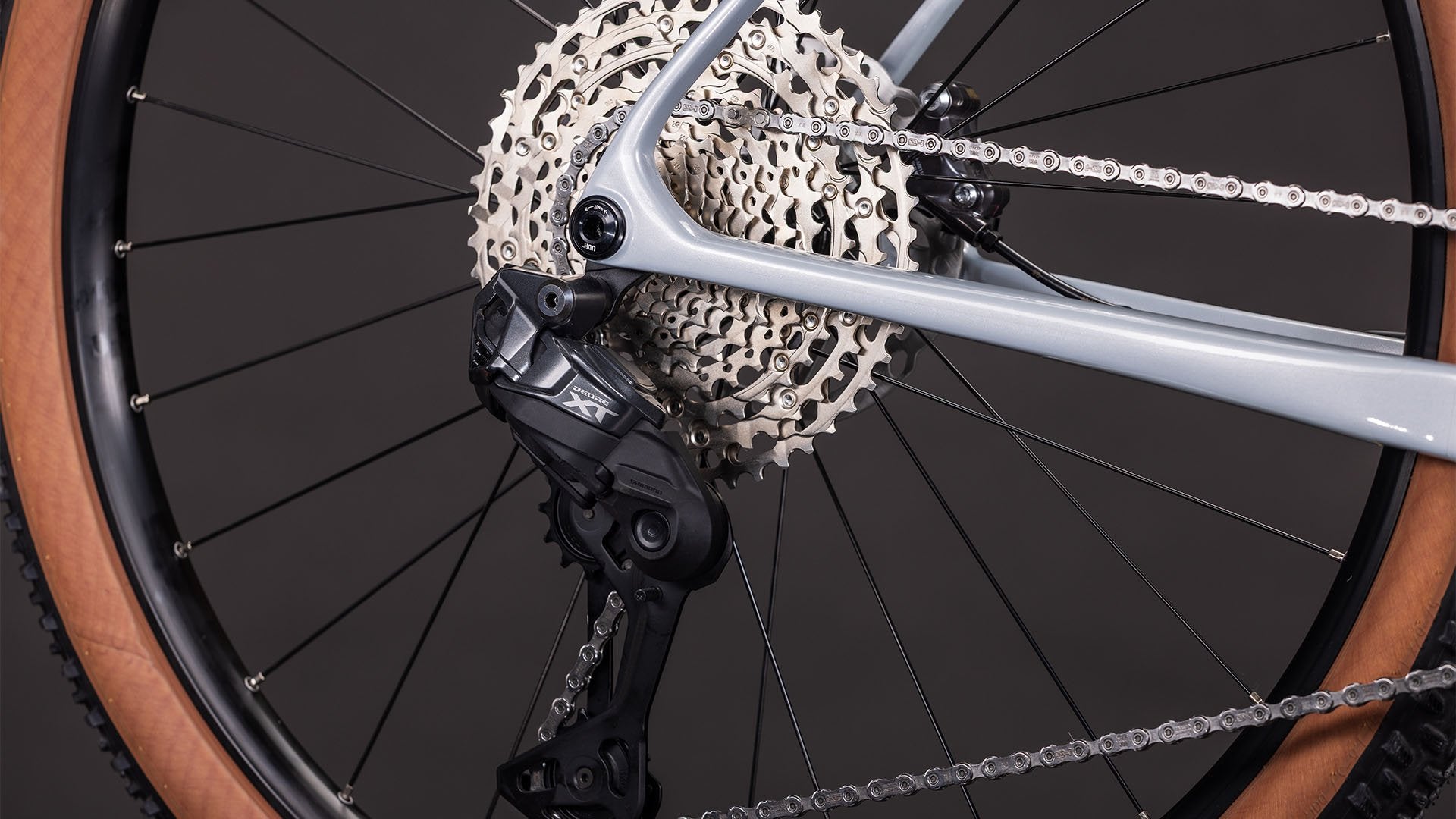

| Rear Derailleur |
Shimano XT Di2 RD-M8250-SGS, ShadowPlus, 12-Speed, Electronic Shifting System |
| Shifters |
Shimano Deore Di2 SW-M6250-R |
| Bottom Bracket |
Pressfit 92mm |
| Crankset |

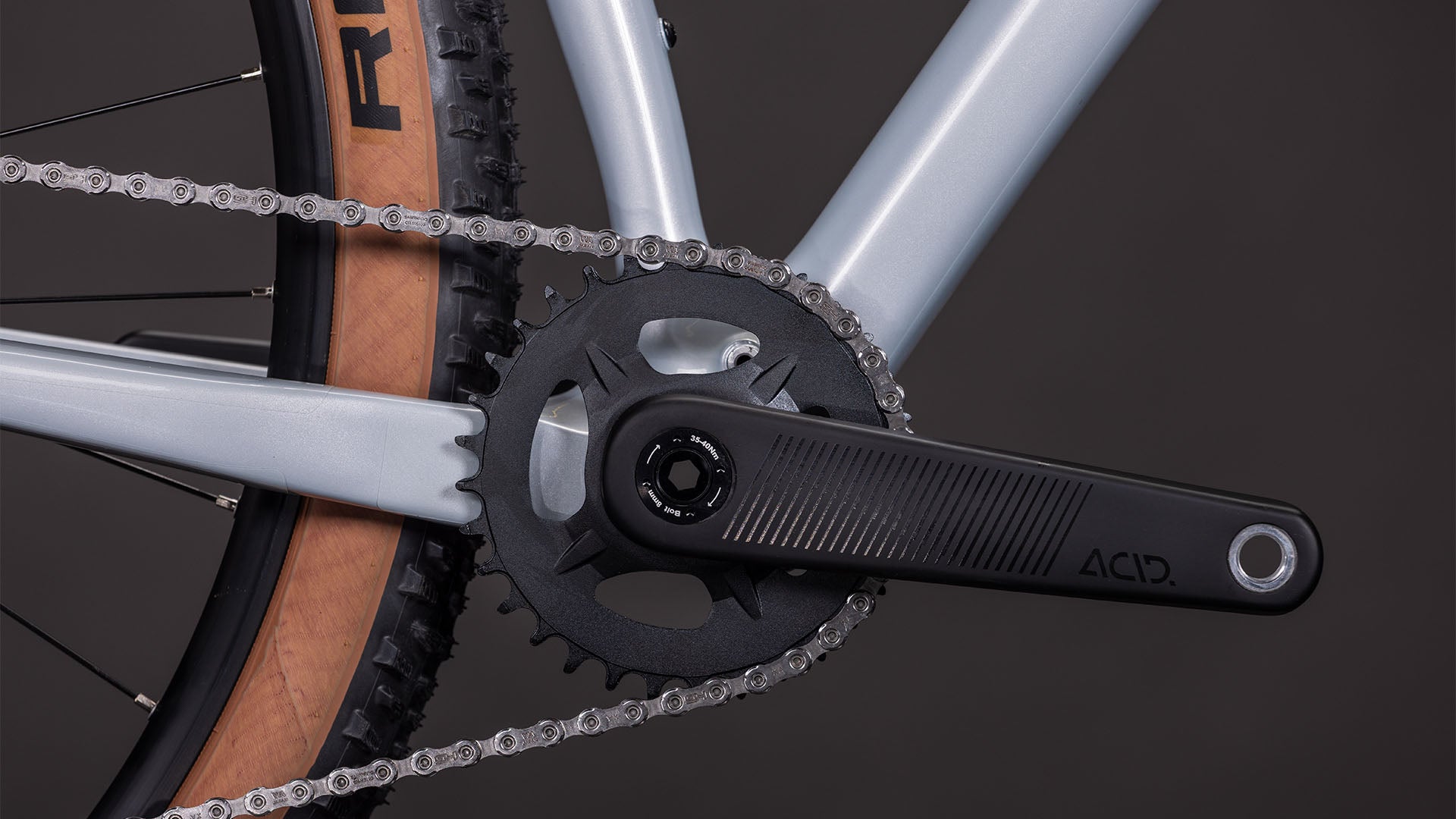

ACID MTB Pro Carbon, 30mm Axle, 32T |
| Cassette |
Shimano Deore CS-M6100, 10-51T |
| Chain |
Shimano CN-M6100 |
Cockpit
| Headset |
ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment |
| Stem |
Newmen Evolution 318.4, 31.8mm |
| Handlebar |
Newmen Evolution SL 318.10, 760mm |
| Grips | ACID React Pro |
Wheels
|
Wheelset |
Newmen Performance 30 light/light, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready |
| Front Tyre |
Schwalbe Racing Ray, Super Race, Addix Speed, Kevlar, 2.25 |
| Rear Tyre |
Schwalbe Racing Ralph, Super Race, Addix Speed, Kevlar, 2.25 |
Finishing Kit
| Saddle | ACID Nuance Pro |
| Seat Post |
Newmen Evolution, 27.2mm |
Product Information
| Colour |
foggrey´n´white |
| Weight | 10,1 kg |
| ArtNo |
145300 |
