The Reaction Hybrid's neat and tidy design is no accident. With the 600Wh PowerTube battery neatly concealed and the Bosch CX drive housed securely, its svelte lines disguise lots of clever features. It's PowerMore-ready, making it easy to add up to 250Wh of extra battery capacity. The integrated seat clamp and cable routing complement the clean aesthetic. There's a pre-installed chain guide, and it's ready to accept ACID mudguards and a luggage carrier... plus, with X-Connect, adding a compatible ACID front light is as simple as plugging it into the headset. And, with Size Split, it's easy to find the perfect fit for every rider. We've thought of everything, so you can just ride. |
| Frame Material | Battery |
|
Aluminium Superlite |
600 Wh |
Frame
| Frame |
Aluminium Superlite, Gravity Casting Technology, Agile Ride Geometry, Boost148, Fully Integrated Battery, Advanced Internal Cable Routing, 1.5 Headtube, Kickstand/Fender/Carrier Mounting Points |
| Size |
Classic: Size Split: 27.5: S // 29: M, L, XL, XXL |
Suspension
| Suspension Fork |

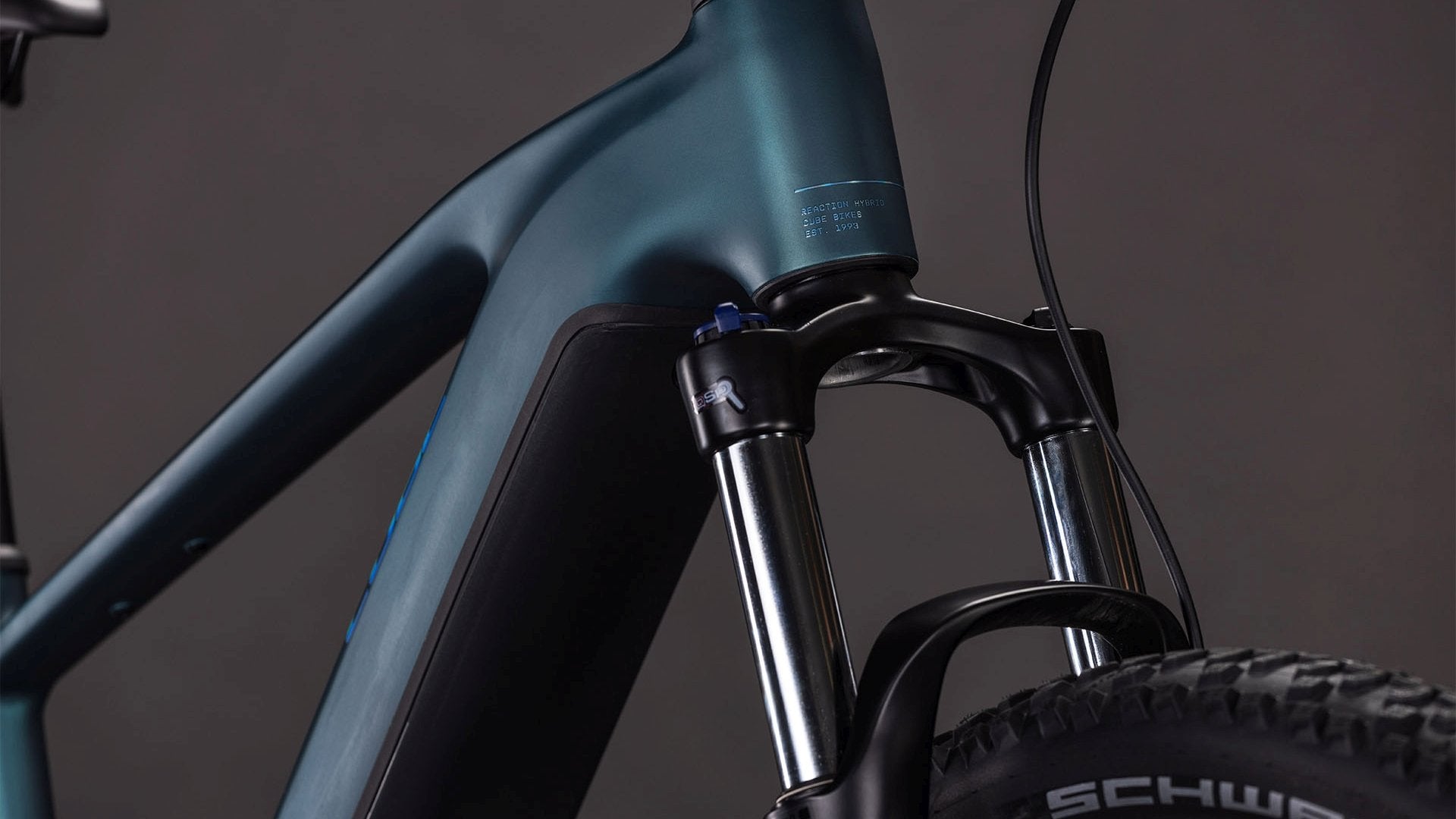

SR Suntour XCM34 NLO Coil, Tapered, 15x110mm, 120mm (27.5: 100mm) |
E-Bike System
| Drive Unit | Remote | Battery | Charger |
![]() |
![]() |
![]() |
![]() |
|
Bosch Drive Unit Performance Line CX max. 100Nm (BDU38) |
Bosch Purion 200 with Integrated Display | Bosch PowerTube 600 | Bosch 2A |
Drivetrain & Brakes
| Brake System |
Shimano BR-MT200, Hydr. Disc Brake (180/180) |
| Rear Derailleur |
Shimano Cues RD-U6000-GS |
| Shifters |
Shimano Cues SL-U6000, Rapidfire-Plus |
| Crankset |

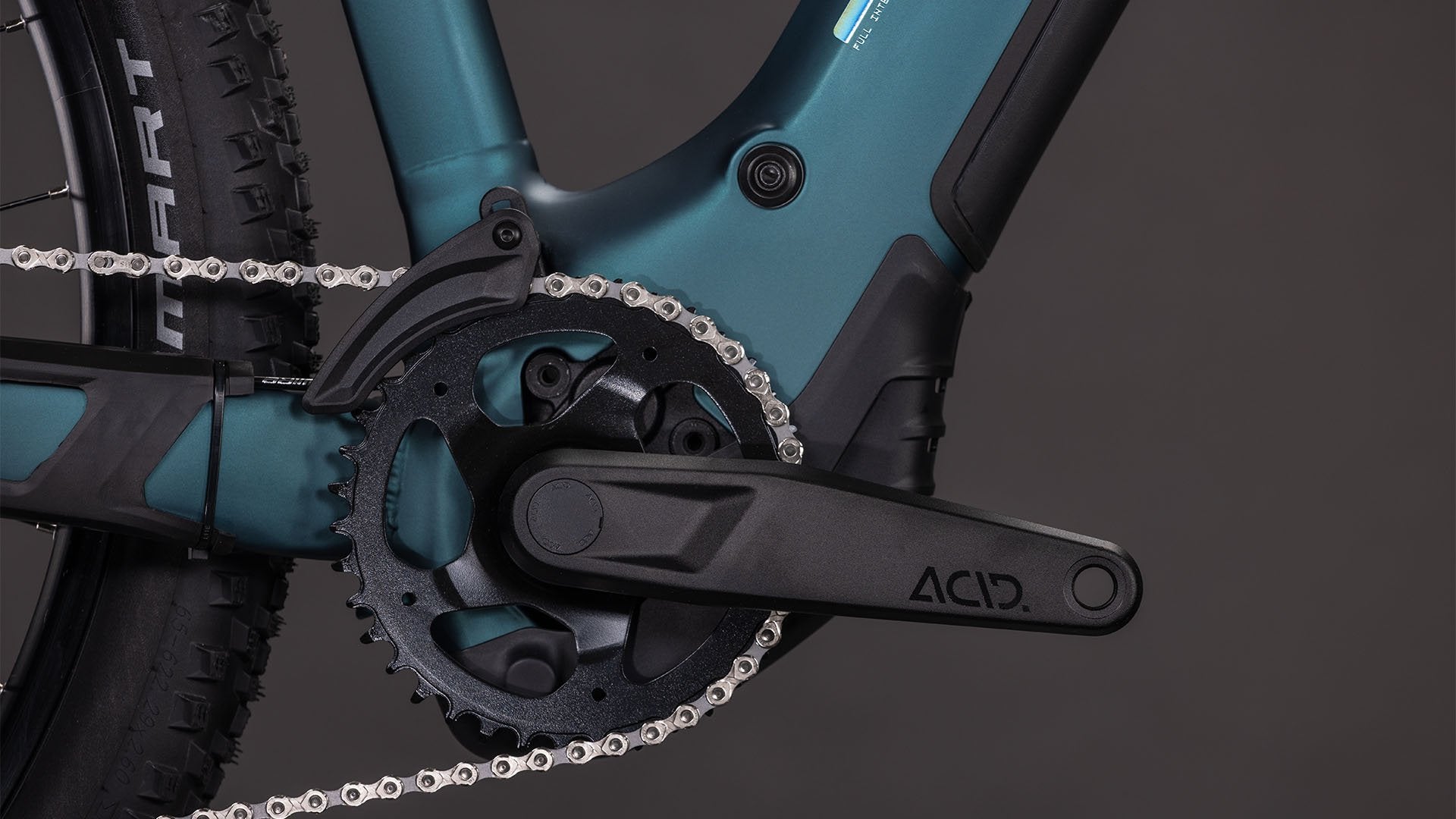

ACID MTB Hybrid Pro, 38T |
| Cassette |
Shimano Cues CS-LG400, 11-48T |
| Chain | KMC eGlide |
| Chain Guide |
Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate |
Cockpit
| Headset |
ACROS AZF-1034, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), X-Connect Interface |
| Stem |
CUBE Performance Stem E-MTB 35, FPI-Link |
| Handlebar |
CUBE Rise Trail Bar 35 |
| Grips |
ACID Hybrid Perform |
Wheels
| Wheelset | ACID Pro 30, 32/32 Spokes, 15x110mm/12x148mm, Tubeless Ready |
| Tyres |
Schwalbe Smart Sam, Active, 2.6 |
Finishing Kit
| Saddle |
ACID Sequence 160 |
| Seat Post |
CUBE Performance Post, 31.6mm |
Product Information
| Colour |
royalgreen´n´prism |
| Weight | 24,9 kg |
| Art. No |
108111 |
