YOUR NEW WAY TO RIDE |

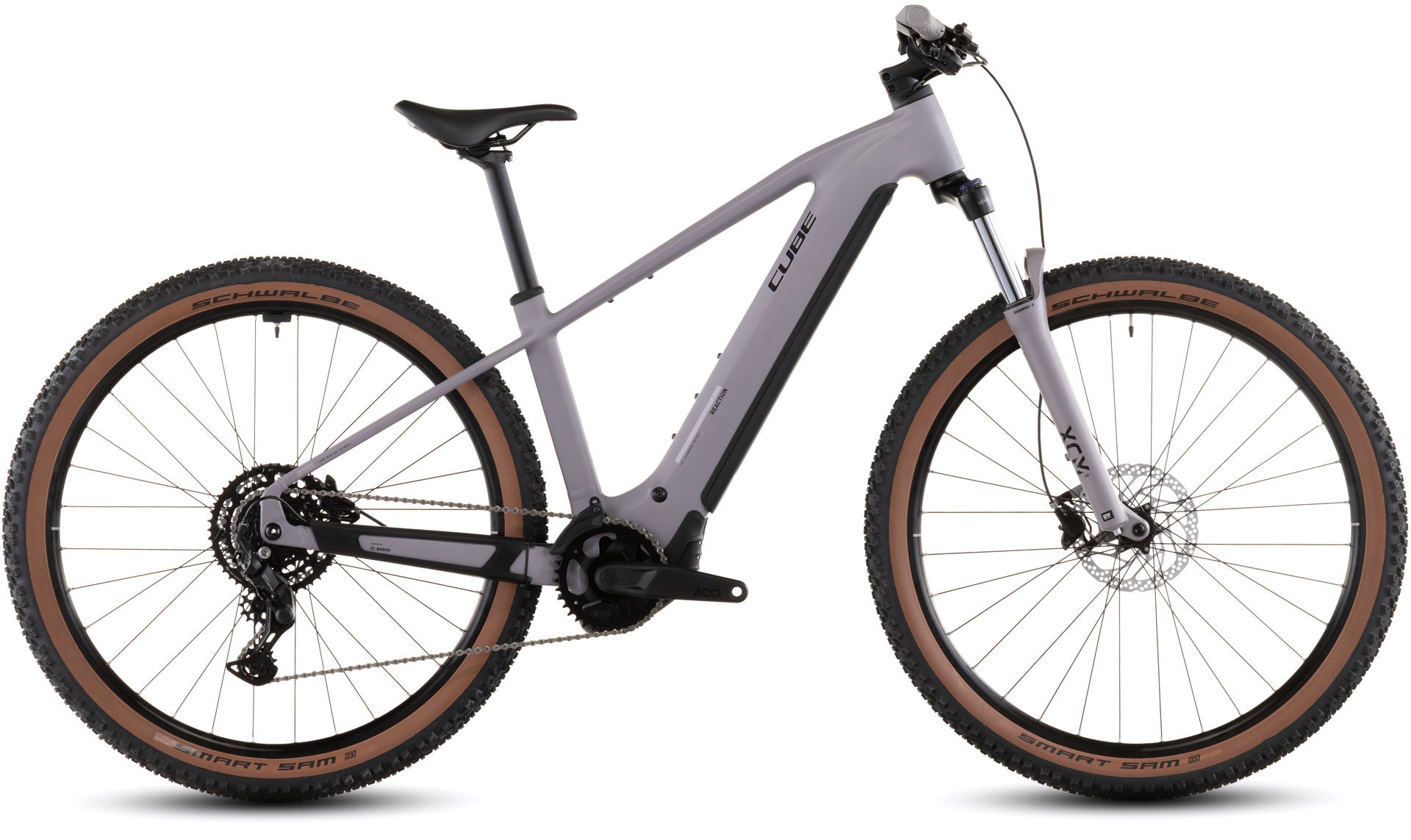

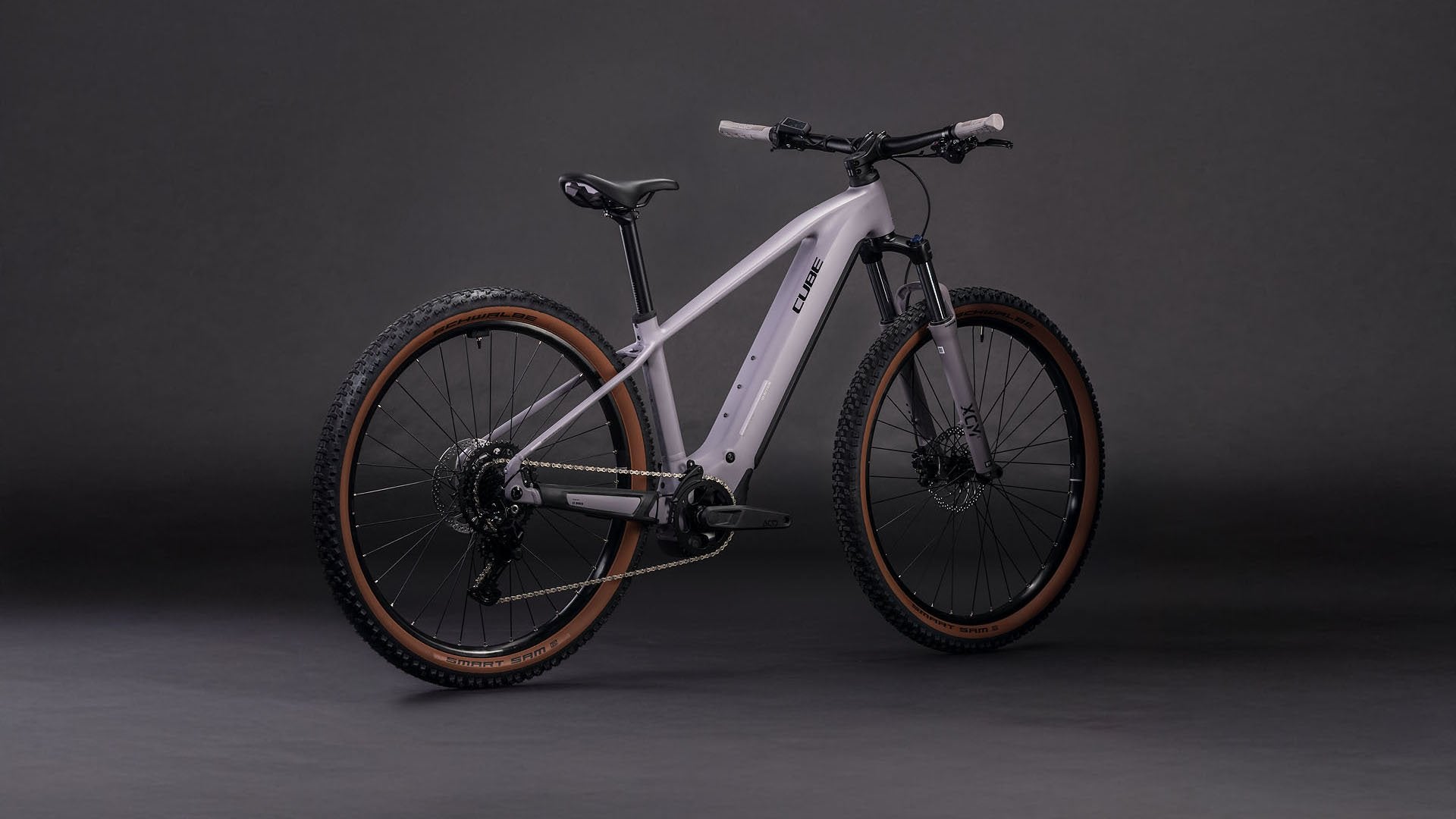

The versatile and rugged Reaction Hybrid Performance is built around Bosch's quiet, powerful Performance motor with 75 Nm torque. It's Bosch Smart System-equipped and fitted with a 600Wh battery for miles of pedal assistance. There's a clever flat mount for an optional kickstand and a mounting point for a multi-tool under the top tube. The Internal Cable Routing plus an innovative speed sensor setup flatter the frame's clean lines, and we built in our X-Connect system to make it easy to add a compatible ACID front light just by plugging it in. And, with Size Split, it's simple to find the perfect fit for you. |
| Frame Material | Battery |
|
Aluminium Superlite |
600 Wh |
Frame
| Frame |

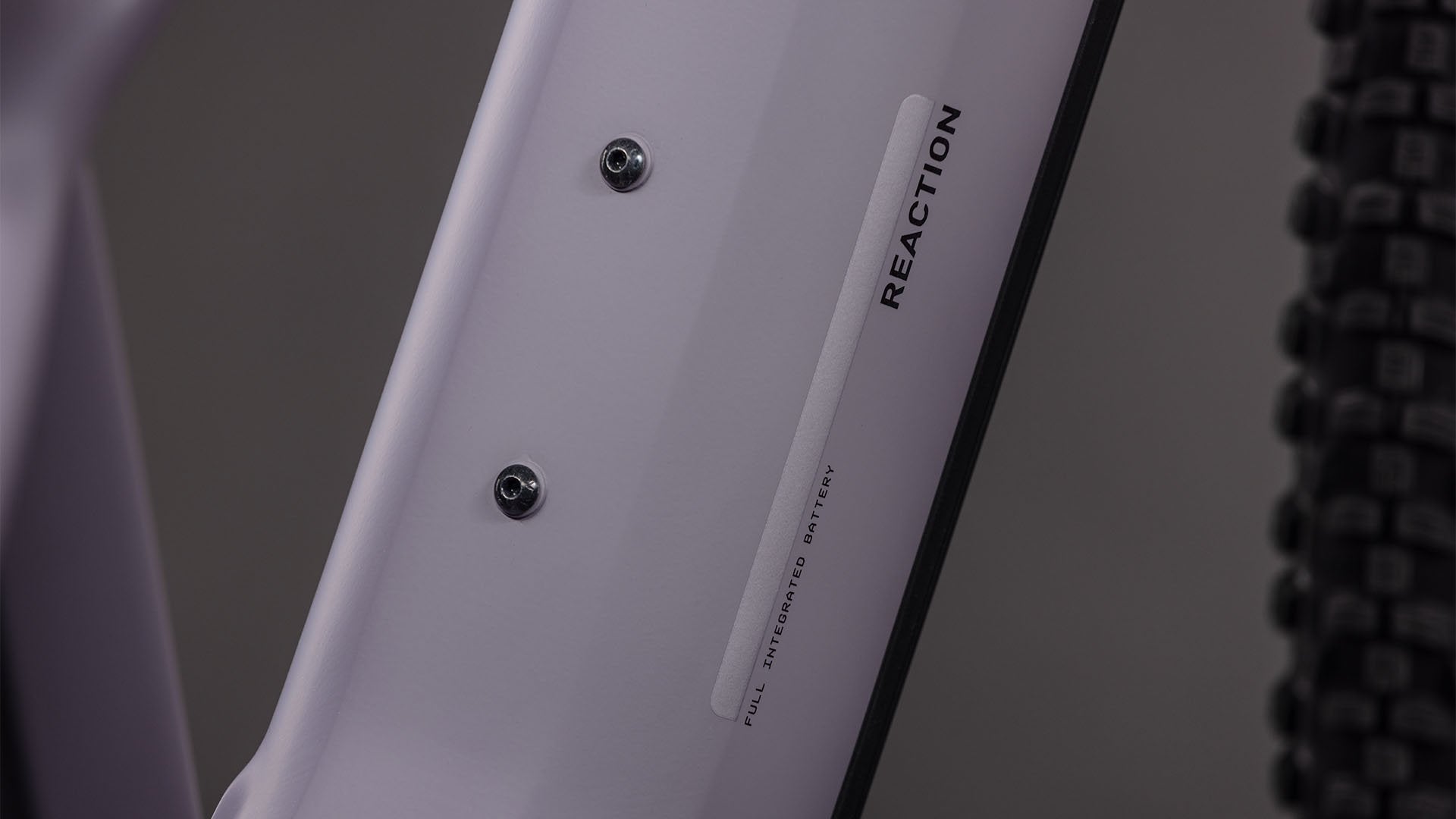

Aluminium Superlite, Gravity Casting Technology, Agile Ride Geometry, Boost148, Fully Integrated Battery, Advanced Internal Cable Routing, 1.5 Headtube, Kickstand/Fender/Carrier Mounting Points |
| Size |
Classic: Size Split: 27.5: S // 29: M, L, XL, XXL |
Suspension

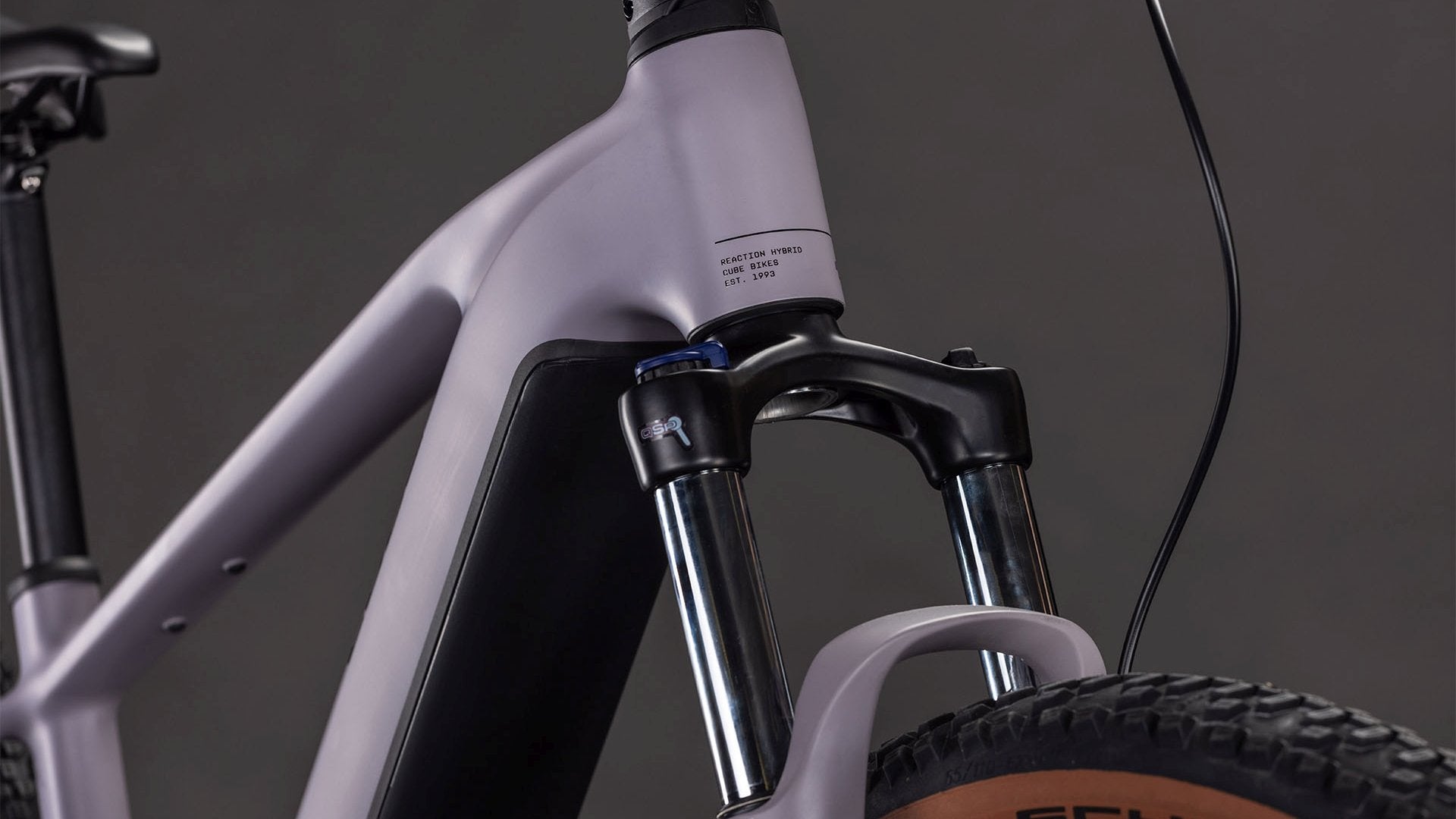

| Suspension Fork |
SR Suntour XCM34 NLO Coil, Tapered, 15x110mm, 120mm (27.5: 100mm) |
E-Bike System
| Drive Unit | Remote | Battery | Charger |
 |
 |
 |
 |
|
Bosch Drive Unit Performance Line 75Nm (BDU34) |
Bosch Purion 200 with Integrated Display | Bosch PowerTube 600 | Bosch 2A |
Drivetrain & Brakes
| Brake System |
Shimano BR-MT200, Hydr. Disc Brake (180/180) |
| Rear Derailleur |
Shimano Cues RD-U4000-GS, 9-Speed |
| Shifters |
Shimano Cues SL-U4010- Rapidfire-Plus |

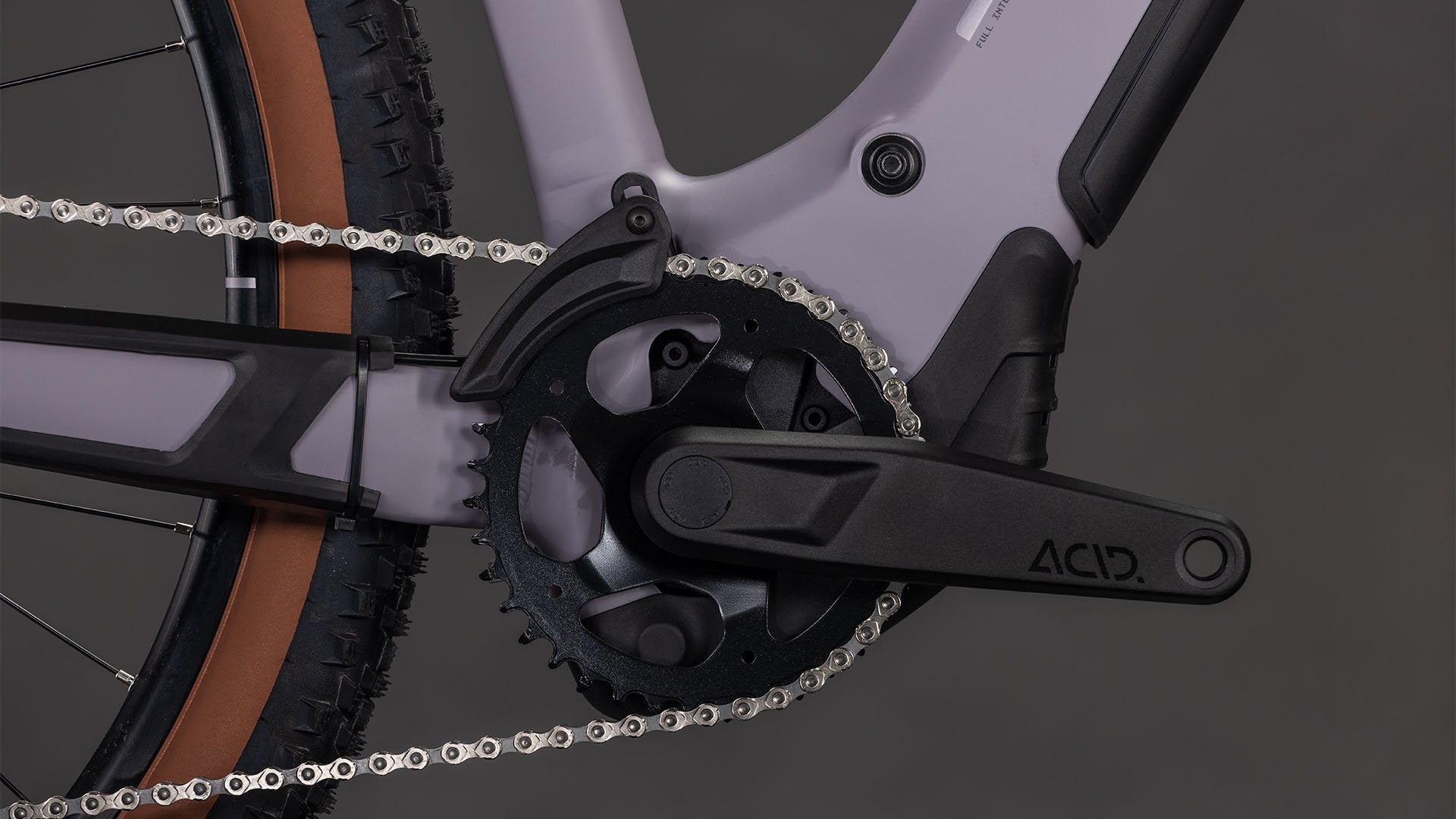

| Crankset |
ACID MTB Hybrid Pro, 38T |
| Cassette |
Shimano Cues CS-LG300, 11-46T |
| Chain | KMC eGlide |
| Chain Guide |
Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate |
Cockpit
| Headset |
ACROS AZF-1034, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), X-Connect Interface |
| Stem |
CUBE Performance Stem E-MTB 35, FPI-Link |
| Handlebar |
CUBE Rise Trail Bar 35 |
| Grips |
ACID Hybrid Perform |
Wheels
| Wheelset | ACID Pro 30, 32/32 Spokes, 15x110mm/12x148mm, Tubeless Ready |
| Tyres |
Schwalbe Smart Sam, Active, 2.6 |
Finishing Kit
| Saddle |
ACID Sequence 160 |
| Seat Post |
CUBE Performance Post, 31.6mm |
Product Information
| Colour |
plumgrey´n´black |
| Weight | 24,6 kg |
| Art. No |
107140 |
