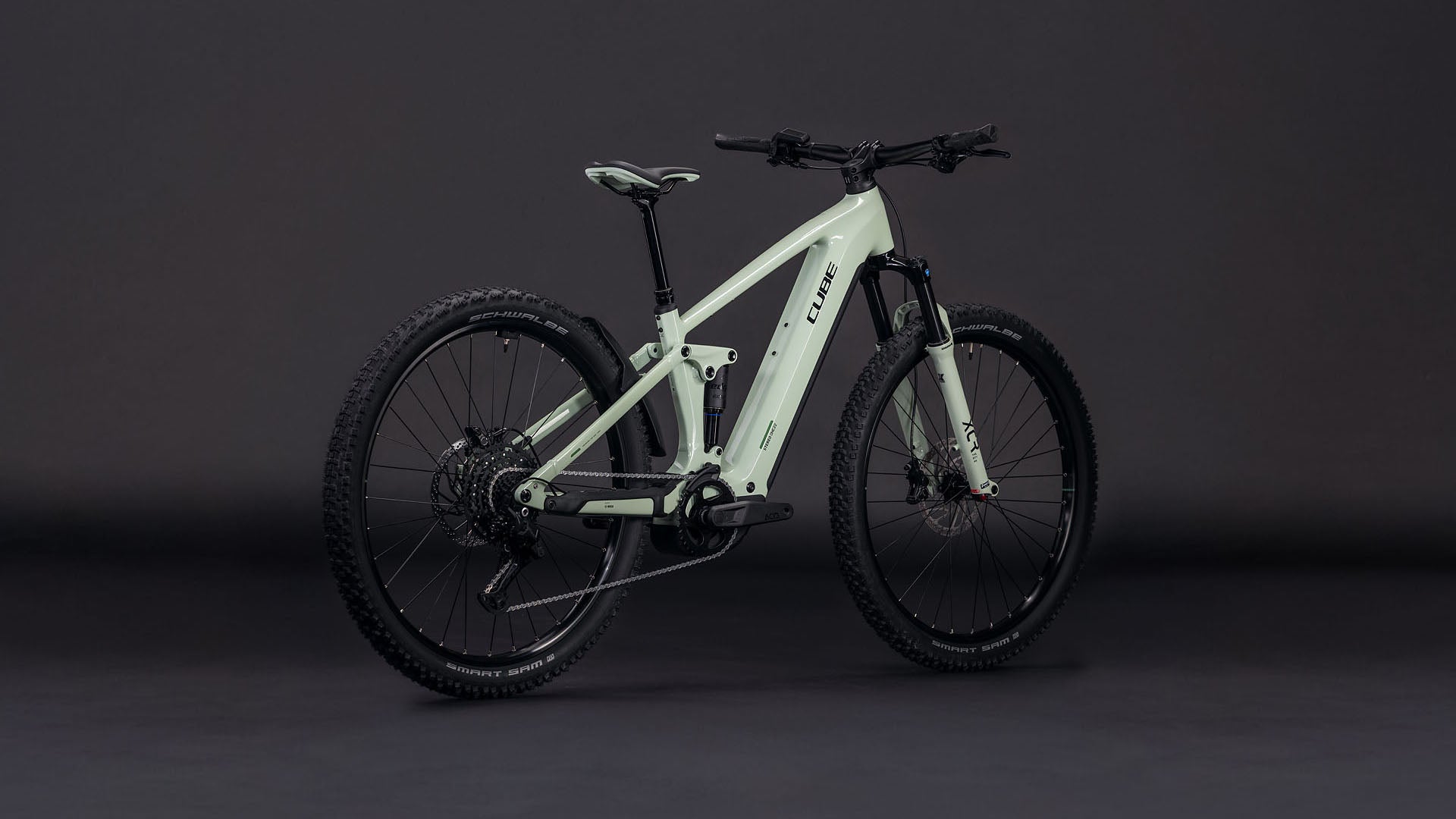

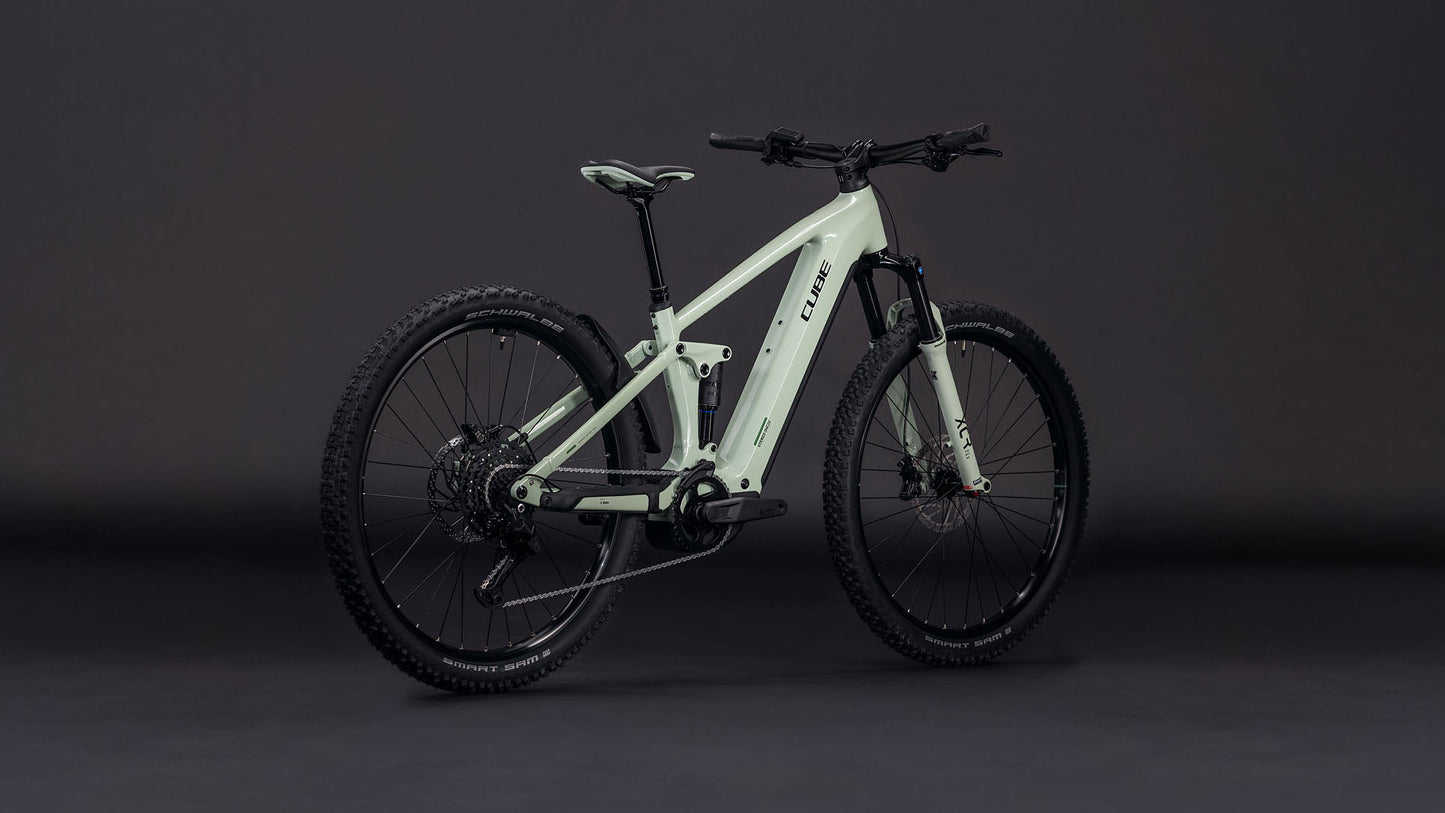

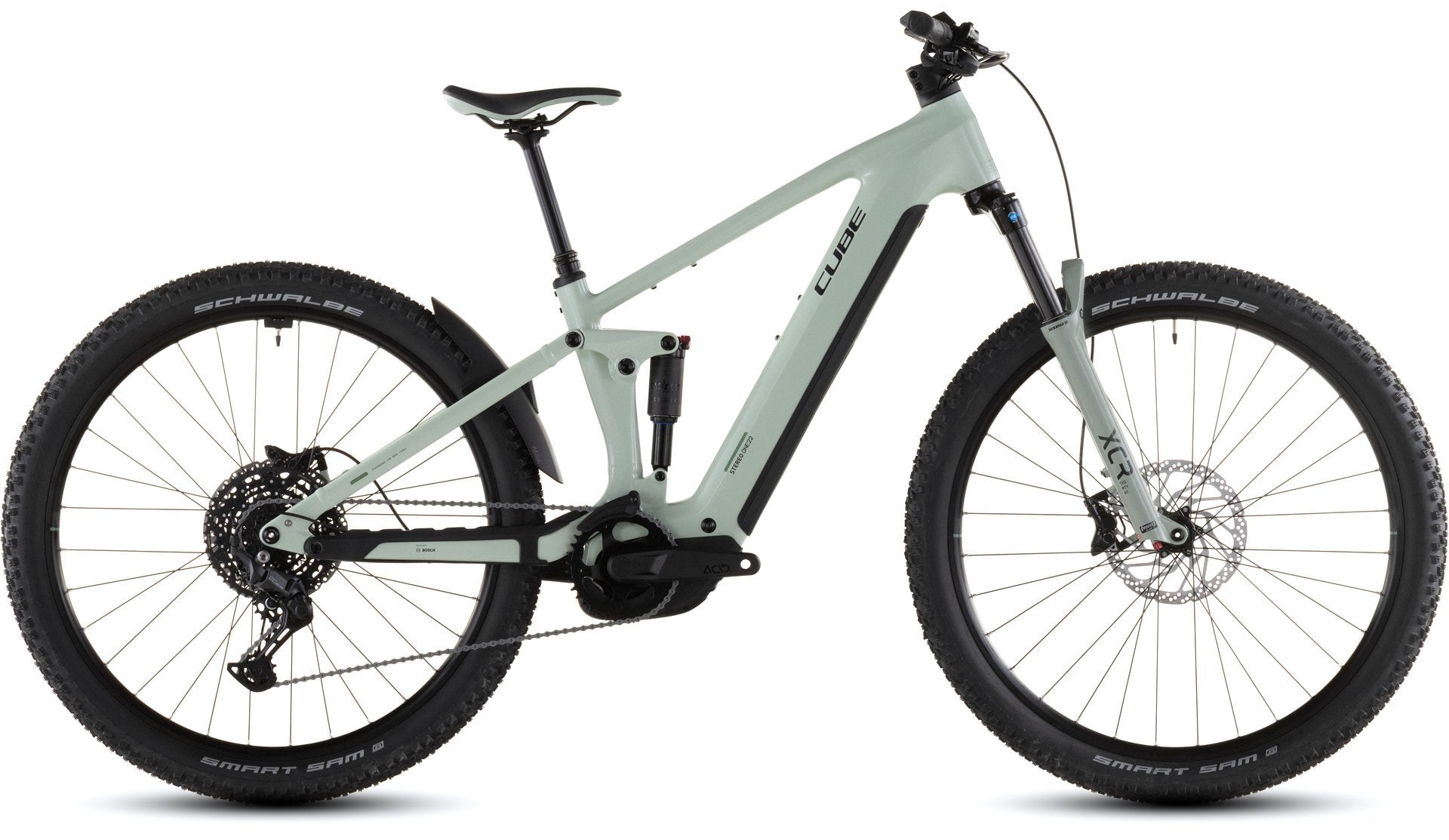

THE ALL ROUNDER |

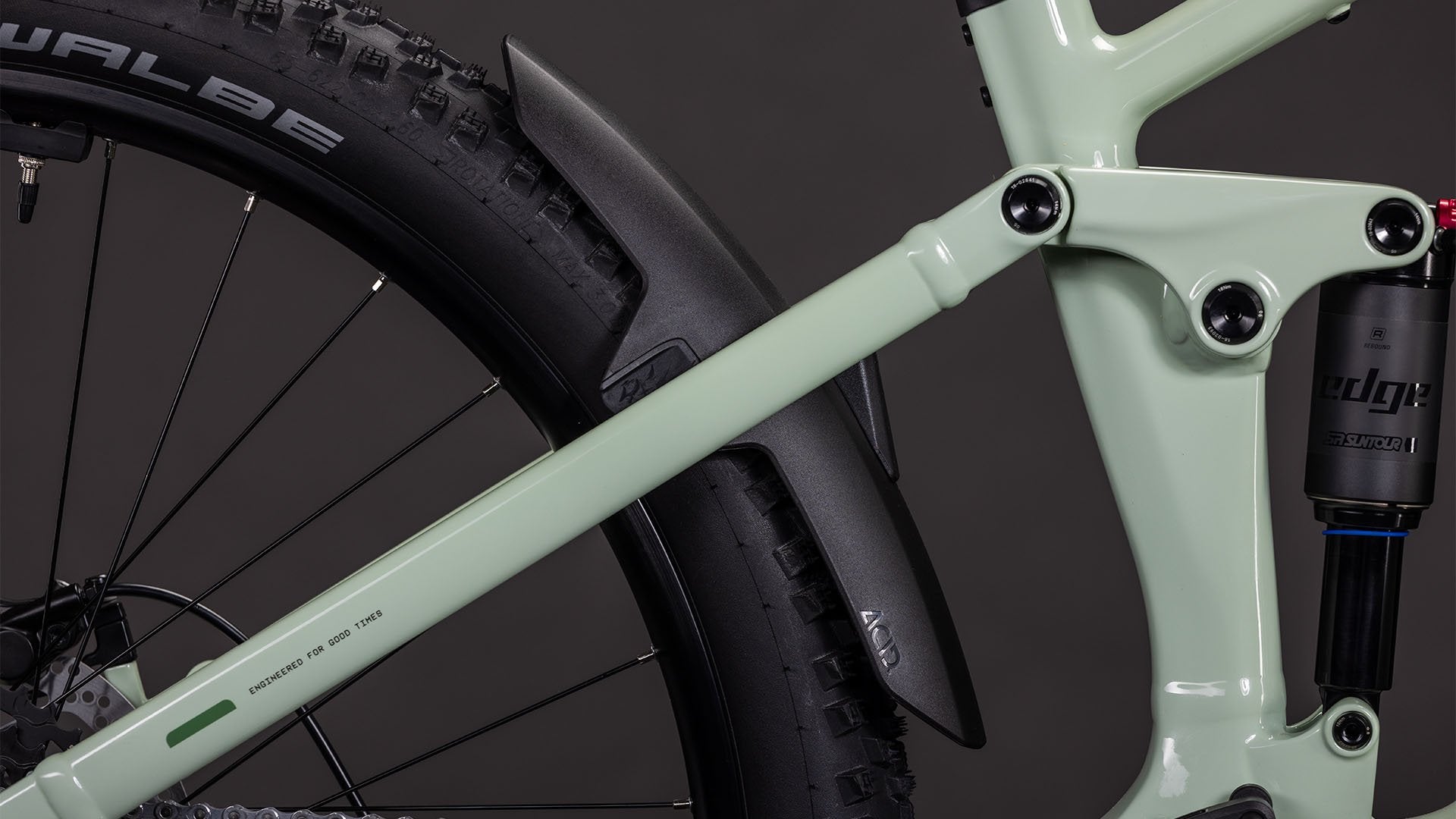

With added Bosch power and proven CUBE suspension kinematics, our trail explorer is a bike for all reasons. Suspension design that's stood the test of time is designed to work with a 120mm fork – including a mudguard mount – for the best in comfort and control. We fitted an 800Wh battery to power the Bosch CX drive unit, for worry-free extended rides. The UDH dropout, integrated cable routing and Direct Mount chain guard are all examples of the attention to detail we put into all our frames. And, with Size Split, you're sure to be able to find the perfect fit. |
| Frame Material | Sizes |
|
Aluminium Superlite |
Size Split |
Frame
| Frame |
Aluminum Superlite, Gravity Casting Technology, Efficient Comfort Control, FSP 4-Link, Agile Comfort Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points, Integrated Seatclamp |
| Size |
Size Split: 27.5: S // 29: M L XL |
Suspension

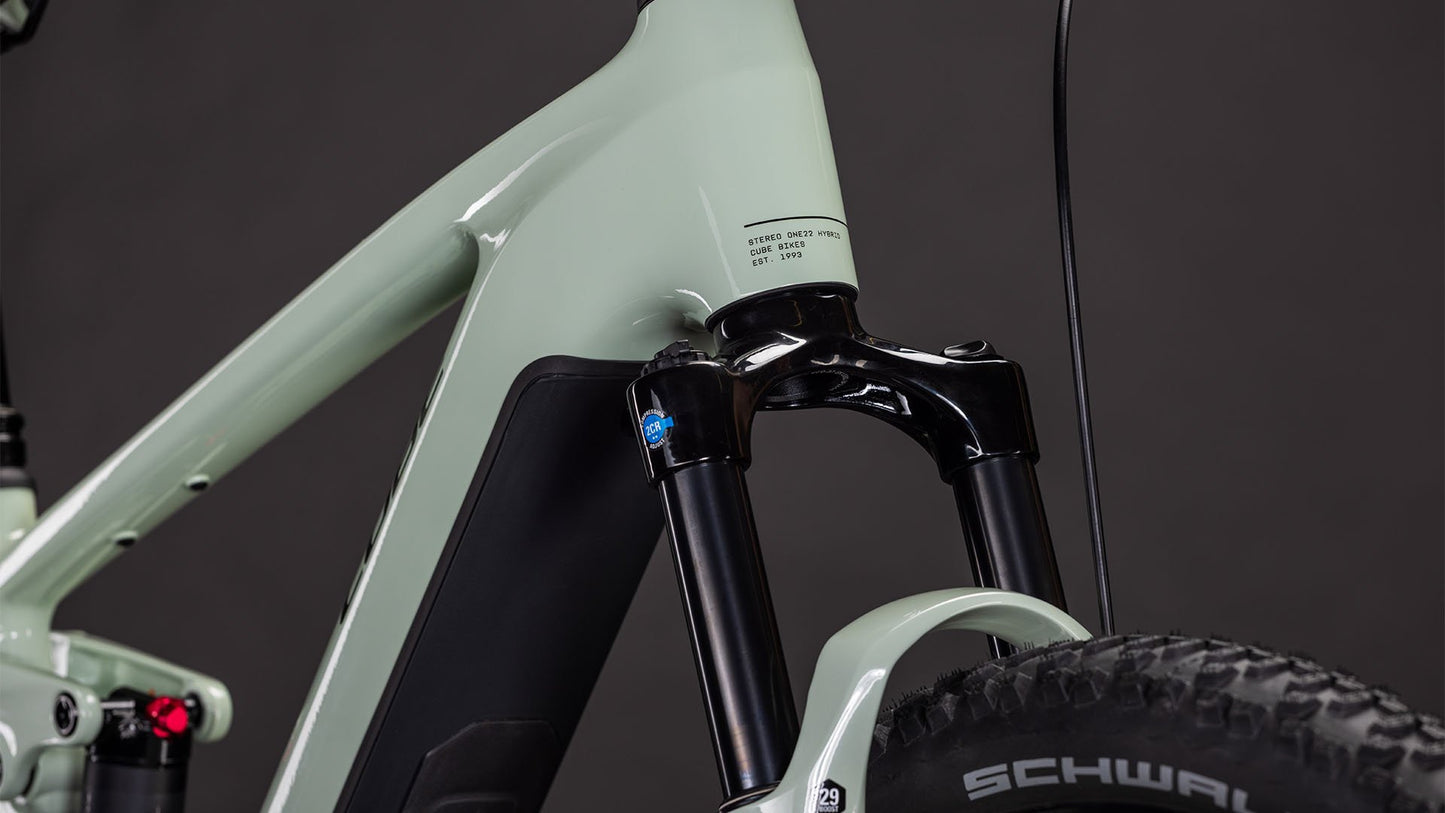

| Suspension Fork |
SR Suntour XCR34X 2CR Air, Tapered, 15x110mm, 120mm |

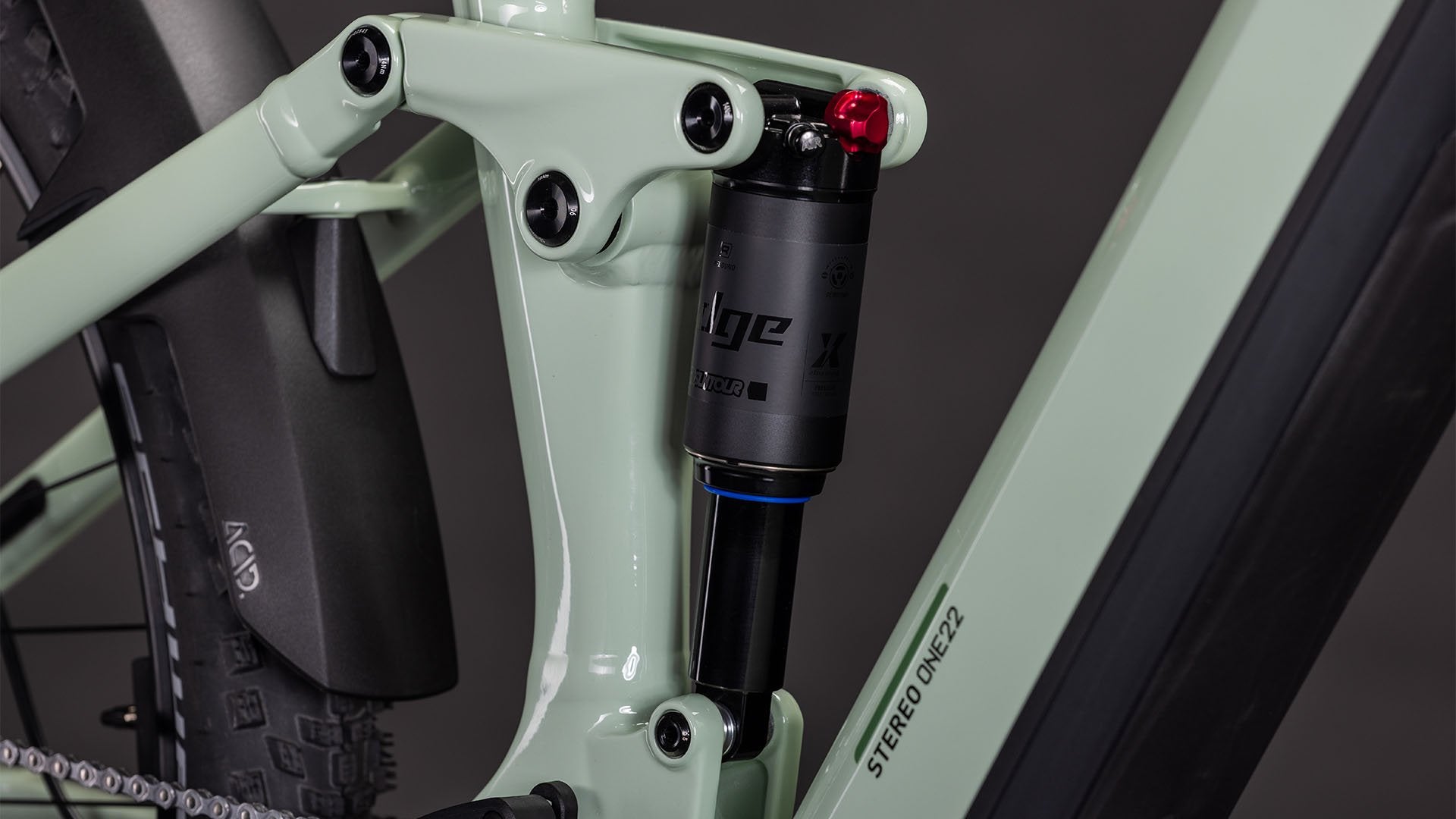

| Shock |
SR Suntour EdgeX R 185x52.5mm, Rebound Adjust, Trunnion Mount |
| Shock Hardware |
Top: 54mm Trunnion Mount, Bottom: 22.2x8mm |
E-Bike System
|
Drive Unit |
Bosch Drive Unit Performance Line CX max. 100Nm (BDU38) |
| Remote |
Bosch Purion 200 with Integrated Display |
|
Battery |
Bosch PowerTube 800 |
| Charger | Bosch 2A |
Drivetrain & Brakes
| Brake System |
Shimano BR-MT420, Hydr. Disc Brake (203/203) |
| Rear Derailleur |
SShimano Cues RD-U6000-GS, 10-Speed |
| Shifters |
Shimano Cues SL-U6000, Rapidfire-Plus |
| Crankset |
ACID MTB Hybrid Pro, 38T |
| Cassette |
Shimano Cues CS-LG300, 11-48T |
| Chain |
KMC eGlide |

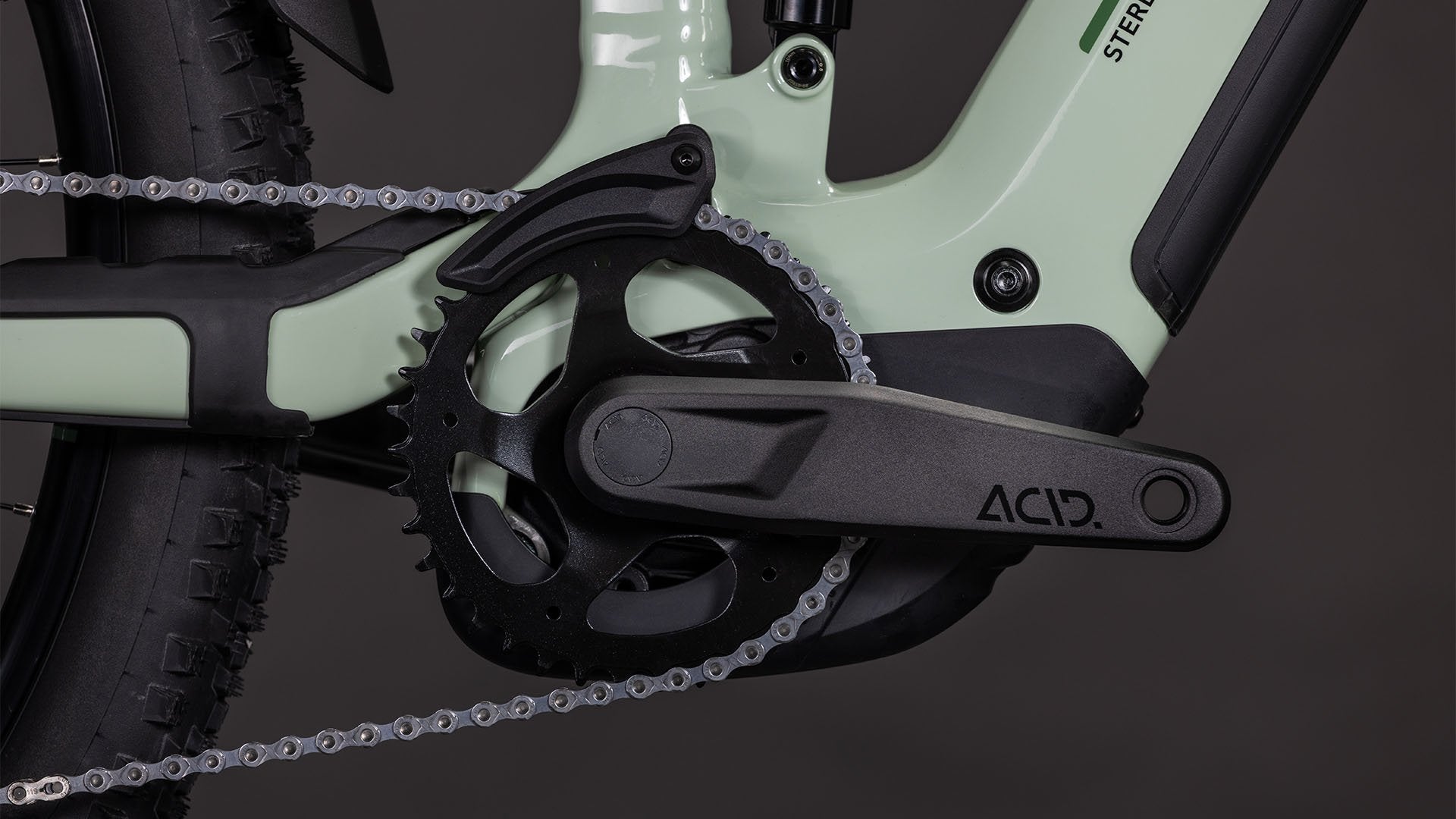

| Chain Guide |
RReverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate |
Cockpit
| Headset |
ACROS AZF-1034, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), X-Connect Interface |
| Stem |
CUBE Performance Stem E-MTB 35, FPI-Link |
| Handlebar |
CUBE Rise Trail Bar 35 |
| Grips |
ACID Hybrid Perform |
Wheels
|
Wheelset |
ACID PRO 30, 32/32 Spokes, 15x110mm/12x148mm, Tubeless Ready |
| Tyres |
Schwalbe Smart Sam, Active, 2.6 |
Finishing Kit
| Saddle |
ACID Venec EMTB Plus 145 |
| Seat Post |
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm |
| Pedals | ACID PP MTB |
Product Information
| Colour |
stonegrey´n´black |
| Weight | 26,8 kg |
| Item Number | 101130 |
