TRAILS, YOUR WAY |

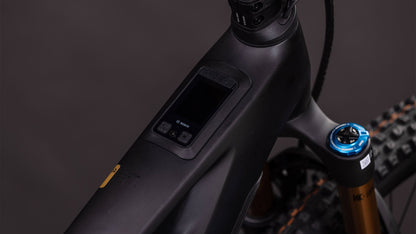

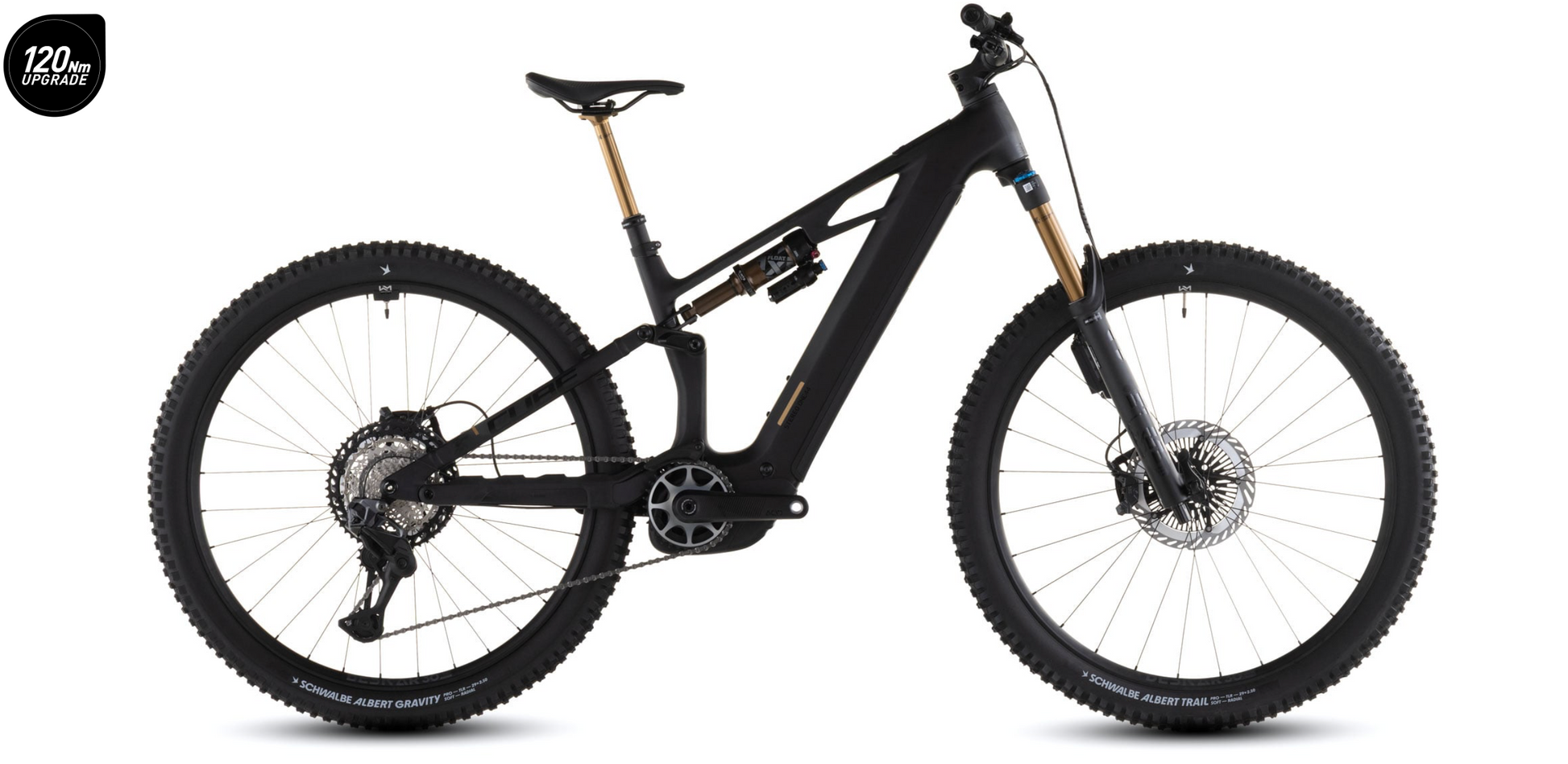

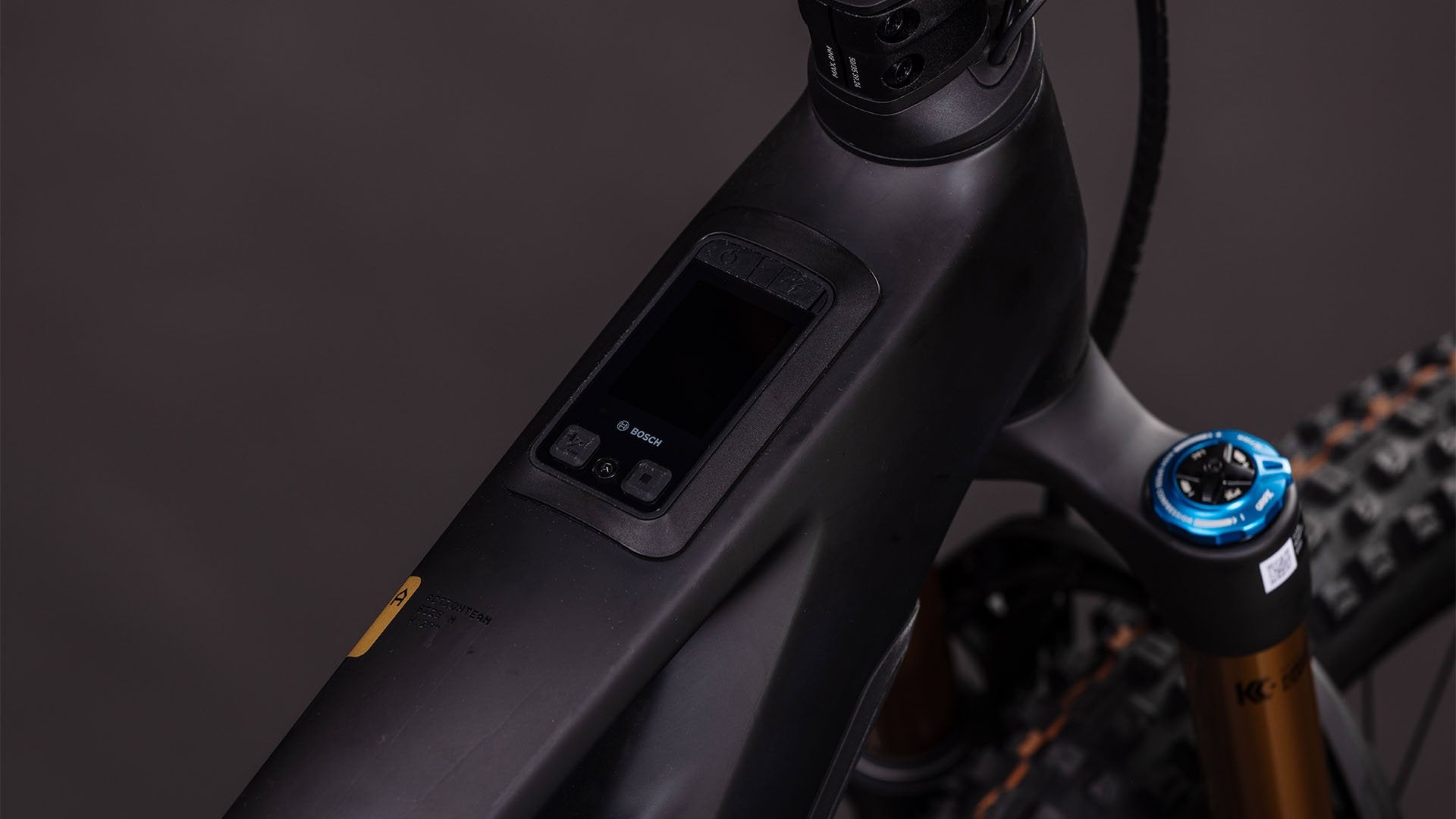

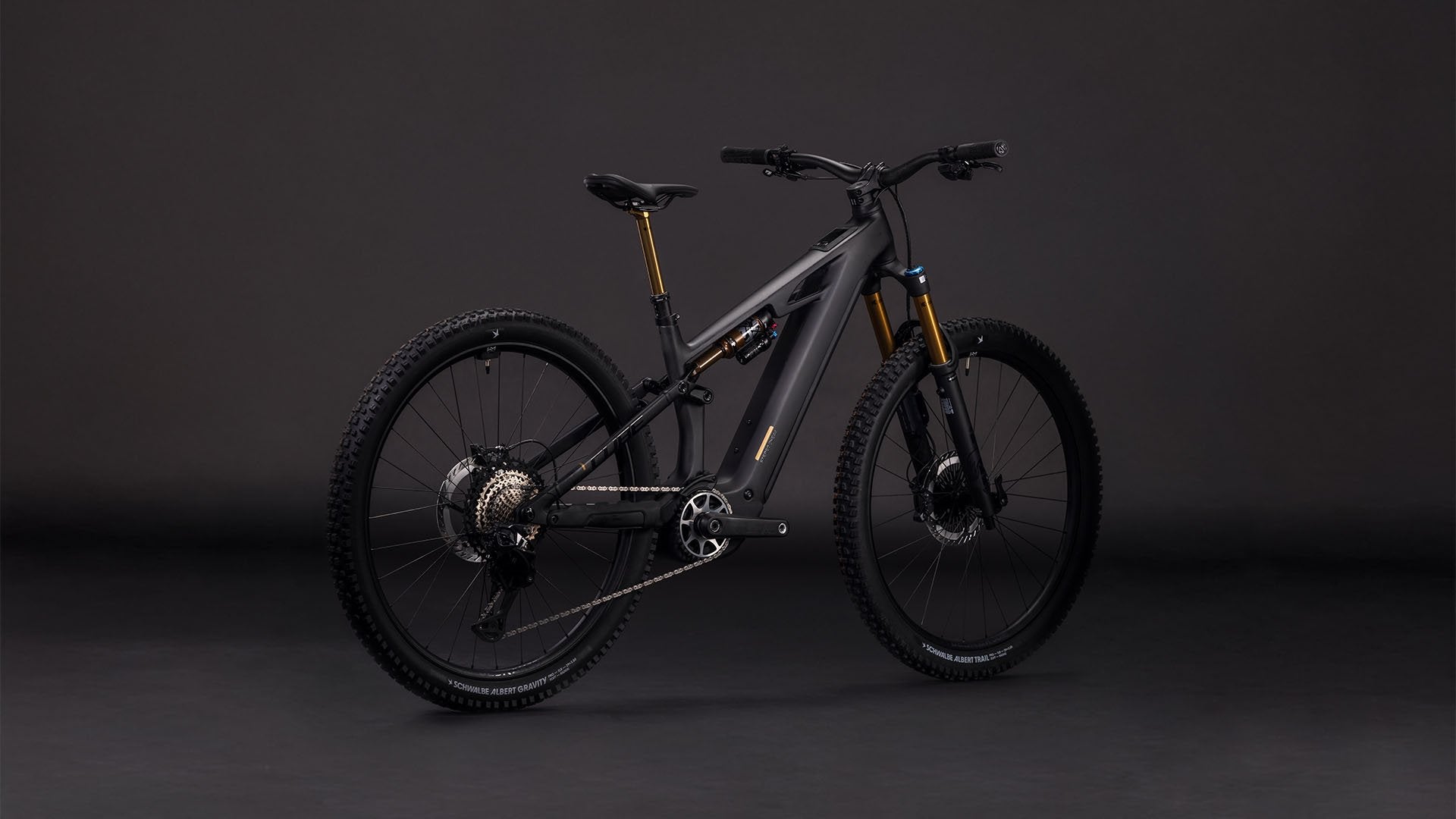

A great bike is all about the detail, and the Stereo Hybrid ONE44 HPC's frame is chock-full of clever details. You'll notice the Internal Cable Routing because it so neatly complements the High Performance Carbon main triangle's clean lines, while the angle-adjustable headset means you can tailor the handling to your specific requirements. A Direct Mount chain guard keeps the gears on the straight and narrow, and the neatly integrated Bosch top tube controller plus Purion 400 display show you what's going on with the powerful Bosch CX drive and 800Wh PowerTube battery at a glance. With a 150mm fork and 140mm of rear-wheel travel, it's ready to take on the toughest of trails. The UDH dropout means it's future-proof, too. And, with Size Split, there's a wide range of sizes to suit most riders. |
| Frame Material | Battery | Sizes |
| High Performance Carbon | 800 Wh | Size Split |
Frame
| Frame |
C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing |
| Size |
Size Split: 27.5: S // 29: M L XL |
Suspension
| Suspension Fork |

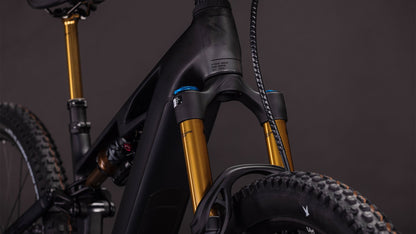

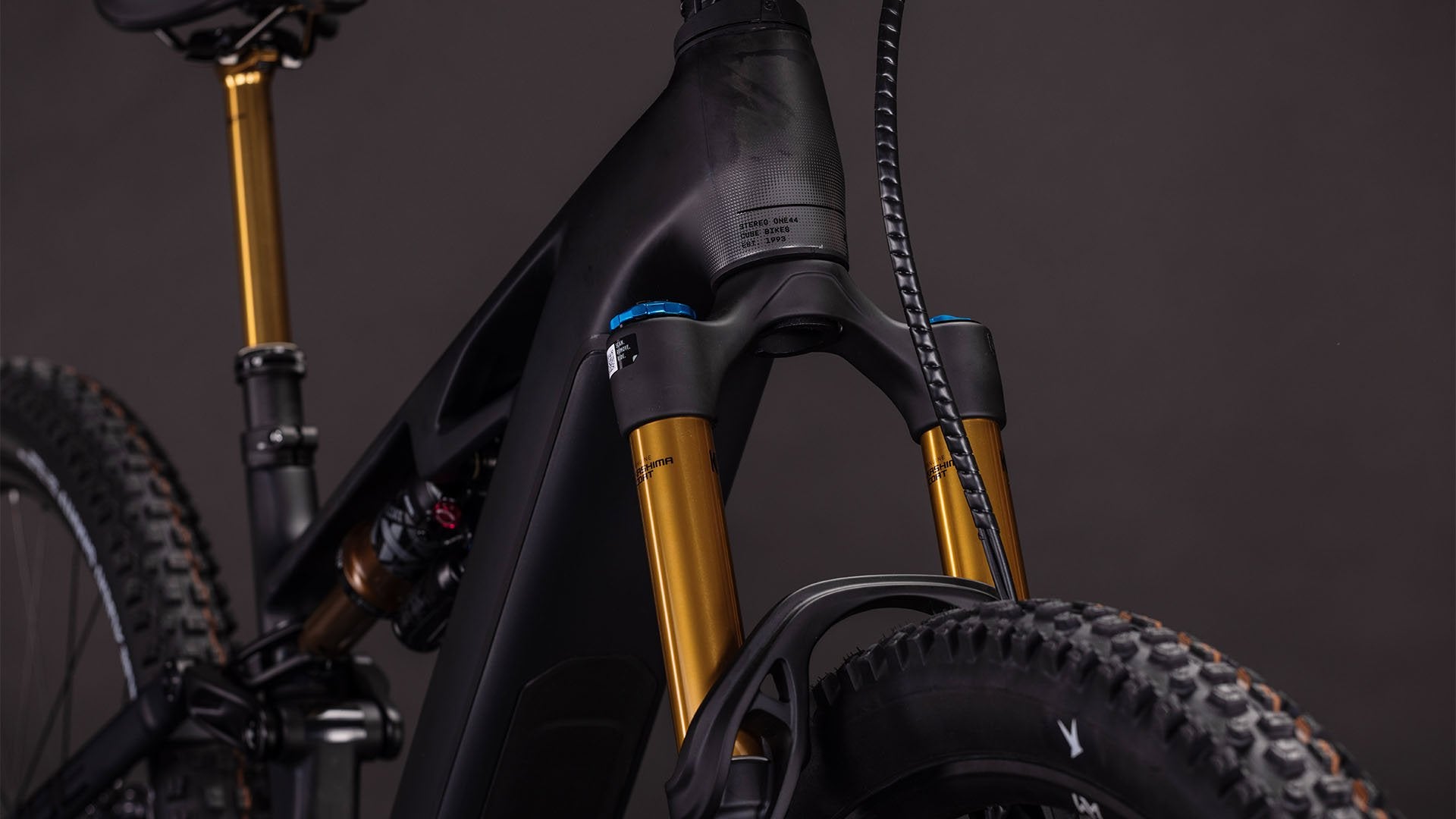

Fox 36 Float Factory GRIPX, Tapered, 15x110mm, E-Bike Optimized, 150mm (S: 140mm) |
| Shock |

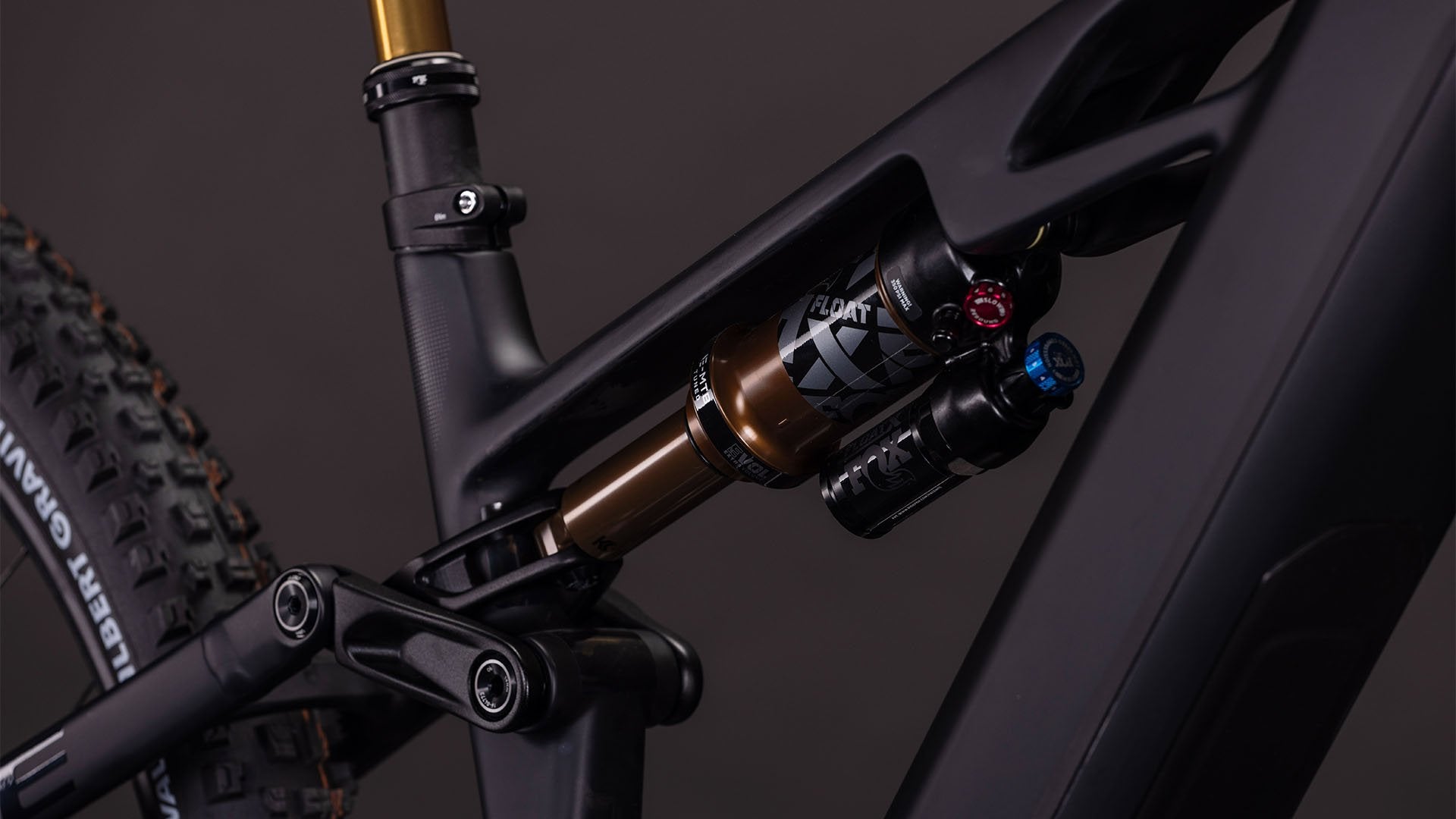

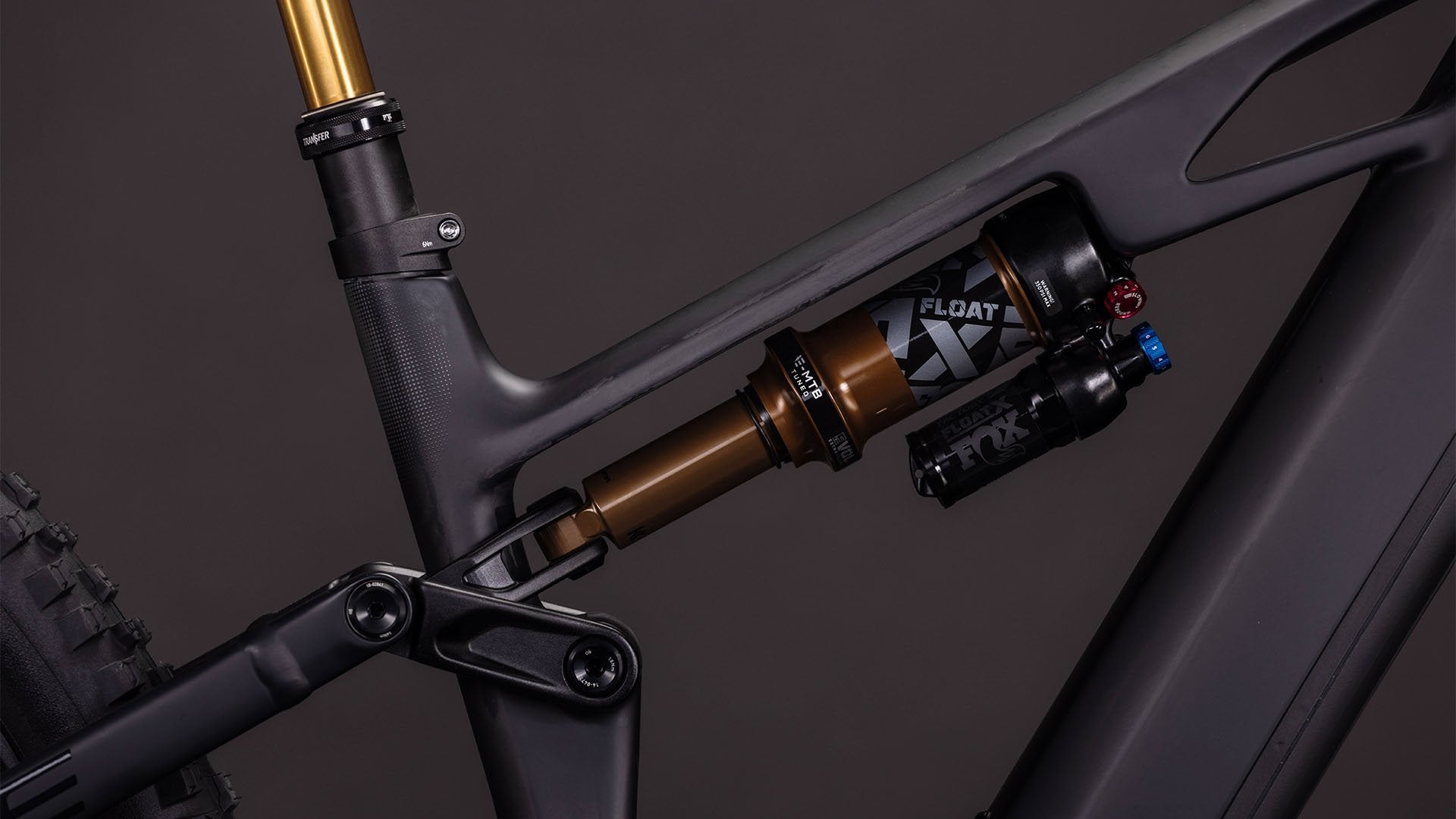

Fox Float X Factory, 230x60mm (27.5: 210x55mm), Adjustable LSC/LSR w/ 2-Pos. Lever |
| Shock Hardware |
Front: 30x8mm, Rear: DU-Bushing 12.7mm |
E-Bike System
|
Drive Unit |
Bosch Drive Unit Performance Line CX max. 120Nm (BDU38) |
| Remote | Bosch Mini Remote |
|
Battery |
Bosch PowerTube 800 |
|
Display |
Bosch Kiox 400C |
| Charger | Bosch 4A |
Drivetrain & Brakes
| Brake System |
Shimano XT BR-M8220, Hydr. Disc Brake w/ Front ABS (203/203) |
| Rear Derailleur |
Shimano XT Di2 RD-M8260-SGS, 12-Speed, Electronic Shifting System |
| Shifters |
Shimano XT Di2 SW-M8250-IR, Direct Attach |
| Crankset |

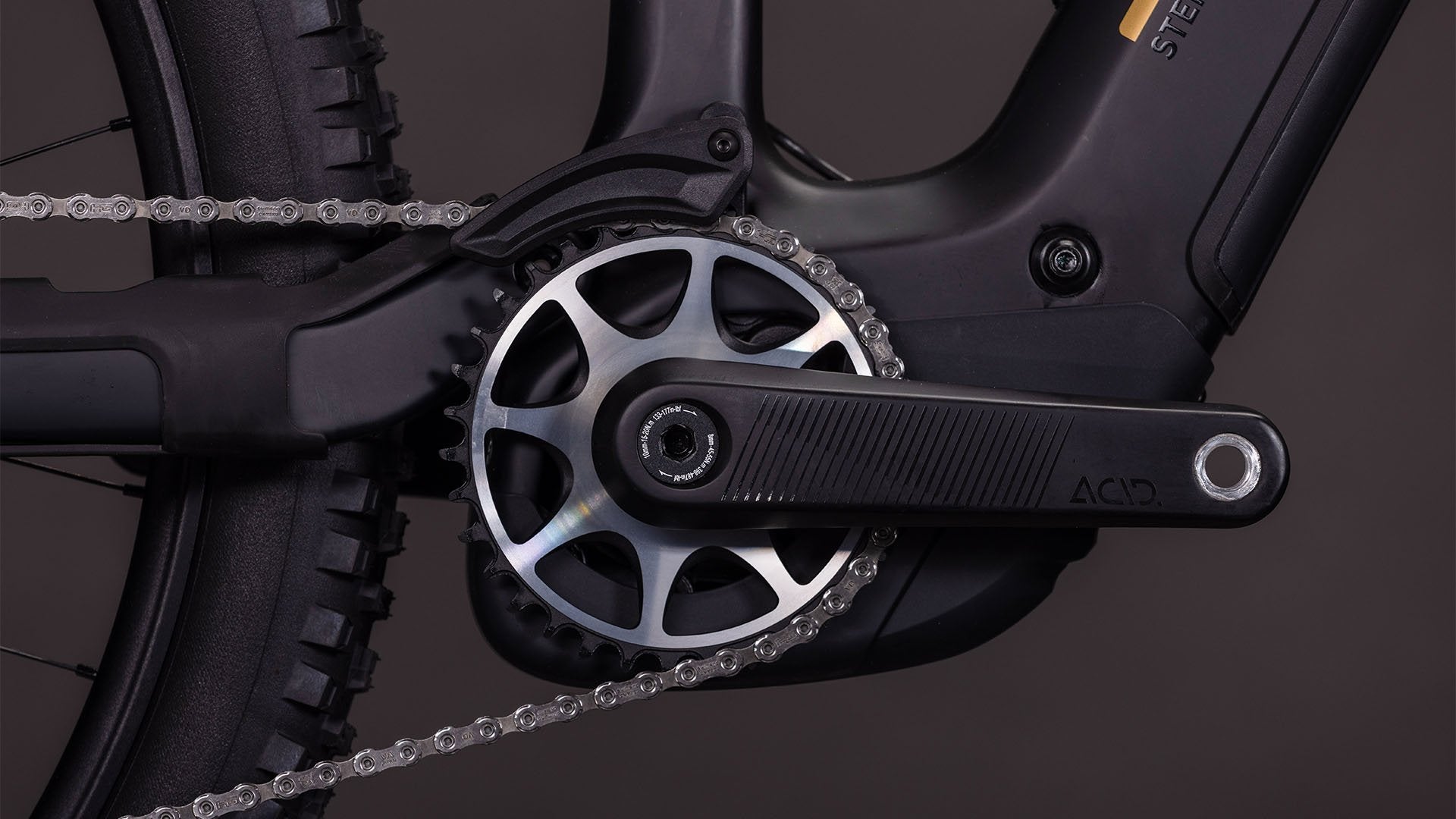

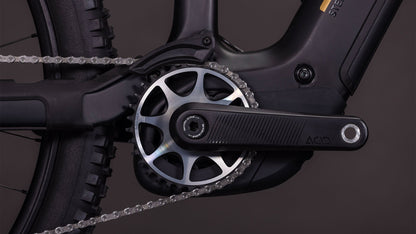

ACID MTB Hybrid Carbon, 27.5: 36T // 29: 34T |
| Cassette |
Shimano XT CS-M8100, 10-51T |
| Chain |
Shimano CN-M8100 |
| Chain Guide |
Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate |
Cockpit
| Headset |
ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface |
| Stem |
CUBE Performance Stem E-MTB 35, FPI-Link |
| Handlebar | Race Face ERA 35 |
| Grips | ACID Disrupt |
Wheels
|
Wheelset |
Newmen Beskar 30 base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready |
| Front Tyre |
Schwalbe Albert Trail Pro, Addix Soft, Kevlar, 2.5 |
| Rear Tyre |
Schwalbe Albert Gravity Pro, Addix Soft, Kevlar, 2.5 |
Finishing Kit
| Saddle |
ACID Venec EMTB Trail 140 |
| Seat Post |
Fox Transfer Factory 31.6mm, Kashima Coated |
Product Information
| Colour | carbon´n´gold |
| Weight | 24,3 kg |
| ArtNo | 102800 |
