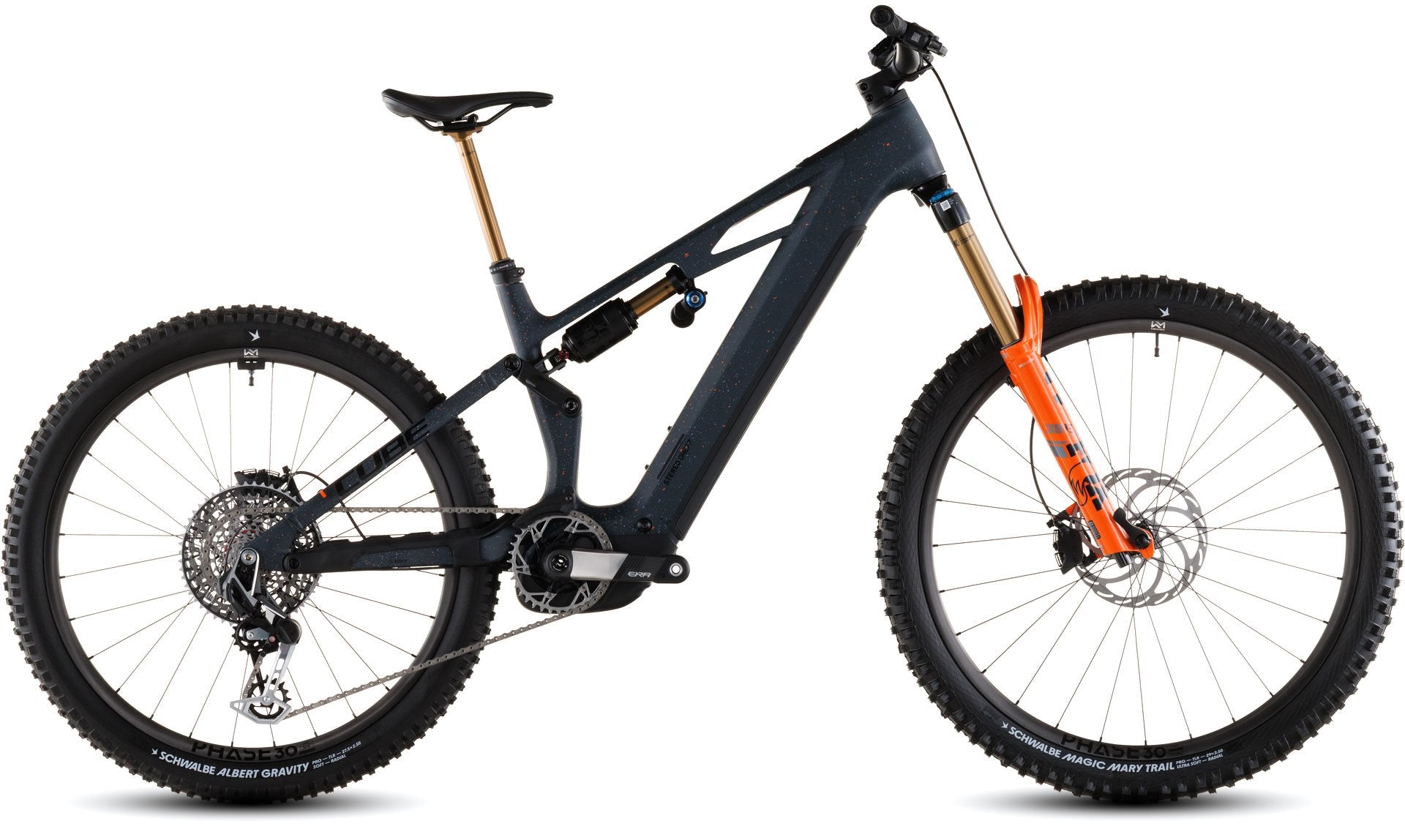

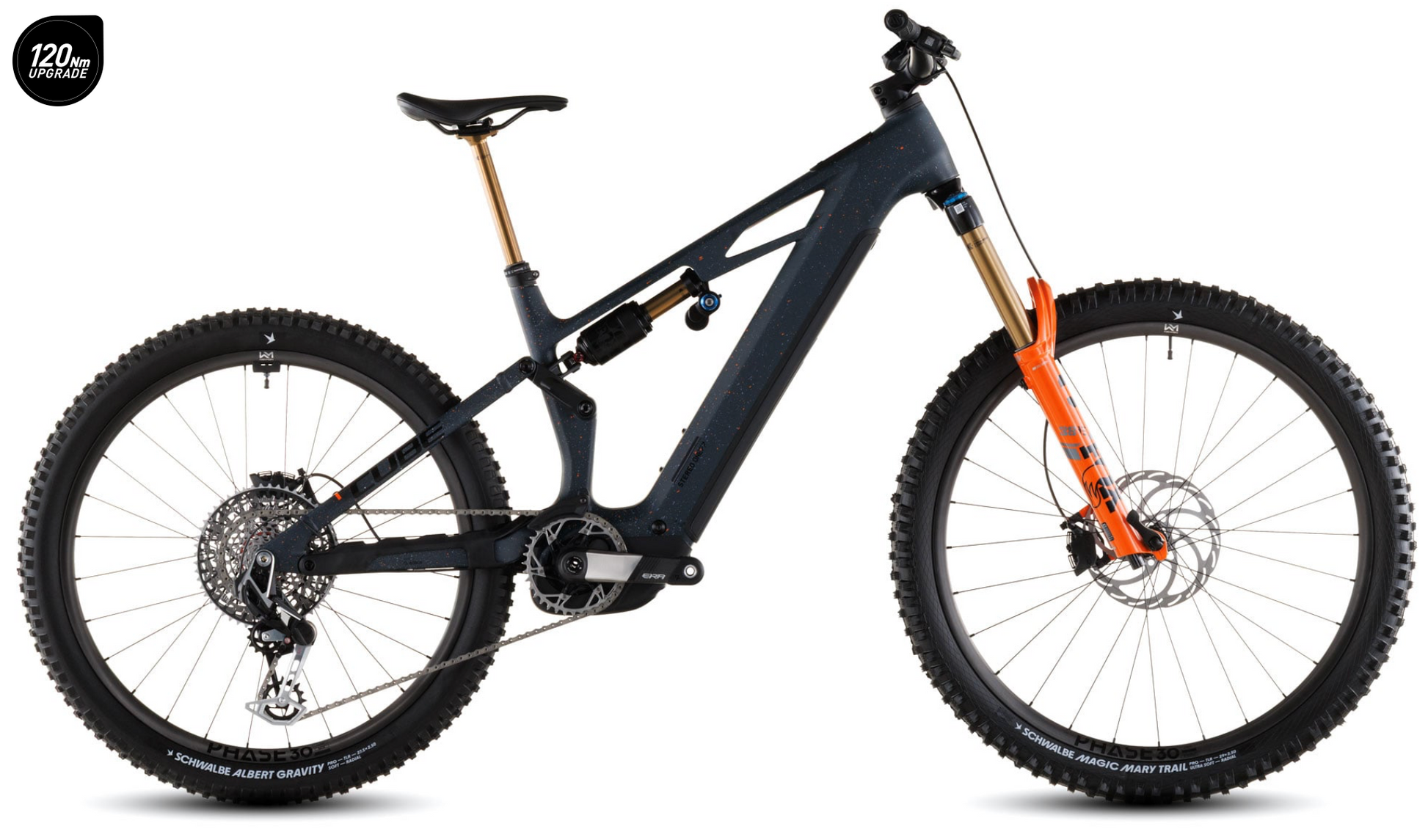

The Stereo Hybrid ONE77 HPC frame – with 170mm travel front and rear and a mullet wheel set-up with 29in front and 27.5in rear – is all you need for big days out on big mountain trails. But, as with all CUBE designs, the devil is in the detail. So, for example, we added Integrated Cable Routing for super-clean looks, and then threw in an angle-adjustable headset so that you can tweak the handling to your taste. The 800Wh PowerTube battery sits unobtrusively in the carbon down tube, just above the Bosch CX-R drive. A UDH dropout on the aluminium rear triangle is tough and future-proof, and we also added a Direct Mount chain guide to keep you driving forwards even when the going gets rough. |
| Frame Material | Battery | Wheels |
| High Performance Carbon | 800 Wh | 29" / 27.5" |
Frame
| Frame |
C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing |
| Size | S M L XL |
Suspension
| Suspension Fork |

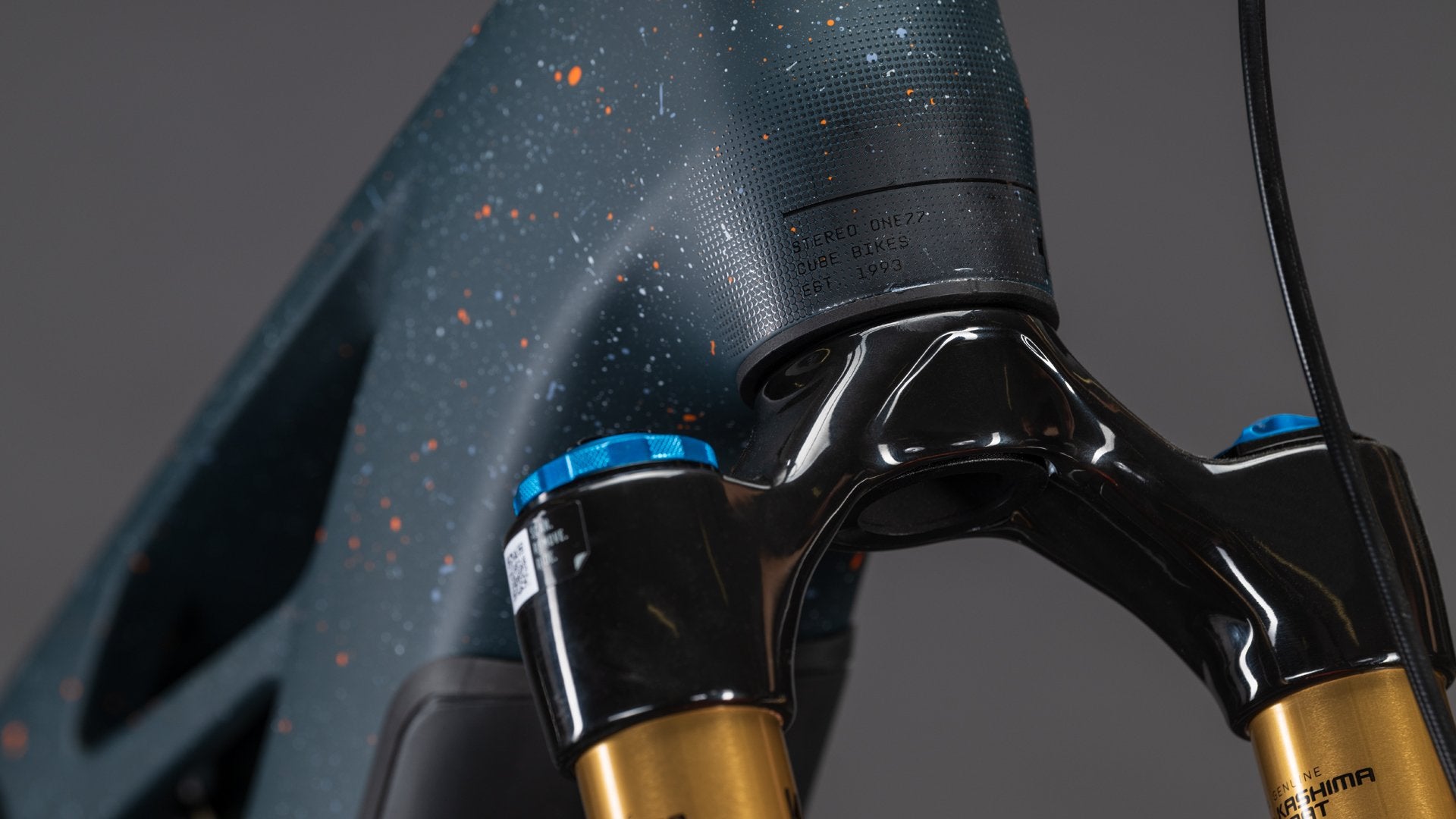

Fox 38 Float Factory GRIPX2, Tapered, 15x110mm, E-Bike Optimized, 170mm, Kashima Coated |
| Shock |

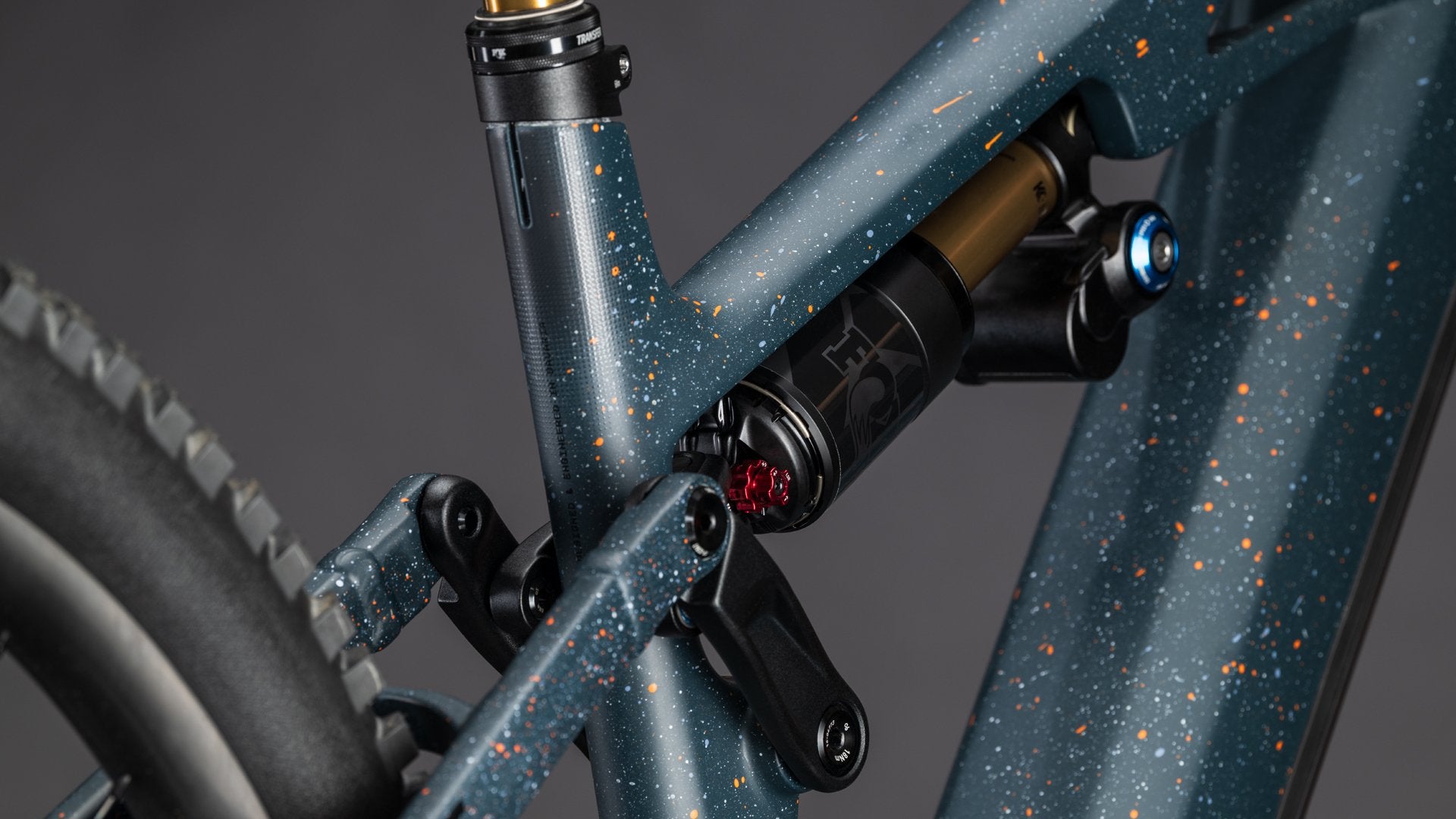

Fox Float X2 Factory, 230x65mm, Adjustable HSC/LSC/HSR/LSR w/ 2-Pos. Lever |
| Shock Hardware |
Front: 30x8mm, Rear: DU-Bushing 12,7mm |
E-Bike System
| Drive Unit | Remote | Battery | Display | Charger |
 |
 |
 |
 |
 |
|
Bosch Drive Unit Performance Line CX-R 100Nm (BDU38) |

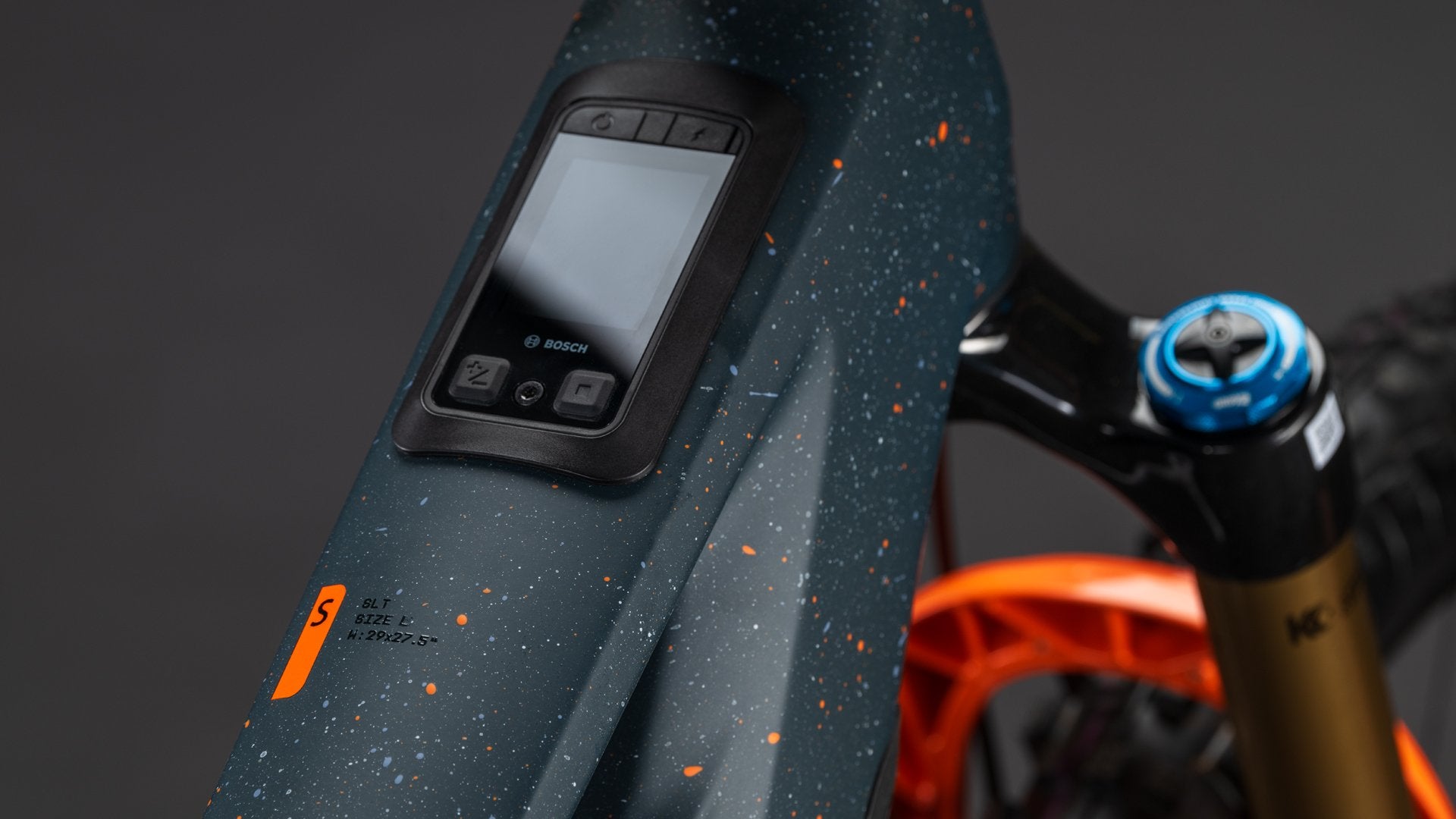

Bosch Mini Remote | Bosch PowerTube 800 | Bosch Kiox 400C | Bosch 4A |
Drivetrain & Brakes
| Brake System |
Magura Gustav PRO, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203) |
| Rear Derailleur |
SRAM XX Eagle AXS™ Transmission, 12-Speed, Electronic Shifting System |
| Shifters |
SRAM AXS™ Pod Ultimate Controller |
| Crankset |

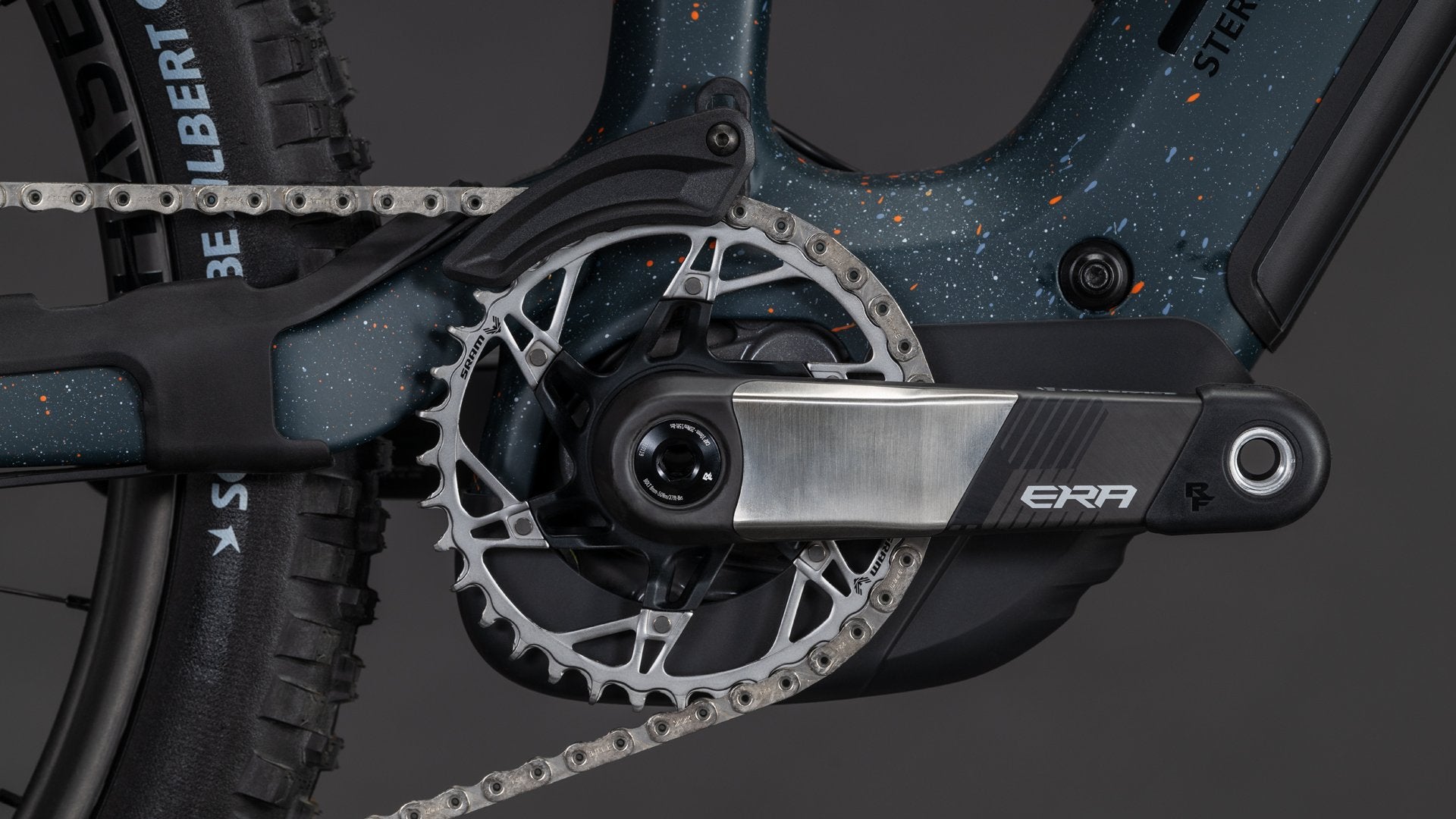

Race Face ERA E-MTB, 36T |
| Cassette |
SRAM XS-1297, 10-52T |
| Chain |
SRAM XX Eagle™ Transmission |
| Chain Guide |
Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate |
Cockpit
| Headset |
ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface |
| Stem |
CUBE Performance Stem E-MTB 35, FPI-Link |
| Handlebar |
Race Face ERA 35 |
| Grips |
ACID Disrupt, Soft Compound |
Wheels
|
Wheelset |
Newmen Phase 30 base/strong, 28/28 Spokes, 15x110mm / 12x148mm, Tubeless Ready |
| Front Tyre |
Schwalbe Magic Mary Trail Pro, Addix Ultrasoft, Kevlar, 2.5 |
| Rear Tyre |
Schwalbe Albert Gravity Pro, Addix Soft, Kevlar, 2.5 |
Finishing Kit
| Saddle |
ACID Venec EMTB Trail 140 |
| Seat Post |
Fox Transfer Factory 31.6mm, Kashima Coated |
Product Information
| Colour |
galaxy´n´orange |
| Weight | 23,8 kg |
| Art. No |
103600 |
