THE
|

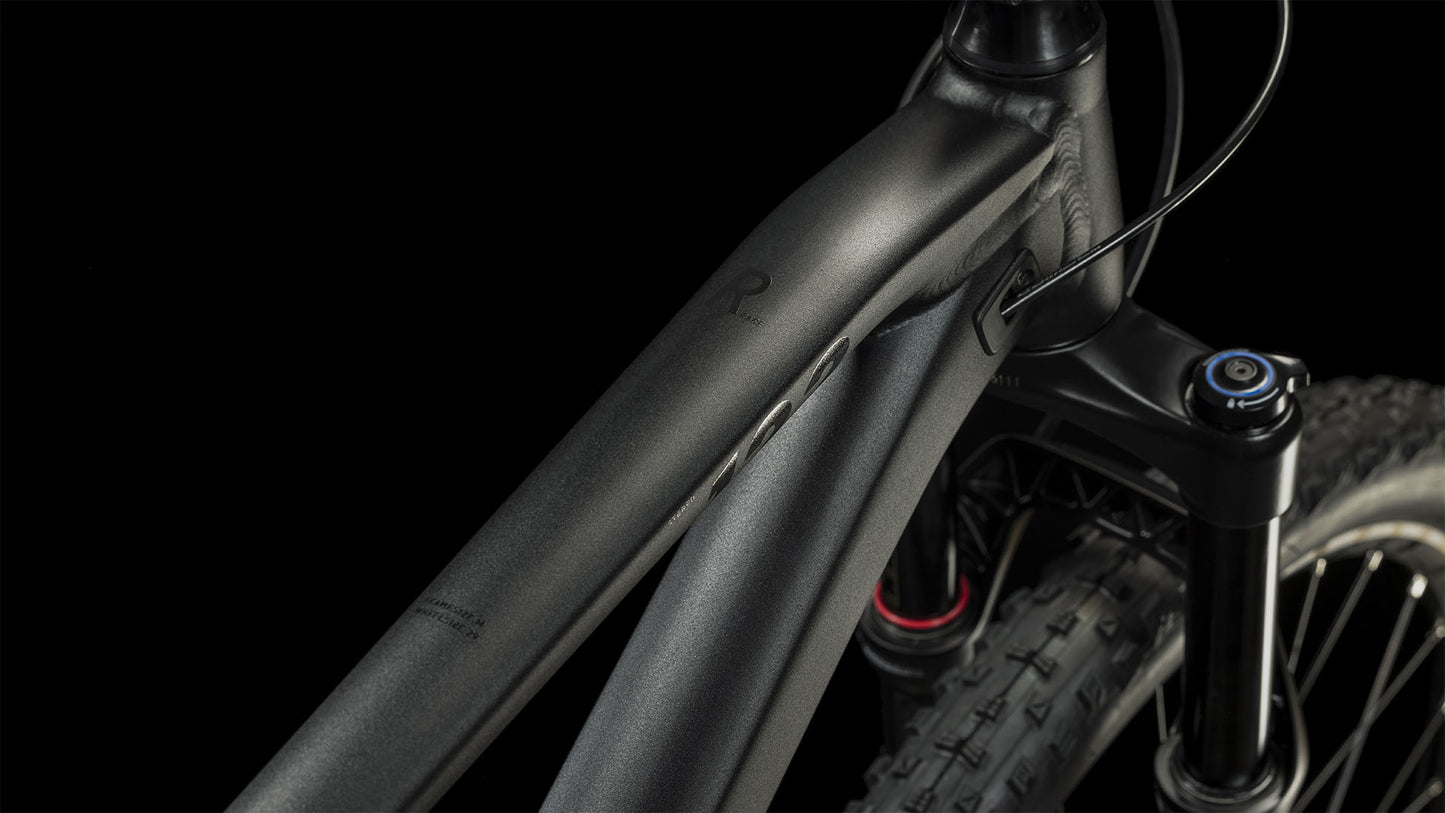

Like all our frames, the Stereo ONE22 is all about providing the best performance at the lowest possible weight. Hydroformed tubing is triple butted to save as much weight as possible without sacrificing strength. The tapered head tube and Boost 148 rear axle ensure steering precision and excellent pedalling efficiency. And it's all built around our Efficient Trail Control kinematics and a 130mm fork, with Agile Trail Geometry putting you firmly in control at all times. There's even a SizeSplit XS option with 27.5in wheels for riders who are shorter in stature, but don't want to compromise on performance. |
|
Frame Material |
Boost | Sizes |
| HPC | 148x12 mm | Size Split |
Frame
| Frame | HPA Advanced Hydroform, ATG, ETC 4-Link, AXH |
| Size | Size Split: 27.5: XS // 29: S, M, L, XL |
Suspension
| Suspension fork | RockShox Recon Gold RL Air, Tapered, 15x110mm, 130mm |
| Shock | RockShox Deluxe Select+, 190x45mm, Rebound Adjust, Lockout |
| Shock Hardware | Top: 40x8mm, Bottom: 22x8mm |
Drivetrain & Brakes
| Brake System | S himano BR-MT500, Hydr. Disc Brake (180/180) |
| Rear Derailleur | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
| Shifters | Shimano Deore SL-M6100, Rapidfire-Plus |
| Bottom Bracket | Shimano BB-MT500PA, 92mm Pressfit |
| Crankset | Shimano FC-MT511, Boost, 30T |
| Cassette | Shimano Deore CS-M6100, 10-51T |
| Chain | Shimano CN-M6100 |
Cockpit
|
Headset |
VP Tapered, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm) |
| Stem | Newmen Evolution 318.4, 31.8mm |
| Handlebar | Newmen Evolution SL 318.25, 760mm |
| Grips | ACID React Pro |
Wheels
|
Wheelset |
Fulcrum Red 77, 28/28 Spokes, 15x110mm / 12x148mm, Tubeless Ready |
| Tyres | Maxxis Forekaster, EXO, Tubeless Ready, 2.35 |
Finishing Kit
|
Saddle |
Natural Fit Venec Lite |
| Seat Post | CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm |
Product Information
|
Colour |
Black anodized |
| Weight | 14,5 kg |
